| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BXRC-65C4001-B-73-SEVERO SE 18B COOL WHITE LED ARRAY |
3,367 | 7.18 |
RFQ |
Datasheet |
Tray | Vero® SE 18 Array | Active | Chip On Board (COB) | White, Cool | 6500K 3-Step MacAdam Ellipse | - | Round | 4961lm (Typ) | 900mA | 85°C | 34.1V | 162 lm/W | 1.8A | 70 | 120° | - | 36.20mm Dia | 3.60mm | 18.40mm Dia |
|
|
BXRC-65C4001-D-73-SEVERO SE 18D COOL WHITE LED ARRAY |
2,229 | 7.18 |
RFQ |
Datasheet |
Tray | Vero® SE 18 Array | Active | Chip On Board (COB) | White, Cool | 6500K 3-Step MacAdam Ellipse | - | Round | 4823lm (Typ) | 1.05A | 85°C | 28.3V | 163 lm/W | 2.1A | 70 | 120° | - | 36.20mm Dia | 3.60mm | 18.40mm Dia |
|
|
BXRC-65E4001-B-73-SEVERO SE 18B COOL WHITE LED ARRAY |
3,046 | 7.18 |
RFQ |
Datasheet |
Tray | Vero® SE 18 Array | Active | Chip On Board (COB) | White, Cool | 6500K 3-Step MacAdam Ellipse | - | Round | 4764lm (Typ) | 900mA | 85°C | 34.1V | 155 lm/W | 1.8A | 80 | 120° | - | 36.20mm Dia | 3.60mm | 18.40mm Dia |
|
|
BXRC-65E4001-D-73-SEVERO SE 18D COOL WHITE LED ARRAY |
2,542 | 7.18 |
RFQ |
Datasheet |
Tray | Vero® SE 18 Array | Active | Chip On Board (COB) | White, Cool | 6500K 3-Step MacAdam Ellipse | - | Round | 4631lm (Typ) | 1.05A | 85°C | 28.3V | 156 lm/W | 2.1A | 80 | 120° | - | 36.20mm Dia | 3.60mm | 18.40mm Dia |
|

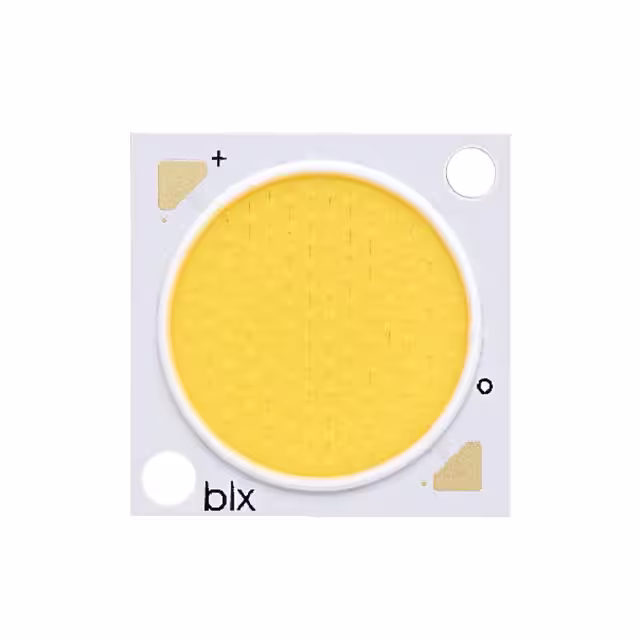

BXRE-30G400C-B-73LED COB GEN7 V18 3000K SQUARE |
2,655 | 7.23 |
RFQ |
Datasheet |
Tray | Gen 7 V18 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 3391lm (Typ) | 900mA | 85°C | 34V | 111 lm/W | 1.8A | 90 | 120° | - | 24.00mm L x 24.00mm W | 1.70mm | 19.20mm Dia |
|
BXRE-17E4000-B-74V18B WARM WHITE LED ARRAY |
2,899 | 7.23 |
RFQ |
Datasheet |
Tube | Gen 7 V18 Array | Active | Chip On Board (COB) | White, Warm | 1750K 4-Step MacAdam Ellipse | - | Square | 2402lm (Typ) | 900mA | 85°C | 34V | 79 lm/W | 1.8A | 80 | 120° | - | 24.00mm L x 24.00mm W | 1.70mm | 19.20mm Dia |
|
|
BXRE-25E4000-B-74V18B WARM WHITE LED ARRAY |
2,529 | 7.23 |
RFQ |
Datasheet |
Tube | Gen 7 V18 Array | Active | Chip On Board (COB) | White, Warm | 2500K 4-Step MacAdam Ellipse | - | Square | 3900lm (Typ) | 900mA | 85°C | 34V | 127 lm/W | 1.8A | 80 | 120° | - | 24.00mm L x 24.00mm W | 1.70mm | 19.20mm Dia |
|
|
BXRE-27E4000-B-72V18B WARM WHITE LED ARRAY |
3,946 | 7.23 |
RFQ |
Datasheet |
Tube | Gen 7 V18 Array | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 4180lm (Typ) | 900mA | 85°C | 34V | 137 lm/W | 1.8A | 80 | 120° | - | 24.00mm L x 24.00mm W | 1.70mm | 19.20mm Dia |
|
|
BXRE-27G4000-B-72V18B WARM WHITE LED ARRAY |
2,145 | 7.23 |
RFQ |
Datasheet |
Tube | Gen 7 V18 Array | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 3483lm (Typ) | 900mA | 85°C | 34V | 114 lm/W | 1.8A | 90 | 120° | - | 24.00mm L x 24.00mm W | 1.70mm | 19.20mm Dia |
|
|
BXRE-27H4000-B-73V18B WARM WHITE LED ARRAY |
2,887 | 7.23 |
RFQ |
Datasheet |
Tube | Gen 7 V18 Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 3048lm (Typ) | 900mA | 85°C | 34V | 100 lm/W | 1.8A | 97 (Typ) | 120° | - | 24.00mm L x 24.00mm W | 1.70mm | 19.20mm Dia |
|
|
BXRE-30E4000-B-72V18B WARM WHITE LED ARRAY |
4,000 | 7.23 |
RFQ |
Datasheet |
Tube | Gen 7 V18 Array | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 4374lm (Typ) | 900mA | 85°C | 34V | 143 lm/W | 1.8A | 80 | 120° | - | 24.00mm L x 24.00mm W | 1.70mm | 19.20mm Dia |
|
|
BXRE-30G4000-B-72V18B WARM WHITE LED ARRAY |
3,338 | 7.23 |
RFQ |
Datasheet |
Tube | Gen 7 V18 Array | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 3614lm (Typ) | 900mA | 85°C | 34V | 118 lm/W | 1.8A | 90 | 120° | - | 24.00mm L x 24.00mm W | 1.70mm | 19.20mm Dia |
|
|
BXRE-30H4000-B-73V18B WARM WHITE LED ARRAY |
2,691 | 7.23 |
RFQ |
Datasheet |
Tube | Gen 7 V18 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 3245lm (Typ) | 900mA | 85°C | 34V | 106 lm/W | 1.8A | 97 (Typ) | 120° | - | 24.00mm L x 24.00mm W | 1.70mm | 19.20mm Dia |
|
|
BXRE-35A4001-B-73V18B WARM WHITE LED ARRAY |
3,440 | 7.23 |
RFQ |
Datasheet |
Tube | Gen 7 V18 Array | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 3612lm (Typ) | 900mA | 85°C | 34V | 118 lm/W | 1.8A | 93 | 120° | - | 24.00mm L x 24.00mm W | 1.70mm | 19.20mm Dia |
|
|
BXRE-35E4000-B-72V18B WARM WHITE LED ARRAY |
3,126 | 7.23 |
RFQ |
Datasheet |
Tube | Gen 7 V18 Array | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 4484lm (Typ) | 900mA | 85°C | 34V | 147 lm/W | 1.8A | 80 | 120° | - | 24.00mm L x 24.00mm W | 1.70mm | 19.20mm Dia |
|
|
BXRE-35G4000-B-72V18B WARM WHITE LED ARRAY |
3,309 | 7.23 |
RFQ |
Datasheet |
Tube | Gen 7 V18 Array | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 3744lm (Typ) | 900mA | 85°C | 34V | 122 lm/W | 1.8A | 90 | 120° | - | 24.00mm L x 24.00mm W | 1.70mm | 19.20mm Dia |
|
|
BXRE-40E4000-B-72V18B NEUTRAL WHITE LED ARRAY |
3,171 | 7.23 |
RFQ |
Datasheet |
Tube | Gen 7 V18 Array | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 4528lm (Typ) | 900mA | 85°C | 34V | 148 lm/W | 1.8A | 80 | 120° | - | 24.00mm L x 24.00mm W | 1.70mm | 19.20mm Dia |
|
|
BXRE-40G4000-B-72V18B NEUTRAL WHITE LED ARRAY |
3,924 | 7.23 |
RFQ |
Datasheet |
Tube | Gen 7 V18 Array | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 3875lm (Typ) | 900mA | 85°C | 34V | 127 lm/W | 1.8A | 90 | 120° | - | 24.00mm L x 24.00mm W | 1.70mm | 19.20mm Dia |
|
|
BXRE-50C4001-B-73V18B COOL WHITE LED ARRAY |
2,109 | 7.23 |
RFQ |
Datasheet |
Tube | Gen 7 V18 Array | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 4963lm (Typ) | 900mA | 85°C | 34V | 162 lm/W | 1.8A | 70 | 120° | - | 24.00mm L x 24.00mm W | 1.70mm | 19.20mm Dia |
|
|
BXRE-50E4001-B-73V18B COOL WHITE LED ARRAY |
2,772 | 7.23 |
RFQ |
Datasheet |
Tube | Gen 7 V18 Array | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 4666lm (Typ) | 900mA | 85°C | 34V | 153 lm/W | 1.8A | 80 | 120° | - | 24.00mm L x 24.00mm W | 1.70mm | 19.20mm Dia |
