| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BXRC-30G4000-C-83-SEVERO SE 18C WARM WHITE LED ARRAY |
2,107 | 16.82 |
RFQ |
Datasheet |
Tray | Gen 8 Vero® SE 18 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 5128lm (Typ) | 1.05A | 25°C | 33.9V | 144 lm/W | 3A | 90 | 120° | - | 36.20mm Dia | 3.60mm | 18.50mm Dia |
|
BXEB-L1120Z-40S4000-C-C3EB GEN 3 LED MODULE, 1120 MM, 40 |
2,812 | 17.68 |
RFQ |
Datasheet |
Bulk | EB Series™ Gen 3 Thrive | Active | LED Module | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 5380lm (Typ) | 960mA | 25°C | 40.6V | 138 lm/W | 1.92A | 98 (Typ) | 120° | - | 1120.00mm L x 24.00mm W | 6.10mm | - |
|

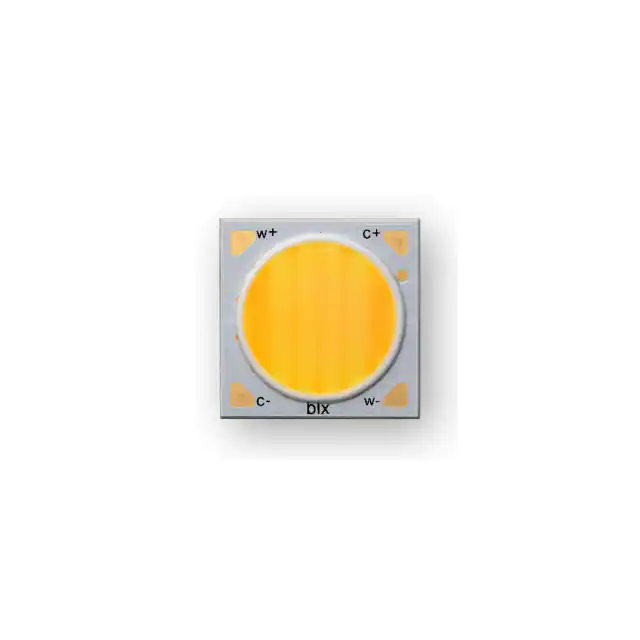

BXRV-TR-2765G-30A0-A-23-S2TW LED ARRAY, LES=15MM, INTEGRAT |
3,113 | 18.64 |
RFQ |
Datasheet |
Tray | Vesta™ Tunable White Gen 2 | Active | Chip On Board (COB) | White, Warm / White, Cool | 2700K 3-Step MacAdam Ellipse, 6500K 3-Step MacAdam Ellipse | - | Square | 2556lm Warm White, 2954lm Cool White | 650mA | 25°C | 34.8V Warm White, 35.5V Cool White | 113 lm/W Warm White, 128 lm/W Cool White | 950mA | 90 | 130° | - | 21.00mm L x 21.00mm W | 1.65mm | 16.30mm Dia |
|

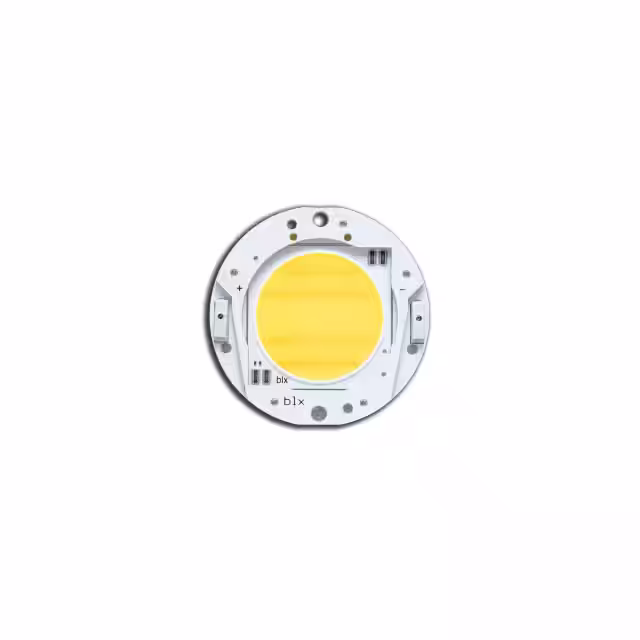

BXRV-DR-1830G-1K00-A-13-S2DW LED ARRAY, LES=29MM, INTEGRAT |
2,746 | 27.19 |
RFQ |
Datasheet |
Tray | Vesta™ SE | Active | Chip On Board (COB) | White, Warm | 1800K 3-Step MacAdam Ellipse, 3000K 3-Step MacAdam Ellipse | - | Round | 12750lm (Typ) | 2.35A | 25°C | 46.5V | 119 lm/W | 2.5A | 90 | 110° | With Holder | 49.20mm Dia | 3.80mm | 28.50mm Dia |
|
BXRH-27G0600-A-73V4 HD WARM WHITE LED ARRAY |
2,534 | 0.99 |
RFQ |
Datasheet |
Tube | Gen 7 V4 HD LED Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 532lm (Typ) | 175mA | 85°C | 35.4V | 86 lm/W | 240mA | 90 | 120° | - | 12.50mm L x 12.50mm W | 1.63mm | 5.20mm Dia |
|
|
BXRH-30E0600-A-73V4 HD WARM WHITE LED ARRAY |
2,225 | 0.99 |
RFQ |
Datasheet |
Tray | Gen 7 V4 HD LED Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 673lm (Typ) | 175mA | 85°C | 35.4V | 109 lm/W | 240mA | 80 | 120° | - | 12.50mm L x 12.50mm W | 1.63mm | 5.20mm Dia |
|
|
BXRH-30G0600-A-73V4 HD WARM WHITE LED ARRAY |
3,525 | 0.99 |
RFQ |
Datasheet |
Tube | Gen 7 V4 HD LED Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 565lm (Typ) | 175mA | 85°C | 35.4V | 91 lm/W | 240mA | 90 | 120° | - | 12.50mm L x 12.50mm W | 1.63mm | 5.20mm Dia |
|
|
BXRH-35G0600-A-73V4 HD WARM WHITE LED ARRAY |
2,948 | 0.99 |
RFQ |
Datasheet |
Tray | Gen 7 V4 HD LED Array | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 579lm (Typ) | 175mA | 85°C | 35.4V | 93 lm/W | 240mA | 90 | 120° | - | 12.50mm L x 12.50mm W | 1.63mm | 5.20mm Dia |
|
|
BXRH-40G0600-A-73V4 HD NEUTRAL WHITE LED ARRAY |
2,164 | 0.99 |
RFQ |
Datasheet |
Tray | Gen 7 V4 HD LED Array | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 592lm (Typ) | 175mA | 85°C | 35.4V | 96 lm/W | 240mA | 90 | 120° | - | 12.50mm L x 12.50mm W | 1.63mm | 5.20mm Dia |
|
|
BXRH-27H0600-A-73V4 HD WARM WHITE LED ARRAY |
3,991 | 1.04 |
RFQ |
Datasheet |
Tray | Gen 7 V4 HD LED Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 471lm (Typ) | 175mA | 85°C | 35.4V | 76 lm/W | 240mA | 97 (Typ) | 120° | - | 12.50mm L x 12.50mm W | 1.63mm | 5.20mm Dia |
|
|
BXRH-30G060C-A-73V4 HD WARM WHITE LED ARRAY |
2,667 | 1.04 |
RFQ |
Datasheet |
Tray | Gen 7 V4 HD LED Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 518lm (Typ) | 175mA | 85°C | 35.4V | 84 lm/W | 240mA | 90 | 120° | - | 12.50mm L x 12.50mm W | 1.63mm | 5.20mm Dia |
|
|
BXRH-35A0601-A-73V4 HD WARM WHITE LED ARRAY |
3,360 | 1.04 |
RFQ |
Datasheet |
Tray | Gen 7 V4 HD LED Array | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 565lm (Typ) | 175mA | 85°C | 35.4V | 91 lm/W | 240mA | 93 (Typ) | 120° | - | 12.50mm L x 12.50mm W | 1.63mm | 5.20mm Dia |
|
BXRV-DR-1827G-1000-G-13DW9G DIM-TO-WARM LED ARRAY |
2,517 | 1.28 |
RFQ |
Datasheet |
Tube | Vesta™ | Active | Chip On Board (COB) | White, Warm | 2250K (1800K ~ 2700K) 3-Step MacAdam Ellipse | - | Rectangle | 438lm (Typ) | 250mA | 25°C | 17V | 103 lm/W | 300mA | 90 | 110° | - | 15.00mm L x 12.00mm W | 1.70mm | 9.30mm Dia |
|
|
BXRV-DR-1827H-1000-G-13DW9G DIM-TO-WARM LED ARRAY |
3,000 | 1.28 |
RFQ |
Datasheet |
Tube | Vesta™ | Active | Chip On Board (COB) | White, Warm | 2250K (1800K ~ 2700K) 3-Step MacAdam Ellipse | - | Rectangle | 353lm (Typ) | 250mA | 25°C | 17V | 83 lm/W | 300mA | 95 | 110° | - | 15.00mm L x 12.00mm W | 1.70mm | 9.30mm Dia |
|
|
BXRV-DR-1830G-1000-G-13DW9G DIM-TO-WARM LED ARRAY |
3,447 | 1.28 |
RFQ |
Datasheet |
Tube | Vesta™ | Active | Chip On Board (COB) | White, Warm | 2400K (1800K ~ 3000K) 3-Step MacAdam Ellipse | - | Rectangle | 489lm (Typ) | 250mA | 25°C | 17V | 115 lm/W | 300mA | 90 | 110° | - | 15.00mm L x 12.00mm W | 1.70mm | 9.30mm Dia |
|
|
BXRV-DR-1830H-1000-G-13DW9G DIM-TO-WARM LED ARRAY |
2,235 | 1.28 |
RFQ |
Datasheet |
Tube | Vesta™ | Active | Chip On Board (COB) | White, Warm | 2400K (1800K ~ 3000K) 3-Step MacAdam Ellipse | - | Rectangle | 4210lm (Typ) | 250mA | 25°C | 17V | 99 lm/W | 300mA | 95 | 110° | - | 15.00mm L x 12.00mm W | 1.70mm | 9.30mm Dia |
|
|
BXRV-DR-1827G-1000-A-13DW9A DIM-TO-WARM LED ARRAY |
3,929 | 1.34 |
RFQ |
Datasheet |
Tube | Vesta™ | Active | Chip On Board (COB) | White, Warm | 2250K (1800K ~ 2700K) 3-Step MacAdam Ellipse | - | Rectangle | 613lm (Typ) | 350mA | 25°C | 17V | 103 lm/W | 420mA | 90 | 110° | - | 15.00mm L x 12.00mm W | 1.70mm | 9.30mm Dia |
|
|
BXRV-DR-1827H-1000-A-13DW9A DIM-TO-WARM LED ARRAY |
3,679 | 1.34 |
RFQ |
Datasheet |
Tube | Vesta™ | Active | Chip On Board (COB) | White, Warm | 2250K (1800K ~ 2700K) 3-Step MacAdam Ellipse | - | Rectangle | 494lm (Typ) | 350mA | 25°C | 17V | 83 lm/W | 420mA | 95 | 110° | - | 15.00mm L x 12.00mm W | 1.70mm | 9.30mm Dia |
|
BXRH-35G1000-B-73V6 HD WARM WHITE LED ARRAY |
2,343 | 1.49 |
RFQ |
Datasheet |
Tray | Gen 7 V6 HD LED Array | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 1201lm (Typ) | 350mA | 85°C | 35.4V | 97 lm/W | 480mA | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 7.00mm Dia |
|
|
BXRH-40G1000-B-73V6 HD NEUTRAL WHITE LED ARRAY |
2,987 | 1.49 |
RFQ |
Datasheet |
Tray | Gen 7 V6 HD LED Array | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 1229lm (Typ) | 350mA | 85°C | 35.4V | 99 lm/W | 480mA | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 7.00mm Dia |
