| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BXRE-35G0800-B-23LED V8 3500K 800LM 90CRI WW |
3,540 | 0.00 |
RFQ |
Datasheet |
Tray | V8 Array | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 598lm (Typ) | 350mA | 85°C | 17.4V | 98 lm/W | 700mA | 90 | 120° | - | 12.50mm L x 12.50mm W | 1.70mm | 8.10mm Dia |
|
|
BXRE-35G1000-B-23LED V10 3500K 1000LM 90CRI WW |
2,066 | 0.00 |
RFQ |
Datasheet |
Tray | V10 Array | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 1068lm (Typ) | 350mA | 25°C | 26.5V | 115 lm/W | 700mA | 90 | 120° | - | 15.80mm L x 15.80mm W | 1.70mm | 9.90mm Dia |
|
|
BXRE-35G2000-C-23LED V13 3500K 2000LM 90CRI WW |
3,711 | 0.00 |
RFQ |
Datasheet |
Tray | V13 Array | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 1868lm (Typ) | 500mA | 25°C | 32.3V | 116 lm/W | 1.05A | 80 | 120° | - | 15.80mm L x 15.80mm W | 1.70mm | 13.40mm Dia |
|
|
BXRE-35G3001-D-23LED V15 3500K 3000LM 90CRI WW |
2,356 | 0.00 |
RFQ |
Datasheet |
Tray | V15 Array | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 2711lm (Typ) | 700mA | 25°C | 36V | 108 lm/W | 1.4A | 90 | 120° | - | 21.00mm L x 21.00mm W | 1.70mm | 15.20mm Dia |
|
|

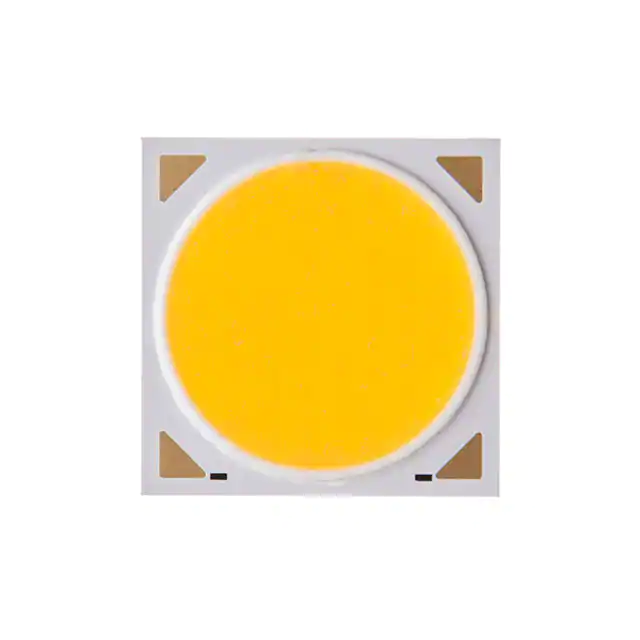

BXRE-35G4000-F-23LED V18 3500K 4000LM 90CRI WW |
2,647 | 0.00 |
RFQ |
Datasheet |
Tray | V18 Array | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 3655lm (Typ) | 1.05A | 25°C | 29.5V | 118 lm/W | 2.1A | 90 | 120° | - | 21.00mm L x 21.00mm W | 1.70mm | 18.60mm Dia |
|

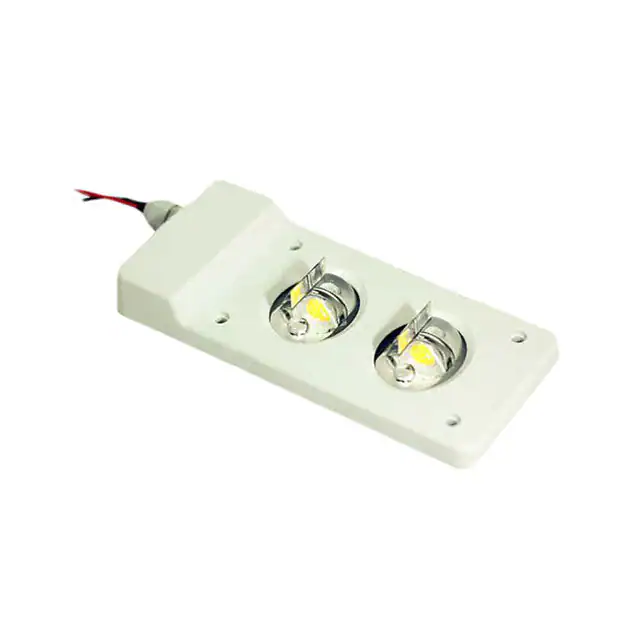

OLMA-40C000-A01A-AA000LED MOD OLM 4000K 70CRI A01A |
3,037 | 0.00 |
RFQ |
Datasheet |
Tray | OLM™ | Obsolete | LED Module | White, Neutral | 4000K | - | Rectangle | 2115lm (Typ) | 350mA | 70°C | 53V | 114 lm/W | 700mA | 70 | - | With Connector | 164.00mm L x 73.00mm W | 27.00mm | - |
|
|
OLMA-50C000-A01A-AA000LED MOD OLM 5000K 70CRI A01A |
2,955 | 0.00 |
RFQ |
Datasheet |
Tray | OLM™ | Obsolete | LED Module | White, Cool | 5000K | - | Rectangle | 2144lm (Typ) | 350mA | 70°C | 53V | 116 lm/W | 700mA | 70 | - | With Connector | 164.00mm L x 73.00mm W | 27.00mm | - |
|
|
OLMA-40C000-A06A-AA000LED MOD OLM 4000K 70CRI A06A |
3,665 | 0.00 |
RFQ |
Datasheet |
Tray | OLM™ | Obsolete | LED Module | White, Neutral | 4000K | - | Rectangle | 2115lm (Typ) | 350mA | 70°C | 53V | 114 lm/W | 700mA | 70 | - | With Connector | 164.00mm L x 73.00mm W | 27.00mm | - |
|
|
OLMA-50C000-A06A-AA000LED MOD OLM 5000K 70CRI A06A |
3,461 | 0.00 |
RFQ |
Datasheet |
Tray | OLM™ | Obsolete | LED Module | White, Cool | 5000K | - | Rectangle | 2144lm (Typ) | 350mA | 70°C | 53V | 116 lm/W | 700mA | 70 | - | With Connector | 164.00mm L x 73.00mm W | 27.00mm | - |
|
|
OLMA-40E000-A01A-AA000LED MOD OLM 4000K 80CRI A01A |
2,310 | 0.00 |
RFQ |
Datasheet |
Tray | OLM™ | Obsolete | LED Module | White, Neutral | 4000K | - | Rectangle | 2022lm (Typ) | 350mA | 70°C | 53V | 109 lm/W | 700mA | 80 | - | With Connector | 164.00mm L x 73.00mm W | 27.00mm | - |
|
|
OLMA-56C000-A01A-AA000LED MOD OLM 5600K 70CRI A01A |
3,166 | 0.00 |
RFQ |
Datasheet |
Tray | OLM™ | Obsolete | LED Module | White, Cool | 5600K | - | Rectangle | 2196lm (Typ) | 350mA | 70°C | 53V | 118 lm/W | 700mA | 70 | - | With Connector | 164.00mm L x 73.00mm W | 27.00mm | - |
|
|
OLMA-40E000-A06A-AA000LED MOD OLM 4000K 80CRI A06A |
2,899 | 0.00 |
RFQ |
Datasheet |
Tray | OLM™ | Obsolete | LED Module | White, Neutral | 4000K | - | Rectangle | 2022lm (Typ) | 350mA | 70°C | 53V | 109 lm/W | 700mA | 80 | - | - | 164.00mm L x 73.00mm W | 27.00mm | - |
|
|
OLMA-56C000-A06A-AA000LED MOD OLM 5600K 70CRI A06A |
2,997 | 0.00 |
RFQ |
Datasheet |
Tray | OLM™ | Obsolete | LED Module | White, Cool | 5600K | - | Rectangle | 2196lm (Typ) | 350mA | 70°C | 53V | 118 lm/W | 700mA | 70 | - | With Connector | 164.00mm L x 73.00mm W | 27.00mm | - |
|
BXRE-27E6500-H-236500 LM WARM WHITE LED ARRAY |
3,850 | 0.00 |
RFQ |
Datasheet |
Tray | V22 Array | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 5492lm (Typ) | 1.4A | 85°C | 34.7V | 113 lm/W | 2.8A | 80 | 120° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.00mm Dia |
|
BXRE-30E6500-H-236500 LM WARM WHITE LED ARRAY |
3,888 | 0.00 |
RFQ |
Datasheet |
Tray | V22 Array | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 5830lm (Typ) | 1.4A | 85°C | 34.7V | 120 lm/W | 2.8A | 80 | 120° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.00mm Dia |
|
BXRE-40E6500-H-236500 LM NEUTRAL WHITE LED ARRAY |
3,892 | 0.00 |
RFQ |
Datasheet |
Tube | V22 Array | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 6229lm (Typ) | 1.4A | 85°C | 34.7V | 128 lm/W | 2.8A | 80 | 120° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.00mm Dia |
|

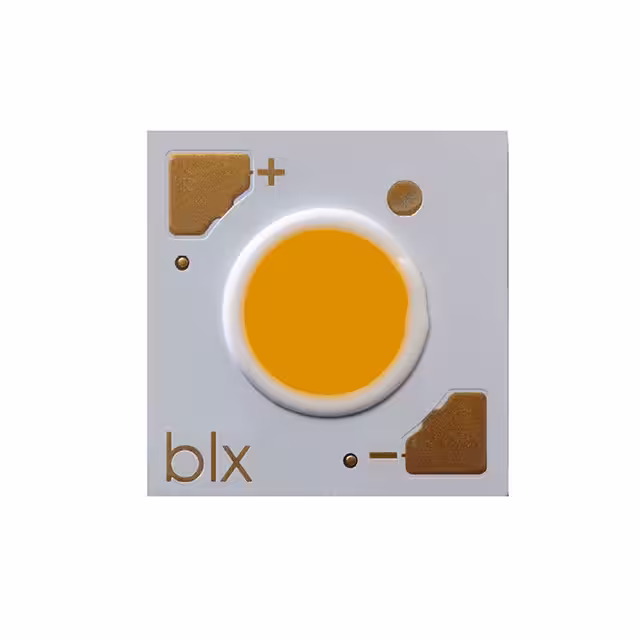

BXRH-27E1000-C-231000 LM WARM WHITE LED ARRAY |
3,007 | 0.00 |
RFQ |
Datasheet |
Tube | H6 Array | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1304lm (Typ) | 750mA | 25°C | 18.3V | 95 lm/W | 1.05A | 80 | 112° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.60mm Dia |
|
|
BXRH-30E1000-C-231000 LM WARM WHITE LED ARRAY |
3,854 | 0.00 |
RFQ |
Datasheet |
Tube | H6 Array | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1373lm (Typ) | 750mA | 25°C | 18.3V | 100 lm/W | 1.05A | 80 | 112° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.60mm Dia |
|
|
BXRH-30E3000-D-233000 LM WARM WHITE LED ARRAY |
2,246 | 0.00 |
RFQ |
Datasheet |
Tube | H9 Array | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 3660lm (Typ) | 1A | 25°C | 36.6V | 100 lm/W | 1.4A | 80 | 112° | - | 15.85mm L x 15.85mm W | 1.70mm | 9.50mm Dia |
|
|
BXRH-30G3000-D-233000 LM WARM WHITE LED ARRAY |
3,668 | 0.00 |
RFQ |
Datasheet |
Tube | H9 Array | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 3074lm (Typ) | 1A | 25°C | 36.6V | 84 lm/W | 1.4A | 90 | 112° | - | 15.85mm L x 15.85mm W | 1.70mm | 9.50mm Dia |
