| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BXRA-35E1200-B-00LED ES RECT ARRAY WHITE 1520 LM |
2,100 | 0.00 |
RFQ |
Datasheet |
Tube | ES | Obsolete | Chip On Board (COB) | White, Warm | 3500K | - | Rectangle | 1595lm (Typ) | 500mA | 25°C | 29.6V | 108 lm/W | 750mA | 80 | 120° | - | 22.80mm L x 25.80mm W | 3.00mm | - |
|
|
BXRA-27G1200-B-00LED ES RECT ARRAY WHITE 1130 LM |
3,612 | 0.00 |
RFQ |
Datasheet |
Tube | ES | Obsolete | Chip On Board (COB) | White, Warm | 2700K | - | Rectangle | 1190lm (Typ) | 500mA | 25°C | 29.6V | 80 lm/W | 750mA | 90 | 120° | - | 22.80mm L x 25.80mm W | 3.00mm | - |
|
|
BXRA-30G1200-B-00LED ES RECT ARRAY WHITE 1240 LM |
3,759 | 0.00 |
RFQ |
Datasheet |
Tube | ES | Obsolete | Chip On Board (COB) | White, Warm | 3000K | - | Rectangle | 1300lm (Typ) | 500mA | 25°C | 29.6V | 88 lm/W | 750mA | 90 | 120° | - | 22.80mm L x 25.80mm W | 3.00mm | - |
|
|
BXRA-40E1350-B-00LED ES RECT ARRAY WHITE 1610 LM |
3,959 | 0.00 |
RFQ |
Datasheet |
Tube | ES | Obsolete | Chip On Board (COB) | White, Neutral | 4000K | - | Rectangle | 1690lm (Typ) | 500mA | 25°C | 29.6V | 114 lm/W | 750mA | 80 | 120° | - | 22.80mm L x 25.80mm W | 3.00mm | - |
|
|
BXRA-50C1600-B-00LED ES RECT ARRAY WHITE 1830 LM |
2,520 | 0.00 |
RFQ |
Datasheet |
Tube | ES | Obsolete | Chip On Board (COB) | White, Cool | 5000K 7-Step MacAdam Ellipse | - | Rectangle | 1920lm (Typ) | 500mA | 25°C | 29.6V | 130 lm/W | 750mA | 70 | 120° | - | 22.80mm L x 25.80mm W | 3.00mm | - |
|
|
BXRA-56C1600-B-00LED ES RECT ARRAY WHITE 1830 LM |
2,721 | 0.00 |
RFQ |
Datasheet |
Tube | ES | Obsolete | Chip On Board (COB) | White, Cool | 5600K 7-Step MacAdam Ellipse | - | Rectangle | 1930lm (Typ) | 500mA | 25°C | 29.3V | 132 lm/W | 750mA | 70 | 120° | - | 22.80mm L x 25.80mm W | 3.00mm | - |
|
|
BXRA-27E2000-B-00LED ES RECT ARRAY WHITE 2200 LM |
2,045 | 0.00 |
RFQ |
Datasheet |
Tube | ES | Obsolete | Chip On Board (COB) | White, Warm | 2700K | - | Rectangle | 2260lm (Typ) | 700mA | 25°C | 37V | 87 lm/W | 1A | 80 | 120° | - | 22.80mm L x 25.80mm W | 3.00mm | - |
|
|
BXRA-30E2000-B-00LED ES RECT ARRAY WHITE 2340 LM |
2,062 | 0.00 |
RFQ |
Datasheet |
Tube | ES | Obsolete | Chip On Board (COB) | White, Warm | 3000K | - | Rectangle | 2400lm (Typ) | 700mA | 25°C | 37V | 93 lm/W | 750mA | 80 | 120° | - | 22.80mm L x 25.80mm W | 3.00mm | - |
|
|
BXRA-35E2000-B-00LED ES RECT ARRAY WHITE 2530 LM |
2,177 | 0.00 |
RFQ |
Datasheet |
Tube | ES | Obsolete | Chip On Board (COB) | White, Warm | 3500K | - | Rectangle | 2550lm (Typ) | 700mA | 25°C | 37V | 98 lm/W | 1A | 80 | 120° | - | 22.80mm L x 25.80mm W | 3.00mm | - |
|
|
BXRA-27G2000-B-00LED ES RECT ARRAY WHITE 1920 LM |
2,699 | 0.00 |
RFQ |
Datasheet |
Tube | ES | Obsolete | Chip On Board (COB) | White, Warm | 2700K | - | Rectangle | 1975lm (Typ) | 700mA | 25°C | 37V | 76 lm/W | 1A | 90 | 120° | - | 22.80mm L x 25.80mm W | 3.00mm | - |
|
BXRA-27G0740-A-00LED COB ES STAR WARM WHT STARBRD |
2,965 | 0.00 |
RFQ |
Datasheet |
Tube | ES STAR | Obsolete | Chip On Board (COB) | White, Warm | 2700K | - | Starboard | 720lm (Typ) | 350mA | 25°C | 27.3V | 75 lm/W | 500mA | 90 | 120° | - | 19.90mm L x 19.90mm W | 3.00mm | - |
|

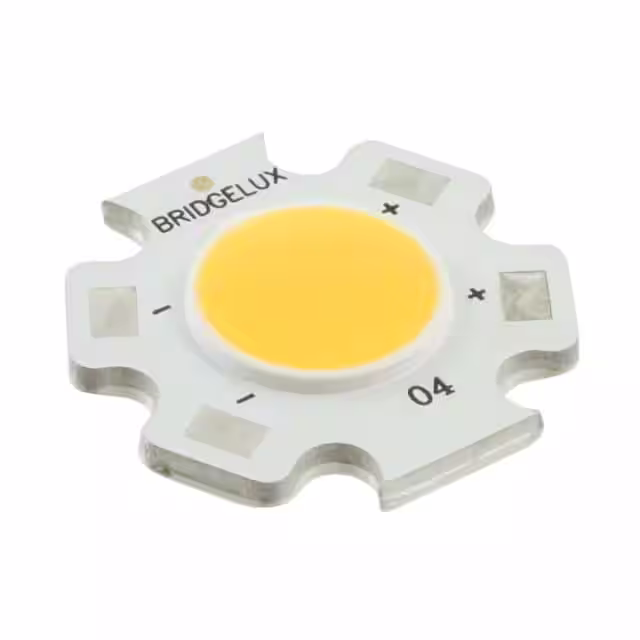

BXRA-30G0740-A-00LED COB ES STAR WARM WHT STARBRD |
2,725 | 0.00 |
RFQ |
Datasheet |
Tube | ES STAR | Obsolete | Chip On Board (COB) | White, Warm | 3000K | - | Starboard | 780lm (Typ) | 350mA | 25°C | 27.3V | 82 lm/W | 350mA | 90 | 120° | - | 19.90mm L x 19.90mm W | 3.00mm | - |
|
BXRA-40E0810-A-00LED COB ES STAR NEU WHT STARBRD |
2,732 | 0.00 |
RFQ |
Datasheet |
Tube | ES STAR | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 7-Step MacAdam Ellipse | - | Starboard | 1030lm (Typ) | 350mA | 25°C | 27.3V | 108 lm/W | 350mA | 80 | 120° | - | 19.90mm L x 19.90mm W | 3.00mm | - |
|
BXRA-27E0540-A-00LED COB ES STAR WARM WHT STARBRD |
3,485 | 0.00 |
RFQ |
Datasheet |
Tube | ES STAR | Obsolete | Chip On Board (COB) | White, Warm | 2700K | - | Starboard | 560lm (Typ) | 350mA | 25°C | 18.8V | 85 lm/W | 500mA | 80 | 120° | - | 19.90mm L x 19.90mm W | 3.00mm | 10.90mm Dia |
|
BXRA-30E0540-A-00LED COB ES STAR WARM WHT STARBRD |
3,227 | 0.00 |
RFQ |
Datasheet |
Tube | ES STAR | Obsolete | Chip On Board (COB) | White, Warm | 3000K | - | Starboard | 630lm (Typ) | 350mA | 25°C | 18.2V | 99 lm/W | 700mA | 80 | 120° | - | 19.90mm L x 19.90mm W | 3.00mm | - |
|
BXRA-27G0540-A-00LED COB ES STAR WARM WHT STARBRD |
3,680 | 0.00 |
RFQ |
Datasheet |
Tube | ES STAR | Obsolete | Chip On Board (COB) | White, Warm | 2700K | - | Starboard | 480lm (Typ) | 350mA | 25°C | 18.2V | 75 lm/W | 500mA | 90 | 120° | - | 19.90mm L x 19.90mm W | 3.00mm | - |
|
BXRA-30G0540-A-00LED COB ES STAR WARM WHT STARBRD |
2,719 | 0.00 |
RFQ |
Datasheet |
Tube | ES STAR | Obsolete | Chip On Board (COB) | White, Warm | 3000K | - | Starboard | 530lm (Typ) | 350mA | 25°C | 18.2V | 83 lm/W | 350mA | 90 | 120° | - | 19.90mm L x 19.90mm W | 3.00mm | - |
|

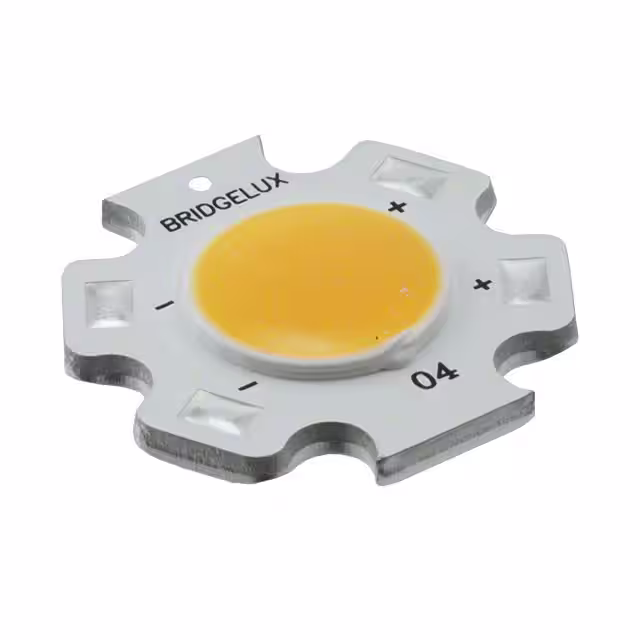

BXRA-27E0740-A-00LED COB ES STAR WARM WHT STARBRD |
2,553 | 0.00 |
RFQ |
Datasheet |
Tube | ES STAR | Obsolete | Chip On Board (COB) | White, Warm | 2700K | - | Starboard | 810lm (Typ) | 350mA | 25°C | 28.1V | 82 lm/W | 500mA | 80 | 120° | - | 19.90mm L x 19.90mm W | 3.00mm | 10.90mm Dia |
|

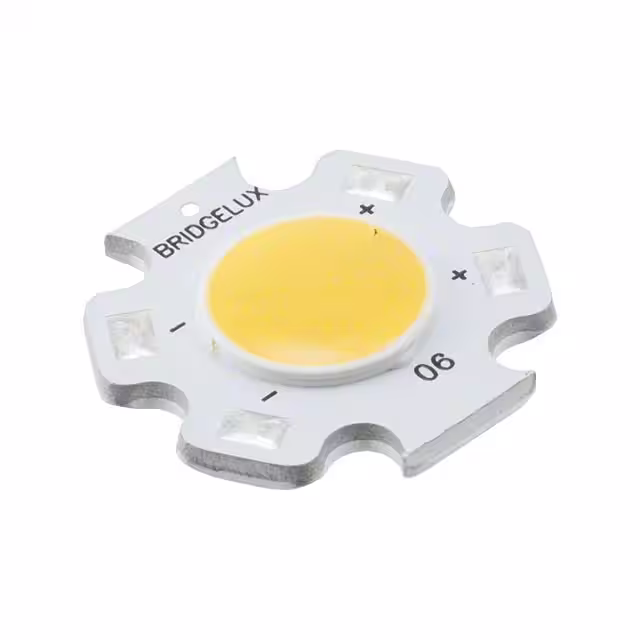

BXRA-30E0740-A-00LED COB ES STAR WARM WHT STARBRD |
2,611 | 0.00 |
RFQ |
Datasheet |
Tube | ES STAR | Obsolete | Chip On Board (COB) | White, Warm | 3000K | - | Starboard | 920lm (Typ) | 350mA | 25°C | 27.3V | 96 lm/W | 700mA | 80 | 120° | - | 19.90mm L x 19.90mm W | 3.00mm | - |
|
BXRA-56C0700-A-00LED COB ES STAR COOL WHT STARBRD |
3,397 | 0.00 |
RFQ |
Datasheet |
Tube | ES STAR | Obsolete | Chip On Board (COB) | White, Cool | 5600K 7-Step MacAdam Ellipse | - | Starboard | 780lm (Typ) | 350mA | 25°C | 18.8V | 118 lm/W | 500mA | 70 | 120° | - | 19.90mm L x 19.90mm W | 3.00mm | - |
