| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Color | Configuration | LensColor | LensTransparency | MillicandelaRating | LensStyle | LensSize | Voltage-Forward(Vf)(Typ) | Current-Test | ViewingAngle | MountingType | Wavelength-Dominant | Wavelength-Peak | Features | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASMT-YTD2-0BB02LED RGB CLEAR 6PLCC SMD |
18,461 | 2.04 |
RFQ |
Datasheet |
6-SMD, J-Lead | Tape & Reel (TR),Cut Tape (CT) | - | Active | Red, Green, Blue (RGB) | Independent | Colorless | Clear | 745mcd Red, 1600mcd Green, 380mcd Blue | Square with Flat Top | 2.30mm | 2.1V Red, 3.2V Green, 3.2V Blue | 20mA Red, 20mA Green, 20mA Blue | 120° | Surface Mount | 622nm Red, 530nm Green, 470nm Blue | 629nm Red, 521nm Green, 464nm Blue | - | 3.00mm L x 2.80mm W |
|

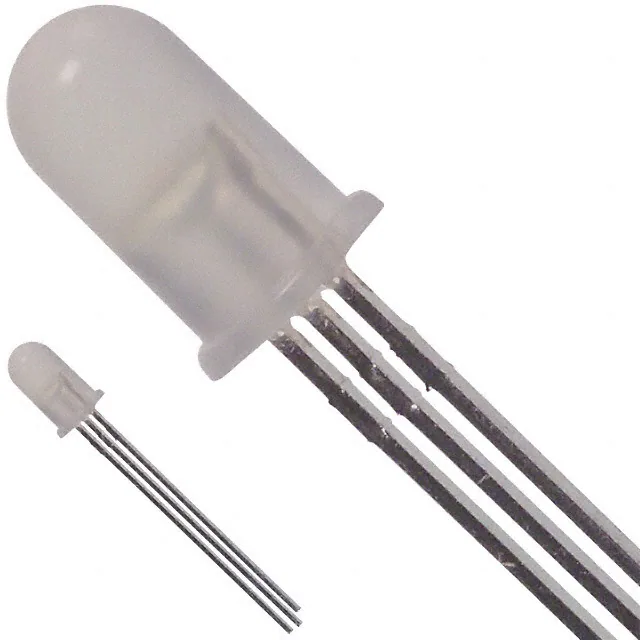

HLMP-4000LED GRN/RED DIFFUSED T-1 3/4 T/H |
3,514 | 0.79 |
RFQ |
Datasheet |
Radial - 3 Leads | Bulk | - | Active | Green, Red | Common Cathode | White | Diffused | 4.2mcd Green, 2.1mcd Red | Round with Domed Top | 5mm, T-1 3/4 | 2.2V Green, 1.9V Red | 10mA Green, 10mA Red | 65° | Through Hole | 570nm Green, 626nm Red | 568nm Green, 635nm Red | - | - |
|
HSMQ-C191LED GREEN DIFFUSED CHIP SMD |
39,386 | 1.17 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Green | Standard | White | Diffused | 145mcd | Rectangle with Flat Top | 1.00mm x 0.80mm | 3.4V | 20mA | 140° | Surface Mount | 527nm | 520nm | - | 1.60mm L x 0.80mm W |
|
HSMQ-C150LED GREEN DIFFUSED CHIP SMD |
43,366 | 1.17 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Green | Standard | White | Diffused | 145mcd | Rectangle with Flat Top | 2.00mm x 1.60mm | 3.4V | 20mA | 140° | Surface Mount | 527nm | 520nm | - | 3.20mm L x 1.60mm W |
|
HSMQ-C170LED GREEN DIFFUSED CHIP SMD |
29,862 | 1.17 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Green | Standard | White | Diffused | 145mcd | Rectangle with Flat Top | 1.40mm x 1.25mm | 3.4V | 20mA | 140° | Surface Mount | 527nm | 520nm | - | 2.00mm L x 1.25mm W |
|
|
HSMQ-C190LED GREEN DIFFUSED CHIP SMD |
29,150 | 1.22 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Green | Standard | White | Diffused | 145mcd | Rectangle with Flat Top | 1.00mm x 0.80mm | 3.4V | 20mA | 140° | Surface Mount | 527nm | 520nm | - | 1.60mm L x 0.80mm W |
|
ALMD-CB1E-VW002LED BLUE ROUND 4SMD |
36,988 | 1.17 |
RFQ |
Datasheet |
4-SMD, Gull Wing | Tape & Reel (TR),Cut Tape (CT) | - | Active | Blue | Standard | Blue | - | 5700mcd | Round with Domed Top | - | 3.2V | 20mA | 15° | Surface Mount | 470nm | 464nm | - | 4.20mm L x 4.20mm W |
|
HSMN-A100-P00J1LED BLUE CLEAR 2PLCC SMD |
34,568 | 1.31 |
RFQ |
Datasheet |
2-PLCC | Tape & Reel (TR),Cut Tape (CT) | - | Active | Blue | Standard | Colorless | Clear | 70mcd | Round with Flat Top | 2.20mm Dia | 3.4V | 20mA | 120° | Surface Mount | 470nm | 468nm | - | 3.20mm L x 2.80mm W |
|

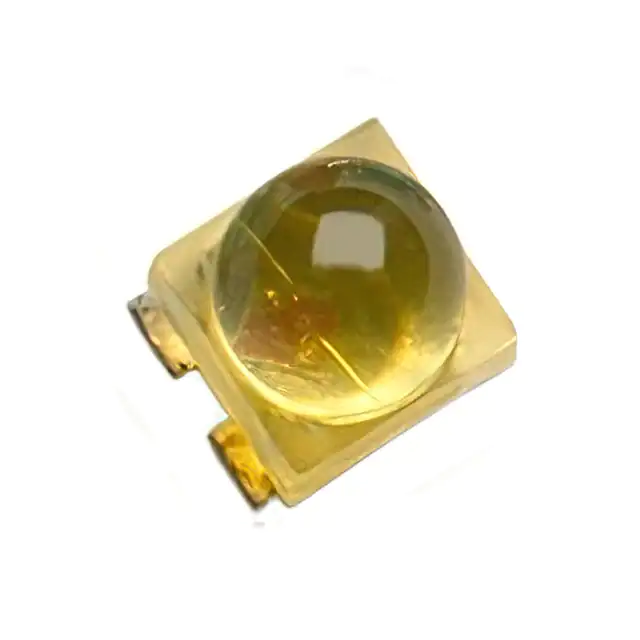

ALMD-EL3D-WY002LED AMBER ROUND CLEAR SMD |
68,583 | 1.27 |
RFQ |
Datasheet |
4-SMD, Gull Wing | Tape & Reel (TR),Cut Tape (CT) | - | Active | Amber | - | - | Clear | 8750mcd | Round with Domed Top | - | 2.1V | 20mA | 30° | Surface Mount | 590nm | 594nm | - | 4.20mm L x 4.20mm W |
|
|
HSMM-A101-R00J1LED GREEN CLEAR 2PLCC SMD |
61,356 | 1.35 |
RFQ |
Datasheet |
2-PLCC | Tape & Reel (TR),Cut Tape (CT) | - | Active | Green | Standard | Colorless | Clear | 200mcd | Round with Flat Top | 2.20mm Dia | 3.4V | 20mA | 120° | Surface Mount | 525nm | 523nm | - | 3.20mm L x 2.80mm W |
|
HLMP-CM3G-Y10DDLED GREEN CLEAR T-1 3/4 T/H |
27,179 | 1.36 |
RFQ |
Datasheet |
Radial | Cut Tape (CT),Tape & Box (TB) | - | Active | Green | Standard | Colorless | Clear | 15150mcd | Round with Domed Top | 5mm, T-1 3/4 | 3.1V | 20mA | 30° | Through Hole | 525nm | 517nm | - | - |
|

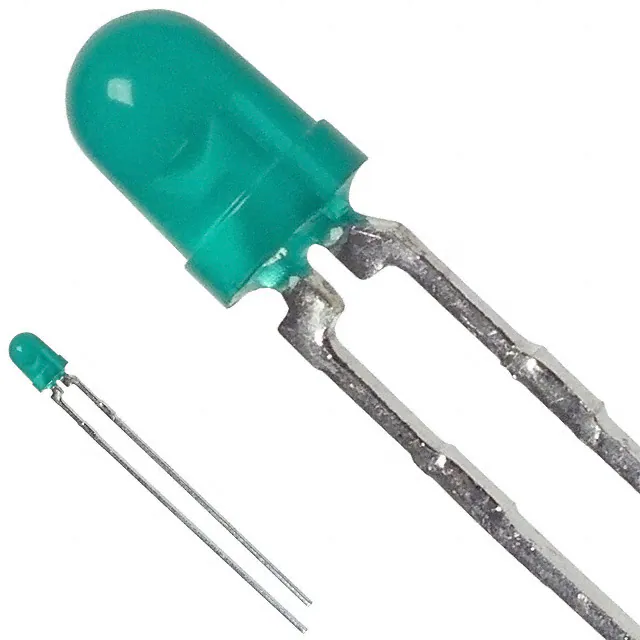

HLMP-1503LED GREEN DIFFUSED T-1 T/H |
64,111 | 0.46 |
RFQ |
Datasheet |
Radial | Bulk | - | Active | Green | Standard | Green | Diffused | 1mcd | Round with Domed Top | 3mm, T-1 | 2.1V | 10mA | 60° | Through Hole | 569nm | 565nm | - | - |
|
HLMP-3507LED GREEN DIFFUSED T-1 3/4 T/H |
54,939 | 0.46 |
RFQ |
Datasheet |
Radial | Bulk | - | Active | Green | Standard | Green | Diffused | 4.2mcd | Round with Domed Top | 5mm, T-1 3/4 | 2.1V | 10mA | 60° | Through Hole | 569nm | 565nm | - | - |
|
HLMP-3301LED RED DIFFUSED T-1 3/4 T/H |
53,750 | 0.46 |
RFQ |
Datasheet |
Radial | Bulk | - | Active | Red | Standard | Red | Diffused | 5.4mcd | Round with Domed Top | 5mm, T-1 3/4 | 1.9V | 10mA | 60° | Through Hole | 626nm | 635nm | - | - |
|
HLMT-PL00-P0W11LED AMBER CLEAR FLAT TOP SMD |
25,396 | 1.31 |
RFQ |
Datasheet |
2-SMD, Gull Wing | Tape & Reel (TR),Cut Tape (CT) | SunPower | Active | Amber | Standard | Colorless | Clear | 150mcd | Round with Flat Top | 1.91mm Dia | 2V | 20mA | 125° | Surface Mount | 590nm | 592nm | - | 1.99mm L x 2.21mm W |
|
ALMD-EG3D-WY002LED RED ROUND CLEAR SMD |
2,345 | 1.09 |
RFQ |
Datasheet |
4-SMD, Gull Wing | Tape & Reel (TR),Cut Tape (CT) | - | Active | Red | Standard | Red | Clear | 3350mcd | Round with Domed Top | - | 2.1V | 20mA | 30° | Surface Mount | 626nm | 634nm | - | 4.20mm L x 4.20mm W |
|

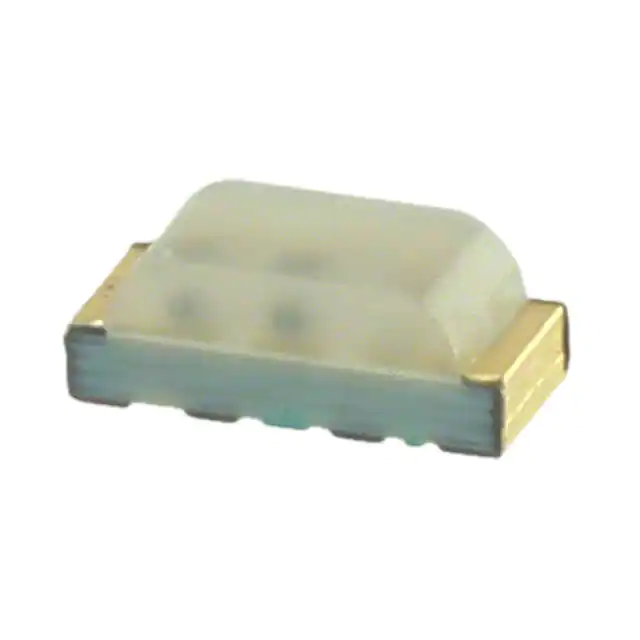

HSMF-C113LED RGB DIFFUSED CHIP SMD R/A |
108,347 | 1.40 |
RFQ |
Datasheet |
4-SMD, No Lead | Tape & Reel (TR),Cut Tape (CT) | - | Active | Red, Green, Blue (RGB) | Common Anode | White | Diffused | 80mcd Red, 50mcd Green, 60mcd Blue | Rectangle with Domed Top | 2.10mm x 1.00mm | 1.9V Red, 2V Green, 3.4V Blue | 20mA Red, 20mA Green, 20mA Blue | 120° Red, 125° Green, 125° Blue | Surface Mount, Right Angle | 626nm Red, 572nm Green, 470nm Blue | 637nm Red, 570nm Green, 468nm Blue | - | 2.50mm L x 1.00mm W |
|
|
ASMT-YTD7-0AA02LED RGB DIFFUSED 6PLCC SMD |
46,340 | 1.40 |
RFQ |
Datasheet |
6-SMD, J-Lead | Tape & Reel (TR),Cut Tape (CT) | - | Active | Red, Green, Blue (RGB) | Independent | - | Diffused | 650mcd Red, 1900mcd Green, 384mcd Blue | Square with Flat Top | 2.30mm | 2.1V Red, 3.1V Green, 3.1V Blue | 20mA Red, 20mA Green, 20mA Blue | 120° | Surface Mount | 623nm Red, 529nm Green, 469nm Blue | 630nm Red, 522nm Green, 465nm Blue | - | 3.00mm L x 2.80mm W |
|
ASMD-CWG7-NX7J23014 DFN 0.1W WHITE WSURFACE NIM |
17,932 | 0.33 |
RFQ |
Datasheet |
1206 (3014 Metric) | Tape & Reel (TR),Cut Tape (CT) | ASMD-CWG7 | Active | White, Warm | - | - | - | 2700mcd | Rectangle with Flat Top | 2.50mm x 1.15mm | 2.8V | 20mA | 120° | Surface Mount | - | - | - | 3.00mm L x 1.40mm W |
|
HLMP-CM1A-560DDLED GREEN CLEAR RADIAL LEAD T/H |
9,572 | 1.50 |
RFQ |
Datasheet |
Radial | Cut Tape (CT),Tape & Box (TB) | - | Active | Green | Standard | Colorless | Clear | 60500mcd | Round with Domed Top | 5mm, T-1 3/4 | 3.2V | 20mA | 15° | Through Hole | 525nm | 516nm | - | - |
