| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Color | Configuration | LensColor | LensTransparency | MillicandelaRating | LensStyle | LensSize | Voltage-Forward(Vf)(Typ) | Current-Test | ViewingAngle | MountingType | Wavelength-Dominant | Wavelength-Peak | Features | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SM1204BCLED GREEN/RED CLEAR 1204 SMD R/A |
73,377 | 0.60 |
RFQ |
Datasheet |
1204 (3210 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Green, Red | Common Anode | Colorless | Clear | 18mcd Green, 7.2mcd Red | Rectangle with Domed Top | 2.00mm x 1.00mm | 2V Green, 2V Red | 20mA Green, 20mA Red | 130° | Surface Mount, Right Angle | 570nm Green, 628nm Red | 568nm Green, 640nm Red | - | 3.20mm L x 1.50mm W |
|

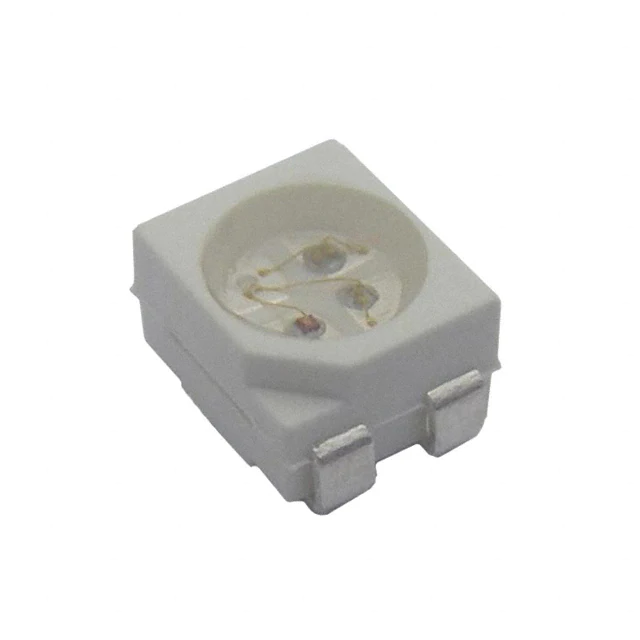

SMTL4-SBCLED GREEN/RED CLEAR 4PLCC SMD |
25,565 | 1.18 |
RFQ |
Datasheet |
4-PLCC | Tape & Reel (TR),Cut Tape (CT) | - | Active | Green, Red | Independent | Colorless | Clear | 115mcd Green, 180mcd Red | Round with Flat Top | 2.40mm Dia | 1.9V Green, 1.9V Red | 20mA Green, 20mA Red | 120° | Surface Mount | 574nm Green, 631nm Red | - | - | 3.20mm L x 2.80mm W |
|
SMTL4-SBC-YGLED GREEN/YELLOW CLEAR 4PLCC SMD |
57,279 | 1.19 |
RFQ |
Datasheet |
4-PLCC | Tape & Reel (TR),Cut Tape (CT) | - | Active | Green, Yellow | Independent | Colorless | Clear | 115mcd Green, 180mcd Yellow | Round with Flat Top | 2.40mm Dia | 1.9V Green, 1.9V Yellow | 20mA Green, 20mA Yellow | 120° | Surface Mount | 574nm Green, 591nm Yellow | - | - | 3.20mm L x 2.80mm W |
|
SM1206NHC-ILLED RED CLEAR 1206 SMD |
103,476 | 0.57 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Red | Standard | Colorless | Clear | 1250mcd | Round with Flat Top | 1.10mm Dia | 2.1V | 20mA | 30° | Surface Mount | 625nm | 630nm | - | 3.20mm L x 1.60mm W |
|
SM0402GCLED GREEN CLEAR 0402 SMD |
133,313 | 0.62 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Green | - | Colorless | Clear | 28.5mcd | Rectangle with Flat Top | 0.50mm x 1.00mm | 1.9V | 20mA | 130° | Surface Mount | 572nm | 575nm | - | 1.00mm L x 0.50mm W |
|
SM0603GCLLED GREEN CLEAR 0603 SMD |
129,302 | 0.64 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Green | Standard | Colorless | Clear | 3.6mcd | Rectangle with Flat Top | 1.00mm x 0.80mm | 1.9V | 2mA | 130° | Surface Mount | 574nm | 575nm | - | 1.60mm L x 0.80mm W |
.JPG)
|
SM0805GCLLED GREEN CLEAR 0805 SMD |
26,798 | 0.64 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Green | Standard | Colorless | Clear | 3.6mcd | Rectangle with Flat Top | 1.40mm x 1.20mm | 1.9V | 2mA | 130° | Surface Mount | 574nm | 575nm | - | 2.00mm L x 1.20mm W |
|
SM1210BC-SR/HGLED GREEN/RED CLEAR 1210 SMD |
57,764 | 0.70 |
RFQ |
Datasheet |
1210 (3225 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Green, Red | Independent | Colorless | Clear | 10mcd Green, 28mcd Red | Rectangle with Flat Top | 2.70mm x 2.00mm | 2V Green, 1.9V Red | 20mA Green, 20mA Red | 130° | Surface Mount | 565nm Green, 640nm Red | 563nm Green, 660nm Red | - | 3.20mm L x 2.70mm W |
|
|
SM1204BC-A/GLED AMBER/GREEN CLR 1204 SMD R/A |
32,688 | 0.71 |
RFQ |
Datasheet |
1204 (3210 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Amber, Green | Common Anode | Colorless | Clear | 72mcd Amber, 28.5mcd Green | Rectangle with Domed Top | 2.00mm x 1.00mm | 2.1V Amber, 2.1V Green | 20mA Amber, 20mA Green | 130° | Surface Mount, Right Angle | 592nm Amber, 574nm Green | 593nm Amber, 575nm Green | - | 3.20mm L x 1.50mm W |
|
SM1204BC-R/GLED GREEN/RED CLEAR 1204 SMD R/A |
7,509 | 0.73 |
RFQ |
Datasheet |
2-SMD, No Lead | Tape & Reel (TR),Cut Tape (CT) | - | Active | Green, Red | Common Anode | Colorless | Clear | 72mcd Green, 115mcd Red | Rectangle with Domed Top | 2.00mm x 1.00mm | 2.2V Green, 2.1V Red | 20mA Green, 20mA Red | 130° | Surface Mount, Right Angle | 574nm Green, 631nm Red | 575nm Green, 645nm Red | - | 3.20mm L x 1.50mm W |
|
SM0603GCLED GREEN CLEAR 0603 SMD |
156,101 | 0.98 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Green | Standard | Colorless | Clear | 15mcd | Rectangle with Flat Top | 1.00mm x 0.80mm | 2.1V | 20mA | 130° | Surface Mount | 565nm | 568nm | - | 1.60mm L x 0.80mm W |
|
SM1206NBWC-ILLED BLUE CLEAR 1206 SMD |
44,747 | 1.04 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Blue | Standard | Colorless | Clear | 950mcd | Round with Flat Top | 1.10mm Dia | 3.1V | 20mA | 30° | Surface Mount | 470nm | 468nm | - | 3.20mm L x 1.60mm W |
|
|
SMTL4-BCLED GREEN/RED CLEAR 4PLCC SMD |
25,073 | 1.04 |
RFQ |
Datasheet |
4-PLCC | Tape & Reel (TR),Cut Tape (CT) | - | Active | Green, Red | Independent | Colorless | Clear | 40mcd Green, 36mcd Red | Round with Flat Top | 2.40mm Dia | 1.9V Green, 1.85V Red | 20mA Green, 20mA Red | 120° | Surface Mount | 570nm Green, 640nm Red | - | - | 3.20mm L x 2.80mm W |
|
|
SM1204BC-R/BLED BLUE/RED CLEAR 1204 SMD R/A |
42,665 | 1.41 |
RFQ |
Datasheet |
1204 (3210 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Blue, Red | Common Anode | Colorless | Clear | 115mcd Blue, 115mcd Red | Rectangle with Domed Top | 2.00mm x 1.00mm | 2.9V Blue, 2.1V Red | 20mA Blue, 20mA Red | 130° | Surface Mount, Right Angle | 470nm Blue, 631nm Red | 468nm Blue, 645nm Red | - | 3.20mm L x 1.50mm W |
|

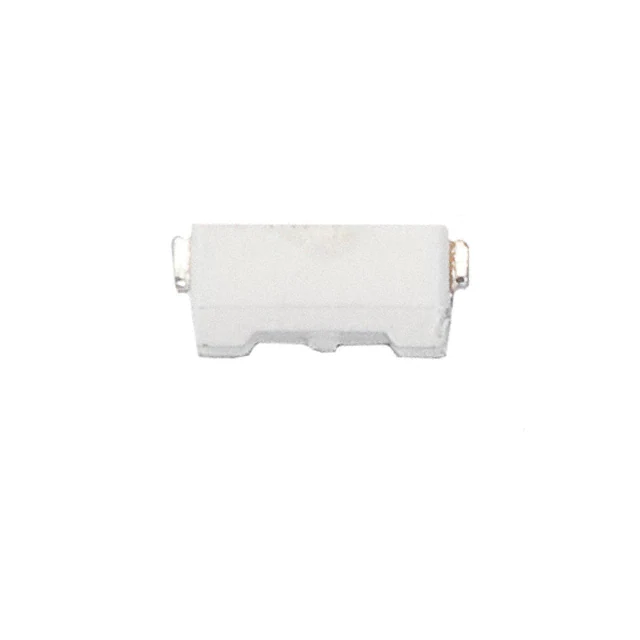

SMS1105UWDWLED WARM WHT DIFF 2PLCC SMD R/A |
64,924 | 1.48 |
RFQ |
Datasheet |
2-SMD, J-Lead | Tape & Reel (TR),Cut Tape (CT) | - | Active | White, Warm | Standard | - | Diffused | 1750mcd | Rectangle with Flat Top | 2.50mm x 0.80mm | 3.2V | 20mA | 120° | Surface Mount, Right Angle | - | - | - | 2.80mm L x 1.20mm W |
|
SMS1105UWDNLED NEUT WHT DIFF 2PLCC SMD R/A |
59,901 | 1.48 |
RFQ |
Datasheet |
2-SMD, J-Lead | Tape & Reel (TR),Cut Tape (CT) | - | Active | White, Neutral | Standard | Yellow | Diffused | 1200mcd | Rectangle with Flat Top | 2.50mm x 0.80mm | 3.4V | 20mA | 120° | Surface Mount, Right Angle | 5500K | - | - | 2.80mm L x 1.20mm W |
|
|
SM1210RGBLED RGB CLEAR 1210 SMD |
5,244 | 3.83 |
RFQ |
Datasheet |
1210 (3225 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Red, Green, Blue (RGB) | Common Anode | Colorless | Clear | 72mcd Red, 285mcd Green, 72mcd Blue | Rectangle with Flat Top | 2.70mm x 2.00mm | 2.1V Red, 3.1V Green, 2.9V Blue | 20mA Red, 20mA Green, 20mA Blue | 130° | Surface Mount | 631nm Red, 525nm Green, 470nm Blue | 645nm Red, 523nm Green, 468nm Blue | - | 3.20mm L x 2.70mm W |
|
SM1206NUWC-ILLED WHITE DIFFUSED 1206 SMD |
137,480 | 1.17 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | White | Standard | - | Diffused | 750mcd | Round with Flat Top | 1.10mm Dia | 3.1V | 20mA | 30° | Surface Mount | - | - | - | 3.20mm L x 1.60mm W |
|
SMS1105BWCLED BLUE CLEAR 2PLCC SMD R/A |
68,306 | 1.19 |
RFQ |
Datasheet |
2-SMD, J-Lead | Tape & Reel (TR),Cut Tape (CT) | - | Active | Blue | Standard | Colorless | Clear | 450mcd | Rectangle with Flat Top | 2.50mm x 0.80mm | 3.4V | 20mA | 120° | Surface Mount, Right Angle | 471nm | - | - | 2.80mm L x 1.20mm W |
|
SMS1105RCLED RED CLEAR 2PLCC SMD R/A |
13,925 | 1.19 |
RFQ |
Datasheet |
2-SMD, J-Lead | Tape & Reel (TR),Cut Tape (CT) | - | Active | Red | Standard | Colorless | Clear | 250mcd | Rectangle with Flat Top | 2.50mm x 0.80mm | 2.2V | 20mA | 120° | Surface Mount, Right Angle | 626nm | - | - | 2.80mm L x 1.20mm W |
