| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Color | Configuration | LensColor | LensTransparency | MillicandelaRating | LensStyle | LensSize | Voltage-Forward(Vf)(Typ) | Current-Test | ViewingAngle | MountingType | Wavelength-Dominant | Wavelength-Peak | Features | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

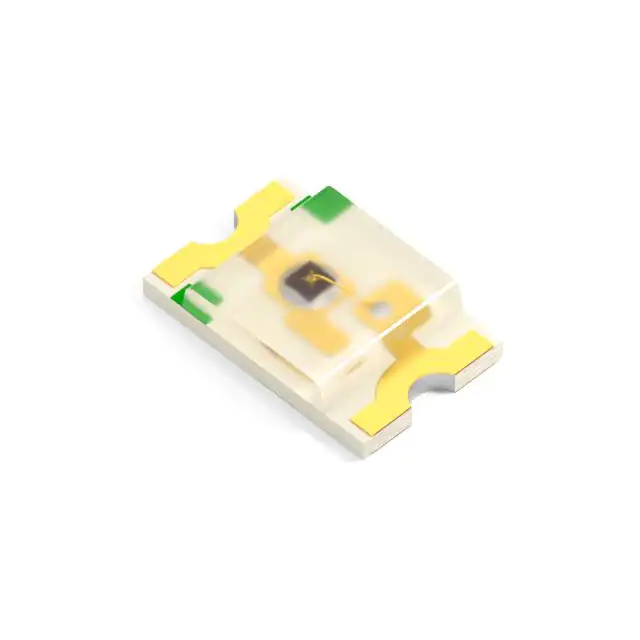

XZMDK54W-42.0X1.2MM RED SMD 0805 LED |
2,402 | 0.32 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Red | - | Colorless | Clear | 228mcd | Rectangle with Flat Top | 1.30mm x 1.25mm | 1.95V | 20mA | 140° | Surface Mount | 630nm | 645nm | - | 2.00mm L x 1.25mm W |
|
XZMYK54W-42.0X1.2MM YELLOW SMD 0805 LED |
2,699 | 0.32 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Yellow | - | Colorless | Clear | 148mcd | Rectangle with Flat Top | 1.30mm x 1.25mm | 2V | 20mA | 140° | Surface Mount | 590nm | 590nm | - | 2.00mm L x 1.25mm W |
|
XZM2CRKM2DG45WT-9LED GREEN/RED CLEAR 4SMD REV |
11,900 | 1.75 |
RFQ |
Datasheet |
4-PLCC | Tape & Reel (TR),Cut Tape (CT) | - | Active | Green, Red | Independent | Colorless | Clear | 447mcd Green, 1590mcd Red | Rectangle with Flat Top | - | 3.2V Green, 2.2V Red | 20mA Blue, 20mA Green | 120° | Surface Mount | 525nm Green, 625nm Red | 520nm Green, 640nm Red | - | 3.20mm L x 2.80mm W |
|

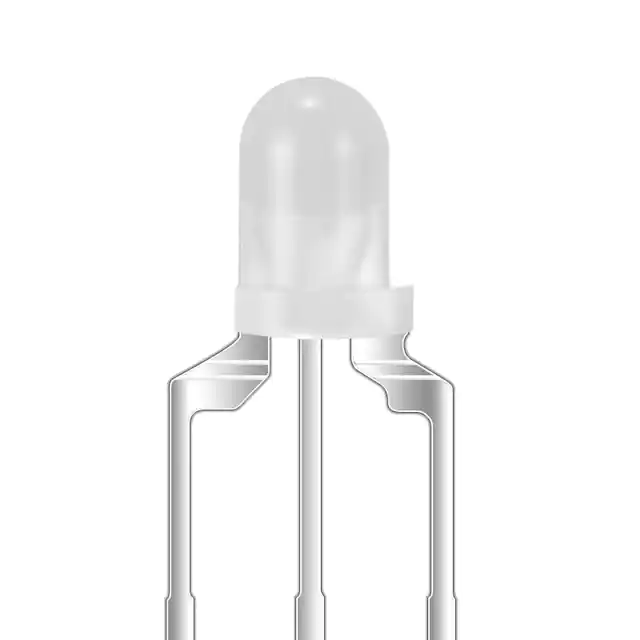

XLMDKVG34MLED GREEN/RED DIFFUSED T-1 T/H |
41,021 | 0.62 |
RFQ |
Datasheet |
Radial - 3 Leads | Bulk | - | Active | Green, Red | Common Cathode | White | Diffused | 158mcd Green, 158mcd Red | Round with Domed Top | 3mm, T-1 | 2.1V Green, 1.95V Red | 20mA Green, 20mA Red | 60° | Through Hole | 570nm Green, 630nm Red | 574nm Green, 645nm Red | - | - |
|

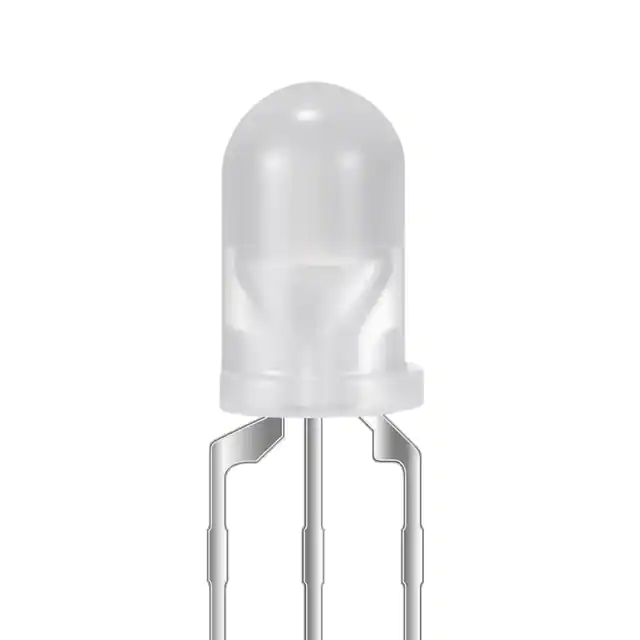

XLMDKVG59MLED GRN/RED DIFFUSED T-1 3/4 T/H |
29,314 | 0.62 |
RFQ |
Datasheet |
Radial - 3 Leads | Bulk | - | Active | Green, Red | Common Cathode | White | Diffused | 178mcd Green, 198mcd Red | Round with Domed Top | 5mm, T-1 3/4 | 2.1V Green, 1.95V Red | 20mA Green, 20mA Red | 30° | Through Hole | 570nm Green, 630nm Red | 574nm Green, 645nm Red | - | - |
|

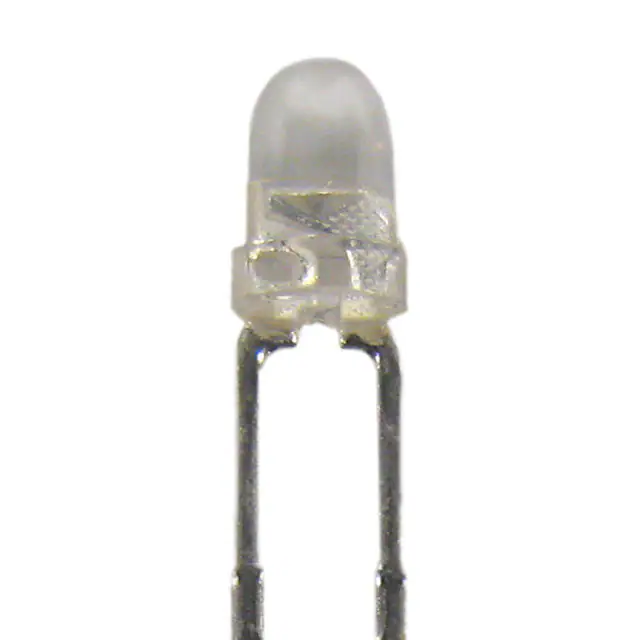

XLM2ACR11WLED RED CLEAR T-1 T/H |
19,666 | 0.73 |
RFQ |
Datasheet |
Radial | Bulk | - | Active | Red | Standard | Colorless | Clear | 2390mcd | Round with Domed Top | 3mm, T-1 | 2.2V | 20mA | 34° | Through Hole | 625nm | 640nm | - | - |
|

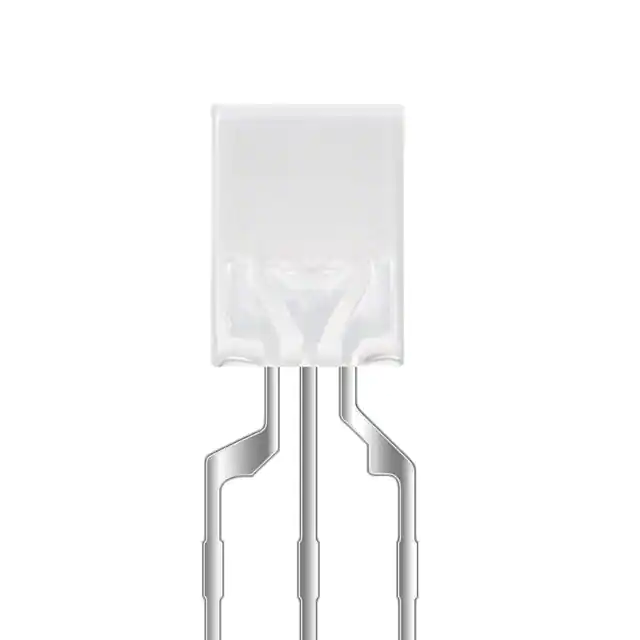

XSMDKVG47MLED GREEN/RED DIFFUSED RECT T/H |
30,703 | 0.74 |
RFQ |
Datasheet |
Radial | Bulk | - | Active | Green, Red | Common Cathode | White | Diffused | 29mcd Green, 54mcd Red | Rectangle with Flat Top | 5.00mm x 2.00mm | 2.1V Green, 1.95V Red | 20mA Green, 20mA Red | 110° | Through Hole | 570nm Green, 630nm Red | 574nm Green, 645nm Red | - | - |
|

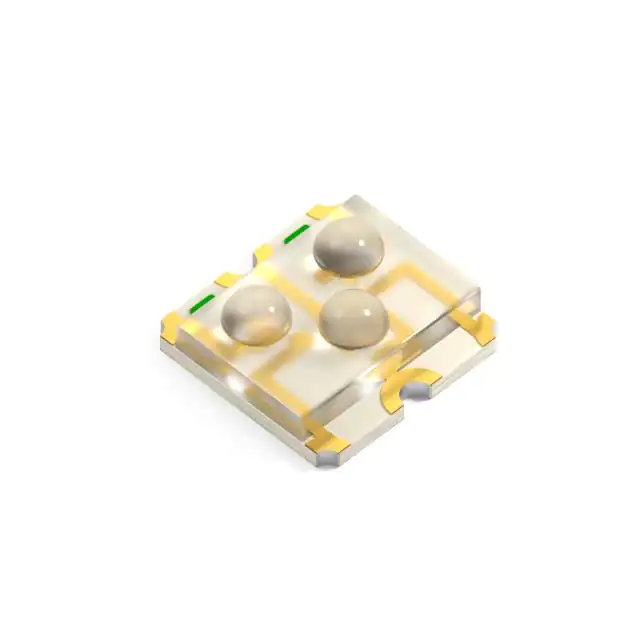

XZFBBM2ACRDG92W-3LED RGB CLEAR 6SMD |
44,821 | 2.20 |
RFQ |
Datasheet |
6-SMD, No Lead | Tape & Reel (TR),Cut Tape (CT) | - | Active | Red, Green, Blue (RGB) | Independent | Colorless | Clear | 1590mcd Red, 1890mcd Green, 497mcd Blue | Rectangle with Domed Top | 3.50mm x 2.50mm | 2.2V Red, 3.2V Green, 3.3V Blue | 20mA Red, 20mA Green, 20mA Blue | 50° | Surface Mount | 625nm Red, 525nm Green, 470nm Blue | 640nm Red, 520nm Green, 465nm Blue | - | 3.50mm L x 3.50mm W |
|

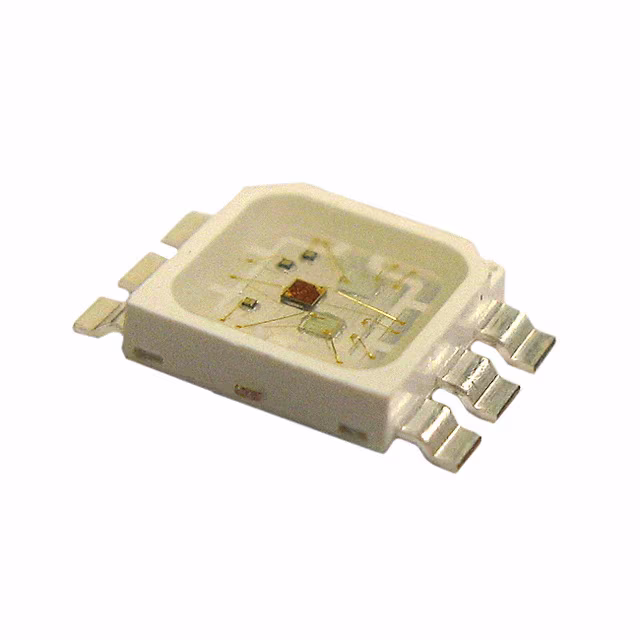

XZCB25MO24DG25X111SLED RGB CLEAR SMD |
4,635 | 5.42 |
RFQ |
Datasheet |
6-SMD, Gull Wing | Tape & Reel (TR),Cut Tape (CT) | - | Active | Red, Green, Blue (RGB) | Common Anode | Colorless | Clear | 4290mcd Red, 5990mcd Green, 1590mcd Blue | Square with Flat Top | 4.25mm | 2.5V Red, 3.5V Green, 3.5V Blue | 150mA Red, 150mA Green, 150mA Blue | 120° | Surface Mount | 624nm Red, 525nm Green, 460nm Blue | 635nm Red, 515nm Green, 452nm Blue | - | 5.00mm L x 5.00mm W |
|

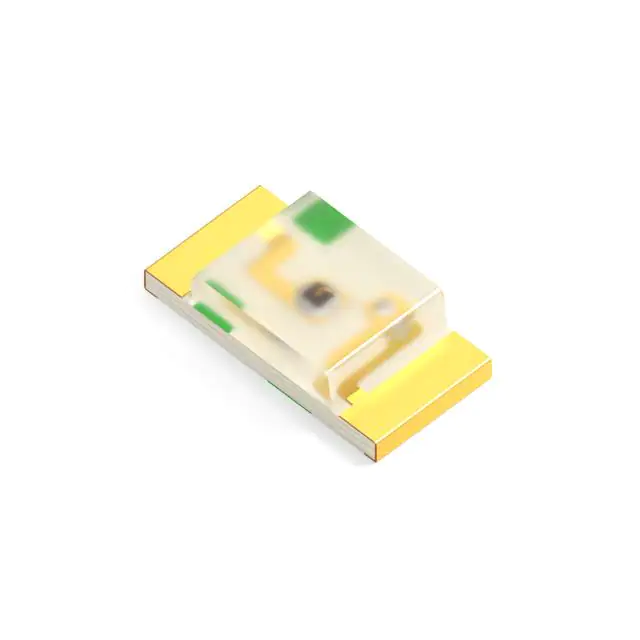

XZVG55W-1LED GREEN CLEAR CHIP SMD |
14,073 | 0.38 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Green | Standard | Colorless | Clear | 49mcd | Rectangle with Flat Top | 1.90mm x 1.60mm | 2.1V | 20mA | 120° | Surface Mount | 570nm | 574nm | - | 3.20mm L x 1.60mm W |
|
XZMDK53W-1LED RED CLEAR CHIP SMD |
75,812 | 0.39 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Red | Standard | Colorless | Clear | 79mcd | Rectangle with Flat Top | 1.10mm x 0.80mm | 1.95V | 20mA | 120° | Surface Mount | 630nm | 645nm | - | 1.60mm L x 0.80mm W |
|

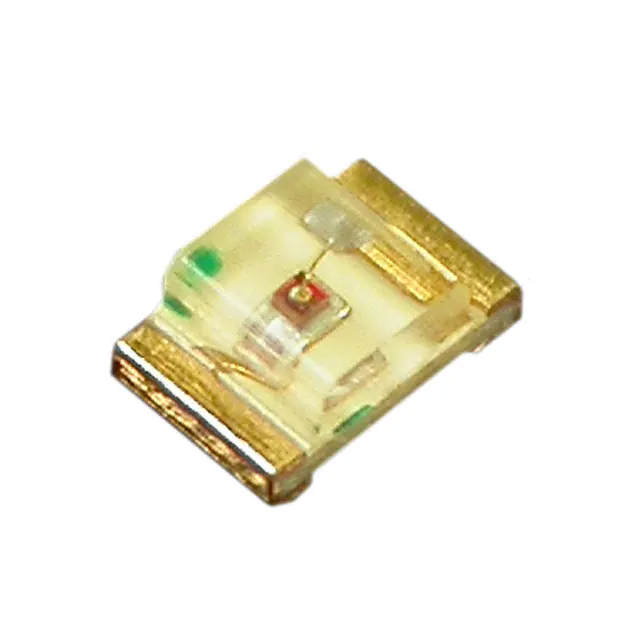

XZMG54W-1LED GREEN CLEAR CHIP SMD |
53,632 | 0.39 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Green | Standard | Colorless | Clear | 11mcd | Rectangle with Flat Top | 1.20mm x 1.25mm | 2.2V | 20mA | 120° | Surface Mount | 568nm | 565nm | - | 2.00mm L x 1.25mm W |
|

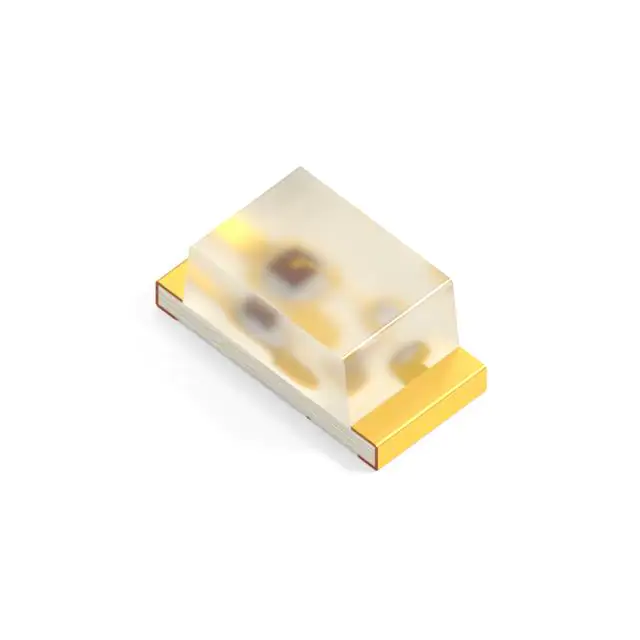

XZVG53W-3LED GREEN CLEAR CHIP SMD |
134,891 | 0.31 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Green | Standard | Colorless | Clear | 49mcd | Rectangle with Flat Top | 1.10mm x 0.80mm | 2.1V | 20mA | 120° | Surface Mount | 570nm | 574nm | - | 1.60mm L x 0.80mm W |
|
XZMDK54W-1LED RED CLEAR CHIP SMD |
75,851 | 0.31 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Red | Standard | Colorless | Clear | 79mcd | Rectangle with Flat Top | 1.20mm x 1.25mm | 1.95V | 20mA | 120° | Surface Mount | 630nm | 645nm | - | 2.00mm L x 1.25mm W |
|
XZMYK53W-3LED YELLOW CLEAR CHIP SMD |
47,466 | 0.31 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Yellow | Standard | Colorless | Clear | 148mcd | Rectangle with Flat Top | 1.10mm x 0.80mm | 2V | 20mA | 120° | Surface Mount | 590nm | 590nm | - | 1.60mm L x 0.80mm W |
|

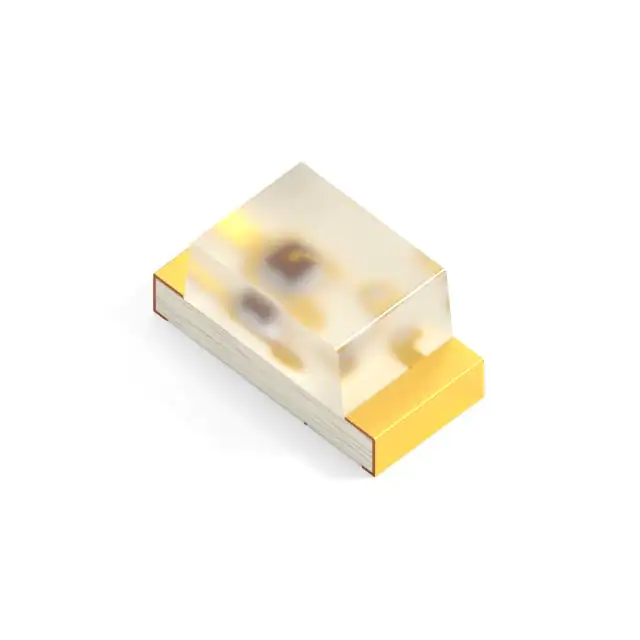

XZMYK53W-1LED YELLOW CLEAR CHIP SMD |
40,407 | 0.31 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Yellow | Standard | Colorless | Clear | 148mcd | Rectangle with Flat Top | 1.10mm x 0.80mm | 2V | 20mA | 120° | Surface Mount | 590nm | 590nm | - | 1.60mm L x 0.80mm W |
|

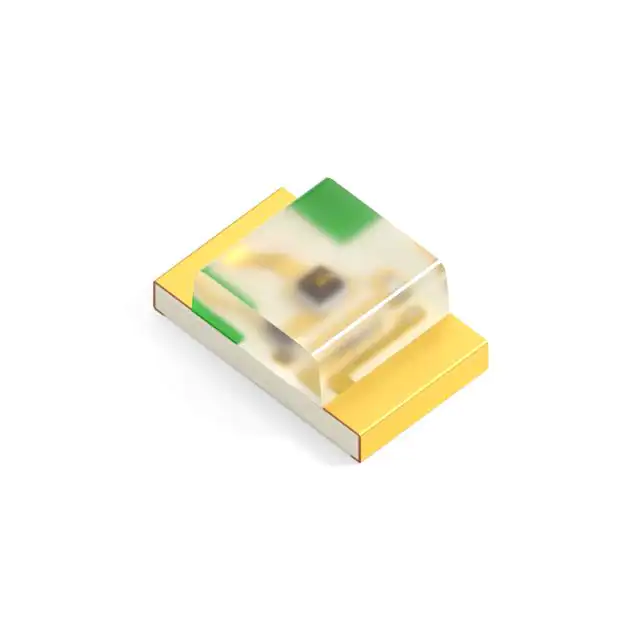

XZMOK54W-1LED ORANGE CLEAR CHIP SMD |
22,614 | 0.31 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Orange | Standard | Colorless | Clear | 178mcd | Rectangle with Flat Top | 1.20mm x 1.25mm | 2.1V | 20mA | 120° | Surface Mount | 601nm | 610nm | - | 2.00mm L x 1.25mm W |
|

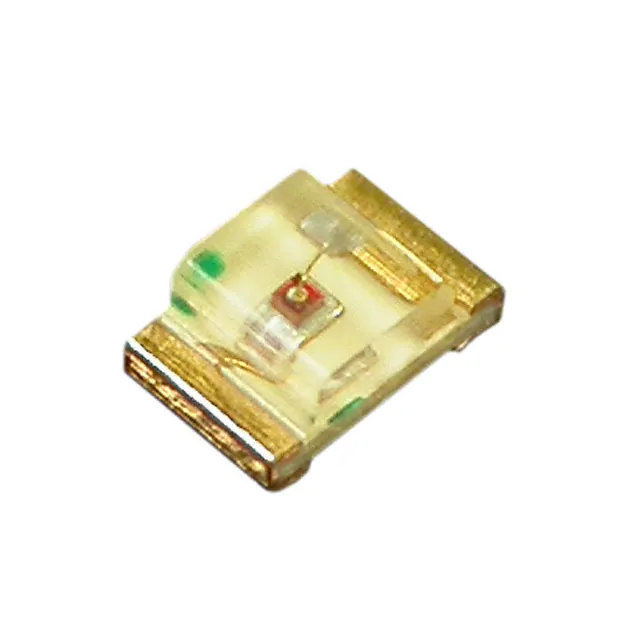

XZUR54W-1LED RED CLEAR CHIP SMD |
15,955 | 0.31 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Red | Standard | Colorless | Clear | 7mcd | Rectangle with Flat Top | 1.20mm x 1.25mm | 2V | 20mA | 120° | Surface Mount | 617nm | 627nm | - | 2.00mm L x 1.25mm W |
|

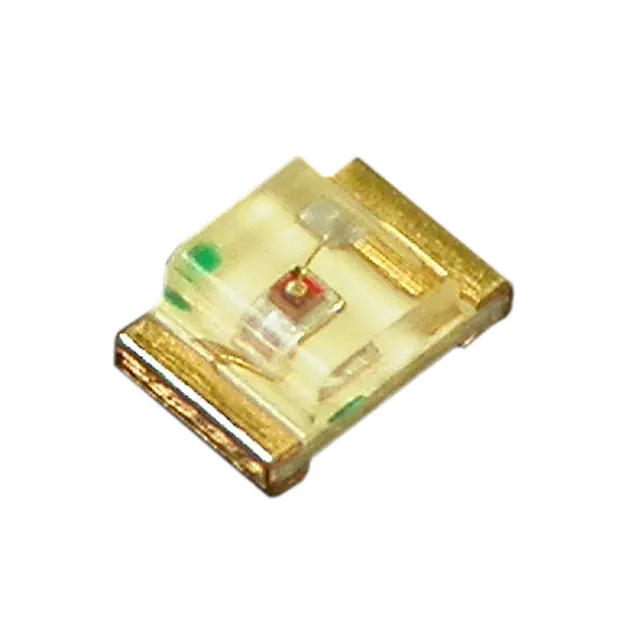

XZUY54W-1LED YELLOW CLEAR CHIP SMD |
10,138 | 0.31 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Yellow | Standard | Colorless | Clear | 7mcd | Rectangle with Flat Top | 1.20mm x 1.25mm | 2.1V | 20mA | 120° | Surface Mount | 588nm | 590nm | - | 2.00mm L x 1.25mm W |
|
XZMDK53W-3LED RED CLEAR CHIP SMD |
6,969 | 0.31 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Red | Standard | Colorless | Clear | 79mcd | Rectangle with Flat Top | 1.10mm x 0.80mm | 1.95V | 20mA | 120° | Surface Mount | 630nm | 645nm | - | 1.60mm L x 0.80mm W |
