| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Technology | NumberofChannels | Voltage-Isolation | CommonModeTransientImmunity(Min) | PropagationDelaytpLH/tpHL(Max) | PulseWidthDistortion(Max) | Rise/FallTime(Typ) | Current-OutputHighLow | Current-PeakOutput | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | Voltage-OutputSupply | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NCV57090BDWR2GISOLATED HIGH CURRENT GATE DRIVE |
2,124 | 3.23 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100 | Active | Capacitive Coupling | 1 | 5000Vrms | 100kV/µs | 90ns, 90ns | - | 13ns, 13ns | 6.5A, 6.5A | 6.5A | - | - | 0V ~ 32V | -40°C ~ 125°C | Surface Mount |
|
|
NCV57090ADWR2GISOLATED HIGH CURRENT GATE DRIVE |
3,649 | 3.23 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100 | Active | Capacitive Coupling | 1 | 5000Vrms | 100kV/µs | 90ns, 90ns | - | 13ns, 13ns | 6.5A, 6.5A | 6.5A | - | - | 0V ~ 32V | -40°C ~ 125°C | Surface Mount |
|
|
NCV57090CDWR2GISOLATED HIGH CURRENT GATE DRIVE |
3,874 | 3.23 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100 | Active | Capacitive Coupling | 1 | 5000Vrms | 100kV/µs | 90ns, 90ns | - | 13ns, 13ns | 6.5A, 6.5A | 6.5A | - | - | 0V ~ 32V | -40°C ~ 125°C | Surface Mount |
|
NCV57090FDWR2GISOLATED HIGH CURRENT GATE DRIVE |
2,423 | 3.23 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Capacitive Coupling | 1 | 5000Vrms | 100kV/µs | 90ns, 90ns | 30ns | 13ns, 13ns | 6.5A, 6.5A | 6.5A | - | - | 0V ~ 32V | -40°C ~ 125°C | Surface Mount |
|
|
NCV57091CDWR2GISOLATED DRIVER IN 8-PIN WIDE BO |
3,812 | 3.65 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100 | Active | Capacitive Coupling | 1 | 5000Vrms | 100kV/µs | 90ns, 90ns | 25ns | 13ns, 13ns | 6.5A, 6.5A | 6.5A | - | - | 0V ~ 32V | -40°C ~ 125°C | Surface Mount |
|
|
NCV57091BDWR2GISOLATED DRIVER IN 8-PIN WIDE BO |
3,233 | 3.65 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100 | Active | Capacitive Coupling | 1 | 5000Vrms | 100kV/µs | 90ns, 90ns | 25ns | 13ns, 13ns | 6.5A, 6.5A | 6.5A | - | - | 0V ~ 32V | -40°C ~ 125°C | Surface Mount |
|
|
NCV57091ADWR2GISOLATED DRIVER IN 8-PIN WIDE BO |
2,726 | 3.65 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100 | Active | Capacitive Coupling | 1 | 5000Vrms | 100kV/µs | 90ns, 90ns | 25ns | 13ns, 13ns | 6.5A, 6.5A | 6.5A | - | - | 0V ~ 32V | -40°C ~ 125°C | Surface Mount |
|
|
NCP51561DADWR2GHIGH PERFORMANCE ISOLATED DUAL C |
3,227 | 4.07 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Capacitive Coupling | 2 | 5000Vrms | 200V/ns | 58ns, 58ns | 5ns | 11ns, 10ns | 9A, 4.5A | 4.5A, 9A | - | - | 18.5V ~ 30V | -40°C ~ 125°C | Surface Mount |
|
|
NCP51561BBDWR2GHIGH PERFORMANCE ISOLATED DUAL C |
3,431 | 4.07 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Capacitive Coupling | 2 | 5000Vrms | 200V/ns | 58ns, 58ns | 5ns | 11ns, 10ns | 9A, 4.5A | 4.5A, 9A | - | - | 18.5V ~ 30V | -40°C ~ 125°C | Surface Mount |
|
|
NCP51561BADWR2GHIGH PERFORMANCE ISOLATED DUAL C |
3,476 | 4.07 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Capacitive Coupling | 2 | 5000Vrms | 200V/ns | 58ns, 58ns | 5ns | 11ns, 10ns | 9A, 4.5A | 4.5A, 9A | - | - | 18.5V ~ 30V | -40°C ~ 125°C | Surface Mount |
|
|
NCP51561DBDWR2GHIGH PERFORMANCE ISOLATED DUAL C |
3,088 | 4.07 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Capacitive Coupling | 2 | 5000Vrms | 200V/ns | 58ns, 58ns | 5ns | 11ns, 10ns | 9A, 4.5A | 4.5A, 9A | - | - | 18.5V ~ 30V | -40°C ~ 125°C | Surface Mount |
|
FOD3150SOPTOISO 5KV 1CH GATE DRIVER 8SMD |
3,113 | 2.33 |
RFQ |
Datasheet |
Bulk,Tube | - | Active | Optical Coupling | 1 | 5000Vrms | 20kV/µs | 500ns, 500ns | 300ns | 60ns, 60ns | 1A, 1A | 1.5A | 1.5V | 25 mA | 15V ~ 30V | -40°C ~ 100°C | Surface Mount |
|
NCD57252DWR2GISOLATED DUAL-CHANNEL IGBT/MOSFE |
3,471 | 5.06 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100 | Active | Capacitive Coupling | 2 | 5000Vrms | 100kV/µs | 80ns, 80ns | 10ns | 12ns, 10ns | 6.5A, 6.5A | 6.5A | - | - | 32V | -40°C ~ 125°C | Surface Mount |
|
|
NCV57081CDR2GISOLATED DRIVER IN A COMPACT 8-P |
3,471 | 5.62 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100 | Active | Capacitive Coupling | 1 | 3750Vrms | 100kV/µs | 90ns, 90ns | 25ns | 13ns, 13ns | 6.5A, 6.5A | 6.5A | - | - | 0V ~ 32V | -40°C ~ 125°C | Surface Mount |
|
|
NCV57081BDR2GISOLATED DRIVER IN A COMPACT 8-P |
2,943 | 5.62 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100 | Active | Capacitive Coupling | 1 | 3750Vrms | 100kV/µs | 90ns, 90ns | 25ns | 13ns, 13ns | 6.5A, 6.5A | 6.5A | - | - | 0V ~ 32V | -40°C ~ 125°C | Surface Mount |
|

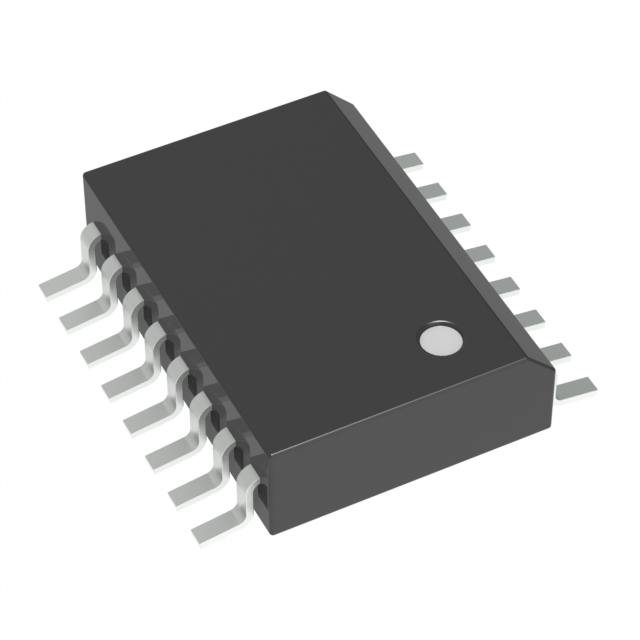

FOD8333OPTOISO 4.243KV GATE DRVR 16SO |
3,530 | 9.08 |
RFQ |
Datasheet |
Tube | - | Active | Optical Coupling | 1 | 4243Vrms | 35kV/µs | 250ns, 250ns | 100ns | 50ns, 50ns | 2.5A, 2.5A | 3A | 1.45V | 25 mA | 3V ~ 15V | -40°C ~ 100°C | Surface Mount |
|

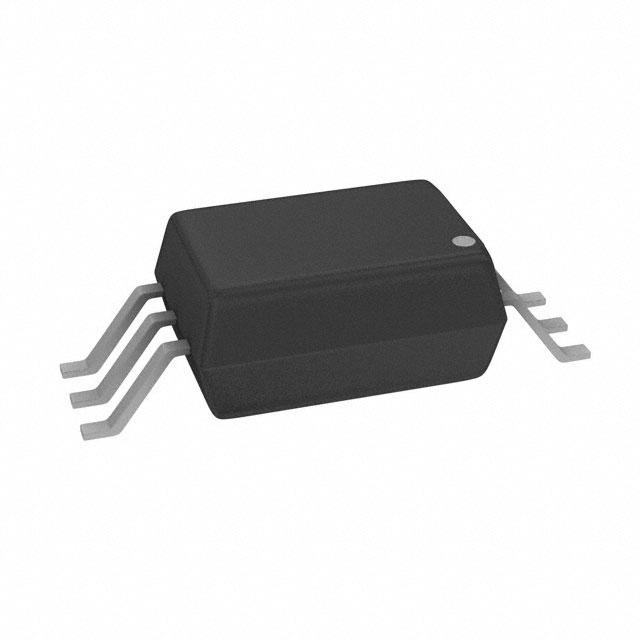

FOD8314TR2OPTOISO 5KV 1CH GATE DRIVER 6SOP |
3,531 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Active | Optical Coupling | 1 | 5000Vrms | 20kV/µs | 500ns, 500ns | 300ns | 60ns, 40ns | 1A, 1A | 1.5A | 1.5V | 25 mA | 16V ~ 30V | -40°C ~ 100°C | Surface Mount |
|
|
FOD8314TOPTOISO 5KV 1CH GATE DRIVER 6SOP |
3,099 | 0.72 |
RFQ |
Datasheet |
Tube | - | Active | Optical Coupling | 1 | 5000Vrms | 20kV/µs | 500ns, 500ns | 300ns | 60ns, 40ns | 1A, 1A | 1.5A | 1.5V | 25 mA | 16V ~ 30V | -40°C ~ 100°C | Surface Mount |
|
|
FOD3150ASDOPTOISO 5KV 1CH GATE DRIVER 8DIP |
2,231 | 2.08 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Optical Coupling | 1 | 5000Vrms | 20kV/µs | 500ns, 500ns | 300ns | 60ns, 60ns | 2A, 2A | 3A | 1.5V | 25 mA | 15V ~ 30V | -40°C ~ 100°C | Surface Mount |
|
|
FOD3120SVOPTOISO 5KV 1CH GATE DRIVER 8SMD |
3,038 | 2.10 |
RFQ |
Datasheet |
Bulk,Tube | - | Active | Optical Coupling | 1 | 5000Vrms | 35kV/µs | 400ns, 400ns | 100ns | 60ns, 60ns | 2A, 2A | 3A | 1.5V | 25 mA | 15V ~ 30V | -40°C ~ 100°C | Surface Mount |
