| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | SwitchCircuit | Multiplexer/DemultiplexerCircuit | NumberofCircuits | On-StateResistance(Max) | Channel-to-ChannelMatching(ΔRon) | Voltage-SupplySingle(V+) | Voltage-SupplyDual(V±) | SwitchTime(TonToff)(Max) | -3dbBandwidth | ChargeInjection | ChannelCapacitance(CS(off)CD(off)) | Current-Leakage(IS(off))(Max) | Crosstalk | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAX4643ETA-TIC SWITCH DUAL SPST 8TDFN |
3,740 | 0.00 |
RFQ |
8-WDFN Exposed Pad | Tape & Reel (TR) | - | Obsolete | SPST - NO/NC | 1:1 | 2 | 4Ohm | 200mOhm | 1.8V ~ 5.5V | - | 15ns, 8ns | - | 2pC | 7pF, 7pF | 250pA | -97dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount | |
|
MAX4737EBE-TIC SWITCH QUAD SPST 16UCSP |
3,641 | 0.00 |
RFQ |
16-WFBGA, CSPBGA | Tape & Reel (TR) | - | Obsolete | SPST - NO | 1:1 | 4 | 4.5Ohm | 100mOhm | 1.8V ~ 5.5V | - | 80ns, 40ns | 300MHz | 5pC | 9pF | 500pA | -110dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount | |
|
MAX4760EBX+TWIC SWITCH DPDT QUAD 36UCSP |
2,412 | 3.81 |
RFQ |
36-WFBGA, CSPBGA | Tape & Reel (TR),Bulk | - | Obsolete | DPDT | 2:2 | 4 | 3.5Ohm | 200mOhm | 1.8V ~ 5.5V | - | 140ns, 50ns | 150MHz | 15pC | 25pF | 5nA | -95dB @ 100kHz | -40°C ~ 85°C (TA) | Surface Mount | |
|
DG411MY/PRIC SWITCH QUAD SPST 16-SOIC |
2,925 | 0.00 |
RFQ |
Datasheet |
16-SOIC (0.154, 3.90mm Width) | Tube | - | Obsolete | SPST - NC | 1:1 | 4 | 45Ohm | 3Ohm (Max) | 10V ~ 30V | ±4.5V ~ 20V | 175ns, 145ns | - | 5pC | 9pF, 9pF | 250pA | -85dB @ 1MHz | -55°C ~ 125°C (TA) | Surface Mount |
|
MAX14803CXB+TIC SWITCH SPST CTBGA |
3,924 | 0.00 |
RFQ |
Datasheet |
- | Tape & Reel (TR) | - | Obsolete | SPST - NO | 1:1 | 16 | 48Ohm | 2.4Ohm | 40V ~ 250V | ±160 | 3.5µs, 3.5µs | 20MHz | 820pC | 11pF | 2µA | -80dB @ 5MHz | 0°C ~ 70°C (TA) | - |
|
|
DG408MY/PRIC SWITCH SINGLE 16SO |
2,846 | 0.00 |
RFQ |
Datasheet |
16-SOIC (0.154, 3.90mm Width) | Tube | - | Obsolete | - | 8:1 | 1 | 100Ohm | 1.5Ohm | 5V ~ 30V | ±5V ~ 20V | 150ns, 150ns | - | 2pC | 3pF, 26pF | 500pA | -92dB @ 100kHz | -55°C ~ 125°C (TA) | Surface Mount |
|
MAX4523CEE+TIC SWITCH QUAD SPST 16QSOP |
3,613 | 0.00 |
RFQ |
Datasheet |
16-SSOP (0.154, 3.90mm Width) | Tape & Reel (TR) | - | Obsolete | SPST - NO/NC | 1:1 | 4 | 100Ohm | 1Ohm | 2V ~ 12V | ±2V ~ 6V | 80ns, 30ns | - | 1pC | 2pF, 2pF | 1nA | -90dB @ 100kHz | 0°C ~ 70°C (TA) | Surface Mount |
|
HI6-0201-9-TIC SWITCH QUAD SPST 16SOIC |
3,233 | 0.00 |
RFQ |
Datasheet |
16-SOIC (0.295, 7.50mm Width) | Tape & Reel (TR) | - | Obsolete | SPST - NC | 1:1 | 4 | 80Ohm | - | 5V ~ 30V | ±4.5V ~ 18V | 500ns, 350ns | - | 20pC | 5pF, 5pF | 10nA | -90dB @ 100kHz | -40°C ~ 85°C (TA) | Surface Mount |
|
DG509AAK/883BIC MUX 8:2 400 OHM 16DIP |
3,016 | 0.00 |
RFQ |
Datasheet |
16-CDIP (0.300, 7.62mm) | Tube | - | Active | SP4T | 4:1 | 2 | 400Ohm | 24Ohm | - | ±4.5V ~ 18V | 1µs, 700ns | - | - | 5pF, 12pF | 500pA | - | -55°C ~ 125°C (TA) | Through Hole |
|
|
DG529AK/883BIC MUX 8:2 400 OHM 18DIP |
3,200 | 44.47 |
RFQ |
Datasheet |
18-CDIP (0.300, 7.62mm) | Bulk,Tube | - | Obsolete | SP4T | 4:1 | 2 | 400Ohm | 24Ohm | 5V ~ 30V | ±4.5V ~ 20V | 1.5µs, 1µs | - | 4pC | 5pF, 25pF | 1nA | - | -55°C ~ 125°C (TA) | Through Hole |
|
|
DG202AK/883BIC SWITCH QUAD SPST 16CDIP |
3,183 | 0.00 |
RFQ |
Datasheet |
16-CDIP (0.300, 7.62mm) | Tube | - | Active | SPST - NO | 1:1 | 4 | 175Ohm | - | - | ±4.5V ~ 18V | 600ns, 450ns | - | 20pC | 5pF, 5pF | 1nA | -90dB @ 100kHz | -55°C ~ 125°C (TA) | Through Hole |
|
DG302AAK/883BIC SWITCH DPDT 50 OHM 14CDIP |
2,869 | 0.00 |
RFQ |
Datasheet |
14-CDIP (0.300, 7.62mm) | Tube | - | Active | DPST - NO | 2:1 | 2 | 50Ohm | - | - | ±5V ~ 18V | 300ns, 250ns | - | 12pC | 14pF, 14pF | 1nA | -74dB @ 500kHz | -55°C ~ 125°C (TA) | Through Hole |
|
|
DG309AK/883BIC SWITCH QUAD SPST 16CDIP |
2,794 | 0.00 |
RFQ |
Datasheet |
16-CDIP (0.300, 7.62mm) | Tube | - | Obsolete | SPST - NC | 1:1 | 4 | 100Ohm | - | 5V ~ 30V | ±5V ~ 20V | 250ns, 150ns | - | -10pC | 11pF, 8pF | 1nA | - | -55°C ~ 125°C (TA) | Through Hole |
|
|
DG381AAK/883BIC SWITCH SPST DUAL 14CDIP |
3,362 | 0.00 |
RFQ |
Datasheet |
14-CDIP (0.300, 7.62mm) | Tube | - | Obsolete | SPST - NC | 1:1 | 2 | 50Ohm | - | - | ±5V ~ 18V | 300ns, 250ns | - | 12pC | 14pF, 14pF | 1nA | -74dB @ 500kHz | -55°C ~ 125°C (TA) | Through Hole |
|
|
DG384AAK/883BIC SWITCH DPST DUAL 16CDIP |
2,431 | 0.00 |
RFQ |
Datasheet |
16-CDIP (0.300, 7.62mm) | Tube | - | Obsolete | DPST - NO | 2:1 | 2 | 50Ohm | - | - | ±5V ~ 18V | 300ns, 250ns | - | 12pC | 14pF, 14pF | 1nA | -74dB @ 500kHz | -55°C ~ 125°C (TA) | Through Hole |
|

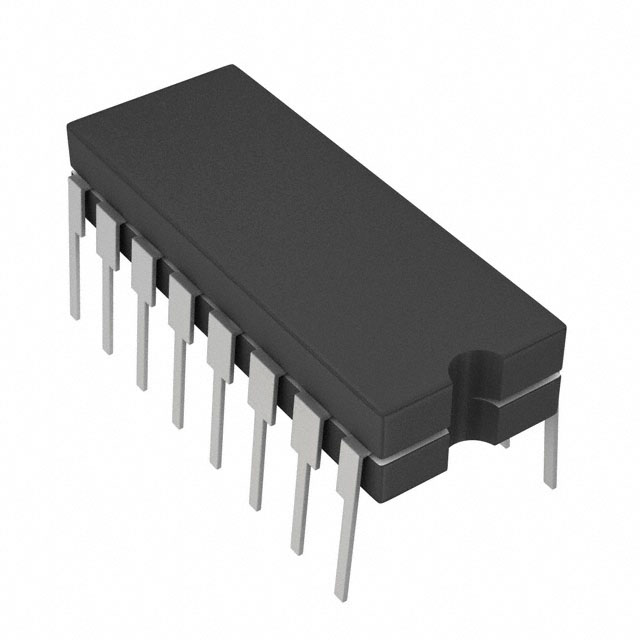

DG408AK/883BIC MUX 8:1 100 OHM 16DIP |
2,066 | 0.00 |
RFQ |
Datasheet |
16-CDIP (0.300, 7.62mm) | Tube | - | Active | - | 8:1 | 1 | 100Ohm | 1.5Ohm | 5V ~ 30V | ±5V ~ 20V | 150ns, 150ns | - | 2pC | 3pF, 26pF | 500pA | -92dB @ 100kHz | -55°C ~ 125°C (TA) | Through Hole |
|
DG418AK/883BIC SWITCH SPST 35 OHM 8CDIP |
3,037 | 0.00 |
RFQ |
Datasheet |
8-CDIP (0.300, 7.62mm) | Tube | - | Obsolete | SPST - NO | 1:1 | 1 | 35Ohm | 3Ohm (Max) | 10V ~ 30V | ±4.5V ~ 20V | 175ns, 145ns | - | 3pC | 8pF, 8pF | 250pA | -85dB @ 1MHz | -55°C ~ 125°C (TA) | Through Hole |
|
|
DG419AK/883BIC SWITCH SPDT 30 OHM 8CDIP |
2,989 | 0.00 |
RFQ |
Datasheet |
8-CDIP (0.300, 7.62mm) | Tube | - | Active | SPDT | 2:1 | 1 | 30Ohm | 3Ohm (Max) | 10V ~ 30V | ±4.5V ~ 20V | 175ns, 145ns | - | 3pC | 8pF, 8pF | 250pA | -85dB @ 1MHz | -55°C ~ 125°C (TA) | Through Hole |
|
|
DG408MY/PR-TIC SWITCH SINGLE 16SO |
3,835 | 0.00 |
RFQ |
Datasheet |
16-SOIC (0.154, 3.90mm Width) | Tape & Reel (TR),Bulk | - | Obsolete | - | 8:1 | 1 | 100Ohm | 1.5Ohm | 5V ~ 30V | ±5V ~ 20V | 150ns, 150ns | - | 2pC | 3pF, 26pF | 500pA | -92dB @ 100kHz | -55°C ~ 125°C (TA) | Surface Mount |
|
|
MAX3997ETM+IC MULTIPLEXER 4CH 48TQFN |
2,206 | 0.00 |
RFQ |
- | Tube | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
