| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | SwitchCircuit | Multiplexer/DemultiplexerCircuit | NumberofCircuits | On-StateResistance(Max) | Channel-to-ChannelMatching(ΔRon) | Voltage-SupplySingle(V+) | Voltage-SupplyDual(V±) | SwitchTime(TonToff)(Max) | -3dbBandwidth | ChargeInjection | ChannelCapacitance(CS(off)CD(off)) | Current-Leakage(IS(off))(Max) | Crosstalk | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TS12A44515PWRIC SWITCH QUAD SPST 14TSSOP |
2,022 | 2.06 |
RFQ |
Datasheet |
14-TSSOP (0.173, 4.40mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | SPST - NC | 1:1 | 4 | 10Ohm | 2.5Ohm (Max) | 2.7V ~ 12V | - | 75ns, 45ns | 530MHz | -10.5pC | 8pF, 8pF | 1nA | - | -40°C ~ 85°C (TA) | Surface Mount |
|
TMUX1122DGKRIC SWITCH |
2,037 | 2.08 |
RFQ |
Datasheet |
8-TSSOP, 8-MSOP (0.118, 3.00mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | SPST | 1:1 | 2 | 4Ohm | 130mOhm | 1.08V ~ 5.5V | - | - | 300MHz | 1.5pC | 6pF, 10pF | 80pA | -90dB @ 10MHz | -40°C ~ 125°C (TA) | Surface Mount |
|
|
TMUX1121DGKRIC SWITCH |
746 | 2.08 |
RFQ |
Datasheet |
8-TSSOP, 8-MSOP (0.118, 3.00mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | SPST | 1:1 | 2 | 4Ohm | 130mOhm | 1.08V ~ 5.5V | - | - | 300MHz | 1.5pC | 6pF, 10pF | 80pA | -90dB @ 10MHz | -40°C ~ 125°C (TA) | Surface Mount |
|
|
TMUX1123DGKRIC SWITCH |
966 | 2.08 |
RFQ |
Datasheet |
8-TSSOP, 8-MSOP (0.118, 3.00mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | SPST | 1:1 | 2 | 4Ohm | 130mOhm | 1.08V ~ 5.5V | - | - | 300MHz | 1.5pC | 6pF, 10pF | 80pA | -90dB @ 10MHz | -40°C ~ 125°C (TA) | Surface Mount |
|
TMUX1136DQARIC SWITCH |
1,946 | 2.63 |
RFQ |
Datasheet |
10-UFDFN | Tape & Reel (TR),Cut Tape (CT) | - | Active | SPDT | 2:1 | 2 | 4Ohm | 130mOhm | 1.08V ~ 5.5V | - | - | 220MHz | -6pC | 6pF | 80pA | -80dB @ 10MHz | -40°C ~ 125°C (TA) | - |
|
TMUX1113PWRIC SWITCH |
1,211 | 3.12 |
RFQ |
Datasheet |
16-TSSOP (0.173, 4.40mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | SPST | 1:1 | 4 | 4Ohm | 130mOhm | 1.08V ~ 5.5V | - | - | 300MHz | -1.5pC | 7pF, 10pF | 80pA | -90dB @ 10MHz | -40°C ~ 125°C (TA) | Surface Mount |
|
TMUX6123DGSRIC SWITCH SPST DUAL 10VSSOP |
2,380 | 3.36 |
RFQ |
Datasheet |
10-TFSOP, 10-MSOP (0.118, 3.00mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | SPST | 1:1 | 2 | 165Ohm | 2.4Ohm | - | ±5V ~ 16.5V | 86ns, 76ns | 630MHz | 0.51pC | 1.9pF, 2.2pF | 20pA | -110dB @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount |
|
|
TMUX6122DGSRIC SWITCH SPST DUAL 10VSSOP |
308 | 3.36 |
RFQ |
Datasheet |
10-TFSOP, 10-MSOP (0.118, 3.00mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | SPST | 1:1 | 2 | 165Ohm | 2.4Ohm | - | ±5V ~ 16.5V | 86ns, 76ns | 630MHz | 0.51pC | 1.9pF, 2.2pF | 20pA | -110dB @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount |
|
TS5A3159MDBVREPIC SWITCH SPDT SOT23-6 |
8,651 | 3.38 |
RFQ |
Datasheet |
SOT-23-6 | Tape & Reel (TR),Cut Tape (CT) | - | Active | SPDT | 2:1 | 1 | 1.1Ohm | 100mOhm | 1.65V ~ 5.5V | - | 35ns, 20ns | 100MHz | 36pC | 23pF | 4nA | -65dB @ 1MHz | -55°C ~ 125°C (TA) | Surface Mount |
|
TMUX6111RTERIC SWITCH SPST QUAD 16WQFN |
464 | 4.44 |
RFQ |
Datasheet |
16-WFQFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT) | - | Active | SPST | 1:1 | 4 | 160Ohm | 2.5Ohm | 10V ~ 16.5V | ±5V ~ 16.5V | 78ns, 68ns | 800MHz | 0.6pC | 2.5pF, 2.4pF | 20pA | -100dB ~ -115dB @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount |
|
|
TMUX6219DGKRQ1AUTOMOTIVE 36-V, LOW RON, 2:1 (S |
1,869 | 4.85 |
RFQ |
8-TSSOP, 8-MSOP (0.118, 3.00mm Width) | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100 | Active | SPDT | 2:1 | 1 | 6.2Ohm | 80mOhm | 4.5V ~ 36V, ±4.5V ~ 18V | 4.5V ~ 36V, ±4.5V ~ 18V | 180ns, 210ns | 42MHz | -6pC | 38pF | 100pA (Typ) | -106dB @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount | |
|
|
TMUX7219DGKRQ1AUTOMOTIVE 44-V, LOW RON, 2:1 (S |
323 | 5.35 |
RFQ |
8-TSSOP, 8-MSOP (0.118, 3.00mm Width) | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100 | Active | SPDT | 2:1 | 1 | 2.8Ohm | 100mOhm | 4.5V ~ 44V, ±4.5V ~ 22V | 4.5V ~ 44V, ±4.5V ~ 22V | 168ns, 180ns | 37MHz | -16pC | 34pF, 34pF | 100pA (Typ) | -106dB @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount | |
|
MUX36S08IRUMRIC SWITCH SINGLE 16WQFN |
629 | 6.62 |
RFQ |
Datasheet |
16-WQFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT) | - | Active | - | 8:1 | 1 | 170Ohm | 2.4Ohm | 10V ~ 36V | ±5V ~ 18V | 136ns, 75ns | - | 0.3pC | 2.4pF, 7.5pF | 40pA | -96dB @ 1MHz | -40°C ~ 125°C | Surface Mount |
|
MUX36S16IRSNRIC SWITCH SINGLE 32WQFN |
2,732 | 7.24 |
RFQ |
Datasheet |
32-WFQFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT) | - | Active | - | 16:1 | 1 | 170Ohm | 6Ohm | 10V ~ 36V | ±5V ~ 18V | 136ns, 78ns | - | - | 2.1pF, 11.1pF | 40pA | - | -40°C ~ 125°C | Surface Mount |
|
|
MUX36D08IRSNRIC SWITCH DUAL 32WQFN |
383 | 7.24 |
RFQ |
Datasheet |
32-WFQFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT) | - | Active | - | 8:1 | 2 | 170Ohm | 6Ohm | 10V ~ 36V | ±5V ~ 18V | 136ns, 78ns | - | - | 2.1pF, 6.4pF | 40pA | - | -40°C ~ 125°C | Surface Mount |
|

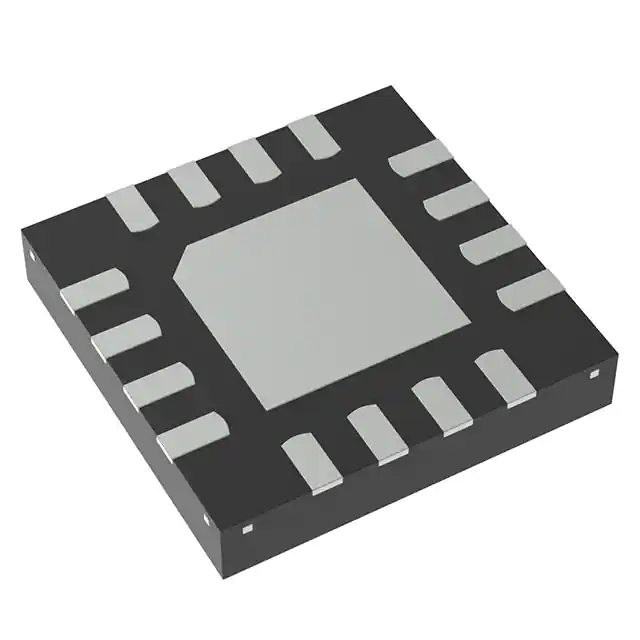

MUX36S08IRRJRIC SWITCH SINGLE 16WQFN |
2,359 | 7.62 |
RFQ |
Datasheet |
16-WQFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT) | - | Active | - | 8:1 | 1 | 170Ohm | 2.4Ohm | 10V ~ 36V | ±5V ~ 18V | 136ns, 75ns | - | 0.3pC | 2.4pF, 7.5pF | 40pA | -96dB @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount |
|
TMUX7462FRRPR60-V FAULT-PROTECTED, LATCH-UP I |
2,994 | 8.58 |
RFQ |
Datasheet |
16-WQFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT) | - | Active | SPST - NC | 1:1 | 4 | 10.5Ohm | 500mOhm | 8V ~ 44V, ±5V ~ 22V | 8V ~ 44V, ±5V ~ 22V | - | 550MHz | - | - | - | -100dB @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount |
|
MPC507AU/1KIC MULTIPLEXER DUAL 1X8 28SOIC |
300 | 17.15 |
RFQ |
Datasheet |
28-SOIC (0.295, 7.50mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | - | 8:1 | 2 | 1.5kOhm | - | - | ±5V ~ 22V | 200ns, 250ns (Typ) | - | - | 5pF, 25pF | 500pA (Typ) | - | -40°C ~ 85°C (TA) | Surface Mount |
|
CD4051BIM96SVCD4051B - 8-CHANNEL ANALOG MUX/D |
12,500 | 0.16 |
RFQ |
Datasheet |
- | Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
5962-9065401MEACD54HCT4051 HIGH SPEED CMOS LOGI |
215 | 28.08 |
RFQ |
Datasheet |
- | Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
