| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | SwitchCircuit | Multiplexer/DemultiplexerCircuit | NumberofCircuits | On-StateResistance(Max) | Channel-to-ChannelMatching(ΔRon) | Voltage-SupplySingle(V+) | Voltage-SupplyDual(V±) | SwitchTime(TonToff)(Max) | -3dbBandwidth | ChargeInjection | ChannelCapacitance(CS(off)CD(off)) | Current-Leakage(IS(off))(Max) | Crosstalk | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

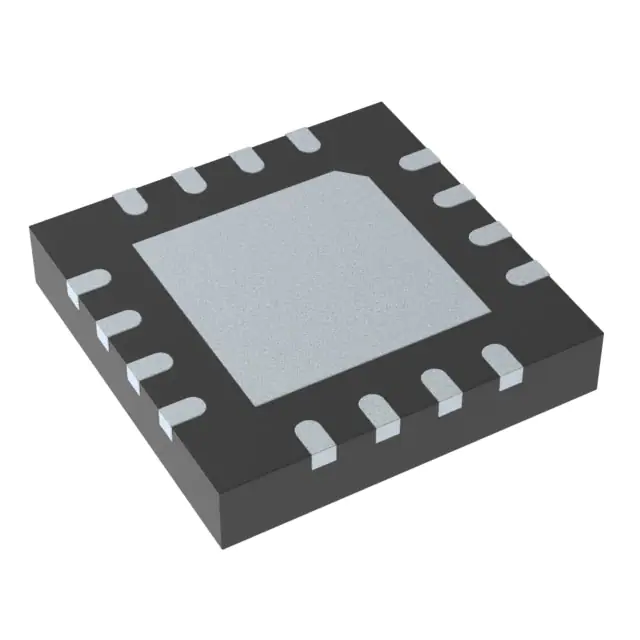

TMUX7213RUMRIC MULTIPLEXER |
2,272 | 3.79 |
RFQ |
16-WQFN Exposed Pad | Tape & Reel (TR) | - | Active | SPST - NO/NC | 1:1 | 4 | 2.5Ohm | 100mOhm | 4.5V ~ 44V, ±4.5V ~ 22V | 4.5V ~ 44V, ±4.5V ~ 22V | 185ns, 210ns | 48MHz | 92pC | 28pF, 45pF | 1nA | -93dB @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount | |
|
|
TMUX7211RUMRIC MULTIPLEXER |
2,749 | 3.79 |
RFQ |
16-WQFN Exposed Pad | Tape & Reel (TR) | - | Active | SPST - NO | 1:1 | 4 | 2.5Ohm | 100mOhm | 4.5V ~ 44V, ±4.5V ~ 22V | 4.5V ~ 44V, ±4.5V ~ 22V | 185ns, 210ns | 48MHz | 92pC | 28pF, 45pF | 1nA | -93dB @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount | |
|
|
TMUX6209RUMRIC MULTIPLEXER |
3,068 | 3.96 |
RFQ |
16-WQFN Exposed Pad | Tape & Reel (TR) | - | Active | 4PST | 4:1 | 2 | 6.2Ohm | 200mOhm | 4.5V ~ 36V, ±4.5V ~ 18V | 4.5V ~ 36V, ±4.5V ~ 18V | 200ns, 290ns | 50MHz | 2pC | 15pF, 68pF | 400pA | -65dB @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount | |
|
|
MUX507IPWIC MUX DUAL 8:1 170 OHM 28-TSSOP |
3,341 | 4.13 |
RFQ |
Datasheet |
28-TSSOP (0.173, 4.40mm Width) | Tube | - | Active | - | 8:1 | 2 | 200Ohm | 6Ohm | 10V ~ 36V | ±5V ~ 18V | 136ns, 78ns | - | 0.31pC | 2.1pF, 6.4pF | 1nA | -100dB @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount |
|
|
TMUX6208RUMRIC MULTIPLEXER |
3,828 | 4.16 |
RFQ |
16-WQFN Exposed Pad | Tape & Reel (TR) | - | Active | 8PST | 8:1 | 1 | 6.2Ohm | 200mOhm | 4.5V ~ 36V, ±4.5V ~ 18V | 4.5V ~ 36V, ±4.5V ~ 18V | 200ns, 290ns | 30MHz | 2pC | 15pF, 138pF | 400pA | -65dB @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount | |
|
|
TMUX7208RUMRIC MULTIPLEXER |
2,008 | 4.25 |
RFQ |
16-WQFN Exposed Pad | Tape & Reel (TR) | - | Active | 8PST | 8:1 | 1 | 5.4Ohm | 700mOhm | 4.5V ~ 44V, ±4.5V ~ 22V | 4.5V ~ 44V, ±4.5V ~ 22V | 205ns, 270ns | 30MHz | 3pC | 14pF, 130pF | 70nA | -85dB @ 100kHz | -40°C ~ 125°C (TA) | Surface Mount | |
|
MUX36D08IRTVRIC SWITCH DUAL 32WQFN |
2,336 | 4.38 |
RFQ |
Datasheet |
32-WFQFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT) | - | Active | - | 8:1 | 2 | 170Ohm | 6Ohm (Typ) | 10V ~ 36V | ±5V ~ 18V | 136ns, 78ns | - | 0.31pC | 2.1pF, 6.4pF | 40pA | -100dB @ 1MHz | -40°C ~ 125°C | Surface Mount |
|
|
MUX36S16IRTVRIC SWITCH SINGLE 32WQFN |
3,895 | 4.38 |
RFQ |
Datasheet |
32-WFQFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT) | - | Active | - | 16:1 | 1 | 170Ohm | 6Ohm (Typ) | 10V ~ 36V | ±5V ~ 18V | 136ns, 78ns | - | 0.31pC | 2.1pF, 11.1pF | 40pA | -100dB @ 1MHz | -40°C ~ 125°C | Surface Mount |
|
TS5A22362DRCT-NMIC SWITCH DUAL SPDT 10SON |
4,547 | 3.37 |
RFQ |
Datasheet |
10-VFDFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT),Bulk | - | Active | SPDT | 2:1 | 2 | 740mOhm | 40mOhm | 2.3V ~ 5.5V | - | 80ns, 70ns | 18.3MHz | 10pC | 70pF | 50nA | -78dB @ 100kHz | -40°C ~ 85°C (TA) | Surface Mount |
|
MUX36D04IRRJRIC MUX |
2,923 | 4.83 |
RFQ |
Datasheet |
- | Tape & Reel (TR) | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
TMUX7412FRRPRIC MULTIPLEXER |
3,681 | 5.60 |
RFQ |
16-WQFN Exposed Pad | Tape & Reel (TR) | - | Active | SPST - NC | 1:1 | 4 | 11Ohm | 60mOhm | 8V ~ 44V, ±5V ~ 22V | 8V ~ 44V, ±5V ~ 22V | 740ns, 100ns | 550MHz | 330pC | 10pF, 12pF | 700pA | -100dB @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount | |
|
|
MUX36D08IPWIC SWITCH DUAL 28TSSOP |
283 | 4.64 |
RFQ |
Datasheet |
28-TSSOP (0.173, 4.40mm Width) | Bulk,Tube | - | Active | - | 8:1 | 2 | 170Ohm | 6Ohm | 10V ~ 36V | ±5V ~ 18V | 136ns, 78ns | - | 0.31pC | 3pF, 7.5pF | 40pA | -100dB @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount |
|
TMUX7308FRRPR60-V FAULT-PROTECTED, 8:1, ONE-C |
3,057 | 5.92 |
RFQ |
16-WQFN Exposed Pad | Tape & Reel (TR) | - | Active | 8PST | 8:1 | 1 | 250Ohm | 2.5Ohm | 8V ~ 44V, ±5V ~ 22V | 8V ~ 44V, ±5V ~ 22V | 390ns, 450ns | 130MHz | -16pC | 4pF, 31pF | 1nA | -95dB @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount | |
|
|
TMUX7309FRRPR60-V FAULT-PROTECTED, 4:1, TWO-C |
2,300 | 5.92 |
RFQ |
16-WQFN Exposed Pad | Tape & Reel (TR) | - | Active | 4PST | 4:1 | 2 | 250Ohm | 2.5Ohm | 8V ~ 44V, ±5V ~ 22V | 8V ~ 44V, ±5V ~ 22V | 390ns, 450ns | 255MHz | -16pC | 4pF, 16pF | 1nA | -103dB @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount | |
|
MUX36S08IPWIC MUX 8:1 LOCAP CMOS 16TSSOP |
2,718 | 5.94 |
RFQ |
16-TSSOP (0.173, 4.40mm Width) | Tube | - | Active | - | 8:1 | 1 | 170Ohm | 2.4Ohm | 10V ~ 36V | ±5V ~ 18V | 136ns, 75ns | - | 0.3pC | 2.4pF, 7.5pF | 40pA | -96dB @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount | |
|

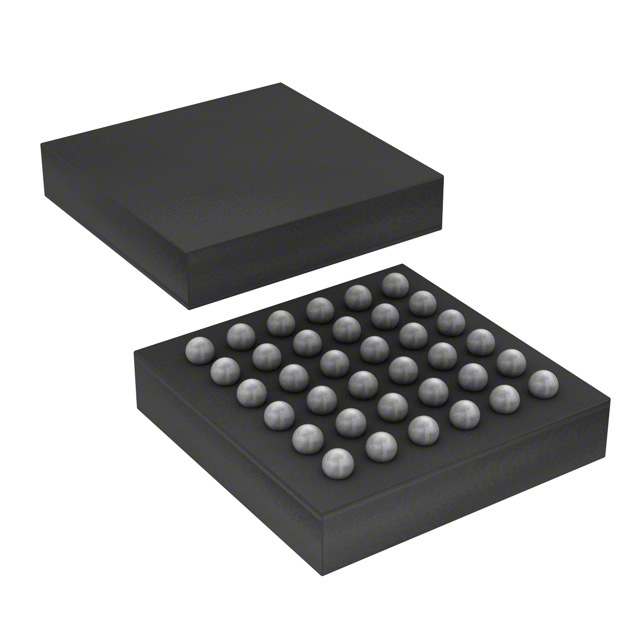

TS5MP646NYFPRIC SWITCH SPDT 10 CIRC 36DSBGA |
3,751 | 10.09 |
RFQ |
Datasheet |
36-XFBGA, DSBGA | Cut Tape (CT) | - | Not For New Designs | SPDT | 2:1 | 10 | 9Ohm | 100mOhm | 1.65V ~ 5.5V | - | - | 3GHz | - | 1.5pF | 500nA | -40dB @ 1.25GHz | -40°C ~ 85°C | Surface Mount |
|
|
TS5MP646YFPRIC SWITCH SPDT 10 CIRC 36DSBGA |
2,030 | 11.60 |
RFQ |
Datasheet |
36-XFBGA, DSBGA | Cut Tape (CT) | - | Not For New Designs | SPDT | 2:1 | 10 | 9Ohm | 100mOhm | 1.65V ~ 5.5V | - | - | 3GHz | - | 1.5pF | 500nA | -40dB @ 1.25GHz | -40°C ~ 85°C | Surface Mount |
|
CD4067BF3ACD4067B-MIL CMOS SINGLE 16-CHANN |
2,141 | 1.00 |
RFQ |
Datasheet |
- | Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
CD4052BFCD4052B-MIL CMOS DIFFERENTIAL 4- |
3,432 | 1.00 |
RFQ |
Datasheet |
16-CDIP (0.300, 7.62mm) | Bulk | - | Active | SP4T | 4:1 | 2 | 240Ohm | 5Ohm | 3V ~ 20V | 3V ~ 20V | - | 25MHz | - | 0.2pF, 18pF | 100nA | - | -55°C ~ 125°C (TA) | Through Hole |
|
CD74HC4053NSHIGH SPEED CMOS TRIPLE 2-CHANNEL |
2,941 | 0.00 |
RFQ |
- | Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
