| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | SwitchCircuit | Multiplexer/DemultiplexerCircuit | NumberofCircuits | On-StateResistance(Max) | Channel-to-ChannelMatching(ΔRon) | Voltage-SupplySingle(V+) | Voltage-SupplyDual(V±) | SwitchTime(TonToff)(Max) | -3dbBandwidth | ChargeInjection | ChannelCapacitance(CS(off)CD(off)) | Current-Leakage(IS(off))(Max) | Crosstalk | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADG823BRMZIC SWITCH DUAL SPST 8MSOP |
800 | 4.44 |
RFQ |
Datasheet |
8-TSSOP, 8-MSOP (0.118, 3.00mm Width) | Tube | - | Active | SPST - NO/NC | 1:1 | 2 | 600mOhm | 160mOhm | 1.8V ~ 5.5V | - | 45ns, 16ns | 24MHz | 15pC | 85pF, 98pF | 250pA | -82dB @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount |
|
ADV3220ACPZIC SWITCH SPDT SINGLE 8LFCSP |
344 | 5.56 |
RFQ |
Datasheet |
8-WFDFN Exposed Pad, CSP | Tray | - | Active | SPDT | 2:1 | 1 | - | - | - | ±4.5V ~ 5.5V | - | 800MHz | - | 0.6pF | 2µA (Typ) | -60dB @ 100MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
ADG451BNZIC SWITCH QUAD SPST 16DIP |
271 | 8.55 |
RFQ |
Datasheet |
16-DIP (0.300, 7.62mm) | Tube | - | Active | SPST - NC | 1:1 | 4 | 5Ohm | 100mOhm | 12V | ±4.5V ~ 20V | 180ns, 140ns | - | 20pC | 37pF, 37pF | 500pA | -90dB @ 1MHz | -40°C ~ 85°C (TA) | Through Hole |
|
ADG526AKPZIC MULTIPLEXER 16X1 28PLCC |
149 | 27.52 |
RFQ |
Datasheet |
28-LCC (J-Lead) | Tube | - | Active | - | 16:1 | 1 | 450Ohm | 22.5Ohm | 10.8V ~ 16.5V | ±10.8V ~ 16.5V | 300ns, 300ns | - | 4pC | 5pF, 44pF | 1nA | - | -40°C ~ 85°C (TA) | Surface Mount |
|
ADG792ABCPZ-REELIC MUX/DEMUX TRIPLE 4X1 24LFCSP |
4,399 | 3.32 |
RFQ |
Datasheet |
24-VFQFN Exposed Pad, CSP | Cut Tape (CT) | - | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount |
|
ADG852BCPZ-REEL71 SPDT IN MINI LFCSP, 0.5 OHM, 5 |
2,615 | 0.00 |
RFQ |
Datasheet |
10-UFQFN, CSP | Tape & Reel (TR) | - | Active | SPDT | 2:1 | 1 | 850mOhm | 20mOhm | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 23ns, 8.5ns | 100MHz | 30pC | 19.5pF | 10pA (Typ) | -73dB @ 100kHz | -40°C ~ 85°C (TA) | Surface Mount |
|
ADG802BRM-R2SPST SWITCH |
3,615 | 1.42 |
RFQ |
Datasheet |
8-TSSOP, 8-MSOP (0.118, 3.00mm Width) | Bulk | - | Active | SPST - NC | 1:1 | 1 | 300mOhm | - | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 45ns, 15ns | 12MHz | 50pC | 180pF, 180pF | 250pA | - | -40°C ~ 125°C (TA) | Surface Mount |
|
|
ADG787BCPZ-REEL7DUAL 2:1 MUX/DEMUX USB SWITCH |
1,423 | 1.50 |
RFQ |
Datasheet |
10-VFDFN Exposed Pad, CSP | Bulk | ADG787 | Active | SPDT | 2:1 | 2 | 3Ohm | 20mOhm | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 19ns, 5ns | 145MHz | 14pC | 16pF | 50pA (Typ) | -110dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
|
ADG819BRM-R22:1 MUX/SPDT SWITCH |
1,293 | 1.50 |
RFQ |
Datasheet |
8-TSSOP, 8-MSOP (0.118, 3.00mm Width) | Bulk | - | Active | SPDT | 2:1 | 1 | 600mOhm | 60mOhm | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 45ns, 16ns | 17MHz | 20pC | 80pF | 250pA | -72dB @ 100kHz | -40°C ~ 125°C (TA) | Surface Mount |
|

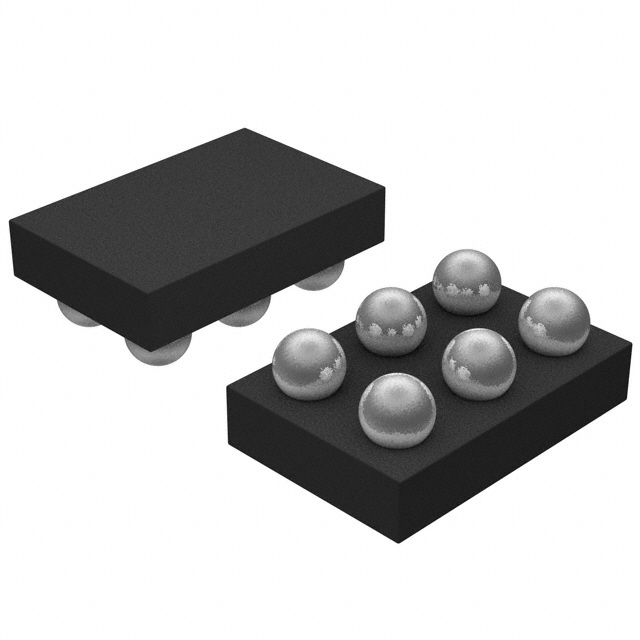

ADG819BCBZ-REEL7IC SWITCH SPDT 6WLCSP |
6,331 | 3.43 |
RFQ |
Datasheet |
6-WFBGA, WLCSP | Tape & Reel (TR),Cut Tape (CT) | - | Active | SPDT | 2:1 | 1 | 600mOhm | 60mOhm | 1.8V ~ 5.5V | - | 45ns, 16ns | 17MHz | 20pC | 80pF | 250pA | -72dB @ 100kHz | -40°C ~ 85°C (TA) | Surface Mount |
|
|
AD15/133-0REELQUAD SPST LOW R-ON I.C. |
20,000 | 1.66 |
RFQ |
- | Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|

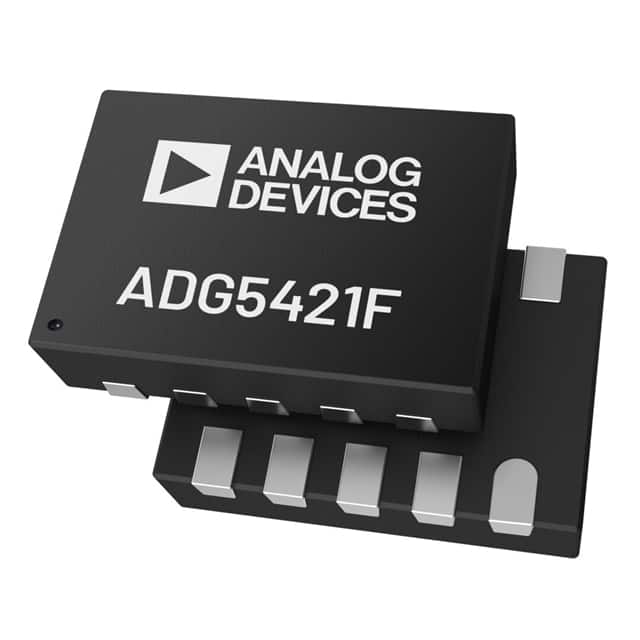

ADG5401FBCPZ-RL760V OV PROTECTED HV SPSTX1 SWITC |
1,327 | 7.29 |
RFQ |
Datasheet |
10-WFDFN, CSP | Tape & Reel (TR),Cut Tape (CT) | - | Active | SPST - NC | 1:1 | 1 | 6Ohm (Typ) | - | 8V ~ 44V, ±5V ~ 22V | 8V ~ 44V, ±5V ~ 22V | 10.2µs, 360ns | 395MHz | -230pC | 9pF, 11pF | 100pA (Typ) | - | -40°C ~ 125°C | Surface Mount |
|
|
SW202FQQUAD SPST JFET SWITCH |
2,527 | 2.32 |
RFQ |
Datasheet |
16-CDIP (0.300, 7.62mm) | Bulk | - | Active | SPST - NO | 1:1 | 4 | - | - | ±15V | ±15V | - | - | - | - | - | - | - | Through Hole |
|
ADG736LBRMZIC SWITCH DUAL SPDT 10MSOP |
1,710 | 3.26 |
RFQ |
Datasheet |
10-TFSOP, 10-MSOP (0.118, 3.00mm Width) | Tube | - | Active | SPDT | 2:1 | 2 | 4Ohm | 100mOhm | 1.8V ~ 5.5V | - | 12ns, 5ns (Typ) | 200MHz | - | 9pF | 10pA (Typ) | -82dB @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount |
|
ADG659YCPZ-REEL7IC MULTIPLEXER 4:1 16LFCSP |
959 | 6.26 |
RFQ |
16-VQFN Exposed Pad, CSP | Tape & Reel (TR),Cut Tape (CT) | - | Active | SP4T | 4:1 | 2 | 75Ohm | 1.3Ohm | 2V ~ 12V | ±2V ~ 6V | 115ns, 45ns | 400MHz | 2pC | 4pF, 12pF | 200pA | -90dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount | |
|
SSM2412PDUAL AUDIO ANALOG SWITCH |
2,830 | 3.92 |
RFQ |
Datasheet |
14-DIP (0.300, 7.62mm) | Bulk | - | Active | SPST - NO | 1:1 | 2 | 85Ohm | - | 10V ~ 20V | 10V ~ 20V | 80ns, 85ns | - | 2pC | - | 10nA | - | -40°C ~ 85°C (TA) | Through Hole |
|
SW7511FQQUAD SPST JFET SWITCH |
2,507 | 3.92 |
RFQ |
Datasheet |
16-CDIP | Bulk | - | Active | SPST - NO | 1:1 | 4 | 100Ohm | 15Ohm | 36V | 36V | 550ns, 450ns | - | - | 6.5pF, 6.5pF | 3nA | 60dB @ 100kHz | -25°C ~ 85°C | Through Hole |
|
ADG1634LYCPZ-REEL7STACKED DIE, SPDT X 4 |
1,228 | 7.87 |
RFQ |
Datasheet |
24-VFQFN Exposed Pad, CSP | Tape & Reel (TR),Cut Tape (CT) | - | Active | SPDT | 2:1 | 4 | 4.6Ohm | 120mOhm | 3.3V ~ 16V, ±3.3V ~ 8V | 3.3V ~ 16V, ±3.3V ~ 8V | 154ns, 195ns | 77MHz | -12.4pC | 19pF, 32pF | 150pA | -64dB @ 1MHz | -40°C ~ 125°C | Surface Mount |
|
SW202GPQUAD SPST JFET SWITCH |
2,771 | 4.68 |
RFQ |
Datasheet |
16-DIP (0.300, 7.62mm) | Bulk | - | Active | SPST - NO | 1:1 | 4 | 150Ohm | 30Ohm | ±15V | ±15V | 700ns, 500ns | - | - | 7pF | 10nA | - | -40°C ~ 85°C (TA) | Through Hole |
|
ADG201HSJP-REELQUAD SPST SWITCH |
3,000 | 4.73 |
RFQ |
Datasheet |
20-LCC (J-Lead) | Bulk | - | Active | SPST - NO | 1:1 | 4 | 50Ohm | 1.5Ohm | 10.8V ~ 16.5V, ±13.5V ~ 16.5V | 10.8V ~ 16.5V, ±13.5V ~ 16.5V | 75ns, 75ns | - | 10pC | 10pF, 10pF | 1nA | -86dB @ 100kHz | -40°C ~ 85°C | Surface Mount |
