| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | MountingType | FuseType | CurrentRating(Amps) | VoltageRating-AC | VoltageRating-DC | ResponseTime | BreakingCapacity@RatedVoltage | MeltingI²t | ApprovalAgency | OperatingTemperature | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0215010.MXPFUSE CERAMIC 10A 250VAC 5X20MM |
3,001 | 1.88 |
RFQ |
Datasheet |
Bulk | 215 | Active | Holder | Cartridge, Ceramic | 10 A | 250 V | - | Slow Blow | 5mm x 20mm | 1.5kA | 333.565 | CE, CSA, KC, PSE, SEMKO, UL, VDE | -55°C ~ 125°C | |
|
|
0215010.HXPFUSE CERAMIC 10A 250VAC 5X20MM |
10,390 | 1.96 |
RFQ |
Datasheet |
Bulk | 215 | Active | Holder | Cartridge, Ceramic | 10 A | 250 V | - | Slow Blow | 5mm x 20mm | 1.5kA | 333.565 | CE, CSA, KC, PSE, SEMKO, UL, VDE | -55°C ~ 125°C | |
|
|
0215012.MXPFUSE CERAMIC 12A 250VAC 5X20MM |
2,649 | 1.88 |
RFQ |
Datasheet |
Bulk | 215 | Active | Holder | Cartridge, Ceramic | 12 A | 250 V | - | Slow Blow | 5mm x 20mm | 1.5kA | 515.5 | CE, CSA, PSE, SEMKO, UL, VDE | -55°C ~ 125°C | |
|
0477004.MXPFUSE CERM 4A 500VAC 400VDC 5X20 |
20,390 | 1.90 |
RFQ |
Datasheet |
Bulk | 477 | Active | Holder | Cartridge, Ceramic | 4 A | 500 V | 400 V | Slow Blow | 5mm x 20mm | 100A AC, 500A DC | 52.48 | cULus, PSE, SEMKO | -55°C ~ 125°C | |
|
|
0477001.MXPFUSE CERM 1A 500VAC 400VDC 5X20 |
20,285 | 1.90 |
RFQ |
Datasheet |
Bulk | 477 | Active | Holder | Cartridge, Ceramic | 1 A | 500 V | 400 V | Slow Blow | 5mm x 20mm | 100A AC, 1.5kA DC | 1.8 | cULus, PSE, SEMKO, VDE | -55°C ~ 125°C | |
|
|
0477.500MXPFUSE CERAMIC 500MA 500VAC 400VDC |
13,452 | 1.90 |
RFQ |
Datasheet |
Bulk | 477 | Active | Holder | Cartridge, Ceramic | 500 mA | 500 V | 400 V | Slow Blow | 5mm x 20mm | 100A AC, 1.5kA DC | 0.3 | cULus, SEMKO | -55°C ~ 125°C | |
|
|
0215004.HXPFUSE CERAMIC 4A 250VAC 5X20MM |
27,711 | 1.96 |
RFQ |
Datasheet |
Bulk | 215 | Active | Holder | Cartridge, Ceramic | 4 A | 250 V | - | Slow Blow | 5mm x 20mm | 1.5kA | 46.96 | CCC, CE, CSA, KC, PSE, SEMKO, UL, VDE | -55°C ~ 125°C | |
|
|
021506.3HXPFUSE CERAMIC 6.3A 250VAC 5X20MM |
4,919 | 1.96 |
RFQ |
Datasheet |
Bulk | 215 | Active | Holder | Cartridge, Ceramic | 6.3 A | 250 V | - | Slow Blow | 5mm x 20mm | 1.5kA | 128.75 | CCC, CE, CSA, KC, PSE, SEMKO, UL, VDE | -55°C ~ 125°C | |
|
0218010.HXPFUSE GLASS 10A 250VAC 5X20MM |
2,342 | 1.96 |
RFQ |
Datasheet |
Bulk | 218 | Active | Holder | Cartridge, Glass | 10 A | 250 V | - | Slow Blow | 5mm x 20mm | 100A | 568 | CE, CSA, K-MARK, PSE, UL, VDE | -55°C ~ 125°C | |
|
0456030.ERFUSE BOARD MNT 30A 125VAC 72VDC |
8,507 | 4.91 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | NANO²® 456 | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 30 A | 125 V | 72 V | Fast Blow | 2-SMD, Square End Block | 100A AC, 500A DC | 81 | cULus, PSE | -55°C ~ 125°C | |
|
0885004.DRFUSE BOARD MNT 4A 450VDC SMT |
2,843 | 4.72 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | NANO²® 885 | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 4 A | - | 450 V | - | 2-SMD, Square End Block | 100A | 21.3 | cURus, TUV | -40°C ~ 85°C | |
|
|
0885005.DRFUSE BOARD MNT 5A 450VDC SMT |
6,088 | 4.72 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | NANO²® 885 | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 5 A | - | 450 V | - | 2-SMD, Square End Block | 100A | 35 | cURus, TUV | -40°C ~ 85°C | |
 Series.jpg)
|
047706.3MXEPFUSE CERAMIC 6.3A 500VAC 400VDC |
38,466 | 2.12 |
RFQ |
Datasheet |
Bulk | 477 | Active | Through Hole | Cartridge, Ceramic | 6.3 A | 500 V | 400 V | Slow Blow | 5mm x 20mm (Axial) | 100A AC, 500A DC | 121.451 | cULus, PSE, SEMKO | -55°C ~ 125°C | |
|
|
0477005.MXPFUSE CERM 5A 500VAC 400VDC 5X20 |
1,067 | 2.12 |
RFQ |
Datasheet |
Bulk | 477 | Active | Holder | Cartridge, Ceramic | 5 A | 500 V | 400 V | Slow Blow | 5mm x 20mm | 100A AC, 500A DC | 76.5 | cULus, PSE, SEMKO | -55°C ~ 125°C | |
|
0451.080MRLFUSE BOARD MOUNT 80MA 125VAC/VDC |
4,228 | 4.54 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | NANO²® 451 | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 80 mA | 125 V | 125 V | Fast Blow | 2-SMD, Square End Block | 50A | 0.00033 | CSA, UL | -55°C ~ 125°C | |
|
|
0477010.MXPFUSE CERM 10A 500VAC 400VDC 5X20 |
13,585 | 2.19 |
RFQ |
Datasheet |
Bulk | 477 | Active | Holder | Cartridge, Ceramic | 10 A | 500 V | 400 V | Slow Blow | 5mm x 20mm | 100A AC, 500A DC | 509 | cULus, PSE | -55°C ~ 125°C | |
|
|
0477008.MXPFUSE CERM 8A 500VAC 400VDC 5X20 |
5,215 | 2.19 |
RFQ |
Datasheet |
Bulk | 477 | Active | Holder | Cartridge, Ceramic | 8 A | 500 V | 400 V | Slow Blow | 5mm x 20mm | 100A AC, 500A DC | 203.52 | cULus, PSE, SEMKO | -55°C ~ 125°C | |
|

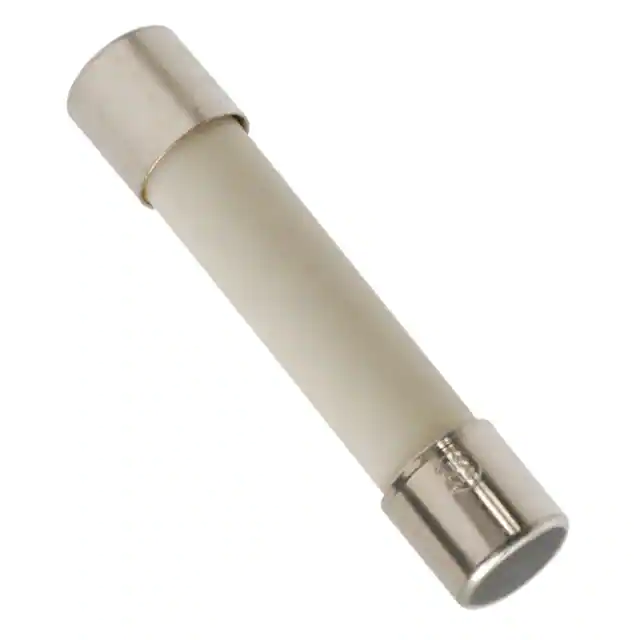

0326015.HXPFUSE CERM 15A 250VAC 125VDC 3AB |
4,564 | 2.26 |
RFQ |
Datasheet |
Bulk | 326 | Active | Holder | Cartridge, Ceramic | 15 A | 250 V | 125 V | Slow Blow | 3AB, 3AG, 1/4 x 1-1/4 | 400A AC, 500A DC | 245 | CE, CSA, K-MARK, PSE, UL | -55°C ~ 125°C | |
|
35621000029FUSE CERAMIC 10A 440VAC 3AB 3AG |
7,405 | 2.28 |
RFQ |
Datasheet |
Bulk | 356 | Active | Holder | Cartridge, Ceramic | 10 A | 440 V | - | Slow Blow | 3AB, 3AG, 1/4 x 1-1/4 | 1kA | 510 | CE, cULus | -25°C ~ 70°C | |
|
|
0456020.ERFUSE BOARD MNT 20A 125VAC 100VDC |
5,158 | 5.32 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | NANO²® 456 | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 20 A | 125 V | 100 V | Fast Blow | 2-SMD, Square End Block | 100A AC, 300A DC | 18 | cULus, PSE | -55°C ~ 125°C |
