| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | MountingType | FuseSize | CurrentRating(Amps) | ForUseWith/RelatedProducts | FuseType | FuseholderType | NumberofCircuits | Voltage | Orientation | TerminationStyle | ContactMaterial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

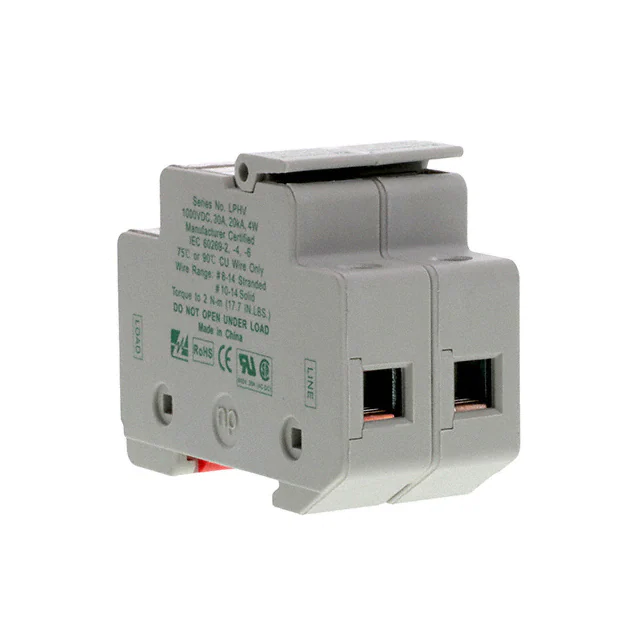

LPHV0002ZFUSE HLDR CART 1000V 30A DINRAIL |
3,815 | 39.34 |
RFQ |
Datasheet |
Box | LPHV | Active | DIN Rail | 0.394 Dia x 1.496 L (10mm x 38mm) | 30 A | 5AG, 13/32 x 1-1/2 (Midget) | Cartridge | Holder | 2 | 1000V | - | Screw Terminal, Pressure Plate | - |
|

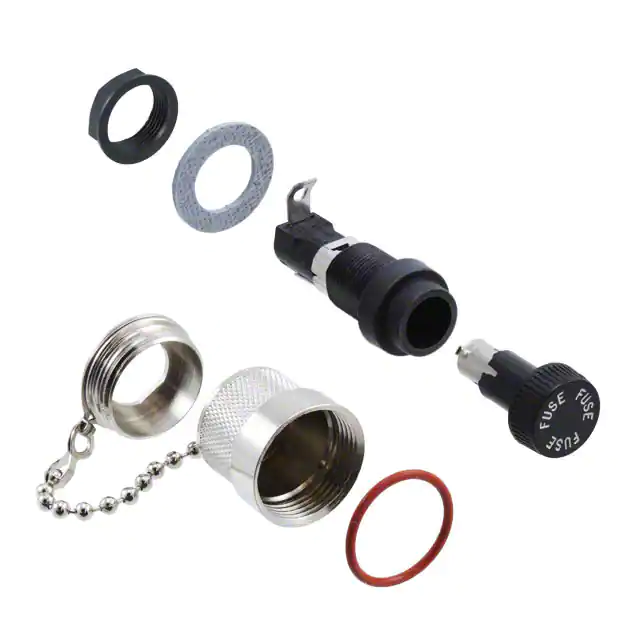

03400312ZFUSE HLDR CART 250V 20A PNL MNT |
3,978 | 47.43 |
RFQ |
Datasheet |
Bulk | 340 | Active | Panel Mount | 0.25 Dia x 1.26 L (6.35mm x 32mm) | 20 A | 3AG, 1/4 x 1-1/4 (SFE-20) | Cartridge | Holder | 1 | 250V | - | Solder Lug | Copper Alloy |
|

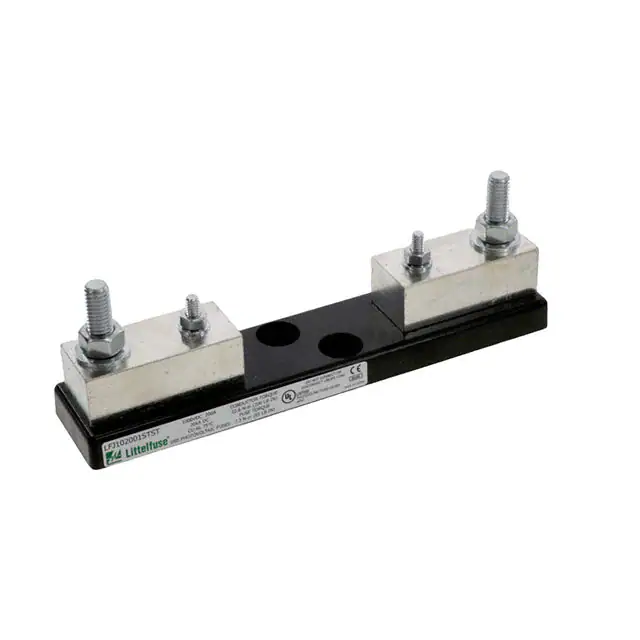

LFJ102001STST1000VDC HLDR STUD TERMINAL 200A |
2,138 | 167.12 |
RFQ |
Datasheet |
Box | LFJ1000 | Active | Chassis Mount | 1.496 Dia x 5.75 L (38mm x 146.05mm) | 200 A | Bolt Mount Cartridge Fuses | Bolt Down | Block | 1 | 1000V | Horizontal | Bolt Down | - |
|
00300210NFUSE CLIP CARTRIDGE 10A PCB |
3,483 | 0.32 |
RFQ |
Datasheet |
Bulk | - | Active | Through Hole | 0.197 Dia (5mm) | 10 A | 5mm Dia Fuses | Cartridge | Clip | 1 | - | Horizontal | PC Pin | Spring Brass |
|

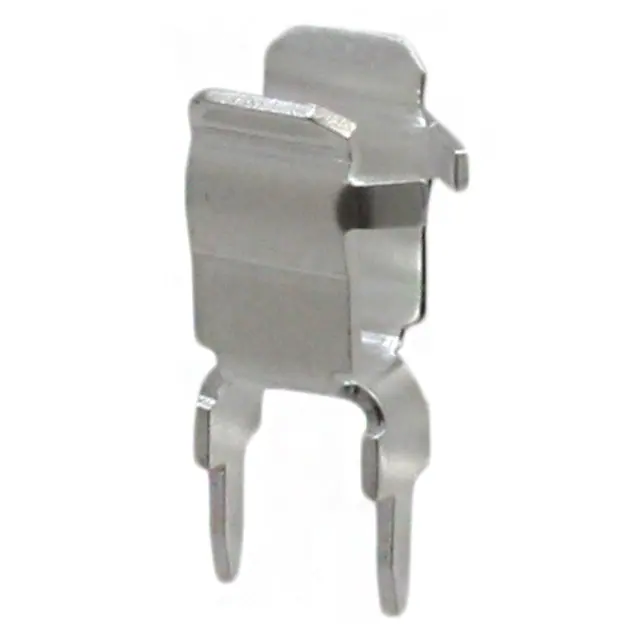

01000054ZFUSE CLIP CARTRIDGE 250V 10A PCB |
2,609 | 0.41 |
RFQ |
Datasheet |
Bulk | 100 | Active | Through Hole | 0.197 Dia (5mm) | 10 A | 5mm Dia Fuses | Cartridge | Clip | 1 | 250V | Horizontal | PC Pin | Spring Brass |
|

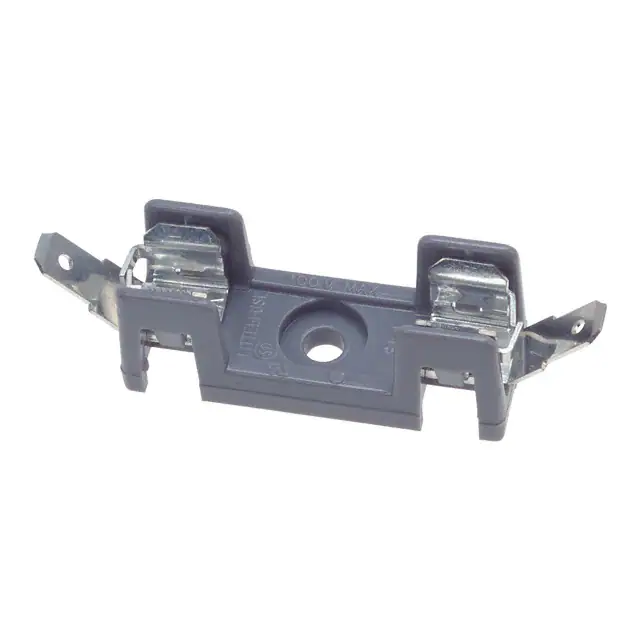

03540601ZXGYFUSE BLOCK CART 600V 20A CHASSIS |
2,810 | 1.45 |
RFQ |
Datasheet |
Bulk | OMNI-BLOK® 354 | Active | Chassis Mount | 0.25 Dia x 1.26 L (6.35mm x 32mm) | 20 A | 3AG, 1/4 x 1-1/4 (SFE-20) | Cartridge | Block | 1 | 600V | - | Quick Connect - 0.187 (4.7mm) | Phosphorus Bronze |
|

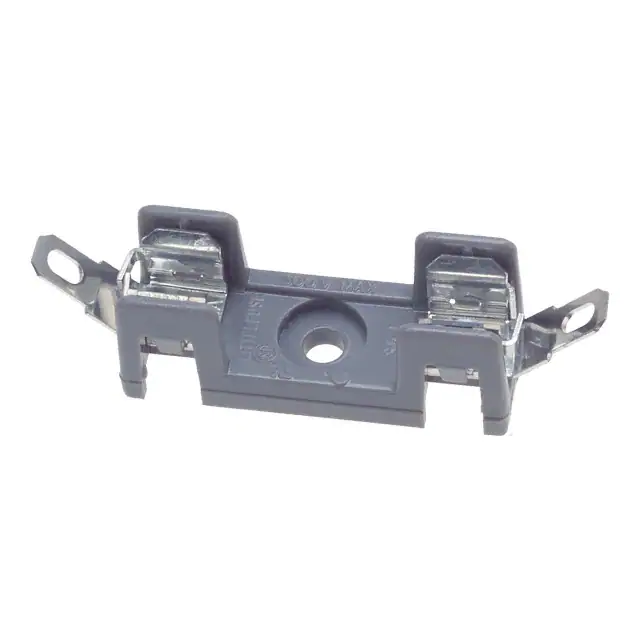

03540001ZXGYFUSE BLOCK CART 600V 30A CHASSIS |
2,403 | 1.48 |
RFQ |
Datasheet |
Bulk | OMNI-BLOK® 354 | Active | Chassis Mount | 0.25 Dia x 1.26 L (6.35mm x 32mm) | 30 A | 3AG, 1/4 x 1-1/4 (SFE-20) | Cartridge | Block | 1 | 600V | - | Solder Lug | Phosphorus Bronze |
|

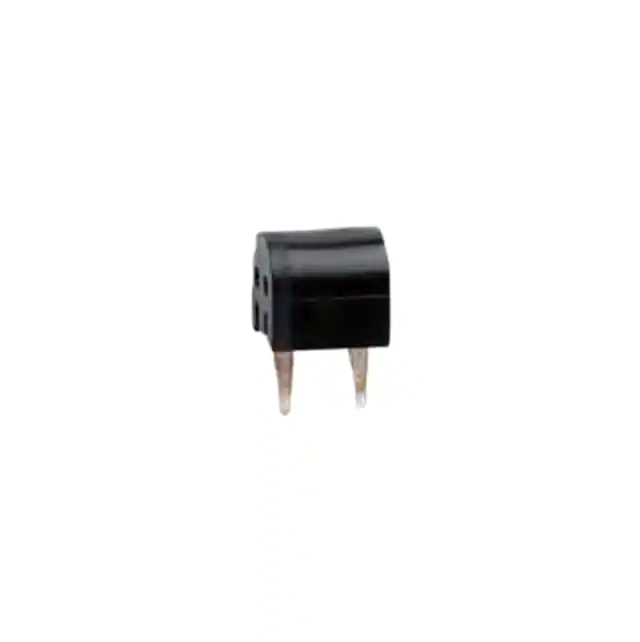

55700000001FUSE HOLDER RADIAL 125V 5A PCB |
2,718 | 1.49 |
RFQ |
Datasheet |
Bulk | 557 | Active | Through Hole | Radial 0.1 (2.54mm) Pitch | 5 A | Radial Can | Radial | Holder | 1 | 125V | Horizontal | PC Pin | Copper Alloy |
|

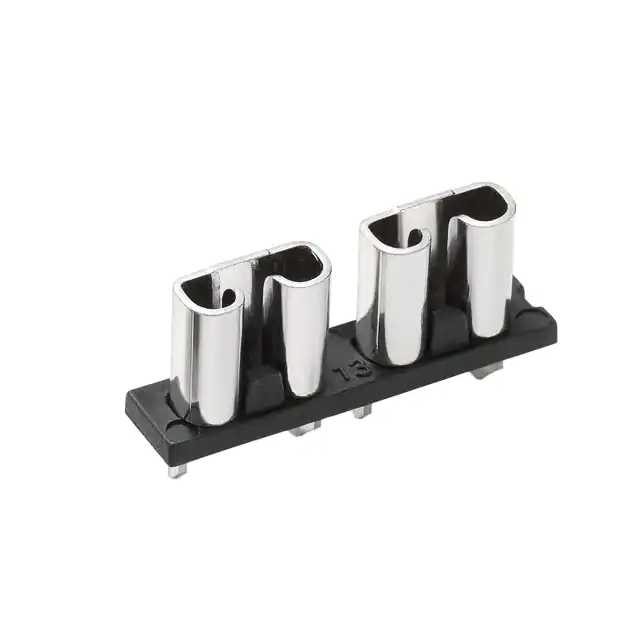

01000062ZFUSE BLOCK ATO BLADE 500V 30A |
2,379 | 1.51 |
RFQ |
Datasheet |
Bulk | 100 | Active | Through Hole | - | 30 A | ATO | Blade | Block | 1 | 500V | Horizontal and Vertical | PC Pin | Tin |
|

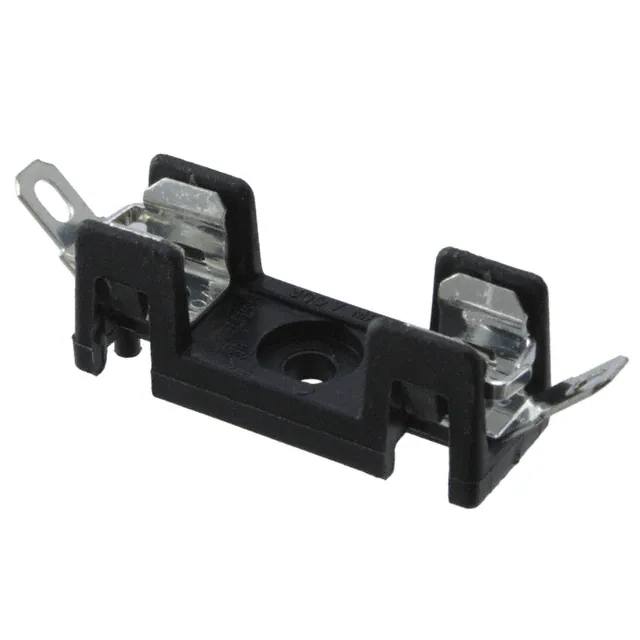

03540021ZXBLFUSE BLOCK CART 600V 30A CHASSIS |
3,740 | 1.55 |
RFQ |
Datasheet |
Bulk | OMNI-BLOK® 354 | Active | Chassis Mount | 0.25 Dia x 1.26 L (6.35mm x 32mm) | 30 A | 3AG, 1/4 x 1-1/4 (SFE-20) | Cartridge | Block | 1 | 600V | - | Solder Lug | Phosphorus Bronze |
|

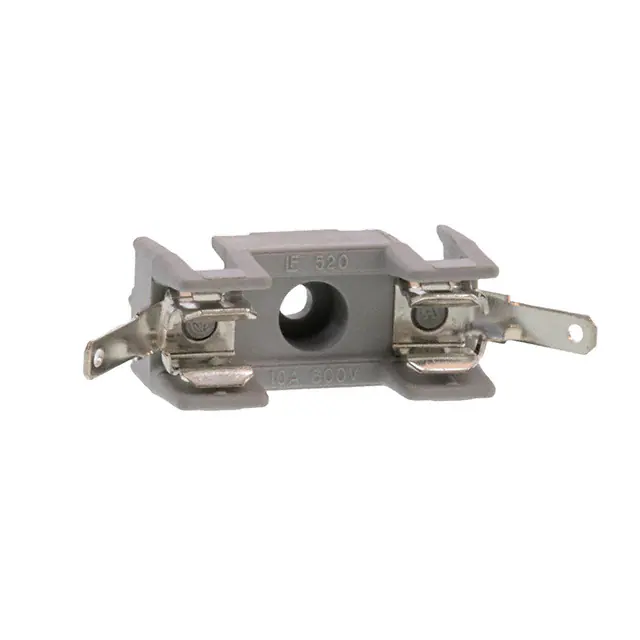

05200005ZXGYFUSE BLOCK CART 600V 10A CHASSIS |
3,632 | 1.86 |
RFQ |
Datasheet |
Bulk | OMNI-BLOK® 520 | Active | Chassis Mount | 0.197 Dia x 0.787 L (5mm x 20mm) | 10 A | 5mm x 20mm | Cartridge | Block | 1 | 600V | - | Quick Connect - 0.110 (2.8mm) | Brass |
|
65600001009FUSE BLOK CARTRIDGE 250V 10A PCB |
2,275 | 1.89 |
RFQ |
Datasheet |
Bulk | 656 | Active | Through Hole | 0.197 Dia x 0.787 L (5mm x 20mm) | 10 A | 5mm x 20mm | Cartridge | Block | 1 | 250V | Horizontal | PC Pin | Copper Alloy |
|
01550020ZXUFUSE HOLDER CART 32V 20A IN LINE |
3,164 | 2.23 |
RFQ |
Datasheet |
Bulk | 155 | Active | Free Hanging (In-Line) | 0.25 Dia x 1.26 L (6.35mm x 32mm) | 20 A | 3AG, 1/4 x 1-1/4 (SFE-20) | Cartridge | Holder | - | 32V | - | Crimp | Brass |
|

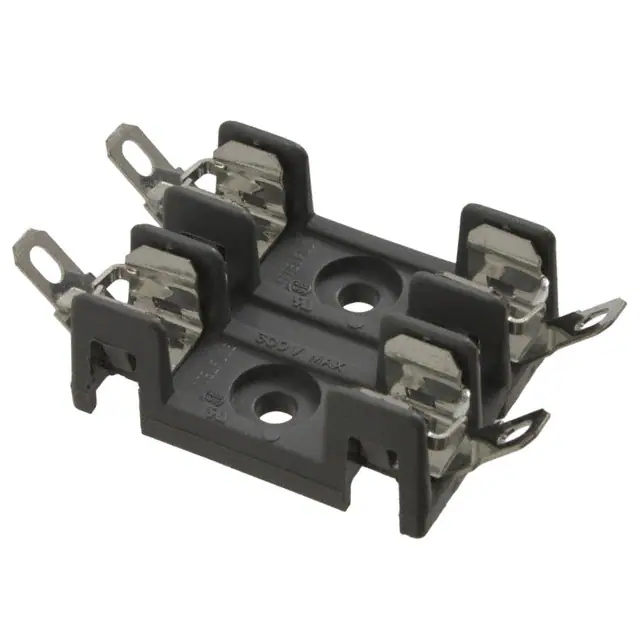

03540002ZXGYFUSE BLOCK CART 600V 30A CHASSIS |
3,129 | 2.84 |
RFQ |
Datasheet |
Bulk | OMNI-BLOK® 354 | Active | Chassis Mount | 0.25 Dia x 1.26 L (6.35mm x 32mm) | 30 A | 3AG, 1/4 x 1-1/4 (SFE-20) | Cartridge | Block | 2 | 600V | - | Solder Lug | Phosphorus Bronze |
|

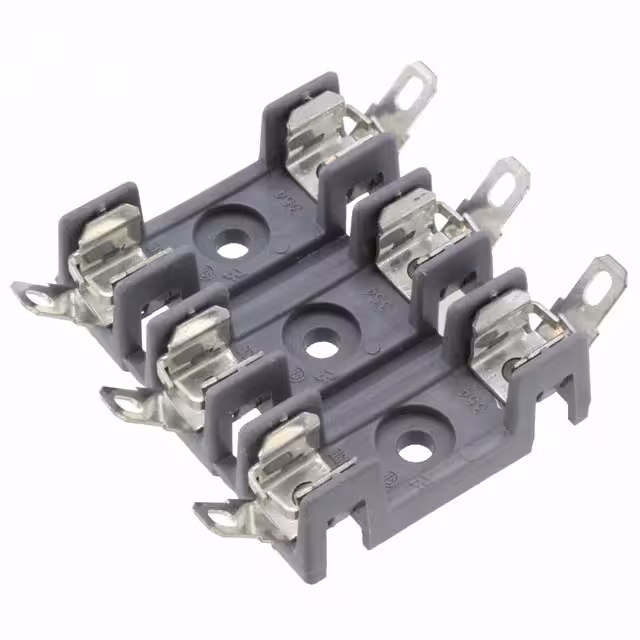

03540003ZXGYFUSE BLOCK CART 600V 30A CHASSIS |
2,191 | 4.02 |
RFQ |
Datasheet |
Bulk | OMNI-BLOK® 354 | Active | Chassis Mount | 0.25 Dia x 1.26 L (6.35mm x 32mm) | 30 A | 3AG, 1/4 x 1-1/4 (SFE-20) | Cartridge | Block | 3 | 600V | - | Solder Lug | Phosphorus Bronze |
|

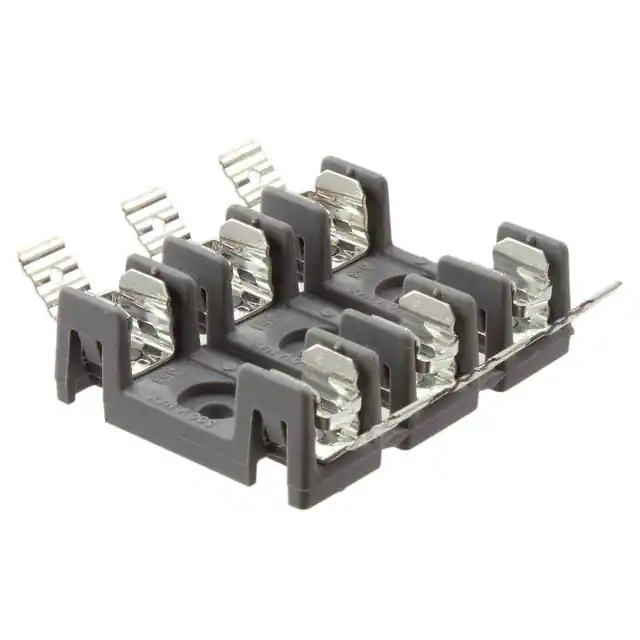

03540803ZXGYFUSE BLOCK CART 600V 20A CHASSIS |
2,075 | 4.02 |
RFQ |
Datasheet |
Bulk | OMNI-BLOK® 354 | Active | Chassis Mount | 0.25 Dia x 1.26 L (6.35mm x 32mm) | 20 A | 3AG, 1/4 x 1-1/4 (SFE-20) | Cartridge | Block | 3 | 600V | - | Quick Connect - 0.250 (6.3mm) | Phosphorus Bronze |
|

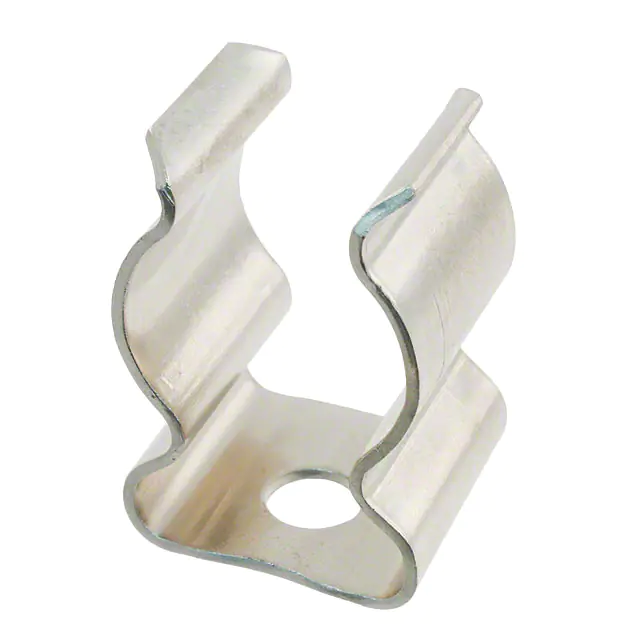

01090002HFUSE CLIP CART 600V 60A CHASSIS |
3,117 | 4.63 |
RFQ |
Datasheet |
Bulk | 109 | Active | Chassis Mount | 0.813 Dia (20.65mm) | 60 A | 13/16 Dia Fuses | Cartridge | Clip | 1 | 600V | - | Solder Lug | Spring Brass |
|
03420004HFUSE HLDR CART 250V 20A PNL MNT |
3,525 | 4.66 |
RFQ |
Datasheet |
Bulk | 342 | Active | Panel Mount | 0.25 Dia x 1.26 L (6.35mm x 32mm) | 20 A | 3AG, 1/4 x 1-1/4 (SFE-20) | Cartridge | Holder | 1 | 250V | - | Solder Lug | Brass |
|

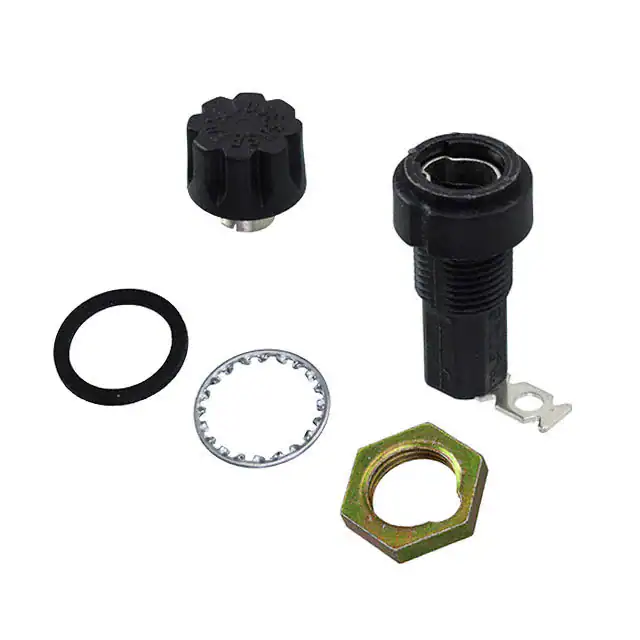

03420004HXLFUSE HLDR CART 250V 20A PNL MNT |
3,181 | 4.78 |
RFQ |
Datasheet |
Bulk | 342 | Active | Panel Mount | 0.25 Dia x 1.26 L (6.35mm x 32mm) | 20 A | 3AG, 1/4 x 1-1/4 (SFE-20) | Cartridge | Holder | 1 | 250V | - | Solder Lug | Brass |
|

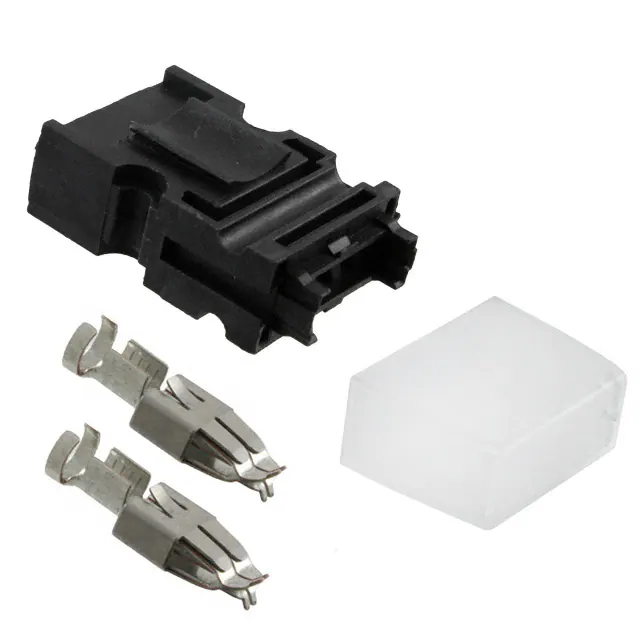

178.6105.0001FUSE BLOCK BLADE 58V PANEL MNT |
3,338 | 5.38 |
RFQ |
Datasheet |
Bulk | FH2 | Active | Panel Mount | 0.75 L x 0.2 W (19.1mm x 5.1mm) | - | ATC, ATO | Blade | Block | 1 | 58V | - | Crimp | Copper Alloy |
