| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DRA127-331-RFIXED IND 330UH 1.011A 612 MOHM |
371 | 3.22 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | DRA | Active | Wirewound | - | 330 µH | ±20% | 1.011 A | 1.93A | Shielded | 612mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - |
|

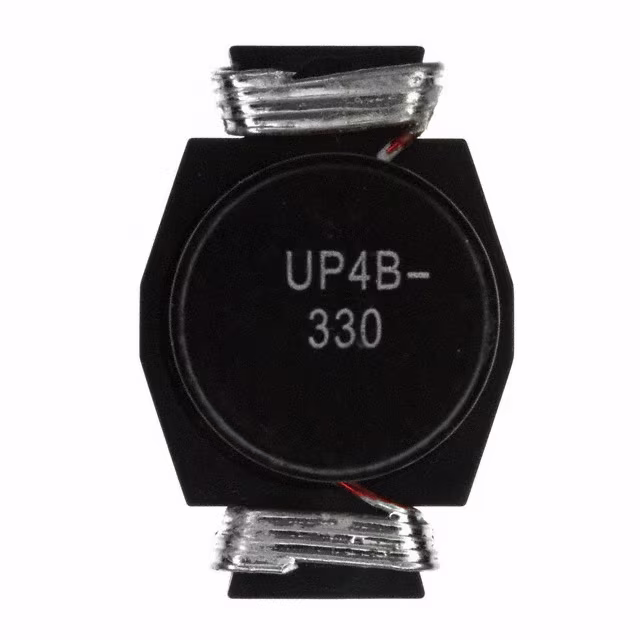

UP4B-330-RFIXED IND 33UH 3.7A 52 MOHM SMD |
2,592 | 3.78 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | UNI-PAC™ | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 3.7 A | 6.1A | Unshielded | 52mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|

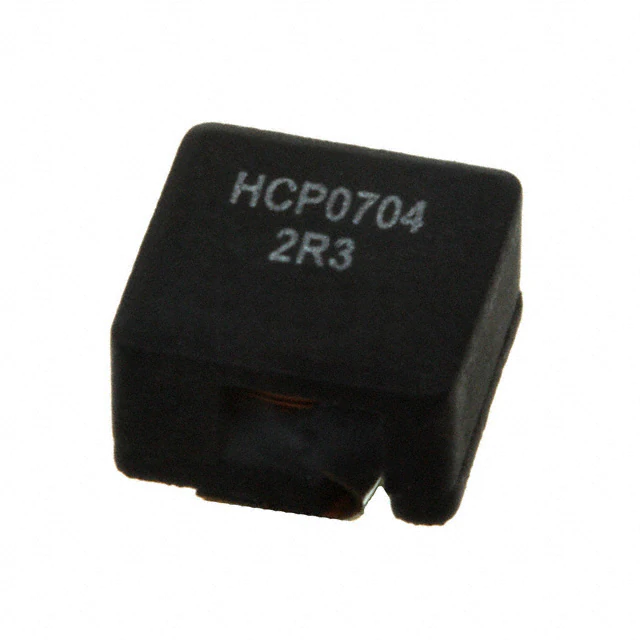

HCP0704-2R3-RFIXED IND 2.3UH 7.5A 16.5MOHM SM |
2,603 | 3.87 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | HCP0704 | Active | Drum Core, Wirewound | Iron Powder | 2.3 µH | ±25% | 7.5 A | 11.5A | Shielded | 16.5mOhm | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - |
|
DRA124-102-RFIXED IND 1MH 380MA 2.94 OHM SMD |
2,025 | 3.88 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | DRA | Active | Wirewound | - | 1 mH | ±20% | 380 mA | 629mA | Shielded | 2.94Ohm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - |
|
DRA125-102-RFIXED IND 1MH 552MA 1.78 OHM SMD |
3,405 | 3.78 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | DRA | Active | Wirewound | - | 1 mH | ±20% | 552 mA | 695mA | Shielded | 1.78Ohm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - |
|
HCF1007-1R5-RFIXED IND 1.5UH 13A 4.15MOHM SMD |
2,849 | 4.57 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | HCF1007 | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 13 A | 22A | Unshielded | 4.15mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
HCF1007-3R3-RFIXED IND 3.3UH 10A 7.5 MOHM SMD |
3,146 | 4.57 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | HCF1007 | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 10 A | 14.5A | Unshielded | 7.5mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
FP3-150-RFIXED IND 15UH 2.22A 127MOHM SMD |
2,812 | 4.98 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | FLAT-PAC 3 | Active | Drum Core, Wirewound | Iron Powder | 15 µH | ±15% | 2.22 A | 2.5A | Shielded | 127mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - |
|

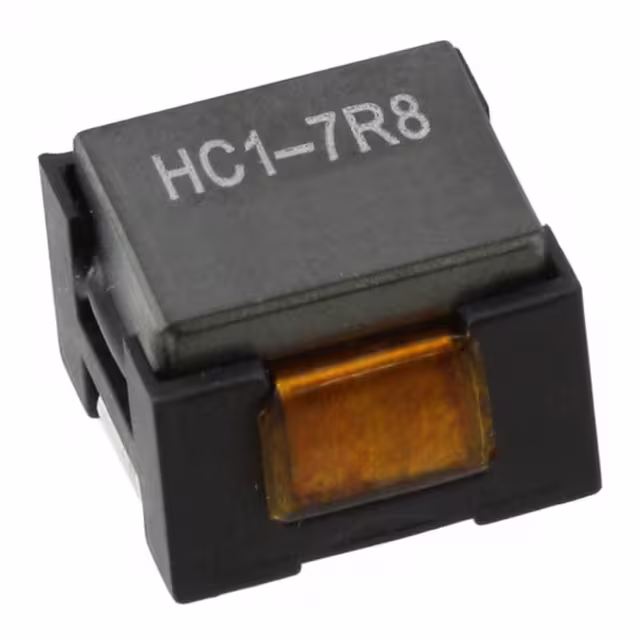

HC1-7R8-RFIXED IND 7.8UH 12.79A 5.7 MOHM |
2,232 | 5.04 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | HC1 | Active | Drum Core, Wirewound | Ferrite | 7.8 µH | ±15% | 12.79 A | 6.7A | Unshielded | 5.7mOhm Max | - | - | - | -40°C ~ 125°C | 300 kHz | - | Surface Mount | - |
|

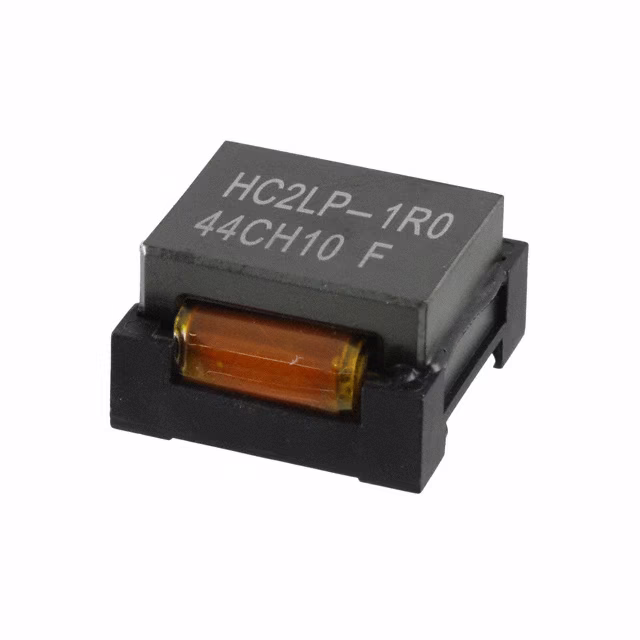

HC2LP-1R0-RFIXED IND 1UH 33A 1.3 MOHM SMD |
2,618 | 7.22 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | HC2LP | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 33 A | 42.5A | Unshielded | 1.3mOhm Max | - | - | - | -40°C ~ 85°C | 300 kHz | - | Surface Mount | - |
|

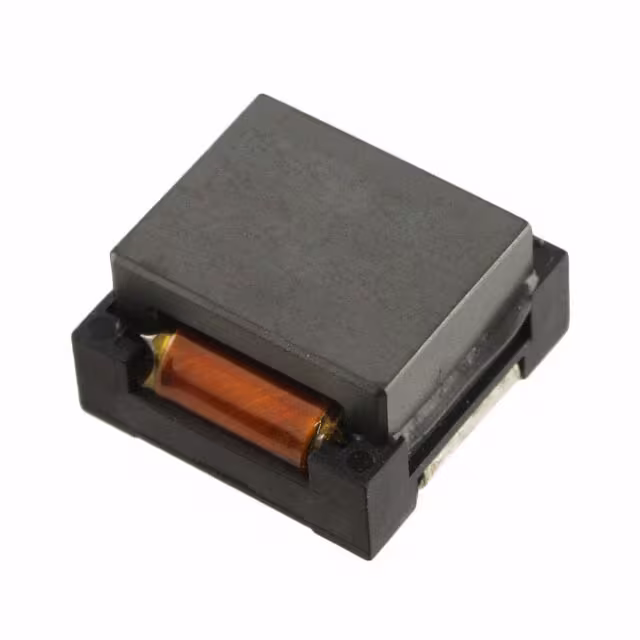

HC2LP-R68-RFIXED IND 680NH 52.9A 0.6MOHM SM |
3,844 | 7.22 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | HC2LP | Active | Drum Core, Wirewound | Ferrite | 680 nH | ±20% | 52.9 A | 50A | Unshielded | 0.6mOhm Max | - | - | - | -40°C ~ 85°C | 300 kHz | - | Surface Mount | - |
|

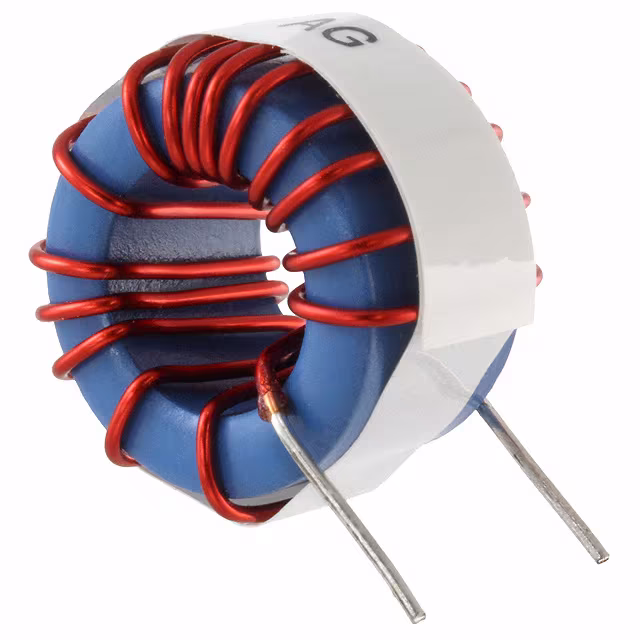

CTX20-5-52-RFIXED IND 20UH 7.8A 26 MOHM TH |
3,337 | 4.83 |
RFQ |
Datasheet |
Radial, Vertical (Open) | Bulk | CTX | Active | Toroidal | Iron Powder | 20 µH | ±20% | 7.8 A | 9.3A | Unshielded | 26mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - |
|

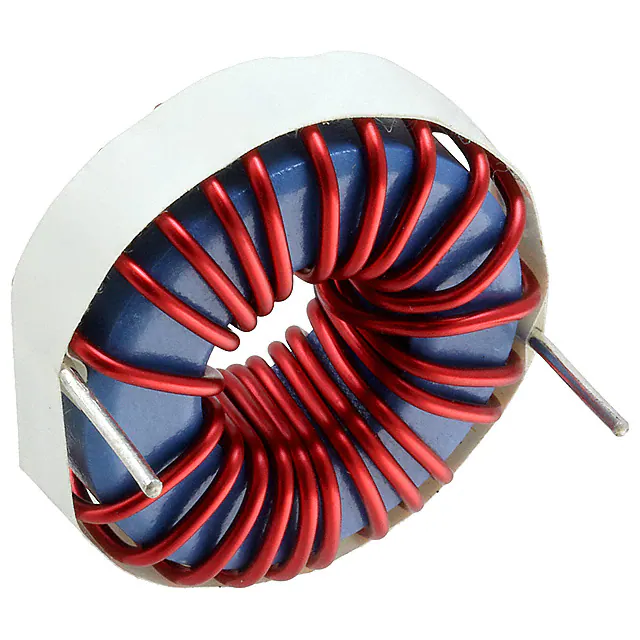

CTX50-7-52LP-RFIXED IND 50UH 10.5A 16.3MOHM TH |
2,738 | 9.09 |
RFQ |
Datasheet |
Radial, Horizontal (Open) | Bulk | CTX | Active | Toroidal | Iron Powder | 50 µH | ±20% | 10.5 A | 10.2A | Unshielded | 16.3mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - |
|

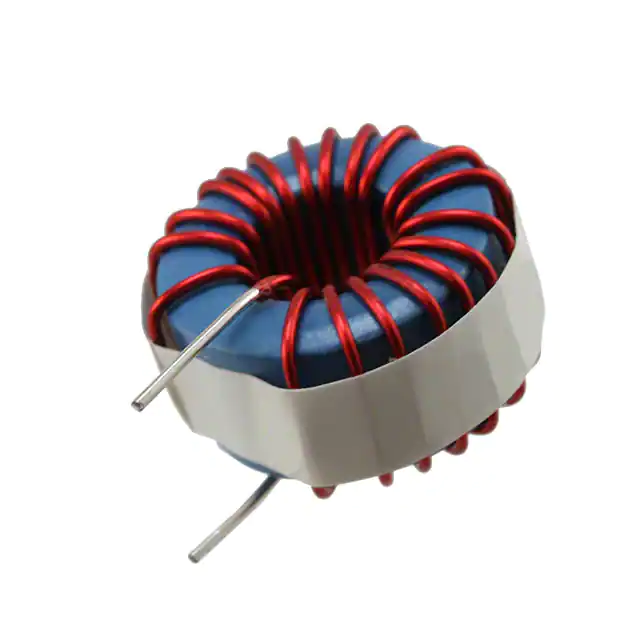

CTX50-5-52-RFIXED IND 50UH 7.6A 24.8 MOHM TH |
2,670 | 9.09 |
RFQ |
Datasheet |
Radial, Vertical (Open) | Bulk | CTX | Active | Toroidal | Iron Powder | 50 µH | ±20% | 7.6 A | 9.4A | Unshielded | 24.8mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - |
|

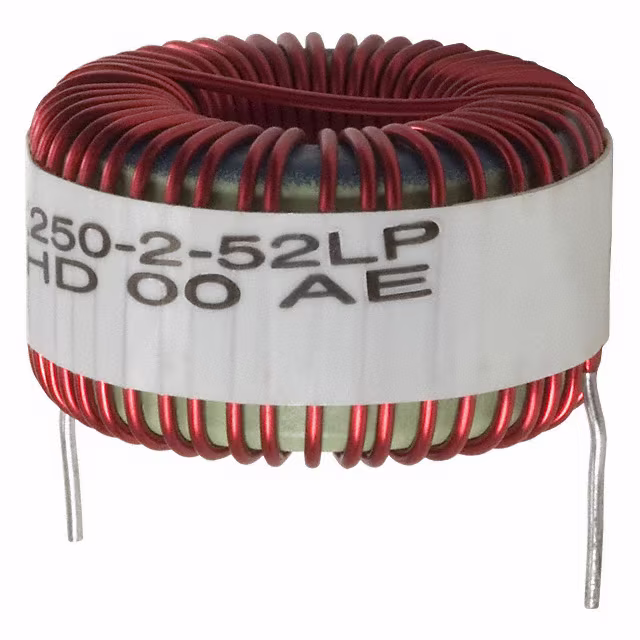

CTX250-2-52LP-RFIXED IND 250UH 4.2A 83.3MOHM TH |
3,524 | 9.11 |
RFQ |
Datasheet |
Radial, Horizontal (Open) | Bulk | CTX | Active | Toroidal | Iron Powder | 250 µH | ±20% | 4.2 A | 4.2A | Unshielded | 83.3mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - |
|

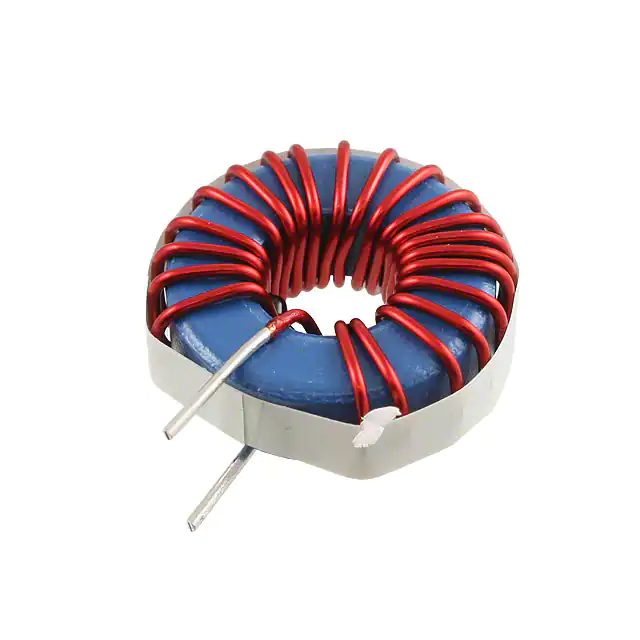

CTX50-7-52-RFIXED IND 50UH 10.5A 16.3MOHM TH |
2,960 | 10.43 |
RFQ |
Datasheet |
Radial, Vertical (Open) | Bulk | CTX | Active | Toroidal | Iron Powder | 50 µH | ±20% | 10.5 A | 10.2A | Unshielded | 16.3mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - |
|

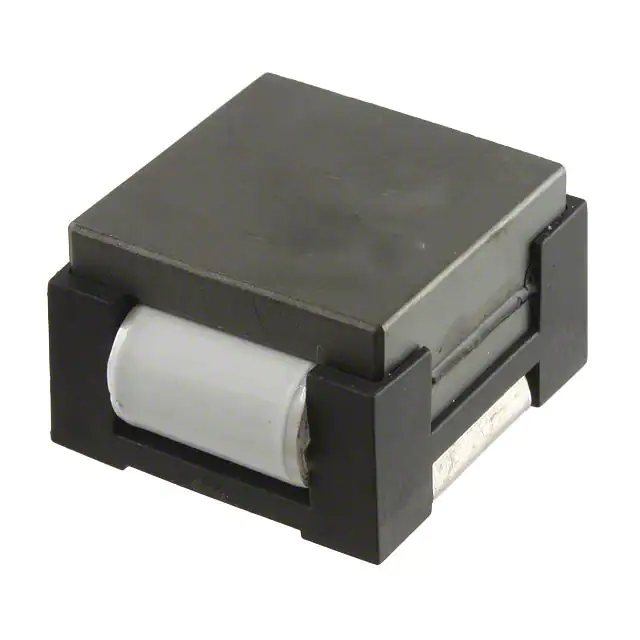

HC3-3R3-RFIXED IND 3.3UH 42.45A 1.2 MOHM |
2,941 | 10.72 |
RFQ |
Datasheet |
Nonstandard | Bulk | HC3 | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 42.45 A | 46A | Unshielded | 1.2mOhm Max | - | - | - | -40°C ~ 85°C | 300 kHz | - | Surface Mount | - |
|

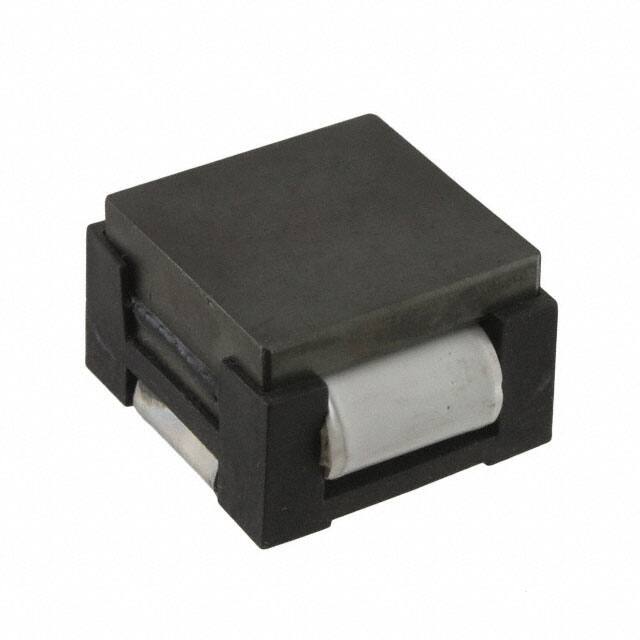

HC3-5R6-RFIXED IND 5.6UH 33.8A 2.17 MOHM |
3,394 | 11.65 |
RFQ |
Datasheet |
Nonstandard | Bulk | HC3 | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±20% | 33.8 A | 34.5A | Unshielded | 2.17mOhm Max | - | - | - | -40°C ~ 85°C | 300 kHz | - | Surface Mount | - |
|
HC3-2R2-RFIXED IND 2.2UH 55.5A 0.7MOHM SM |
3,377 | 11.65 |
RFQ |
Datasheet |
Nonstandard | Bulk | HC3 | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 55.5 A | 60A | Unshielded | 0.7mOhm Max | - | - | - | -40°C ~ 85°C | 300 kHz | - | Surface Mount | - |
|
HC3-4R7-RFIXED IND 4.7UH 33.8A 2.17 MOHM |
3,498 | 12.10 |
RFQ |
Datasheet |
Nonstandard | Bulk | HC3 | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 33.8 A | 38A | Unshielded | 2.17mOhm Max | - | - | - | -40°C ~ 85°C | 300 kHz | - | Surface Mount | - |
