| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EXL1V0503-R80-RFIXED IND 800NH 13.1A 5.65 MOHM |
560 | 0.87 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | EXL1V0503 | Active | Molded | Iron Powder | 800 nH | ±20% | 13.1 A | 18A | Shielded | 5.65mOhm Max | - | 57MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
EXL1V0503-2R2-RFIXED IND 2.2UH 9.7A 14.5MOHM SM |
269 | 0.87 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | EXL1V0503 | Active | Molded | Iron Powder | 2.2 µH | ±20% | 9.7 A | 9A | Shielded | 14.5mOhm Max | - | 33MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
EXL1V0503-4R7-RFIXED IND 4.7UH 5.9A 36.3MOHM SM |
164 | 0.87 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | EXL1V0503 | Active | Molded | Iron Powder | 4.7 µH | ±20% | 5.9 A | 7A | Shielded | 36.3mOhm Max | - | 21MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
DR74-681-RFIXED IND 680UH 330MA 2.58OHM SM |
422 | 0.94 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | DR | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 330 mA | 380mA | Shielded | 2.58Ohm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
DR74-151-RFIXED IND 150UH 690MA 591MOHM SM |
226 | 0.94 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | DR | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 690 mA | 810mA | Shielded | 591mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
LD1-1R0-RFIXED IND 1UH 2.66A 33 MOHM SMD |
134 | 0.94 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | LD | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 2.66 A | 4.46A | Unshielded | 33mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
HCM1A1105V2-100-RFIXED IND 10UH 6.2A 27 MOHM SMD |
279 | 0.96 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | HCM1AV2 | Active | - | Iron Powder | 10 µH | ±20% | 6.2 A | 7A | Shielded | 27mOhm Max | - | 9MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - |
|

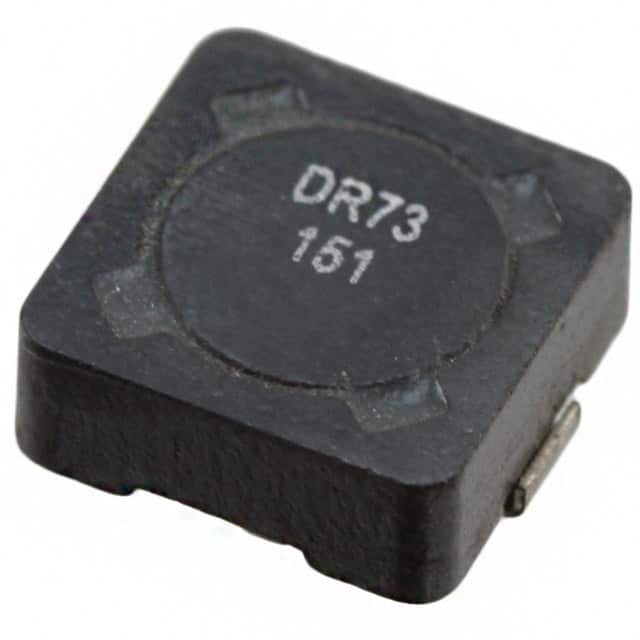

DR73-151-RFIXED IND 150UH 580MA 851MOHM SM |
280 | 0.97 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | DR | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 580 mA | 650mA | Shielded | 851mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
DRA124-151-RFIXED IND 150UH 967MA 454MOHM SM |
202 | 0.98 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | DRA | Active | Wirewound | - | 150 µH | ±20% | 967 mA | 1.621A | Shielded | 454mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - |
|
HCMA0703-R68-RFIXED IND 680NH 15.5A 5.5MOHM SM |
655 | 0.99 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | HCMA0703 | Active | Drum Core, Wirewound | Iron Powder | 680 nH | ±20% | 15.5 A | 25A | Shielded | 5.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
HCMA0703-1R0-RFIXED IND 1UH 11A 10 MOHM SMD |
274 | 0.99 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | HCMA0703 | Active | Drum Core, Wirewound | Iron Powder | 1 µH | ±20% | 11 A | 22A | Shielded | 10mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
HCMA0703-R22-RFIXED IND 220NH 23A 2.8 MOHM SMD |
1,628 | 0.99 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | HCMA0703 | Active | Drum Core, Wirewound | Iron Powder | 220 nH | ±20% | 23 A | 40A | Shielded | 2.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
EXL1V0603-1R5-RFIXED IND 1.5UH 15A 9.13MOHM SMD |
396 | 1.01 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | EXL1V0603 | Active | Molded | Iron Powder | 1.5 µH | ±20% | 15 A | 15.5A | Shielded | 9.13mOhm Max | - | 37MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
DR74-471-RFIXED IND 470UH 400MA 1.74OHM SM |
5,204 | 1.02 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | DR | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 400 mA | 460mA | Shielded | 1.74Ohm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
EXL1V0705-3R3-RFIXED IND 3.3UH 13A 11.44MOHM SM |
453 | 1.02 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | EXL1V0705 | Active | Molded | Iron Powder | 3.3 µH | ±20% | 13 A | 14A | Shielded | 11.44mOhm Max | - | 20MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
HCM0503-R75-RFIXED IND 750NH 11.3A 9.35 MOHM |
510 | 1.04 |
RFQ |
Datasheet |
2020 (5050 Metric) | Tape & Reel (TR),Cut Tape (CT) | HCM0503 | Active | Drum Core, Wirewound | Iron Powder | 750 nH | ±20% | 11.3 A | 9.7A | Shielded | 9.35mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
EXL1V0605-6R8-RFIXED IND 6.8UH 6.6A 25.4MOHM SM |
490 | 1.05 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | EXL1V0605 | Active | Molded | Iron Powder | 6.8 µH | ±20% | 6.6 A | 7A | Shielded | 25.4mOhm Max | - | 17MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
EXL1V0605-2R2-RFIXED IND 2.2UH 13A 8.5MOHM SMD |
400 | 1.05 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | EXL1V0605 | Active | Molded | Iron Powder | 2.2 µH | ±20% | 13 A | 12A | Shielded | 8.5mOhm Max | - | 30MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
EXL1V0605-3R3-RFIXED IND 3.3UH 11A 12.5MOHM SMD |
361 | 1.05 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | EXL1V0605 | Active | Molded | Iron Powder | 3.3 µH | ±20% | 11 A | 10A | Shielded | 12.5mOhm Max | - | 25MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
HCMA0503-1R5-RFIXED IND 1.5UH 7.5A 18.5MOHM SM |
906 | 1.06 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | HCMA0503 | Active | Drum Core, Wirewound | Iron Powder | 1.5 µH | ±20% | 7.5 A | 7A | Shielded | 18.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - |
