| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UP2B-4R7-RFIXED IND 4.7UH 5.5A 16.5MOHM SM |
598 | 2.52 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | UNI-PAC™ | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 5.5 A | 4.2A | Unshielded | 16.5mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|

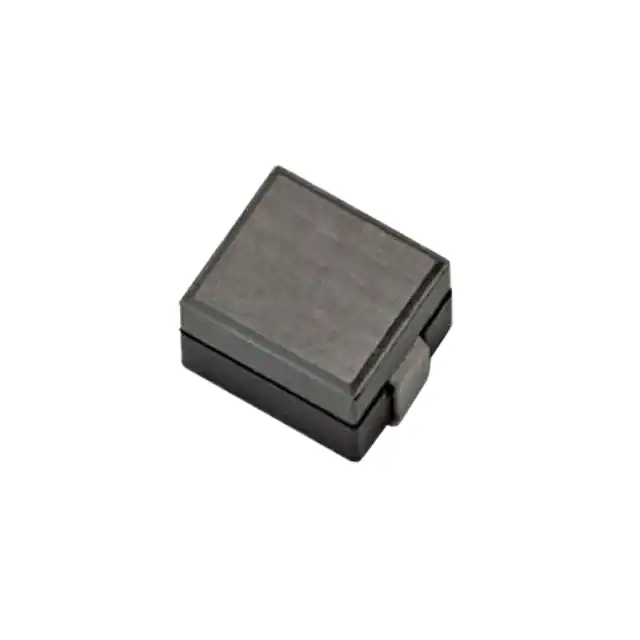

FPV1006-125-RFIXED IND 125NH 25A 0.41MOHM SMD |
993 | 2.58 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | FPV1006 | Active | Drum Core, Wirewound | Ferrite | 125 nH | ±10% | 25 A | 57A | Shielded | 0.41mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
FP1308-R44-RFIXED IND 440NH 68A 0.24MOHM SMD |
400 | 2.46 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | FLAT-PAC, FP1308 | Active | Drum Core, Wirewound | Ferrite | 440 nH | ±10% | 68 A | 32A | Unshielded | 0.24mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
DRA125-220-RFIXED IND 22UH 3.95A 35 MOHM SMD |
828 | 2.68 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | DRA | Active | Wirewound | - | 22 µH | ±20% | 3.95 A | 4.74A | Shielded | 35mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - |
|
DRA124-680-RFIXED IND 68UH 1.454A 201MOHM SM |
895 | 3.06 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | DRA | Active | Wirewound | - | 68 µH | ±20% | 1.454 A | 2.369A | Shielded | 201mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - |
|
DRA127-101-RFIXED IND 100UH 1.888A 175 MOHM |
939 | 2.90 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | DRA | Active | Wirewound | - | 100 µH | ±20% | 1.888 A | 3.46A | Shielded | 175mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - |
|
|
DRA127-470-RFIXED IND 47UH 2.62A 91 MOHM SMD |
378 | 2.92 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | DRA | Active | Wirewound | - | 47 µH | ±20% | 2.62 A | 5.09A | Shielded | 91mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - |
|
|
DRA125-8R2-RFIXED IND 8.2UH 6.41A 13MOHM SMD |
358 | 3.31 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | DRA | Active | Wirewound | - | 8.2 µH | ±20% | 6.41 A | 7.9A | Shielded | 13mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - |
|
UP4B-101-RFIXED IND 100UH 2A 170 MOHM SMD |
528 | 3.32 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | UNI-PAC™ | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 2 A | 3.6A | Unshielded | 170mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|

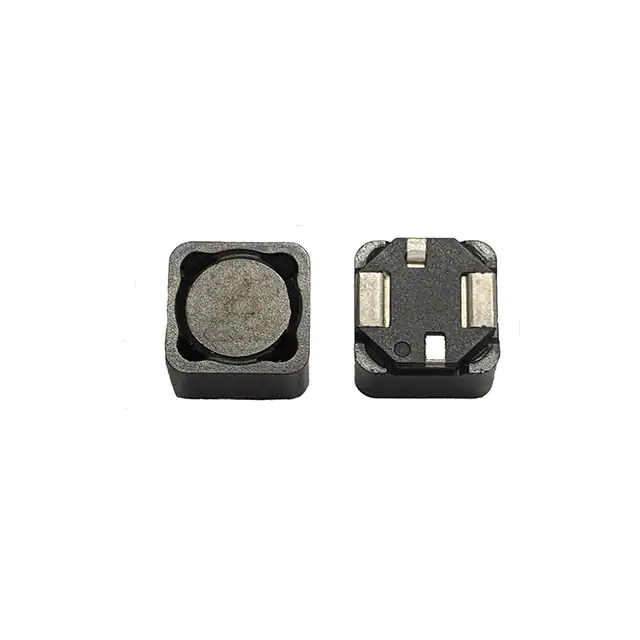

DRAP127-100-RFIXED IND 10UH 6.02A 21 MOHM SMD |
700 | 3.37 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | DRAP127 | Active | - | Ferrite | 10 µH | ±20% | 6.02 A | 11.2A | Shielded | 21mOhm Max | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - |
|
CTX50-2-52M-RFIXED IND 50UH 4.9A 32.6 MOHM TH |
3,295 | 6.97 |
RFQ |
Datasheet |
Radial, Vertical, 4 Leads (Open) | Bulk | CTX | Active | Toroidal | Iron Powder | 50 µH | ±20% | 4.9 A | 4.9A | Unshielded | 32.6mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - |
|
CTX50-5-52LP-RFIXED IND 50UH 7.6A 24.8 MOHM TH |
2,353 | 7.98 |
RFQ |
Datasheet |
Radial, Horizontal (Open) | Bulk | CTX | Active | Toroidal | Iron Powder | 50 µH | ±20% | 7.6 A | 9.4A | Unshielded | 24.8mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - |
|
CTX250-2-52M-RFIXED IND 250UH 4.2A 83.3MOHM TH |
2,249 | 9.43 |
RFQ |
Datasheet |
Radial, Vertical, 4 Leads (Open) | Bulk | CTX | Active | Toroidal | Iron Powder | 250 µH | ±20% | 4.2 A | 4.2A | Unshielded | 83.3mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - |
|
CTX150-5-52-RFIXED IND 150UH 7.7A 40.1MOHM TH |
2,430 | 11.90 |
RFQ |
Datasheet |
Radial, Vertical (Open) | Bulk | CTX | Active | Toroidal | Iron Powder | 150 µH | ±20% | 7.7 A | 7.5A | Unshielded | 40.1mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - |
|

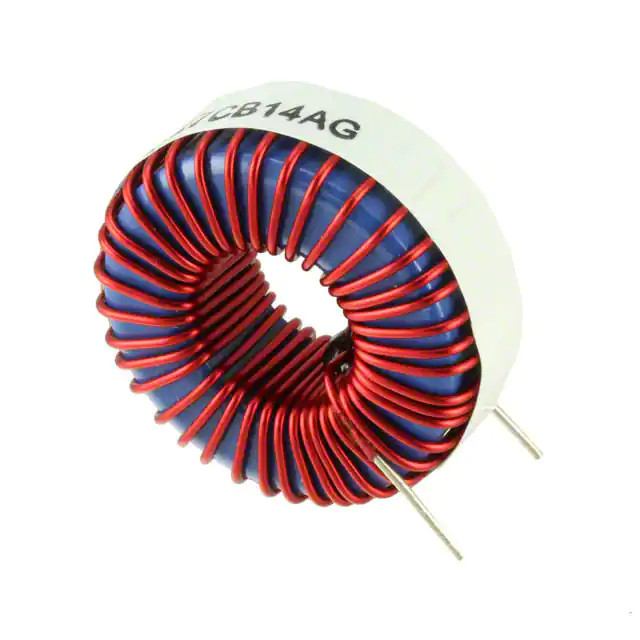

CTX250-5-52-RFIXED IND 250UH 9.2A 40 MOHM TH |
3,287 | 16.51 |
RFQ |
Datasheet |
Radial, Vertical (Open) | Bulk | CTX | Active | Toroidal | Iron Powder | 250 µH | ±20% | 9.2 A | 8.1A | Unshielded | 40mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - |
|
|
CTX20-16-52-RFIXED IND 20UH 31.5A 3.4 MOHM TH |
2,013 | 19.15 |
RFQ |
Datasheet |
Radial, Vertical (Open) | Bulk | CTX | Active | Toroidal | Iron Powder | 20 µH | ±20% | 31.5 A | 29.5A | Unshielded | 3.4mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - |
|
MCQ1V1608-R047-RFIXED IND 47NH 50MA 200 MOHM SMD |
4,420 | 0.10 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | MCQ1V1608 | Active | Multilayer | - | 47 nH | ±10% | 50 mA | - | Unshielded | 200mOhm Max | 15 @ 50MHz | 260MHz | - | -40°C ~ 85°C | 50 MHz | - | Surface Mount | 0603 |
|

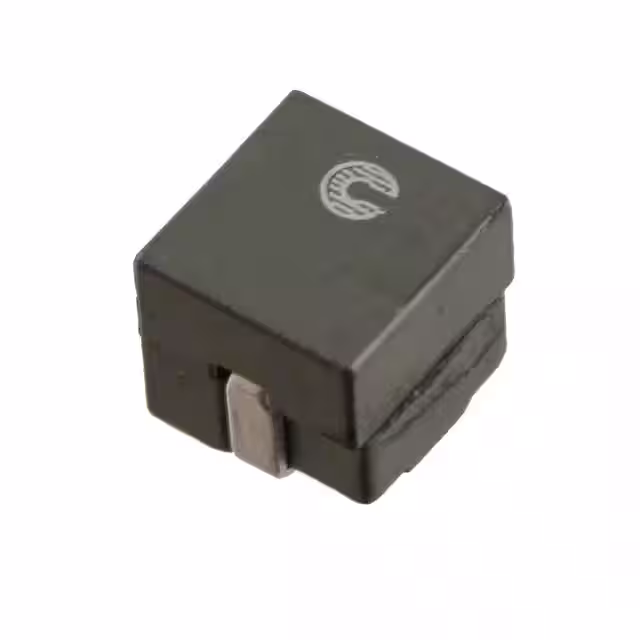

FP0807R1-R22-RFIXED IND 220NH 49A 0.5 MOHM SMD |
786 | 1.82 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | FLAT-PAC, FP0807 | Active | Drum Core, Wirewound | Ferrite | 220 nH | ±10% | 49 A | 35A | Unshielded | 0.5mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
HCM1305-2R2-RFIXED IND 2.2UH 20A 5.29MOHM SMD |
400 | 2.08 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | HCM1305 | Active | Drum Core, Wirewound | Iron Powder | 2.2 µH | ±20% | 20 A | 32A | Shielded | 5.29mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
HCM1305-R22-RFIXED IND 220NH 51A 0.72MOHM SMD |
609 | 2.08 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | HCM1305 | Active | Drum Core, Wirewound | Iron Powder | 220 nH | ±20% | 51 A | 110A | Shielded | 0.72mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - |
