| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

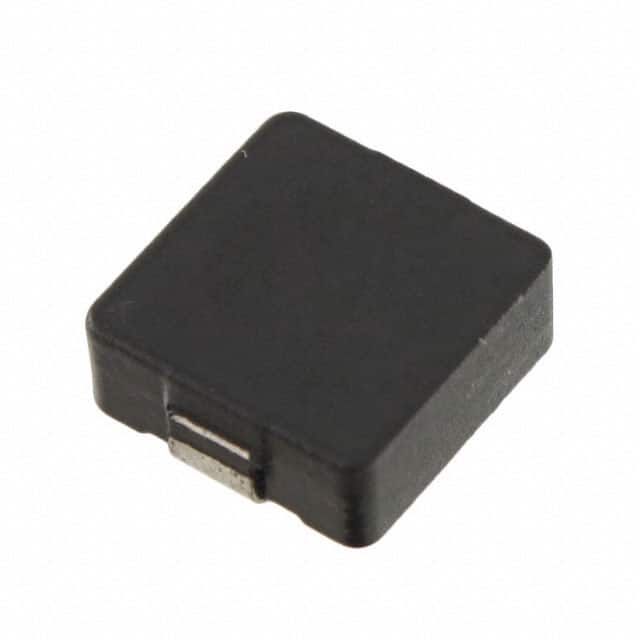

HCM1104-1R5-RFIXED IND 1.5UH 16A 4.2 MOHM SMD |
1,580 | 1.62 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | HCM1104 | Active | Drum Core, Wirewound | Iron Powder | 1.5 µH | ±20% | 16 A | 32A | Shielded | 4.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
HCM0703-R22-RFIXED IND 220NH 23A 2.8 MOHM SMD |
1,287 | 1.62 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | HCM0703 | Active | Drum Core, Wirewound | Iron Powder | 220 nH | ±20% | 23 A | 40A | Shielded | 2.8mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
MPI4020V2-1R5-RFIXED IND 1.5UH 5A 30 MOHM SMD |
2,227 | 1.64 |
RFQ |
Datasheet |
Nonstandard, 2 Lead | Tape & Reel (TR),Cut Tape (CT) | MPI40-V2 | Active | Drum Core, Wirewound | Metal Composite | 1.5 µH | ±20% | 5 A | 6A | Shielded | 30mOhm Max | - | 45MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
MPIA2512V2-4R7-RFIXED IND 4.7UH 1.4A 235MOHM SMD |
2,757 | 1.82 |
RFQ |
Datasheet |
1008 (2520 Metric) | Tape & Reel (TR),Cut Tape (CT) | MPIA25-V2 | Active | Molded | Metal Composite | 4.7 µH | ±20% | 1.4 A | 1.9A | Shielded | 235mOhm Max | - | 25MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 |
|
|
MPIA2510V2-1R0-RFIXED IND 1UH 3.1A 52 MOHM SMD |
2,695 | 1.82 |
RFQ |
Datasheet |
1008 (2520 Metric) | Tape & Reel (TR),Cut Tape (CT) | MPIA25-V2 | Active | Molded | Metal Composite | 1 µH | ±20% | 3.1 A | 4.3A | Shielded | 52mOhm Max | - | 55MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 |
|
|
MPIA2510V2-R47-RFIXED IND 470NH 4.4A 25MOHM SMD |
2,679 | 1.82 |
RFQ |
Datasheet |
1008 (2520 Metric) | Tape & Reel (TR),Cut Tape (CT) | MPIA25-V2 | Active | Molded | Metal Composite | 470 nH | ±20% | 4.4 A | 6A | Shielded | 25mOhm Max | - | 100MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 |
|
UP0.4C-101-RFIXED IND 100UH 370MA 1.58OHM SM |
1,297 | 1.68 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | UNI-PAC™ 0.4C | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 370 mA | 350mA | Unshielded | 1.58Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|
|
MPI4020V2-1R0-RFIXED IND 1UH 6.5A 24 MOHM SMD |
2,863 | 1.70 |
RFQ |
Datasheet |
Nonstandard, 2 Lead | Tape & Reel (TR),Cut Tape (CT) | MPI40-V2 | Active | Drum Core, Wirewound | Metal Composite | 1 µH | ±20% | 6.5 A | 7A | Shielded | 24mOhm Max | - | 65MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
MPI4015V2-4R7-RFIXED IND 4.7UH 2.2A 130MOHM SMD |
2,169 | 1.71 |
RFQ |
Datasheet |
Nonstandard, 2 Lead | Tape & Reel (TR),Cut Tape (CT) | MPI40-V2 | Active | Drum Core, Wirewound | Metal Composite | 4.7 µH | ±20% | 2.2 A | 3A | Shielded | 130mOhm Max | - | 22MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
FP1108R1-R10-RFIXED IND 100NH 65A 0.29MOHM SMD |
1,334 | 1.71 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | FP1108 | Active | - | Ferrite | 100 nH | ±10% | 65 A | 100A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
MPIA4040R1-R10-RFIXED IND 90NH 8A 8.5 MOHM SMD |
5,496 | 1.73 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | MPIA4040 | Obsolete | Molded | Metal Composite | 90 nH | ±20% | 8 A | 32A | Shielded | 8.5mOhm | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
MPI2512V2-3R3-RFIXED IND 3.3UH 1.8A 135MOHM SMD |
2,190 | 1.73 |
RFQ |
Datasheet |
1008 (2520 Metric) | Tape & Reel (TR),Cut Tape (CT) | MPI25-V2 | Active | - | - | 3.3 µH | ±20% | 1.8 A | 2.8A | Shielded | 135mOhm Max | - | 35MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 |
|
HCM1A0503-1R0-RFIXED IND 1UH 7.1A 11.4MOHM SMD |
1,781 | 1.74 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | HCM1A | Active | - | Iron Powder | 1 µH | ±20% | 7.1 A | 8.5A | Shielded | 11.4mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - |
|
|
HCM1A0503-2R2-RFIXED IND 2.2UH 4.5A 25MOHM SMD |
1,410 | 1.74 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | HCM1A | Active | - | Iron Powder | 2.2 µH | ±20% | 4.5 A | 6.4A | Shielded | 25mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - |
|
|
HCM1A0503-5R6-RFIXED IND 5.6UH 2.8A 70.6MOHM SM |
1,394 | 1.74 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | HCM1A | Active | - | Iron Powder | 5.6 µH | ±20% | 2.8 A | 4A | Shielded | 70.6mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - |
|
|
HCM1A0503-3R3-RFIXED IND 3.3UH 3.8A 40.4MOHM SM |
1,302 | 1.74 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | HCM1A | Active | - | Iron Powder | 3.3 µH | ±20% | 3.8 A | 5.6A | Shielded | 40.4mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - |
|
|
HCM1A0503-R20-RFIXED IND 200NH 15.8A 2.3MOHM SM |
1,108 | 1.74 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | HCM1A | Active | - | Iron Powder | 200 nH | ±20% | 15.8 A | 18A | Shielded | 2.3mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - |
|
UP1B-R47-RFIXED IND 470NH 6A 9.7 MOHM SMD |
1,789 | 1.76 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | UNI-PAC™ | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±20% | 6 A | 7.7A | Unshielded | 9.7mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|
UP1B-1R0-RFIXED IND 1UH 4.4A 17.7 MOHM SMD |
2,454 | 1.76 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | UNI-PAC™ | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 4.4 A | 5.3A | Unshielded | 17.7mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|
|
MPIA4020V2-100-RFIXED IND 10UH 1.7A 281 MOHM SMD |
1,347 | 1.78 |
RFQ |
Datasheet |
2-SMD, J-Lead | Tape & Reel (TR),Cut Tape (CT) | MPIA40-V2 | Active | Molded | Metal Composite | 10 µH | ±20% | 1.7 A | 2.2A | Shielded | 281mOhm Max | - | 17MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - |
