| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPIA2512V2-2R2-RFIXED IND 2.2UH 2.2A 87MOHM SMD |
12,026 | 1.55 |
RFQ |
Datasheet |
1008 (2520 Metric) | Tape & Reel (TR),Cut Tape (CT) | MPIA25-V2 | Active | Molded | Metal Composite | 2.2 µH | ±20% | 2.2 A | 3.5A | Shielded | 87mOhm Max | - | 30MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 |
|
MPI4020V2-6R8-RFIXED IND 6.8UH 2.4A 175MOHM SMD |
13,404 | 1.58 |
RFQ |
Datasheet |
Nonstandard, 2 Lead | Tape & Reel (TR),Cut Tape (CT) | MPI40-V2 | Active | Drum Core, Wirewound | Metal Composite | 6.8 µH | ±20% | 2.4 A | 2.5A | Shielded | 175mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
MPI4015V2-1R0-RFIXED IND 1UH 5.5A 27 MOHM SMD |
6,392 | 1.62 |
RFQ |
Datasheet |
Nonstandard, 2 Lead | Tape & Reel (TR),Cut Tape (CT) | MPI40-V2 | Active | Drum Core, Wirewound | Metal Composite | 1 µH | ±20% | 5.5 A | 6A | Shielded | 27mOhm Max | - | 56MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
MPI4020V2-2R2-RFIXED IND 2.2UH 3.8A 48 OHM SMD |
17,624 | 1.65 |
RFQ |
Datasheet |
Nonstandard, 2 Lead | Tape & Reel (TR),Cut Tape (CT) | MPI40-V2 | Active | Drum Core, Wirewound | Metal Composite | 2.2 µH | ±20% | 3.8 A | 5.5A | Shielded | 48Ohm Max | - | 33MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|

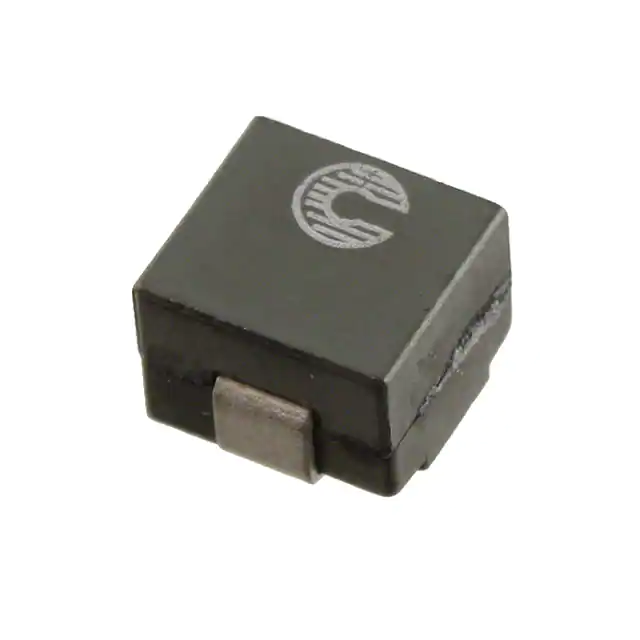

FP0705R1-R10-RFIXED IND 105NH 43A 0.25MOHM SMD |
12,185 | 1.61 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | FLAT-PAC, FP0705 | Active | Drum Core, Wirewound | Ferrite | 105 nH | ±10% | 43 A | 44A | Unshielded | 0.25mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
HCM0703-1R0-RFIXED IND 1UH 11A 10 MOHM SMD |
2,498 | 1.62 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | HCM0703 | Active | Drum Core, Wirewound | Iron Powder | 1 µH | ±20% | 11 A | 22A | Shielded | 10mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
HCM0703-220-RFIXED IND 22UH 2.3A 148.8MOHM SM |
3,987 | 1.62 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | HCM0703 | Active | Drum Core, Wirewound | Iron Powder | 22 µH | ±20% | 2.3 A | 3A | Shielded | 148.8mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
HCM1A0503-100-RFIXED IND 10UH 2.4A 108MOHM SMD |
2,835 | 1.65 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | HCM1A | Active | - | Iron Powder | 10 µH | ±20% | 2.4 A | 2.3A | Shielded | 108mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - |
|
FP1005R1-R15-RFIXED IND 150NH 53A 0.39MOHM SMD |
14,297 | 1.68 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | FLAT-PAC, FP1005 | Active | Drum Core, Wirewound | Ferrite | 150 nH | ±10% | 53 A | 47A | Unshielded | 0.39mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
UP0.4C-100-RFIXED IND 10UH 1.16A 156MOHM SMD |
16,496 | 1.81 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | UNI-PAC™ 0.4C | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.16 A | 1.16A | Unshielded | 156mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|
SD6030-3R3-RFIXED IND 3.3UH 3.54A 24MOHM SMD |
3,441 | 1.71 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SD6030 | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 3.54 A | 2.4A | Shielded | 24mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
MPI4015V2-3R3-RFIXED IND 3.3UH 3A 92 MOHM SMD |
3,470 | 1.77 |
RFQ |
Datasheet |
2-SMD | Tape & Reel (TR),Cut Tape (CT) | MPI40-V2 | Active | Drum Core, Wirewound | Metal Composite | 3.3 µH | ±20% | 3 A | 3.2A | Shielded | 92mOhm Max | - | 31MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
MPIA4020V2-220-RFIXED IND 22UH 1.2A 402 MOHM SMD |
3,281 | 1.77 |
RFQ |
Datasheet |
2-SMD, J-Lead | Tape & Reel (TR),Cut Tape (CT) | MPIA40-V2 | Active | Molded | Metal Composite | 22 µH | ±20% | 1.2 A | 1.65A | Shielded | 402mOhm Max | - | 10MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
FP1105R1-R10-RFIXED IND 100NH 46A 0.35MOHM SMD |
15,297 | 1.72 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | FLAT-PAC, FP1105 | Active | Drum Core, Wirewound | Ferrite | 100 nH | ±10% | 46 A | 81A | Unshielded | 0.35mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
SD6030-2R7-RFIXED IND 2.7UH 4.08A 18MOHM SMD |
1,972 | 1.75 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SD6030 | Active | Drum Core, Wirewound | Ferrite | 2.7 µH | ±30% | 4.08 A | 2.6A | Shielded | 18mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
SD12-4R7-RFIXED IND 4.7UH 1.46A 117.7 MOHM |
4,752 | 2.00 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SD | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.46 A | 1.29A | Shielded | 117.7mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|
FP0404R1-R100-RFIXED IND 100NH 40A 0.32MOHM SMD |
1,800 | 0.98 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | FP0404 | Active | Drum Core, Wirewound | Ferrite | 100 nH | ±15% | 40 A | 15.6A | Unshielded | 0.32mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|

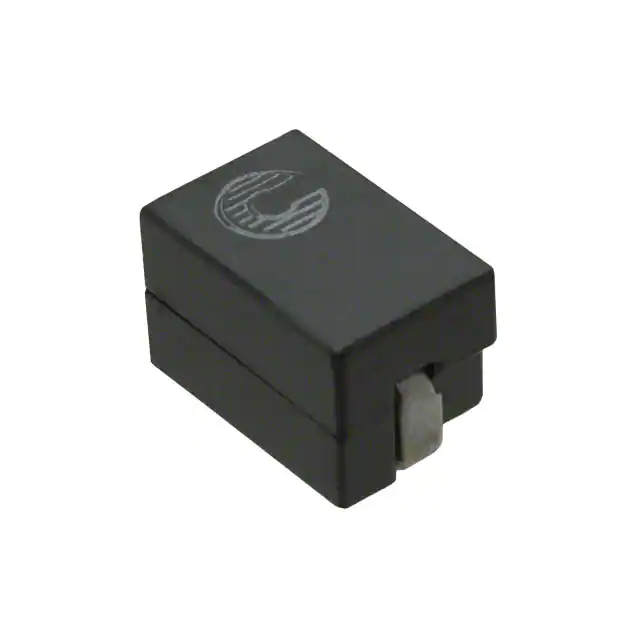

FP1107R1-R40-RFIXED IND 400NH 55A 0.29MOHM SMD |
1,750 | 2.14 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | FLAT-PAC, FP1107 | Active | Drum Core, Wirewound | Ferrite | 400 nH | ±10% | 55 A | 25A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
SD12-100-RFIXED IND 10UH 938MA 284.4 MOHM |
5,210 | 2.49 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SD | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 938 mA | 818mA | Shielded | 284.4mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|
DRA73-470-RFIXED IND 47UH 1.02A 275MOHM SMD |
7,735 | 1.85 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | DRA | Active | Wirewound | - | 47 µH | ±20% | 1.02 A | 1.1A | Shielded | 275mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - |
