| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

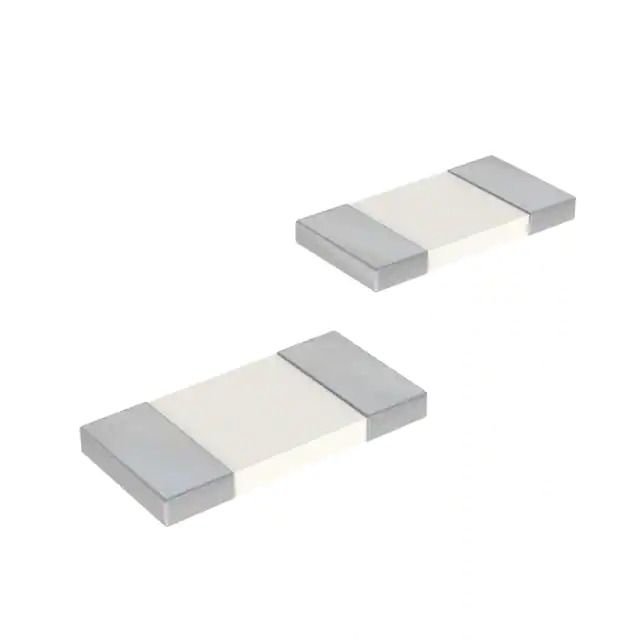

CE201210-R47JFIXED IND 470NH 300MA 1.5OHM SMD |
10,739 | 0.12 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | CE201210 | Active | Multilayer | Ceramic | 470 nH | ±5% | 300 mA | - | Unshielded | 1.5Ohm Max | 17 @ 100MHz | 200MHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | 0805 (2012 Metric) |
-,95.jpg)
|

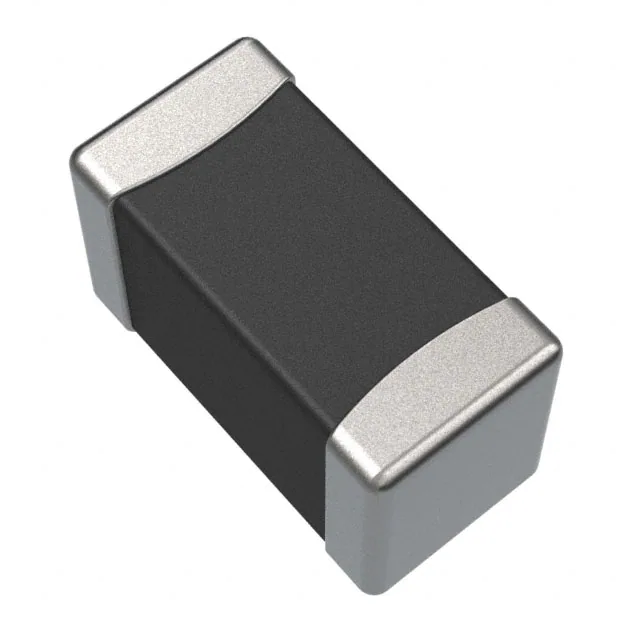

CVH160808-2R2MFIXED IND 2.2UH 750MA 375MOHM SM |
10,305 | 0.22 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | CVH160808 | Active | Multilayer | Ferrite | 2.2 µH | ±20% | 750 mA | - | Shielded | 375mOhm Max | - | 50MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0603 |
|
78F100J-TR-RCFIXED IND 10UH 370MA 750 MOHM TH |
75,178 | 0.31 |
RFQ |
Datasheet |
Axial | Tape & Reel (TR),Cut Tape (CT) | 78F | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±5% | 370 mA | - | Unshielded | 750mOhm Max | 40 @ 7.9MHz | 18MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - |
|
78F1R0K-TR-RCFIXED IND 1UH 815MA 150 MOHM TH |
27,563 | 0.31 |
RFQ |
Datasheet |
Axial | Tape & Reel (TR),Cut Tape (CT) | 78F | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±10% | 815 mA | - | Unshielded | 150mOhm Max | 40 @ 25MHz | 180MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - |
|
77F101J-TR-RCFIXED IND 100UH 275MA 2.5 OHM TH |
16,334 | 0.31 |
RFQ |
Datasheet |
Axial | Tape & Reel (TR),Cut Tape (CT) | 77F | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±5% | 275 mA | - | Unshielded | 2.5Ohm Max | 30 @ 2.52MHz | 4.8MHz | - | -55°C ~ 105°C | 2.52 MHz | - | Through Hole | - |
|
|
77F470J-TR-RCFIXED IND 47UH 340MA 1.3 OHM TH |
19,359 | 0.31 |
RFQ |
Datasheet |
Axial | Tape & Reel (TR),Cut Tape (CT) | 77F | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±5% | 340 mA | - | Unshielded | 1.3Ohm Max | 45 @ 2.52MHz | 6.3MHz | - | -55°C ~ 105°C | 2.52 MHz | - | Through Hole | - |
|
77F102J-TR-RCFIXED IND 1MH 100MA 20 OHM TH |
11,969 | 0.31 |
RFQ |
Datasheet |
Axial | Tape & Reel (TR),Cut Tape (CT) | 77F | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±5% | 100 mA | - | Unshielded | 20Ohm Max | 50 @ 796kHz | 1.2MHz | - | -55°C ~ 105°C | 796 kHz | - | Through Hole | - |
|
77F220K-TR-RCFIXED IND 22UH 410MA 900 MOHM TH |
14,803 | 0.31 |
RFQ |
Datasheet |
Axial | Tape & Reel (TR),Cut Tape (CT) | 77F | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 410 mA | - | Unshielded | 900mOhm Max | 60 @ 2.52MHz | 9.9MHz | - | -55°C ~ 105°C | 2.52 MHz | - | Through Hole | - |
|
|
77F221J-TR-RCFIXED IND 220UH 155MA 5 OHM TH |
13,931 | 0.31 |
RFQ |
Datasheet |
Axial | Tape & Reel (TR),Cut Tape (CT) | 77F | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±5% | 155 mA | - | Unshielded | 5Ohm Max | 60 @ 796kHz | 2.8MHz | - | -55°C ~ 105°C | 796 kHz | - | Through Hole | - |
|
78F101J-TR-RCFIXED IND 100UH 165MA 4.1 OHM TH |
9,818 | 0.31 |
RFQ |
Datasheet |
Axial | Tape & Reel (TR),Cut Tape (CT) | 78F | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±5% | 165 mA | - | Unshielded | 4.1Ohm Max | 60 @ 2.5MHz | 5.5MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - |
|
|
77F151J-TR-RCFIXED IND 150UH 175MA 4 OHM TH |
7,828 | 0.31 |
RFQ |
Datasheet |
Axial | Tape & Reel (TR),Cut Tape (CT) | 77F | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±5% | 175 mA | - | Unshielded | 4Ohm Max | 60 @ 796kHz | 3.5MHz | - | -55°C ~ 105°C | 796 kHz | - | Through Hole | - |
|
78F102J-TR-RCFIXED IND 1MH 60MA 31.4 OHM TH |
8,964 | 0.31 |
RFQ |
Datasheet |
Axial | Tape & Reel (TR),Cut Tape (CT) | 78F | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±5% | 60 mA | - | Unshielded | 31.4Ohm Max | 60 @ 790kHz | 1.2MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - |
|
CVH252009-1R5MFIXED IND 1.5UH 1.5A 70 MOHM SMD |
30,732 | 0.32 |
RFQ |
Datasheet |
1008 (2520 Metric) | Tape & Reel (TR),Cut Tape (CT) | CVH252009 | Active | Multilayer | Ferrite | 1.5 µH | ±20% | 1.5 A | - | Shielded | 70mOhm Max | - | 50MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) |
|
CW100505-68NJFIXED IND 68NH 180MA 1.12OHM SMD |
1,960 | 0.37 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR),Cut Tape (CT) | CW100505 | Active | Drum Core, Wirewound | Ceramic | 68 nH | ±5% | 180 mA | - | Unshielded | 1.12Ohm | 22 @ 200MHz | 1.62GHz | - | -55°C ~ 125°C | 200 MHz | - | Surface Mount | 0402 (1005 Metric) |
|

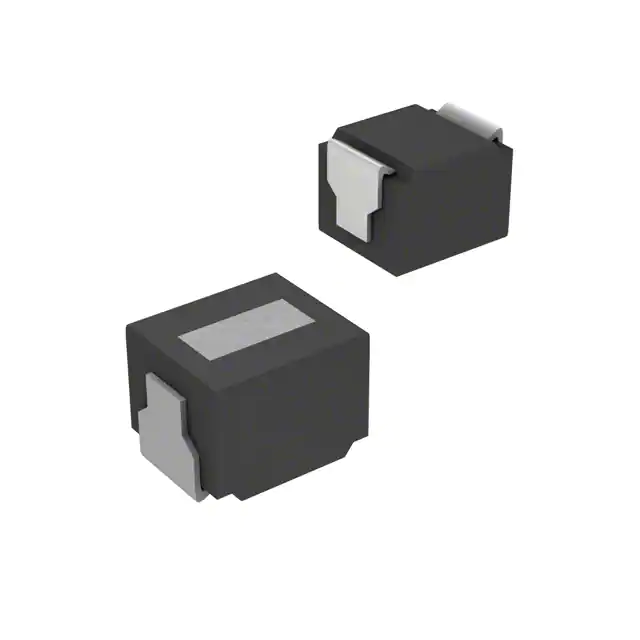

CM322522-100KLFIXED IND 10UH 140MA 2.1 OHM SMD |
80,046 | 0.32 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | CM322522 | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 140 mA | - | Unshielded | 2.1Ohm Max | 30 @ 2.52MHz | 36MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - |
|
|
CM322522-470KLFIXED IND 47UH 75MA 7 OHM SMD |
38,915 | 0.32 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | CM322522 | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 75 mA | - | Unshielded | 7Ohm Max | 30 @ 2.52MHz | 15MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - |
|
|
CM322522-101KLFIXED IND 100UH 60MA 10 OHM SMD |
8,129 | 0.32 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | CM322522 | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 60 mA | - | Unshielded | 10Ohm Max | 20 @ 796kHz | 10MHz | - | -40°C ~ 125°C | 796 kHz | - | Surface Mount | - |
|

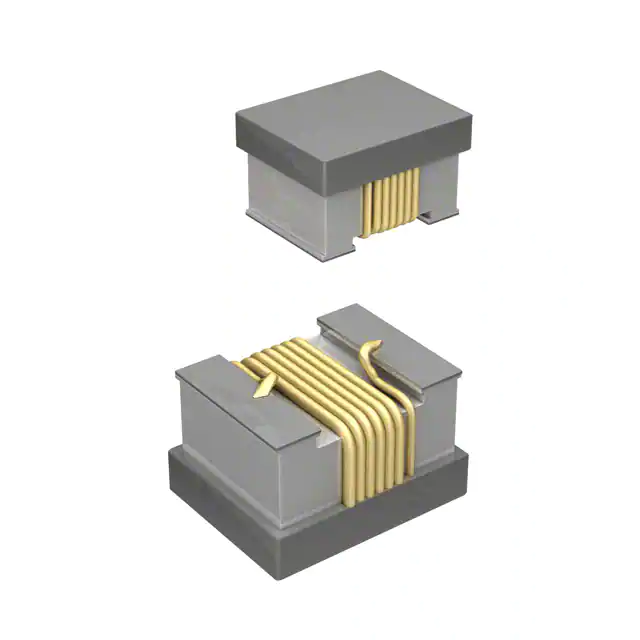

CW252016-R33JFIXED IND 330NH 500MA 1.05OHM SM |
30,689 | 0.36 |
RFQ |
Datasheet |
1008 (2520 Metric) | Tape & Reel (TR),Cut Tape (CT) | CW252016 | Active | Drum Core, Wirewound | Ceramic | 330 nH | ±5% | 500 mA | - | Unshielded | 1.05Ohm Max | 45 @ 100MHz | 570MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) |
|

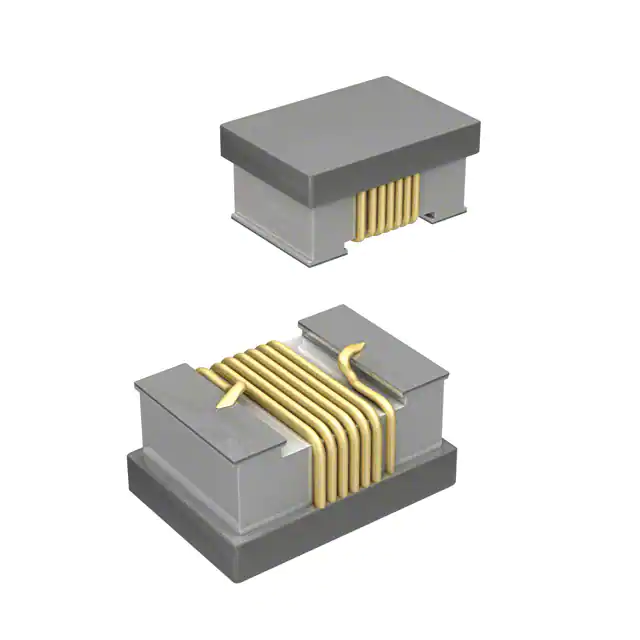

CW201212-22NJFIXED IND 22NH 600MA 100MOHM SMD |
10,273 | 0.38 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | CW201212 | Active | Drum Core, Wirewound | Ceramic | 22 nH | ±5% | 600 mA | - | Unshielded | 100mOhm | 60 @ 500MHz | 3.3GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) |
|
|
CW201212-68NJFIXED IND 68NH 500MA 270MOHM SMD |
2,416 | 0.38 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | CW201212 | Active | Drum Core, Wirewound | Ceramic | 68 nH | ±5% | 500 mA | - | Unshielded | 270mOhm | 60 @ 500MHz | 1.45GHz | - | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0805 (2012 Metric) |
