| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTHC1812SF-331MSMD FERRITE CORE WW INDUCTOR |
3,339 | 0.53 |
RFQ |
Datasheet |
1812 (4532 Metric) | Tape & Reel (TR) | CTHC1812SF | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 90 mA | - | Unshielded | 13Ohm Max | 20 @ 796kHz | 4.5MHz | - | -40°C ~ 125°C | 796 kHz | - | Surface Mount | 1812 |
|
|
CTHC1812SF-1R2MSMD FERRITE CORE WW INDUCTOR |
3,607 | 0.53 |
RFQ |
Datasheet |
1812 (4532 Metric) | Tape & Reel (TR) | CTHC1812SF | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±20% | 1 A | - | Unshielded | 120mOhm Max | 10 @ 7.96MHz | 180MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 |
|
|
CTHC1812SF-221MSMD FERRITE CORE WW INDUCTOR |
2,016 | 0.53 |
RFQ |
Datasheet |
1812 (4532 Metric) | Tape & Reel (TR) | CTHC1812SF | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 120 mA | - | Unshielded | 9Ohm Max | 20 @ 796kHz | 5.5MHz | - | -40°C ~ 125°C | 796 kHz | - | Surface Mount | 1812 |
|
|
CTHC1812SF-221JSMD FERRITE CORE WW INDUCTOR |
3,262 | 0.53 |
RFQ |
Datasheet |
1812 (4532 Metric) | Tape & Reel (TR) | CTHC1812SF | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±5% | 120 mA | - | Unshielded | 9Ohm Max | 20 @ 796kHz | 5.5MHz | - | -40°C ~ 125°C | 796 kHz | - | Surface Mount | 1812 |
|
|
CTHC1812SF-1R2KSMD FERRITE CORE WW INDUCTOR |
2,263 | 0.53 |
RFQ |
Datasheet |
1812 (4532 Metric) | Tape & Reel (TR) | CTHC1812SF | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±10% | 1 A | - | Unshielded | 120mOhm Max | 10 @ 7.96MHz | 180MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 |
|
|
CTHC1812SF-1R2JSMD FERRITE CORE WW INDUCTOR |
3,526 | 0.53 |
RFQ |
Datasheet |
1812 (4532 Metric) | Tape & Reel (TR) | CTHC1812SF | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±5% | 1 A | - | Unshielded | 120mOhm Max | 10 @ 7.96MHz | 180MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 |
|
|
CTHC1812SF-330KSMD FERRITE CORE WW INDUCTOR |
2,844 | 0.53 |
RFQ |
Datasheet |
1812 (4532 Metric) | Tape & Reel (TR) | CTHC1812SF | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 300 mA | - | Unshielded | 1.4Ohm Max | 10 @ 2.52MHz | 15MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1812 |
|
|
CTHC1812SF-390KSMD FERRITE CORE WW INDUCTOR |
3,642 | 0.53 |
RFQ |
Datasheet |
1812 (4532 Metric) | Tape & Reel (TR) | CTHC1812SF | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±10% | 280 mA | - | Unshielded | 1.6Ohm Max | 10 @ 2.52MHz | 13MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1812 |
|
|
CTHC1812SF-1R8JSMD FERRITE CORE WW INDUCTOR |
3,675 | 0.53 |
RFQ |
Datasheet |
1812 (4532 Metric) | Tape & Reel (TR) | CTHC1812SF | Active | Drum Core, Wirewound | Ferrite | 1.8 µH | ±5% | 900 mA | - | Unshielded | 160mOhm Max | 10 @ 7.96MHz | 105MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 |
|
|
CTHC1812SF-221KSMD FERRITE CORE WW INDUCTOR |
3,450 | 0.53 |
RFQ |
Datasheet |
1812 (4532 Metric) | Tape & Reel (TR) | CTHC1812SF | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 120 mA | - | Unshielded | 9Ohm Max | 20 @ 796kHz | 5.5MHz | - | -40°C ~ 125°C | 796 kHz | - | Surface Mount | 1812 |
|
|
CTHC1812SF-270JSMD FERRITE CORE WW INDUCTOR |
2,226 | 0.53 |
RFQ |
Datasheet |
1812 (4532 Metric) | Tape & Reel (TR) | CTHC1812SF | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±5% | 330 mA | - | Unshielded | 1.2Ohm Max | 10 @ 2.52MHz | 16MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1812 |
|
|
CTHC1812SF-1R0KSMD FERRITE CORE WW INDUCTOR |
2,778 | 0.53 |
RFQ |
Datasheet |
1812 (4532 Metric) | Tape & Reel (TR) | CTHC1812SF | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±10% | 1.05 A | - | Unshielded | 110mOhm Max | 10 @ 7.96MHz | 265MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 |
|
|
CTHC1812SF-331JSMD FERRITE CORE WW INDUCTOR |
3,214 | 0.53 |
RFQ |
Datasheet |
1812 (4532 Metric) | Tape & Reel (TR) | CTHC1812SF | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±5% | 90 mA | - | Unshielded | 13Ohm Max | 20 @ 796kHz | 4.5MHz | - | -40°C ~ 125°C | 796 kHz | - | Surface Mount | 1812 |
|
|
CTHC1812SF-390MSMD FERRITE CORE WW INDUCTOR |
3,735 | 0.53 |
RFQ |
Datasheet |
1812 (4532 Metric) | Tape & Reel (TR) | CTHC1812SF | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±20% | 280 mA | - | Unshielded | 1.6Ohm Max | 10 @ 2.52MHz | 13MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1812 |
|
|
CTHC1812SF-1R8KSMD FERRITE CORE WW INDUCTOR |
3,033 | 0.53 |
RFQ |
Datasheet |
1812 (4532 Metric) | Tape & Reel (TR) | CTHC1812SF | Active | Drum Core, Wirewound | Ferrite | 1.8 µH | ±10% | 900 mA | - | Unshielded | 160mOhm Max | 10 @ 7.96MHz | 105MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 |
|
|
CTHC1812SF-391MSMD FERRITE CORE WW INDUCTOR |
3,961 | 0.53 |
RFQ |
Datasheet |
1812 (4532 Metric) | Tape & Reel (TR) | CTHC1812SF | Active | Drum Core, Wirewound | Ferrite | 390 µH | ±20% | 85 mA | - | Unshielded | 14Ohm Max | 20 @ 796kHz | 4MHz | - | -40°C ~ 125°C | 796 kHz | - | Surface Mount | 1812 |
|

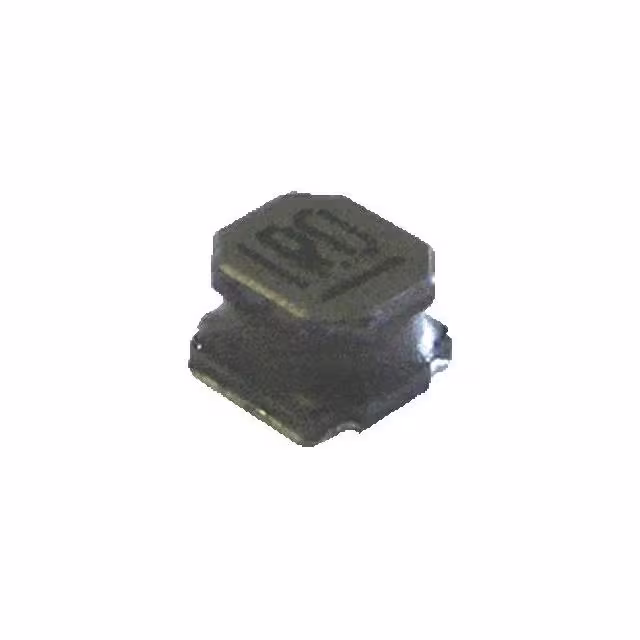

CTLV8040SF-100N10UH SMD POWER INDUCTOR |
2,707 | 0.53 |
RFQ |
Datasheet |
3131 (8080 Metric) | Tape & Reel (TR) | CTLV8040SF | Active | - | - | 10 µH | ±30% | 3.42 A | 4.5A | Shielded | 38mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 |
|
|
CTHC1812SF-1R5JSMD FERRITE CORE WW INDUCTOR |
3,650 | 0.53 |
RFQ |
Datasheet |
1812 (4532 Metric) | Tape & Reel (TR) | CTHC1812SF | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±5% | 950 mA | - | Unshielded | 150mOhm Max | 10 @ 7.96MHz | 170MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 |
|
|
CTHC1812SF-181MSMD FERRITE CORE WW INDUCTOR |
2,128 | 0.53 |
RFQ |
Datasheet |
1812 (4532 Metric) | Tape & Reel (TR) | CTHC1812SF | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±20% | 120 mA | - | Unshielded | 7.5Ohm Max | 20 @ 796kHz | 6MHz | - | -40°C ~ 125°C | 796 kHz | - | Surface Mount | 1812 |
|
|
CTHC1812SF-1R5MSMD FERRITE CORE WW INDUCTOR |
3,690 | 0.53 |
RFQ |
Datasheet |
1812 (4532 Metric) | Tape & Reel (TR) | CTHC1812SF | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 950 mA | - | Unshielded | 150mOhm Max | 10 @ 7.96MHz | 170MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 |
