| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELJ-PF5N6DFFIXED IND 5.6NH 1.2A 120MOHM SMD |
4,468 | 0.80 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR),Cut Tape (CT) | PF | Obsolete | Drum Core, Wirewound | Ceramic | 5.6 nH | ±0.3nH | 1.2 A | - | Unshielded | 120mOhm Max | 7 @ 100MHz | 4.2GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) |
|

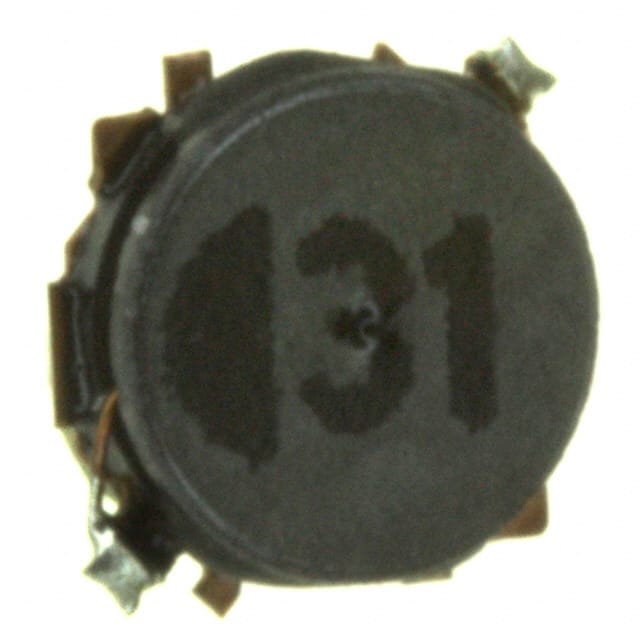

ELL-4FG1R0NAFIXED IND 1UH 1.95A 45 MOHM SMD |
1,387 | 0.80 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | G | Obsolete | Wirewound | - | 1 µH | ±30% | 1.95 A | 1.9A | Shielded | 45mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - |
|
ELL-6PG3R9NFIXED IND 3.9UH 1.9A 51 MOHM SMD |
1,443 | 0.81 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | G | Obsolete | Wirewound | - | 3.9 µH | ±30% | 1.9 A | 1.6A | Shielded | 51mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - |
|
|
ELL-6PGR08NFIXED IND 800NH 2.8A 24 MOHM SMD |
1,160 | 0.81 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | G | Obsolete | Wirewound | - | 800 nH | ±30% | 2.8 A | 3.8A | Shielded | 24mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - |
|
ELJ-FCR56MFFIXED IND 560NH 150MA 1.1OHM SMD |
1,742 | 0.83 |
RFQ |
Datasheet |
1008 (2520 Metric) | Tape & Reel (TR),Cut Tape (CT) | FC | Obsolete | Wirewound | - | 560 nH | ±20% | 150 mA | - | Unshielded | 1.1Ohm Max | 25 @ 25.2MHz | 155MHz | - | -20°C ~ 85°C | 25.2 MHz | - | Surface Mount | 1008 (2520 Metric) |
|
ELT-5KN131CFIXED IND 390UH 120MA 2.8OHM SMD |
7,846 | 1.90 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | 5KN | Obsolete | Wirewound | - | 390 µH | ±10% | 120 mA | - | Unshielded | 2.8Ohm | - | - | - | - | 1 kHz | - | Surface Mount | - |
|
ELJ-PE15NKFFIXED IND 15NH 900MA 100MOHM SMD |
2,960 | 0.86 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | PE | Obsolete | Drum Core, Wirewound | Ceramic | 15 nH | ±10% | 900 mA | - | Unshielded | 100mOhm Max | 9 @ 100MHz | 2.2GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) |
|
ELL-5PR1R0NFIXED IND 1UH 3A 21 MOHM SMD |
1,066 | 0.86 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | R | Obsolete | Wirewound | - | 1 µH | ±30% | 3 A | 4.5A | Shielded | 21mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - |
|

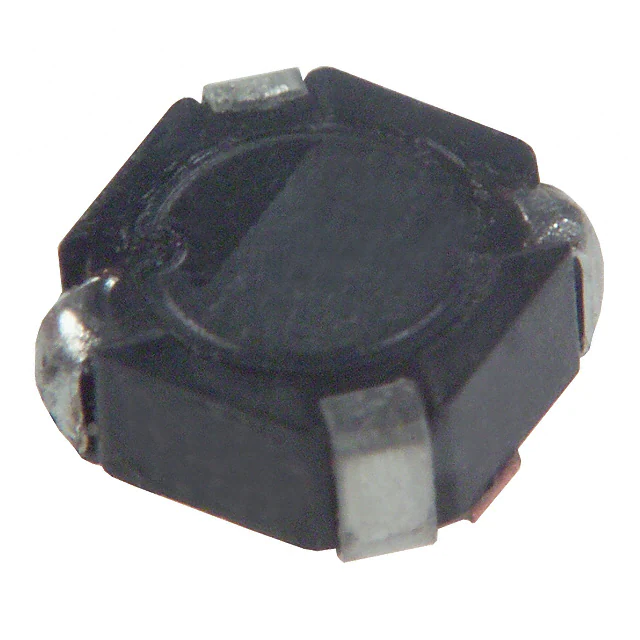

ELL-4GM180MFIXED IND 18UH 400MA 490MOHM SMD |
1,320 | 0.87 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | M | Obsolete | Wirewound | - | 18 µH | ±20% | 400 mA | - | Shielded | 490mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - |
|
|
ELL-4GM270MFIXED IND 27UH 330MA 640MOHM SMD |
1,046 | 0.87 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | M | Obsolete | Wirewound | - | 27 µH | ±20% | 330 mA | - | Shielded | 640mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - |
|

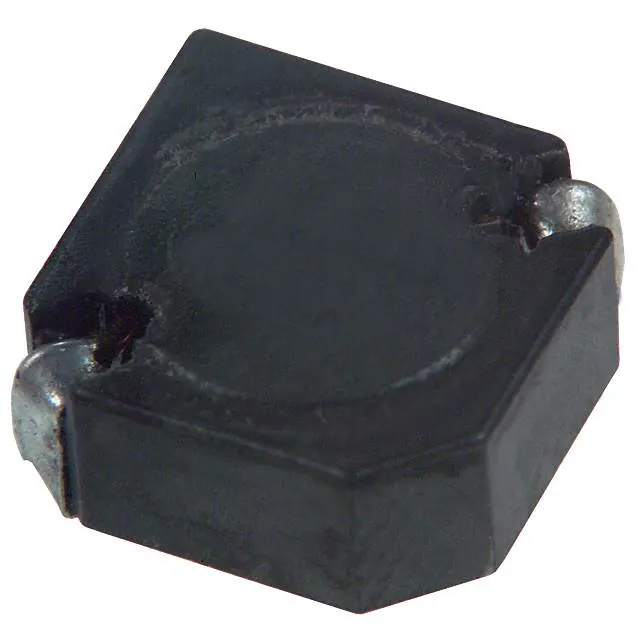

ELL-ATV681MFIXED IND 680UH 370MA 1.15OHM SM |
15,084 | 1.73 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | V | Obsolete | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 370 mA | - | Shielded | 1.15Ohm | - | - | - | - | 100 kHz | - | Surface Mount | - |
|
ELJ-NC68NJFFIXED IND 68NH 190MA 680MOHM SMD |
2,949 | 0.94 |
RFQ |
Datasheet |
1008 (2520 Metric) | Tape & Reel (TR),Cut Tape (CT) | NC | Obsolete | Wirewound | Non-Magnetic | 68 nH | ±5% | 190 mA | - | Unshielded | 680mOhm Max | 15 @ 100MHz | 590MHz | - | -20°C ~ 85°C | 100 MHz | - | Surface Mount | 1008 (2520 Metric) |
|
|
ELL-ATV391MFIXED IND 390UH 520MA 690MOHM SM |
1,500 | 1.82 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | V | Obsolete | Drum Core, Wirewound | Ferrite | 390 µH | ±20% | 520 mA | - | Shielded | 690mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - |
|
ELL-6GG6R8MFIXED IND 6.8UH 1.3A 110MOHM SMD |
1,697 | 0.96 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | G | Obsolete | Wirewound | - | 6.8 µH | ±20% | 1.3 A | 1.15A | Shielded | 110mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - |
|
|
ELL-6GG680MFIXED IND 68UH 410MA 860MOHM SMD |
1,067 | 0.96 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | G | Obsolete | Wirewound | - | 68 µH | ±20% | 410 mA | 380mA | Shielded | 860mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - |
|
ELL-CTV121MFIXED IND 120UH 1.1A 190MOHM SMD |
2,169 | 1.85 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | V | Obsolete | Drum Core, Wirewound | Ferrite | 120 µH | ±20% | 1.1 A | - | Shielded | 190mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - |
|

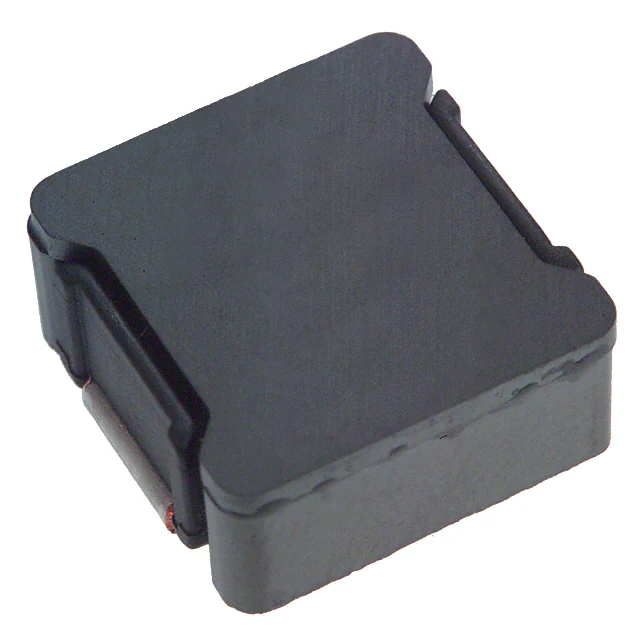

ETQ-P6F4R1LFAFIXED IND 4.1UH 7.9A 8.64MOHM SM |
3,521 | 2.42 |
RFQ |
Datasheet |
2-SMD, J-Lead | Tape & Reel (TR),Cut Tape (CT) | PCC-F126F (N6) | Obsolete | - | Ferrite | 4.1 µH | ±20% | 7.9 A | 10.8A | Shielded | 8.64mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - |
|
ELL-6RH560MFIXED IND 56UH 450MA 540MOHM SMD |
1,275 | 1.03 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | H | Obsolete | Wirewound | - | 56 µH | ±20% | 450 mA | - | Shielded | 540mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - |
|
ELT-5KT680LBFIXED IND 68UH 260MA 2.6 OHM SMD |
4,903 | 1.05 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | 5KT | Obsolete | Wirewound | - | 68 µH | ±15% | 260 mA | - | Unshielded | 2.6Ohm | - | - | - | - | 100 kHz | - | Surface Mount | - |
|
|
ELT-5KT470LBFIXED IND 47UH 300MA 1.7 OHM SMD |
4,506 | 1.05 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | 5KT | Obsolete | Wirewound | - | 47 µH | ±15% | 300 mA | - | Unshielded | 1.7Ohm | - | - | - | - | 100 kHz | - | Surface Mount | - |
