| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NR5040T3R3NFIXED IND 3.3UH 3.3A 35.1MOHM SM |
112,983 | 0.46 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | NR | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 3.3 A | 3.8A | Shielded | 35.1mOhm Max | - | 32MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - |
|
|
NR5040T4R7NFIXED IND 4.7UH 3.1A 37.7MOHM SM |
34,463 | 0.46 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | NR | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 3.1 A | 3.3A | Shielded | 37.7mOhm Max | - | 28MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - |
|
|
NR5040T220MFIXED IND 22UH 1.4A 163.8MOHM SM |
19,237 | 0.46 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | NR | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.4 A | 1.6A | Shielded | 163.8mOhm Max | - | 9MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - |
|
NRS8040T220MJGJFIXED IND 22UH 2.2A 85.8MOHM SMD |
30,746 | 0.46 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | NR, S Type | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 2.2 A | 2.4A | Shielded | 85.8mOhm Max | - | 13MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
NRS8030T150MJGJFIXED IND 15UH 2.2A 78 MOHM SMD |
144,446 | 0.47 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | NR, S Type | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 2.2 A | 2A | Shielded | 78mOhm Max | - | 20MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
NRS8030T2R2NJGJFIXED IND 2.2UH 4.8A 19.5MOHM SM |
99,169 | 0.47 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | NR, S Type | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 4.8 A | 4.9A | Shielded | 19.5mOhm Max | - | 60MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
NRS8030T100MJGJFIXED IND 10UH 3A 42.9 MOHM SMD |
73,621 | 0.47 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | NR, S Type | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 3 A | 2.4A | Shielded | 42.9mOhm Max | - | 27MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
NRS8030T4R7MJGJFIXED IND 4.7UH 4A 28.6 MOHM SMD |
60,091 | 0.47 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | NR, S Type | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 4 A | 3.6A | Shielded | 28.6mOhm Max | - | 40MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
NR8040T220MFIXED IND 22UH 2.2A 85.8MOHM SMD |
254,539 | 0.57 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | NR | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 2.2 A | 2.2A | Shielded | 85.8mOhm Max | - | 13MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - |
|
|
NR8040T150MFIXED IND 15UH 2.4A 65 MOHM SMD |
95,265 | 0.57 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | NR | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 2.4 A | 2.7A | Shielded | 65mOhm Max | - | 16MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - |
|
|
NR8040T470MFIXED IND 47UH 1.4A 195 MOHM SMD |
56,691 | 0.57 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | NR | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.4 A | 1.5A | Shielded | 195mOhm Max | - | 8MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - |
|
|
NR8040T330MFIXED IND 33UH 1.7A 130 MOHM SMD |
22,705 | 0.57 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | NR | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.7 A | 1.9A | Shielded | 130mOhm Max | - | 12MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - |
|
|
NR8040T101MFIXED IND 100UH 1A 377 MOHM SMD |
22,607 | 0.57 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | NR | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1 A | 1A | Shielded | 377mOhm Max | - | 6MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - |
|
|
NR8040T100MFIXED IND 10UH 3.1A 44.2MOHM SMD |
23,330 | 0.57 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | NR | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 3.1 A | 3.4A | Shielded | 44.2mOhm Max | - | 22MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - |
|
|
NRS8040T101MJGKVFIXED IND 100UH 1A 364 MOHM SMD |
3,574 | 0.67 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | NR, S Type | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1 A | 1.1A | Shielded | 364mOhm Max | - | 6MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
NRS8040T330MJGKVFIXED IND 33UH 1.7A 130 MOHM SMD |
46,517 | 0.68 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | NR, S Type | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.7 A | 2A | Shielded | 130mOhm Max | - | 12MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|

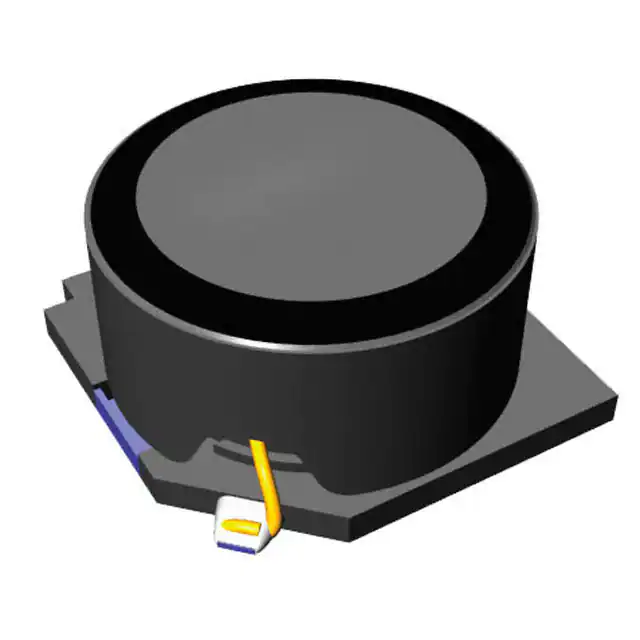

NS10165T150MNAFIXED IND 15UH 3.84A 30 MOHM SMD |
131,729 | 0.96 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | NS | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 3.84 A | 4.5A | Shielded | 30mOhm Max | - | 13.2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
NS10165T220MNAFIXED IND 22UH 3.41A 37.2MOHM SM |
63,320 | 0.96 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | NS | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 3.41 A | 3.6A | Shielded | 37.2mOhm Max | - | 10.6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
NS12575T220MNFIXED IND 22UH 4.05A 31.2MOHM SM |
84,418 | 1.54 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | NS | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 4.05 A | 5.56A | Shielded | 31.2mOhm Max | - | 9.7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
-1,45mm.jpg)
|
LBR2012T1R0MFIXED IND 1UH 400MA 91 MOHM SMD |
212,334 | 0.13 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | LB, R Type | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 400 mA | - | Unshielded | 91mOhm Max | - | 100MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0805 (2012 Metric) |
