| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XAL7070-682MECPOWER INDUCTOR, SHIELDED, 20% TO |
1,090 | 4.06 |
RFQ |
Datasheet |
Nonstandard | Strip | XAL7070 | Active | - | Metal Composite | 6.8 µH | - | 9.2 A | 12.8A | Shielded | 19.62mOhm Max | - | 20MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - |
|
|
XAL7070-222MECPOWER INDUCTOR, SHIELDED, 20% TO |
166 | 4.06 |
RFQ |
Datasheet |
Nonstandard | Strip | XAL7070 | Active | - | Metal Composite | 2.2 µH | - | 17.8 A | 19.6A | Shielded | 6.33mOhm Max | - | 35MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - |
|
SER2918H-682KLPOWER INDUCTOR, HIGH CURRENT, 10 |
860 | 5.81 |
RFQ |
Datasheet |
Nonstandard | Strip | SER29xx | Active | - | Ferrite | 6.8 µH | - | 25 A | 45.9A | Shielded | 2.86mOhm Max | - | 25MHz | AEC-Q200 | -40°C ~ 125°C | 500 kHz | - | Surface Mount | - |
|
|
SER2918H-472KLPOWER INDUCTOR, HIGH CURRENT, 10 |
538 | 5.81 |
RFQ |
Datasheet |
Nonstandard | Strip | SER29xx | Active | - | Ferrite | 4.7 µH | - | 28 A | 62.4A | Shielded | 2.86mOhm Max | - | 30MHz | AEC-Q200 | -40°C ~ 125°C | 500 kHz | - | Surface Mount | - |
|
|
SER2918H-333KLPOWER INDUCTOR, HIGH CURRENT, 10 |
487 | 5.81 |
RFQ |
Datasheet |
Nonstandard | Strip | SER29xx | Active | - | Ferrite | 33 µH | - | 28 A | 9.6A | Shielded | 2.86mOhm Max | - | 10MHz | AEC-Q200 | -40°C ~ 125°C | 500 kHz | - | Surface Mount | - |
|
|
SER2918H-332KLPOWER INDUCTOR, HIGH CURRENT, 10 |
123 | 5.81 |
RFQ |
Datasheet |
Nonstandard | Strip | SER29xx | Active | - | Ferrite | 3.3 µH | - | 28 A | 93.6A | Shielded | 2.86mOhm Max | - | 40MHz | AEC-Q200 | -40°C ~ 125°C | 500 kHz | - | Surface Mount | - |
|

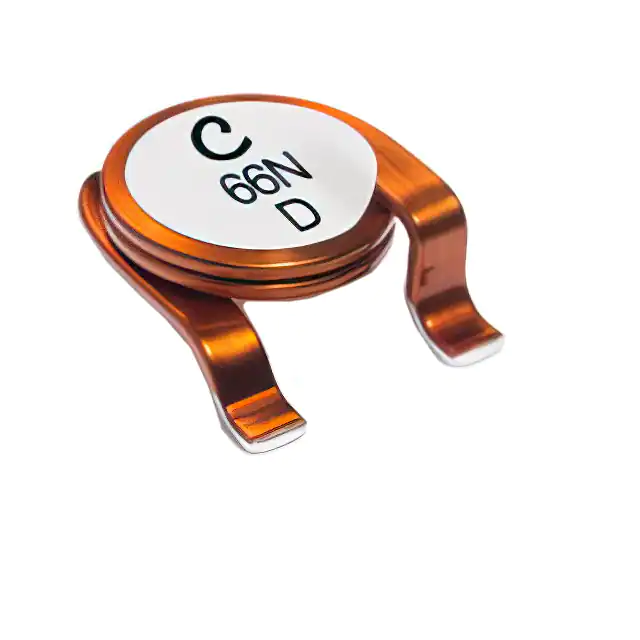

ZA9423-33NMEDFIXED INDUCTOR 0.033UH SMD |
261 | 5.41 |
RFQ |
3-SMD, Gull Wing | Strip | ZA9423 | Active | Wirewound | Air | 33 nH | ±20% | 30.2 A | - | Unshielded | 0.62mOhm Max | 456 @ 100MHz | 817MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 3-SMD | |
|
|
ZA9423-66NMEDFIXED INDUCTOR 0.066UH SMD |
166 | 5.41 |
RFQ |
3-SMD, Gull Wing | Strip | ZA9423 | Active | Wirewound | Air | 66 nH | ±20% | 27 A | - | Unshielded | 0.9mOhm Max | 404 @ 100MHz | 436MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 3-SMD | |
|
|

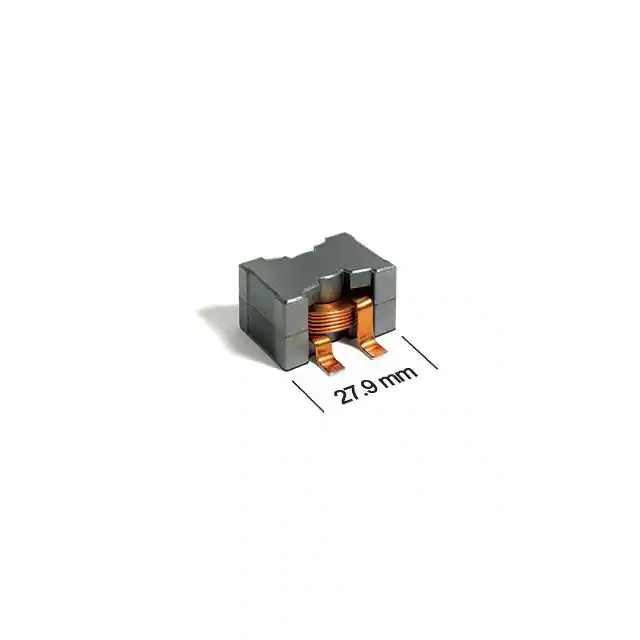

SER2918H-223KLPOWER INDUCTOR, HIGH CURRENT, 10 |
4,302 | 5.81 |
RFQ |
Datasheet |
Nonstandard | Strip | SER29xx | Active | - | Ferrite | 22 µH | - | 28 A | 15A | Shielded | 2.86mOhm Max | - | 15MHz | AEC-Q200 | -40°C ~ 125°C | 500 kHz | - | Surface Mount | - |
|
|
SER2918H-103KLPOWER INDUCTOR, HIGH CURRENT, 10 |
3,216 | 5.81 |
RFQ |
Datasheet |
Nonstandard | Strip | SER29xx | Active | - | Ferrite | 10 µH | - | 28 A | 32.1A | Shielded | 2.86mOhm Max | - | 20MHz | AEC-Q200 | -40°C ~ 125°C | 500 kHz | - | Surface Mount | - |
|
|
SER2918H-153KLPOWER INDUCTOR, HIGH CURRENT, 10 |
2,584 | 5.81 |
RFQ |
Datasheet |
Nonstandard | Strip | SER29xx | Active | - | Ferrite | 15 µH | - | 28 A | 21.9A | Shielded | 2.86mOhm Max | - | 16MHz | AEC-Q200 | -40°C ~ 125°C | 500 kHz | - | Surface Mount | - |
|
XAL1060-122MECPOWER INDUCTOR, SHIELDED, 20% TO |
6,706 | 6.53 |
RFQ |
Datasheet |
Nonstandard | Strip | XAL1060 | Active | - | Metal Composite | 1.2 µH | - | 26.3 A | 43A | Shielded | 2.75mOhm Max | - | 44MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - |
|
|
XAL1060-152MECPOWER INDUCTOR, SHIELDED, 20% TO |
2,278 | 6.53 |
RFQ |
Datasheet |
Nonstandard | Strip | XAL1060 | Active | - | Metal Composite | 1.5 µH | - | 24.4 A | 36A | Shielded | 3.3mOhm Max | - | 36MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - |
|
|
XAL1060-681MECPOWER INDUCTOR, SHIELDED, 20% TO |
861 | 6.53 |
RFQ |
Datasheet |
Nonstandard | Strip | XAL1060 | Active | - | Metal Composite | 680 nH | - | 33.9 A | 52A | Shielded | 1.5mOhm Max | - | 51MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - |
|
|
XAL1060-401MECPOWER INDUCTOR, SHIELDED, 20% TO |
2,240 | 6.53 |
RFQ |
Datasheet |
Nonstandard | Strip | XAL1060 | Active | - | Metal Composite | 400 nH | - | 36.8 A | 82A | Shielded | 0.88mOhm Max | - | 60MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - |
|
|
XAL1060-472MECPOWER INDUCTOR, SHIELDED, 20% TO |
979 | 6.53 |
RFQ |
Datasheet |
Nonstandard | Strip | XAL1060 | Active | - | Metal Composite | 4.7 µH | - | 14 A | 25A | Shielded | 10.72mOhm Max | - | 16MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - |
|
|
XAL1060-181MECPOWER INDUCTOR, SHIELDED, 20% TO |
2,081 | 6.53 |
RFQ |
Datasheet |
Nonstandard | Strip | XAL1060 | Active | - | Metal Composite | 180 nH | - | 46 A | 120A | Shielded | 0.55mOhm Max | - | 68MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - |
|
|
XAL1060-332MECPOWER INDUCTOR, SHIELDED, 20% TO |
323 | 6.53 |
RFQ |
Datasheet |
Nonstandard | Strip | XAL1060 | Active | - | Metal Composite | 3.3 µH | - | 16.8 A | 26A | Shielded | 7.92mOhm Max | - | 19MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - |
|
|
XAL1060-222MECPOWER INDUCTOR, SHIELDED, 20% TO |
1,134 | 6.53 |
RFQ |
Datasheet |
Nonstandard | Strip | XAL1060 | Active | - | Metal Composite | 2.2 µH | - | 20 A | 32A | Shielded | 4.95mOhm Max | - | 25MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - |
|
XAL1010-451MEDPOWER INDUCTOR, SHIELDED, 20% TO |
25,953 | 6.76 |
RFQ |
Datasheet |
Nonstandard | Strip | XAL1010 | Active | - | Metal Composite | 450 nH | - | 53 A | 70.5A | Shielded | 0.72mOhm Max | - | 66MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - |
