| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

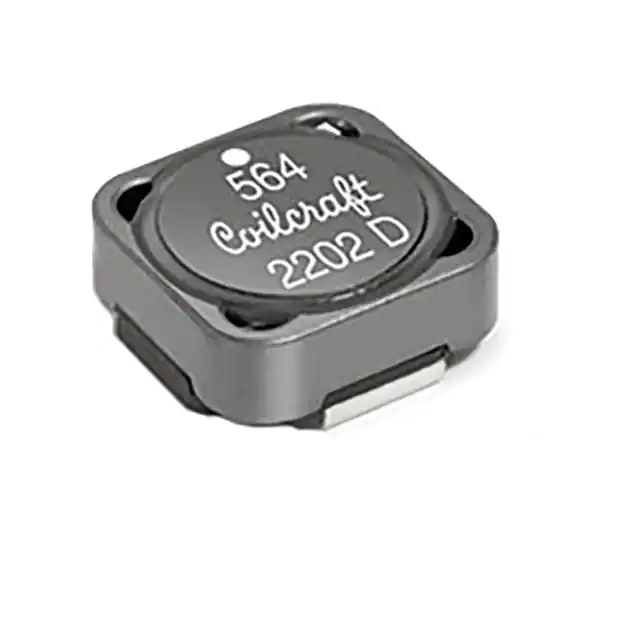

MSS1246H-822MEDFIXED INDUCTOR 8.2UH SMD |
1,984 | 2.86 |
RFQ |
Nonstandard | Strip | MSS1246H | Active | Drum Core | Ferrite | 8.2 µH | ±20% | 3.2 A | 6.6A | Shielded | 25.5mOhm Max | - | 33MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | |
|
|
MSS1246H-123MEDFIXED INDUCTOR 12UH SMD |
1,984 | 2.86 |
RFQ |
Nonstandard | Strip | MSS1246H | Active | Drum Core | Ferrite | 12 µH | ±20% | 2.91 A | 5.7A | Shielded | 30mOhm Max | - | 28MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | |
|
|
MSS1246H-422MEDFIXED INDUCTOR 4.2UH SMD |
1,984 | 2.86 |
RFQ |
Nonstandard | Strip | MSS1246H | Active | Drum Core | Ferrite | 4.2 µH | ±20% | 4.3 A | 9.5A | Shielded | 13.5mOhm Max | - | 46MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | |
|
|
MSS1246H-184KEDFIXED INDUCTOR 180UH SMD |
1,984 | 2.86 |
RFQ |
Nonstandard | Strip | MSS1246H | Active | Drum Core | Ferrite | 180 µH | ±10% | 760 mA | 1.4A | Shielded | 392mOhm Max | - | 6MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | |
|
|
MSS1246H-154KEDFIXED INDUCTOR 150UH SMD |
1,984 | 2.86 |
RFQ |
Nonstandard | Strip | MSS1246H | Active | Drum Core | Ferrite | 150 µH | ±10% | 880 mA | 1.6A | Shielded | 310mOhm Max | - | 6.8MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | |
|
|
MSS1246H-224KEDFIXED INDUCTOR 220UH SMD |
1,984 | 2.86 |
RFQ |
Nonstandard | Strip | MSS1246H | Active | Drum Core | Ferrite | 220 µH | ±10% | 720 mA | 1.3A | Shielded | 450mOhm Max | - | 5.3MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | |
|
|
MSS1246H-274KEDFIXED INDUCTOR 270UH SMD |
1,984 | 2.86 |
RFQ |
Nonstandard | Strip | MSS1246H | Active | Drum Core | Ferrite | 270 µH | ±10% | 680 mA | 1.2A | Shielded | 520mOhm Max | - | 4.8MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | |
|
|
MSS1246H-332MEDFIXED INDUCTOR 3.3UH SMD |
1,984 | 2.86 |
RFQ |
Nonstandard | Strip | MSS1246H | Active | Drum Core | Ferrite | 3.3 µH | ±20% | 4.7 A | 10.7A | Shielded | 12mOhm Max | - | 55MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | |
|
|
MSS1246H-333MEDFIXED INDUCTOR 33UH SMD |
1,984 | 2.86 |
RFQ |
Nonstandard | Strip | MSS1246H | Active | Drum Core | Ferrite | 33 µH | ±20% | 1.73 A | 3.3A | Shielded | 78mOhm Max | - | 15MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | |
|
|
MSS1246H-823KEDFIXED INDUCTOR 82UH SMD |
1,981 | 2.86 |
RFQ |
Nonstandard | Strip | MSS1246H | Active | Drum Core | Ferrite | 82 µH | ±10% | 1.12 A | 2.1A | Shielded | 178mOhm Max | - | 9MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | |
|
|
MSS1246H-183MEDFIXED INDUCTOR 18UH SMD |
1,981 | 2.86 |
RFQ |
Nonstandard | Strip | MSS1246H | Active | Drum Core | Ferrite | 18 µH | ±20% | 2.28 A | 4.5A | Shielded | 49mOhm Max | - | 21MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | |
|
|
MSS1246H-103MEDFIXED INDUCTOR 10UH SMD |
1,981 | 2.86 |
RFQ |
Nonstandard | Strip | MSS1246H | Active | Drum Core | Ferrite | 10 µH | ±20% | 3 A | 6.1A | Shielded | 28mOhm Max | - | 30MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | |
|
|
MSS1246H-473KEDFIXED INDUCTOR 47UH SMD |
1,981 | 2.86 |
RFQ |
Nonstandard | Strip | MSS1246H | Active | Drum Core | Ferrite | 47 µH | ±10% | 1.51 A | 2.8A | Shielded | 105mOhm Max | - | 12.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | |
|
|
MSS1246H-153MEDFIXED INDUCTOR 15UH SMD |
1,981 | 2.86 |
RFQ |
Nonstandard | Strip | MSS1246H | Active | Drum Core | Ferrite | 15 µH | ±20% | 2.38 A | 4.8A | Shielded | 46mOhm Max | - | 22MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | |
|
|
MSS1246H-223MEDFIXED INDUCTOR 22UH SMD |
1,979 | 2.86 |
RFQ |
Nonstandard | Strip | MSS1246H | Active | Drum Core | Ferrite | 22 µH | ±20% | 2.05 A | 4.1A | Shielded | 60mOhm Max | - | 20MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | |
|
|
MSS1246H-563KEDFIXED INDUCTOR 56UH SMD |
1,974 | 2.86 |
RFQ |
Nonstandard | Strip | MSS1246H | Active | Drum Core | Ferrite | 56 µH | ±10% | 1.28 A | 2.6A | Shielded | 135mOhm Max | - | 11MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | |
|
|
MSS1246H-683KEDFIXED INDUCTOR 68UH SMD |
1,968 | 2.86 |
RFQ |
Nonstandard | Strip | MSS1246H | Active | Drum Core | Ferrite | 68 µH | ±10% | 1.21 A | 2.3A | Shielded | 150mOhm Max | - | 10MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | |
|
|
MSS1246H-124KEDFIXED INDUCTOR 120UH SMD |
1,950 | 2.86 |
RFQ |
Nonstandard | Strip | MSS1246H | Active | Drum Core | Ferrite | 120 µH | ±10% | 960 mA | 1.8A | Shielded | 259mOhm Max | - | 7.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | |
|
|
MSS1246H-334KEDFIXED INDUCTOR 330UH SMD |
1,926 | 2.86 |
RFQ |
Nonstandard | Strip | MSS1246H | Active | Drum Core | Ferrite | 330 µH | ±10% | 580 mA | 1.1A | Shielded | 670mOhm Max | - | 4.3MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | |
|

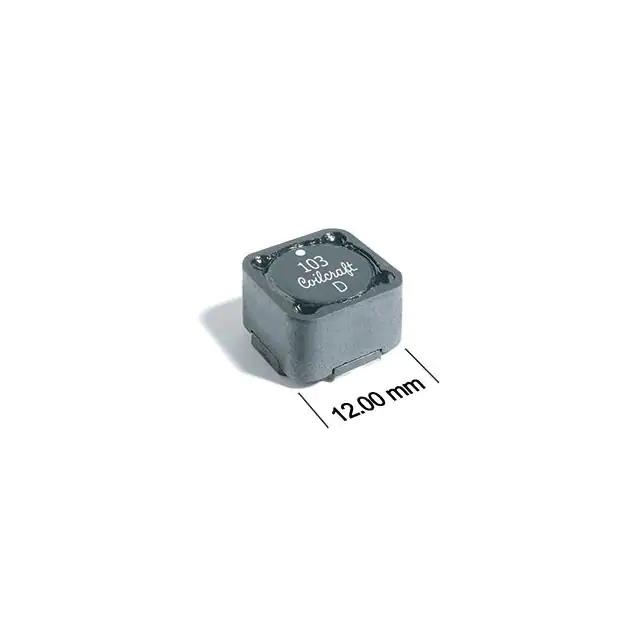

MSS1278-183MLDPOWER INDUCTOR, SHIELDED, 10/20% |
1,846 | 2.86 |
RFQ |
Datasheet |
Nonstandard | Strip | MSS1278 | Active | - | Ferrite | 18 µH | - | 4.5 A | 7.74A | Shielded | 34.3mOhm Max | - | 12MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
