| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

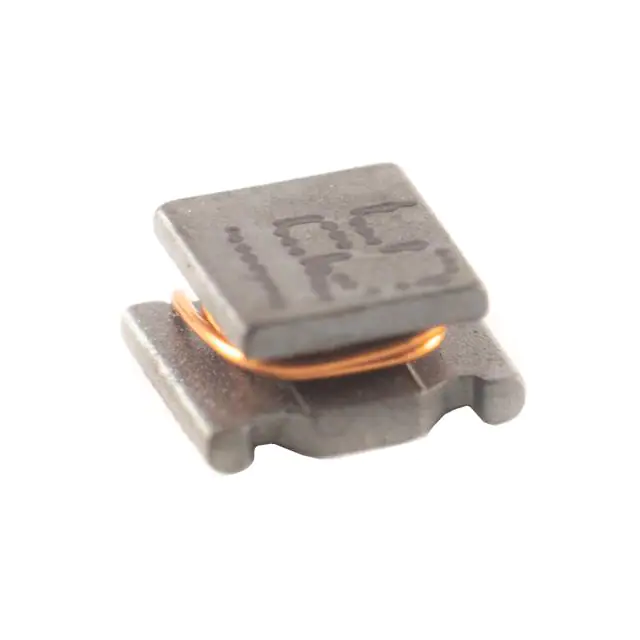

LRC27HC-470M-RC47uH +/-20% Hi-Current Inductor |
2,138 | 0.98 |
RFQ |
Datasheet |
1210 (3225 Metric) | Tape & Reel (TR) | LRC27HC | Active | Wirewound | - | 47 µH | ±20% | 240 mA | 280mA | Unshielded | 1.48Ohm Max | - | 11MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 |
|
MC20-120K-RC12uH +/-10% Molded Chip Inductor |
2,544 | 0.98 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | MC20 | Active | Molded | - | 12 µH | ±10% | - | 140mA | Unshielded | 2.5Ohm Max | 30 @ 2.52MHz | 20MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - |
|
|
MC20-121K-RC120uH+/-10% Molded Chip Inductor |
2,306 | 0.98 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | MC20 | Active | Molded | - | 120 µH | ±10% | - | 70mA | Unshielded | 11Ohm Max | 20 @ 796kHz | 10MHz | - | -40°C ~ 125°C | 796 kHz | - | Surface Mount | - |
|
MC20A-2R7K-RC2.7uH+/-10% Molded Chip Inductor |
3,899 | 0.98 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | MC20A | Active | Molded | - | 2.7 µH | ±10% | - | 290mA | Unshielded | 1.1mOhm Max | 30 @ 7.96MHz | 70MHz | - | -25°C ~ 85°C | 7.96 MHz | - | Surface Mount | - |
|
|
MC20-100J-RC10uH +/-5% Molded Chip Inductor |
2,575 | 0.98 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | MC20 | Active | Molded | - | 10 µH | ±5% | - | 150mA | Unshielded | 2.1Ohm Max | 30 @ 2.52MHz | 30MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - |
|
MLPC12-R47M-RC.47uH +/-20% Multilayer Pwr Chip |
3,180 | 0.98 |
RFQ |
Datasheet |
0806 (2016 Metric) | Tape & Reel (TR) | MLPC12 | Active | Multilayer | Ferrite | 470 nH | ±20% | 1.6 A | - | Shielded | 60mOhm Max | - | - | - | -55°C ~ 125°C | 3 MHz | - | Surface Mount | 0806 |
|
|
MLPCH15-2R2M-RC2.2uH +/-20% Multilayer Pwr Chip |
2,174 | 0.98 |
RFQ |
Datasheet |
1008 (2520 Metric) | Tape & Reel (TR) | MLPCH15 | Active | Multilayer | Ferrite | 2.2 µH | ±20% | 1.6 A | 1.4A | Shielded | 110mOhm Max | - | - | - | -55°C ~ 125°C | 3 MHz | - | Surface Mount | 1008 |
|
PCS124-100M-RC10uH +/-20% Power Chip Shielded |
3,330 | 0.98 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | PCS124 | Active | - | - | 10 µH | ±20% | - | 4.5A | Shielded | 28mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - |
|
|
PCS124-470M-RC47UH 20% POWER CHIP SHIELDED |
2,129 | 0.98 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | PCS124 | Active | - | - | 47 µH | ±20% | - | 1.9A | Shielded | 150mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - |
|
LRC20L-120M-RC12uH +/-20% Low Resistance Chip |
2,652 | 0.98 |
RFQ |
Datasheet |
1210 (3225 Metric) | Tape & Reel (TR) | LRC20L | Active | Wirewound | - | 12 µH | ±20% | 760 mA | - | Unshielded | 400mOhm Max | - | 31MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 |
|
|
LRC20L-4R7M-RC4.7uH +/-20% Low Resistance Chip |
2,876 | 0.98 |
RFQ |
Datasheet |
1210 (3225 Metric) | Tape & Reel (TR) | LRC20L | Active | Wirewound | - | 4.7 µH | ±20% | 650 mA | - | Unshielded | 150mOhm Max | - | 43MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 |
|
|
LRC20L-100M-RC10uH +/-20% Low Resistance Chip |
2,423 | 0.98 |
RFQ |
Datasheet |
1210 (3225 Metric) | Tape & Reel (TR) | LRC20L | Active | Wirewound | - | 10 µH | ±20% | 450 mA | - | Unshielded | 300mOhm Max | - | 26MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 |
|
|
LRC27HC-1R0T-RC1.0uH +/-30% Hi-Current Inductor |
3,488 | 0.98 |
RFQ |
Datasheet |
1210 (3225 Metric) | Tape & Reel (TR) | LRC27HC | Active | Wirewound | - | 1 µH | ±30% | 2.05 A | 2.3A | Unshielded | 45mOhm Max | - | 100MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 |
|
LRHQ20-181K-RC180uH +/-10% Lo-Res. Hi-Q Chip |
2,172 | 0.98 |
RFQ |
Datasheet |
1210 (3225 Metric) | Tape & Reel (TR) | LRHQ20 | Active | Wirewound | Ferrite | 180 µH | ±10% | 65 mA | - | Unshielded | 10.2Ohm Max | 40 @ 796kHz | 6MHz | - | -25°C ~ 85°C | 1 MHz | - | Surface Mount | 1210 |
|
LRC30-4R7M-RC4.7uH +/-20% Low Resistance Chip |
2,397 | 0.98 |
RFQ |
Datasheet |
1812 (4532 Metric) | Tape & Reel (TR) | LRC30 | Active | Wirewound | - | 4.7 µH | ±20% | 750 mA | - | Unshielded | 150mOhm Max | - | 35MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 |
|
|
LRHQ20-4R7M-RC4.7uH +/-20% Lo-Res. Hi-Q Chip |
3,467 | 0.98 |
RFQ |
Datasheet |
1210 (3225 Metric) | Tape & Reel (TR) | LRHQ20 | Active | Wirewound | Ferrite | 4.7 µH | ±20% | 270 mA | - | Unshielded | 1.2Ohm Max | 35 @ 1MHz | 31MHz | - | -25°C ~ 85°C | 1 MHz | - | Surface Mount | 1210 |
|
|
LRHQ20-151K-RC150uH +/-10% Lo-Res. Hi-Q Chip |
2,145 | 0.98 |
RFQ |
Datasheet |
1210 (3225 Metric) | Tape & Reel (TR) | LRHQ20 | Active | Wirewound | Ferrite | 150 µH | ±10% | 70 mA | - | Unshielded | 9.3Ohm Max | 40 @ 796kHz | 7MHz | - | -25°C ~ 85°C | 1 MHz | - | Surface Mount | 1210 |
|
|
MC20-2R2K-RC2.2uH+/-10% Molded Chip Inductor |
2,324 | 0.98 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | MC20 | Active | Molded | - | 2.2 µH | ±10% | - | 320mA | Unshielded | 1Ohm Max | 30 @ 7.96MHz | 75MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | - |
|
|
MC20-1R2K-RC1.2uH+/-10% Molded Chip Inductor |
3,183 | 0.98 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | MC20 | Active | Molded | - | 1.2 µH | ±10% | - | 390mA | Unshielded | 750mOhm Max | 30 @ 7.96MHz | 100MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | - |
|
|
MC20-1R0K-RC1.0uH+/-10% Molded Chip Inductor |
2,945 | 0.98 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | MC20 | Active | Molded | - | 1 µH | ±10% | 400 mA | - | Unshielded | 700mOhm Max | 30 @ 7.96MHz | 120MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | - |
