| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AE90-220K-RC22UH 10% AXIAL EPOXY COATED |
2,939 | 0.98 |
RFQ |
Datasheet |
Axial | Bag | AE90 | Active | Wirewound | - | 22 µH | ±10% | 2.03 A | 3.1A | Unshielded | 150mOhm Max | 50 @ 2.52MHz | 15MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | Axial |
|
|
AE90-103K-RC10MH 10% AXIAL EPOXY COATED |
3,466 | 0.98 |
RFQ |
Datasheet |
Axial | Bag | AE90 | Active | Wirewound | - | 10 mH | ±10% | 120 mA | 150mA | Unshielded | 40Ohm Max | 60 @ 79.6kHz | 200kHz | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | Axial |
|
PCHC420R8-4R7M-RC4.7UH 20% SMD MOLDED PWR CHOKE |
2,515 | 0.98 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | - | Active | - | - | 4.7 µH | ±20% | 2.2 A | 3A | Shielded | 126mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
PCSDR73-3R3M-RC3.3UH 20% PWR CHIP SHIELDED IND |
2,176 | 0.98 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | - | Active | - | - | 3.3 µH | ±20% | 3.314 A | 4.235A | Shielded | 31.1mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
PCHC40-470M-RC47UH 20% PWR CHIP HIGH CURRENT |
3,335 | 0.98 |
RFQ |
Datasheet |
Nonstandard | Tape & Box (TB) | - | Active | Wirewound | - | 47 µH | ±20% | 1.7 A | 1.4A | Unshielded | 280mOhm Max | - | 12MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|
PCS105-R80T-RC.80UH 30% PWR CHIP SHIELDED IND |
2,146 | 0.98 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | - | Active | - | - | 800 nH | ±30% | - | 13.5A | Shielded | 4.3mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
PCS105-6R8T-RC6.8UH 30% PWR CHIP SHIELDED IND |
2,727 | 0.98 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | - | Active | - | - | 6.8 µH | ±30% | - | 5.4A | Shielded | 18mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
PCS104-101M-RC100UH 20% SMD PWR CHIP INDUCTOR |
3,196 | 0.98 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | - | Active | - | - | 100 µH | ±20% | 1.35 A | - | Shielded | 304mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
PCHC420R8-2R2M-RC2.2UH 20% SMD MOLDED PWR CHOKE |
3,799 | 0.98 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | - | Active | - | - | 2.2 µH | ±20% | 3 A | 5A | Shielded | 58mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
PCSDR73-681M-RC680UH 20% PWR CHIP SHIELDED IND |
3,406 | 0.98 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | - | Active | - | - | 680 µH | ±20% | 286 mA | 306mA | Shielded | 4.164Ohm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
PCHC420R8-1R0M-RC1.0UH 20% SMD MOLDED PWR CHOKE |
3,634 | 0.98 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | - | Active | - | - | 1 µH | ±20% | 4.5 A | 7A | Shielded | 27mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
AS40-223K-RC22MH 10% AXIAL SHIELDED INDUCT. |
3,950 | 0.98 |
RFQ |
Datasheet |
Axial | Bag | AS40 | Active | - | - | 22 mH | ±20% | 17 mA | 9mA | Shielded | 274mOhm Max | 27 @ 79kHz | 250kHz | - | -55°C ~ 125°C | 79 kHz | - | Through Hole | Axial |
|
|
AS40-823K-RC82UHO 10% AXIAL SHIELDED IND. |
2,848 | 0.98 |
RFQ |
Datasheet |
Axial | Bag | AS40 | Active | - | - | 82 mH | ±10% | 11 mA | 3.5mA | Shielded | 618Ohm Max | 21 @ 79kHz | 120kHz | - | -55°C ~ 125°C | 79 kHz | - | Through Hole | Axial |
|
|
AS40-683K-RC68UHO 10% AXIAL SHIELDED IND. |
2,392 | 0.98 |
RFQ |
Datasheet |
Axial | Bag | AS40 | Active | - | - | 68 mH | ±10% | 12 mA | 4mA | Shielded | 580Ohm Max | 23 @ 79kHz | 130kHz | - | -55°C ~ 125°C | 79 kHz | - | Through Hole | Axial |
|
|
AS40-222K-RC2200UH 10% AXIAL SHIELDED IND. |
3,416 | 0.98 |
RFQ |
Datasheet |
Axial | Bag | AS40 | Active | - | - | 2.2 mH | ±10% | 50 mA | 27mA | Shielded | 33.8Ohm Max | 45 @ 250kHz | 970kHz | - | -55°C ~ 125°C | 250 kHz | - | Through Hole | Axial |
|

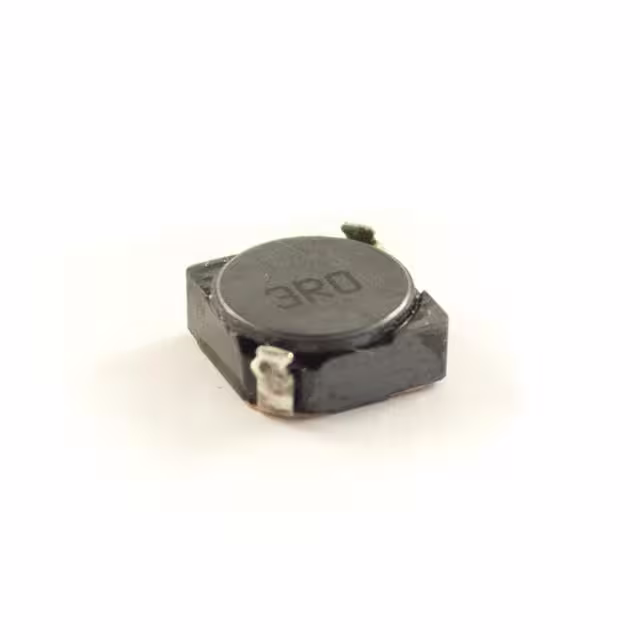

PCS6D28-3R0N-RC3.0UH 30% POWER CHIP SHIELDED |
3,903 | 0.98 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | - | Active | - | - | 3 µH | ±30% | 3 A | - | Shielded | 24mOhm Max | - | - | - | -30°C ~ 100°C | 10 kHz | - | Surface Mount | - |
|
|
PCS6D28-5R0N-RC5.0UH 30% POWER CHIP SHIELDED |
3,269 | 0.98 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | - | Active | - | - | 5 µH | ±30% | 2.4 A | - | Shielded | 31mOhm Max | - | - | - | -30°C ~ 100°C | 10 kHz | - | Surface Mount | - |
|
|
PCS6D28-390N-RC39UH 30% POWER CHIP SHIELDED |
2,636 | 0.98 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | - | Active | - | - | 39 µH | ±30% | 860 mA | - | Shielded | 210mOhm Max | - | - | - | -30°C ~ 100°C | 10 kHz | - | Surface Mount | - |
|
|
PCS6D28-220M-RC22UH 20% POWER CHIP SHIELDED |
3,371 | 0.98 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | - | Active | - | - | 22 µH | ±20% | 1.2 A | - | Shielded | 128mOhm Max | - | - | - | -30°C ~ 100°C | 10 kHz | - | Surface Mount | - |
|
|
PCS6D28-270N-RC27UH 30% POWER CHIP SHIELDED |
2,947 | 0.98 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | - | Active | - | - | 27 µH | ±30% | 1.05 A | - | Shielded | 142mOhm Max | - | - | - | -30°C ~ 100°C | 10 kHz | - | Surface Mount | - |
