| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RB5480-3-331K-RC330UH10% RADIAL BOBBIN INDUCTOR |
2,110 | 0.98 |
RFQ |
Datasheet |
Radial, Vertical Cylinder | Tray | - | Active | - | - | 330 µH | ±10% | 490 mA | 700mA | Unshielded | 635mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial |
|
RB5480-4-101K-RC100UH 10% RADIAL BOBBIN CHOKE |
3,106 | 0.98 |
RFQ |
Datasheet |
Radial, Vertical Cylinder | Bag | - | Active | - | - | 100 µH | ±10% | 2 A | 2.8A | Unshielded | 108mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial |
|
RB5480-5-332K-RC3300UH 10% RADIAL POWER CHOKE |
3,203 | 0.98 |
RFQ |
Datasheet |
Radial, Vertical Cylinder | Tray | - | Active | - | - | 3.3 mH | ±10% | 620 mA | 360mA | Unshielded | 1.8Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial |
|
PC0502-101M-RC100UH 20% POWER CHIP INDUCTOR |
2,694 | 0.98 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | - | Active | Wirewound | - | 100 µH | ±20% | 400 mA | - | Unshielded | 1.3Ohm | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - |
|
MC30-102J-RC1000UH5% 1812 MOLDED CHIP IND |
3,863 | 0.98 |
RFQ |
Nonstandard | Tape & Reel (TR) | - | Active | Molded | - | 1 mH | ±5% | - | 30mA | Unshielded | 40Ohm Max | 20 @ 252kHz | 2.5MHz | - | -25°C ~ 85°C | 252 kHz | - | Surface Mount | - | |
|
PCS124-101M-RC100UH 20% POWER CHIP SHIELDED |
3,234 | 0.98 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | - | Active | - | - | 100 µH | ±20% | 1.2 A | - | Shielded | 308mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - |
|
|
PCS124-331M-RC330UH 20% POWER CHIP SHIELDED |
2,580 | 0.98 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | - | Active | - | - | 330 µH | ±20% | 500 mA | - | Shielded | 990mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - |
|
PCFV35-3R3M-RC3.3uH +/-20% SMD Power Chip Ind. |
3,200 | 0.98 |
RFQ |
Datasheet |
1212 (3030 Metric) | Tape & Reel (TR) | - | Active | - | - | 3.3 µH | ±20% | 1.62 A | 1.71A | Semi-Shielded | 125mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 3030 |
|
RB30-221K-RC220uH +/-10% Radial Bobbin Ind. |
2,257 | 0.98 |
RFQ |
Datasheet |
Radial, Vertical Cylinder | Tray | - | Active | Wirewound | - | 220 µH | ±10% | - | 640mA | Unshielded | 650mOhm Max | 20 @ 796kHz | 2.7MHz | - | -55°C ~ 125°C | 796 kHz | - | Through Hole | Radial |
|
LRC20-100K-RC10uH +/-10% Low Resistance Chip |
3,687 | 0.98 |
RFQ |
Datasheet |
1210 (3225 Metric) | Tape & Reel (TR) | LRC20 | Active | Wirewound | - | 10 µH | ±10% | 300 mA | - | Unshielded | 580mOhm Max | - | 26MHz | - | -25°C ~ 125°C | 1 kHz | - | Surface Mount | 1210 |
|
RB2200R-471K-RC470uH +/-10% Radial Inductor |
3,663 | 0.98 |
RFQ |
Datasheet |
Radial, Vertical Cylinder | Bag | RB2200R | Active | Wirewound | - | 470 µH | ±10% | 310 mA | - | Unshielded | 1.65Ohm Max | 110 @ 100kHz | 3.2MHz | - | -25°C ~ 70°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder |
|
PCSV65-330M-RC33H 20% SHIELDED POWER CHIP INDU |
3,463 | 0.98 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | - | Active | - | - | 33 µH | ±20% | 1.4 A | 2.3A | Shielded | 165mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
AC30-221K-RC-AC220UH 10% AXIAL COATED INDUCTOR |
2,399 | 0.98 |
RFQ |
Datasheet |
Axial | Box | AC30 | Active | - | - | 220 µH | ±10% | 155 mA | - | Unshielded | 5.1Ohm Max | 70 @ 796kHz | 3MHz | - | -20°C ~ 100°C | 796 kHz | - | Through Hole | Axial |
|
|
RB5480-5-101K-RC100UH 10% RADIAL POWER CHOKE |
3,606 | 0.98 |
RFQ |
Datasheet |
Radial, Vertical Cylinder | Bag | - | Active | - | - | 100 µH | ±10% | 4 A | 2.1A | Unshielded | 56mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial |
|

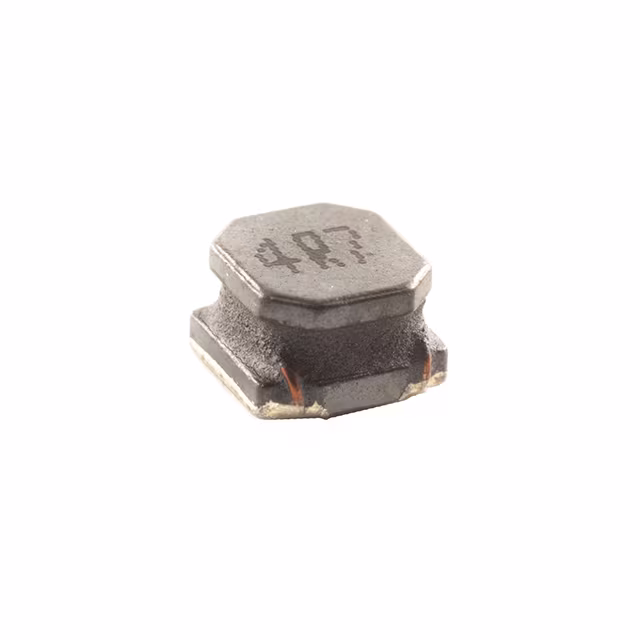

PCSV49-4R7M-RC4.7UH 20% POWER CHIP INDUCTOR |
2,833 | 0.98 |
RFQ |
Datasheet |
1616 (4040 Metric) | Tape & Reel (TR) | - | Active | - | - | 4.7 µH | ±20% | 1.8 A | 1.8A | Shielded | 60mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 |
|
|
MC30-R33M-RC.33UH20% 1812 MOLDED CHIP IND |
3,348 | 0.98 |
RFQ |
Nonstandard | Tape & Reel (TR) | - | Active | Molded | - | 330 nH | ±20% | - | 605mA | Unshielded | 280mOhm Max | 40 @ 25.2MHz | 165MHz | - | -25°C ~ 85°C | 25.2 MHz | - | Surface Mount | - | |
|
HFC05-12NJ-RC12nH +/-5% 0603 Hi-Freq. Chip |
2,241 | 0.98 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR) | HFC05 | Active | Multilayer | Ceramic | 12 nH | ±5% | 600 mA | - | Unshielded | 280mOhm Max | 12 @ 100MHz | 2.6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 |
|
|
HFC05-82NJ-RC82nH +/-5% 0603 High Freq Chip |
3,132 | 0.98 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR) | HFC05 | Active | Multilayer | Ceramic | 82 nH | ±5% | 300 mA | - | Unshielded | 1Ohm Max | 12 @ 100MHz | 900MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 |
|
|
LRC20-3R3M-RC3.3uH +/-20% Low Resistance Chip |
3,159 | 0.98 |
RFQ |
Datasheet |
1210 (3225 Metric) | Tape & Reel (TR) | LRC20 | Active | Wirewound | - | 3.3 µH | ±20% | 600 mA | - | Unshielded | 195mOhm Max | - | 60MHz | - | -25°C ~ 125°C | 1 kHz | - | Surface Mount | 1210 |
|
|
RB2200R-101K-RC100uH +/-10% Radial Inductor |
3,072 | 0.98 |
RFQ |
Datasheet |
Radial, Vertical Cylinder | Bag | RB2200R | Active | Wirewound | - | 100 µH | ±10% | 670 mA | - | Unshielded | 390mOhm Max | 90 @ 100kHz | 7MHz | - | -25°C ~ 70°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder |
