| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PCFV35-6R8M-RC6.8uH +/-20% SMD Power Chip Ind. |
3,215 | 0.98 |
RFQ |
Datasheet |
1212 (3030 Metric) | Tape & Reel (TR) | - | Active | - | - | 6.8 µH | ±20% | 1.17 A | 1.2A | Semi-Shielded | 235mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 3030 |
|
PCFV49-4R7M-RC4.7uH +/-20% SMD Power Chip Ind. |
3,741 | 0.98 |
RFQ |
Datasheet |
1616 (4040 Metric) | Tape & Reel (TR) | - | Active | - | - | 4.7 µH | ±20% | 1.8 A | 2.34A | Semi-Shielded | 92mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | 1616 |
|
PCHP54-101M-RC100uH +/-20% SMD Shielded Power |
3,061 | 0.98 |
RFQ |
Datasheet |
2020 (5050 Metric) | Tape & Reel (TR) | PCHP54 | Active | - | - | 100 µH | ±20% | 700 mA | 750mA | Semi-Shielded | 560mOhm | - | 4.7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2020 |
|
PCHC520R8-4R7M-RC4.7uH +/-20% SMD Hi.-Curr. Choke |
2,082 | 0.98 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | PCHC520R8 | Active | - | - | 4.7 µH | ±20% | 3 A | 5A | Shielded | 90mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
PCHC63R8-5R6M-RC5.6uH +/-20% Pwr Choke Hi-Curr. |
3,225 | 0.98 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | PCHC63R8 | Active | - | - | 5.6 µH | ±20% | 5.5 A | 6A | Shielded | 42mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
PCHC63R8-2R2M-RC2.2uH +/-20% Pwr Choke Hi-Curr. |
3,880 | 0.98 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | PCHC63R8 | Active | - | - | 2.2 µH | ±20% | 8 A | 10A | Shielded | 15mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|

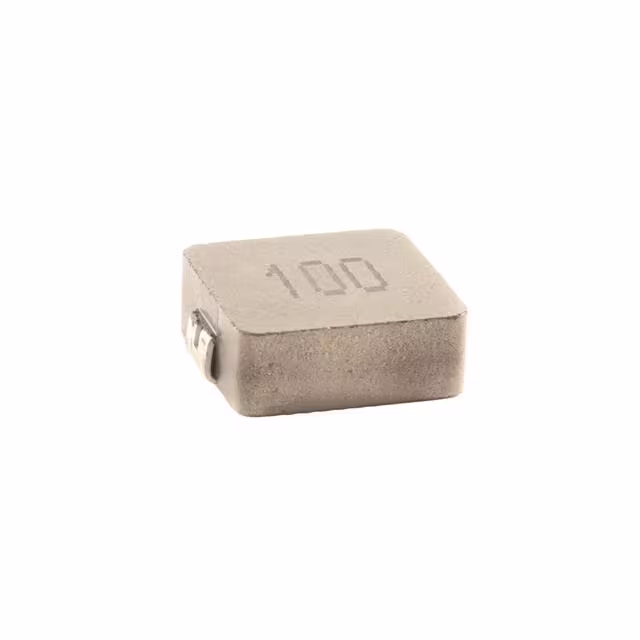

PCHC104R7-100M-RC10uH +/-20% Pwr Choke Hi-Current |
3,726 | 0.98 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | PCHC104R7 | Active | - | - | 10 µH | ±20% | 6.5 A | 7A | Shielded | 30mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
CHQ02-7N5-RC7.5nH +/-2% Ceramic Core Chip |
2,989 | 0.98 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR) | - | Active | Wirewound | Ceramic | 7.5 nH | ±2% | 1.4 A | - | Unshielded | 90mOhm Max | 60 @ 900MHz | 5.4GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 |
|
PCIA47-150N-RC15uH +/-30% Shielded Power Chip |
3,766 | 0.98 |
RFQ |
Datasheet |
1616 (4040 Metric) | Tape & Reel (TR) | - | Active | - | - | 15 µH | ±30% | - | 940mA | Shielded | 268mOhm | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 1616 |
|
|
PCIA47-100N-RC10uH +/-30% Shielded Power Chip |
3,862 | 0.98 |
RFQ |
Datasheet |
1616 (4040 Metric) | Tape & Reel (TR) | - | Active | - | - | 10 µH | ±30% | - | 1.3A | Shielded | 200mOhm | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 1616 |
|
|
PCIA47-1R0N-RC1.0uH +/-30% Shielded Power Chip |
2,014 | 0.98 |
RFQ |
Datasheet |
1616 (4040 Metric) | Tape & Reel (TR) | - | Active | - | - | 1 µH | ±30% | - | 4A | Shielded | 23mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 |
|
|
PCIA47-1R5N-RC1.5uH +/-30% Shielded Power Chip |
2,484 | 0.98 |
RFQ |
Datasheet |
1616 (4040 Metric) | Tape & Reel (TR) | - | Active | - | - | 1.5 µH | ±30% | - | 3.35A | Shielded | 33mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 |
|
|
PCIA47-470N-RC47uH +/-30% Shielded Power Chip |
2,378 | 0.98 |
RFQ |
Datasheet |
1616 (4040 Metric) | Tape & Reel (TR) | - | Active | - | - | 47 µH | ±30% | - | 570mA | Shielded | 850mOhm | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 1616 |
|
|
PCIA47-220N-RC22uH +/-30% Shielded Power Chip |
2,436 | 0.98 |
RFQ |
Datasheet |
1616 (4040 Metric) | Tape & Reel (TR) | - | Active | - | - | 22 µH | ±30% | - | 800mA | Shielded | 390mOhm | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 1616 |
|
|
PCIA47-5R6N-RC5.6uH +/-30% Shielded Power Chip |
3,048 | 0.98 |
RFQ |
Datasheet |
1616 (4040 Metric) | Tape & Reel (TR) | - | Active | - | - | 5.6 µH | ±30% | - | 1.6A | Shielded | 103mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 |
|
|
PCIA47-6R8N-RC6.8uH +/-30% Shielded Power Chip |
3,930 | 0.98 |
RFQ |
Datasheet |
1616 (4040 Metric) | Tape & Reel (TR) | - | Active | - | - | 6.8 µH | ±30% | - | 1.45A | Shielded | 124mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 |
|
PCIA49-101M-RC100uH +/-20% Shielded Power Chip |
2,509 | 0.98 |
RFQ |
Datasheet |
1616 (4040 Metric) | Tape & Reel (TR) | - | Active | - | - | 100 µH | ±20% | 450 mA | 600mA | Shielded | 1.15Ohm | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 1616 |
|
|
PCIA49-150M-RC15uH +/-20% Shielded Power Chip |
2,753 | 0.98 |
RFQ |
Datasheet |
1616 (4040 Metric) | Tape & Reel (TR) | - | Active | - | - | 15 µH | ±20% | 1.11 A | 1.65A | Shielded | 190mOhm | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 1616 |
|
|
PCIA49-1R0M-RC1.0uH +/-30% Shielded Power Chip |
2,240 | 0.98 |
RFQ |
Datasheet |
1616 (4040 Metric) | Tape & Reel (TR) | - | Active | - | - | 1 µH | ±20% | 4.15 A | 5.26A | Shielded | 14mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 |
|
|
PCIA49-100M-RC10uH +/-20% Shielded Power Chip |
2,939 | 0.98 |
RFQ |
Datasheet |
1616 (4040 Metric) | Tape & Reel (TR) | - | Active | - | - | 10 µH | ±20% | 1.5 A | 1.95A | Shielded | 100mOhm | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 1616 |
