| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AS20-5R6K-RC5.6UH 10% AXIAL SHIELDED IND. |
3,073 | 0.98 |
RFQ |
Datasheet |
Axial | Bag | AS20 | Active | - | - | 5.6 µH | ±10% | - | 395mA | Shielded | 1.15Ohm Max | 40 @ 7.9MHz | 72MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | Axial |
|
APC20-470K-RC47UH 10% AXIAL POWER CHOKE |
2,324 | 0.98 |
RFQ |
Datasheet |
Axial | Bulk | APC20 | Active | - | - | 47 µH | ±10% | 804 mA | 1.8A | Unshielded | 109mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial |
|
|
APC20-151K-RC150UH 10% AXIAL POWER CHOKE |
2,402 | 0.98 |
RFQ |
Datasheet |
Axial | Bulk | APC20 | Active | - | - | 150 µH | ±10% | 508 mA | 1A | Unshielded | 340mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial |
|
PCHP64NF-101M100UH 20% SMD SHIELDED PWR IND |
3,039 | 0.98 |
RFQ |
Nonstandard | Tape & Reel (TR) | - | Active | - | - | 100 µH | ±20% | 820 mA | 1.25A | Shielded | 456mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | |
|

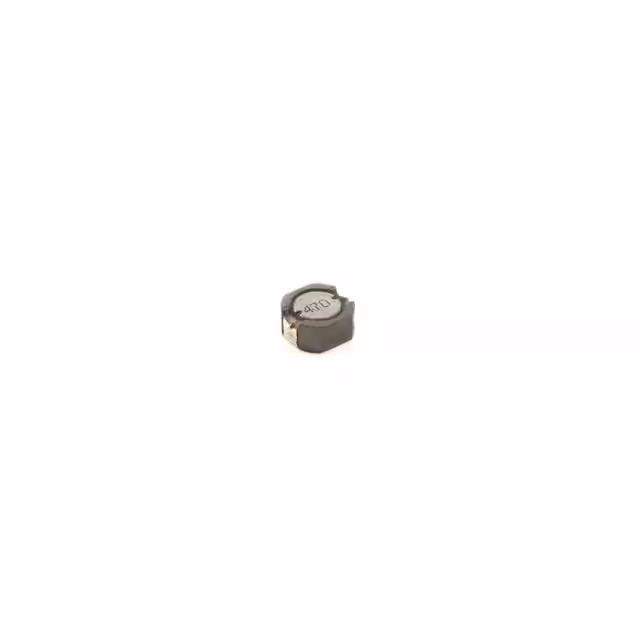

PCS7040-470M-RC47UH 20% SMD SHIELDED PWR CHKE |
3,988 | 0.98 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | - | Active | - | - | 47 µH | ±20% | 1.48 A | 1.2A | Shielded | 217mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - |
|
PCSFW420-1R0M1.0UH 20% SMD Flat Wire Coils |
2,821 | 0.98 |
RFQ |
Nonstandard | Tape & Reel (TR) | - | Active | - | - | 1 µH | ±20% | 6 A | 7A | Shielded | 27mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | |
|
|
PCSFW420-3R3M3.3UH 20% SMD Flat Wire Coils |
2,142 | 0.98 |
RFQ |
Nonstandard | Tape & Reel (TR) | - | Active | - | - | 3.3 µH | ±20% | 3.3 A | 4A | Shielded | 87mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | |
|

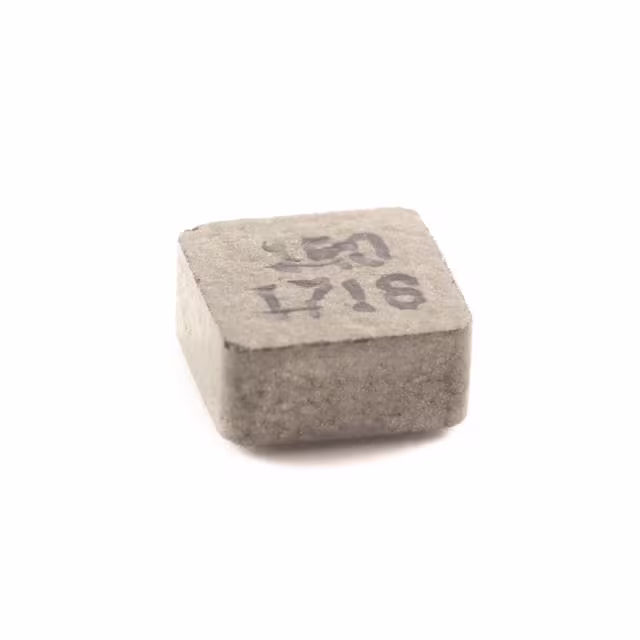

PCXA402-R36M.36uH 20% Shielded High Current |
2,249 | 0.98 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | * | Active | - | - | 360 nH | ±20% | 14.5 A | 15A | Shielded | 6.3mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
PCXA503-R80M.80uH 20% Shielded High Current |
2,817 | 0.98 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | - | Active | Wirewound | - | 800 nH | ±20% | 13.1 A | 18A | Shielded | 5.65mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
PCXA503-1R5M1.5uH 20% Shielded High Current |
3,340 | 0.98 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | - | Active | Wirewound | - | 1.5 µH | ±20% | 10.5 A | 12.5A | Shielded | 11.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
PCXA402-1R0M1.0uH 20% Shielded High Current |
2,250 | 0.98 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | * | Active | - | - | 1 µH | ±20% | 9.6 A | 8.8A | Shielded | 14.6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|

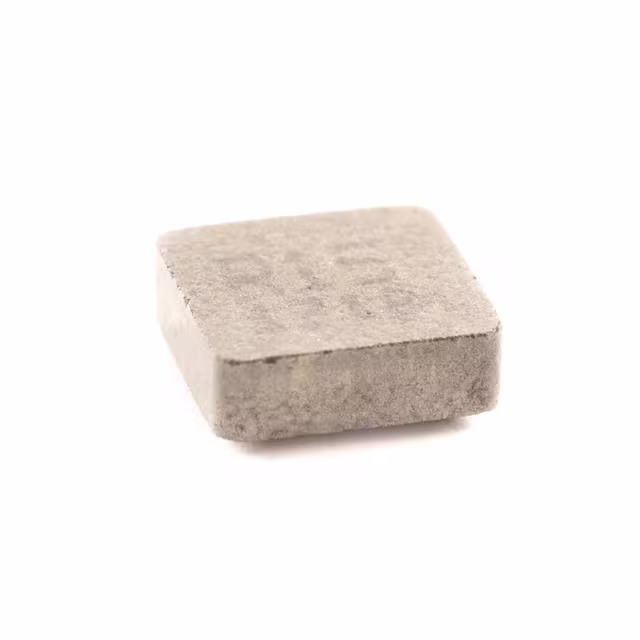

PCXA502-R33M.33uH 20% Shielded High Current |
3,228 | 0.98 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | - | Active | Wirewound | - | 330 nH | ±20% | 14 A | 24A | Shielded | 7mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
PCXA402-R22M.22uH 20% Shielded High Current |
3,391 | 0.98 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | * | Active | - | - | 220 nH | ±20% | 16.8 A | 18.8A | Shielded | 4.6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
PCXA503-R15M.15uH 20% Shielded High Current |
3,269 | 0.98 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | - | Active | Wirewound | - | 150 nH | ±20% | 22.2 A | 32.5A | Shielded | 2.31mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
PCXA402-R40M.40uH 20% Shielded High Current |
2,175 | 0.98 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | * | Active | - | - | 400 nH | ±20% | 14 A | 13.5A | Shielded | 7.73mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
PCXA402-R10M.10uH 20% Shielded High Current |
3,065 | 0.98 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | * | Active | - | - | 100 nH | ±20% | 18 A | 33A | Shielded | 2.42mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
PCXA503-3R3M3.3uH 20% Shielded High Current |
2,801 | 0.98 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | - | Active | Wirewound | - | 3.3 µH | ±20% | 8.1 A | 8.7A | Shielded | 23.1mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
PCXA502-R56M.56uH 20% Shielded High Current |
2,812 | 0.98 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | - | Active | Wirewound | - | 560 nH | ±20% | 13.9 A | 16A | Shielded | 9.54mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
PCXA402-R60M.60uH 20% Shielded High Current |
3,655 | 0.98 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | * | Active | - | - | 600 nH | ±20% | 11.7 A | 12.3A | Shielded | 9.52mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
PCXA402-R72M.72uH 20% Shielded High Current |
3,840 | 0.98 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | * | Active | - | - | 720 nH | ±20% | 10.5 A | 10.6A | Shielded | 11.6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
