| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PCHC40-330M-RC33UH 20% PWR CHIP HIGH CURRENT |
3,415 | 0.98 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | - | Active | Wirewound | - | 33 µH | ±20% | 2.1 A | 1.7A | Unshielded | 150mOhm Max | - | 14MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|
PCS104-221M-RC220UH 20% SMD POWER INDUCTOR |
3,279 | 0.98 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | - | Active | - | - | 220 µH | ±20% | 920 mA | - | Shielded | 756mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
PCHC40-4R7M-RC4.7UH 20% PWR CHIP HIGH CURRENT |
2,450 | 0.98 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | - | Active | Wirewound | - | 4.7 µH | ±20% | 4.8 A | 5.4A | Unshielded | 18mOhm Max | - | 45MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|
|
PCHC40-101M-RC100UH 20% PWR CHIP HIGH CURRENT |
2,008 | 0.98 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | - | Active | Wirewound | - | 100 µH | ±20% | 1.2 A | 950mA | Unshielded | 400mOhm Max | - | 7MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|
|
PCHC40-6R8M-RC6.8UH 20% PWR CHIP HIGH CURRENT |
2,689 | 0.98 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | - | Active | Wirewound | - | 6.8 µH | ±20% | 5 A | 3.6A | Unshielded | 35mOhm Max | - | 35MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|
|
PCHC40-150M-RC15UH 20% PWR CHIP HIGH CURRENT |
3,419 | 0.98 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | - | Active | Wirewound | - | 15 µH | ±20% | 3.5 A | 2.4A | Unshielded | 60mOhm Max | - | 21MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|
PCS4D28-471T-A-RC470UH 30% POWER CHIP INDUCTOR |
3,031 | 0.98 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | - | Active | - | - | 47 µH | ±30% | - | - | Shielded | - | - | - | - | -30°C ~ 100°C | 100 kHz | - | Surface Mount | - |
|
PCS5D28-120N-RC12UH 30% POWER CHIP SHIELDED |
2,899 | 0.98 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | - | Active | - | - | 12 µH | ±30% | 1.2 A | - | Shielded | 76mOhm Max | - | - | - | -30°C ~ 100°C | 10 kHz | - | Surface Mount | - |
|

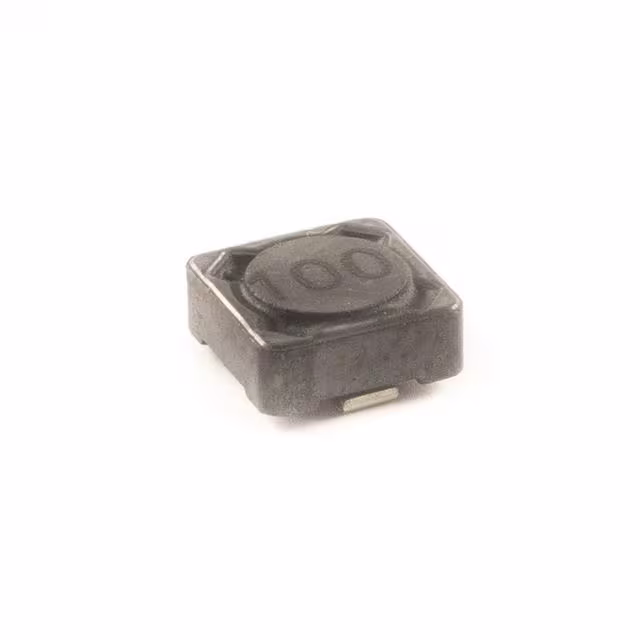

PCS73-4R7M-RC4.7UH 20% POWER CHIP SHIELDED |
3,399 | 0.98 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | - | Active | - | - | 4.7 µH | ±20% | 3.78 A | - | Shielded | 30mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - |
|
PCSDR127-100M-RC10uH +/-20% Power Chip Inductor |
2,297 | 0.98 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | - | Active | - | - | 10 µH | ±20% | 6.026 A | 11.2A | Shielded | 20.6mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
PCSDR127-271M-RC270uH +/-20% Power Chip Inductor |
3,289 | 0.98 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | - | Active | - | - | 270 µH | ±20% | 1.214 A | 2.2A | Shielded | 508mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
PCIS40-100M-RC10uH +/-20% Power Chip Inductor |
3,554 | 0.98 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | - | Active | - | - | 10 µH | ±20% | 2 A | 2.4A | Shielded | 101mOhm Max | 10 @ 100kHz | 28MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|
|
PCIS40-4R7M-RC4.7uH +/-20% Power Chip Inductor |
3,905 | 0.98 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | - | Active | - | - | 4.7 µH | ±20% | 2.7 A | 3.2A | Shielded | 54mOhm Max | 10 @ 100kHz | 30MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|
PC0503-1R0M-RC1.0uH +/-20% Power Chip Inductor |
2,862 | 0.98 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | - | Active | Wirewound | - | 1 µH | ±20% | 4.5 A | - | Unshielded | 30mOhm Max | - | - | - | -40°C ~ 85°C | 7.96 MHz | - | Surface Mount | - |
|
CC02-1N9J-RC1.9nH +/-5% Ceramic Core Chip |
2,595 | 0.98 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR) | CC02 | Active | Wirewound | Ceramic | 1.9 nH | ±5% | - | 1.04A | Unshielded | 70mOhm Max | 16 @ 250MHz | 11.3GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 |
|
LS03-R82J-RC.82uH +/-5% Ferrite Core Chip |
2,388 | 0.98 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR) | LS03 | Active | Wirewound | Ferrite | 820 nH | ±5% | - | 750mA | Unshielded | 690mOhm Max | 17 @ 7.9MHz | 480MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0603 |
|
|
LS03-1R2J-RC1.2uH +/-5% Ferrite Core Chip |
2,155 | 0.98 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR) | LS03 | Active | Wirewound | Ferrite | 1.2 µH | ±5% | - | 550mA | Unshielded | 870mOhm Max | 17 @ 7.9MHz | 270MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0603 |
|
|
LS03-1R0J-RC1.0uH +/-5% Ferrite Core Chip |
3,610 | 0.98 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR) | LS03 | Active | Wirewound | Ferrite | 1 µH | ±5% | - | 600mA | Unshielded | 810mOhm Max | 18 @ 7.9MHz | 310MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0603 |
|
LS05-150J-RC15uH +/-5% Ferrite Core Chip |
3,586 | 0.98 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR) | LS05 | Active | Wirewound | Ferrite | 15 µH | ±5% | - | 350mA | Unshielded | 3.55Ohm Max | 16 @ 2.5MHz | 35MHz | - | -25°C ~ 85°C | 2.5 MHz | - | Surface Mount | 0805 |
|
|
LS05-180J-RC18uH +/-5% Ferrite Core Chip |
3,099 | 0.98 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR) | LS05 | Active | Wirewound | Ferrite | 18 µH | ±5% | - | 300mA | Unshielded | 4.9Ohm Max | 16 @ 2.5MHz | 25MHz | - | -25°C ~ 85°C | 2.5 MHz | - | Surface Mount | 0805 |
