| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPL1254035-712J-708NFIXED IND 7.08MH 45 OHM SMD |
2,784 | 0.64 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | TPL | Not For New Designs | - | - | 7.08 mH | ±5% | - | - | Unshielded | 45Ohm | 72 @ 125kHz | 800kHz | - | -40°C ~ 125°C | 125 kHz | - | Surface Mount | - |
|

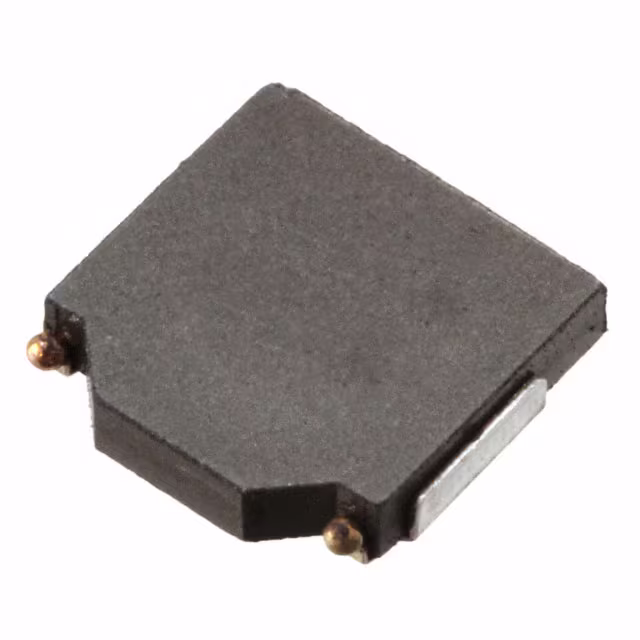

SPM5012T-2R2MFIXED IND 2.2UH 2.7A 78.8MOHM SM |
3,237 | 1.43 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SPM | Last Time Buy | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 2.7 A | 4.9A | Shielded | 78.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
SPM5012T-1R0MTFIXED IND 1UH 4.1A 44 MOHM SMD |
2,217 | 0.66 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | SPM | Not For New Designs | Drum Core, Wirewound | Metal | 1 µH | ±20% | 4.1 A | 5.9A | Shielded | 44mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
SPM5012T-2R2MTFIXED IND 2.2UH 2.7A 78.8MOHM SM |
2,396 | 0.66 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | SPM | Not For New Designs | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 2.7 A | 4.6A | Shielded | 78.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|

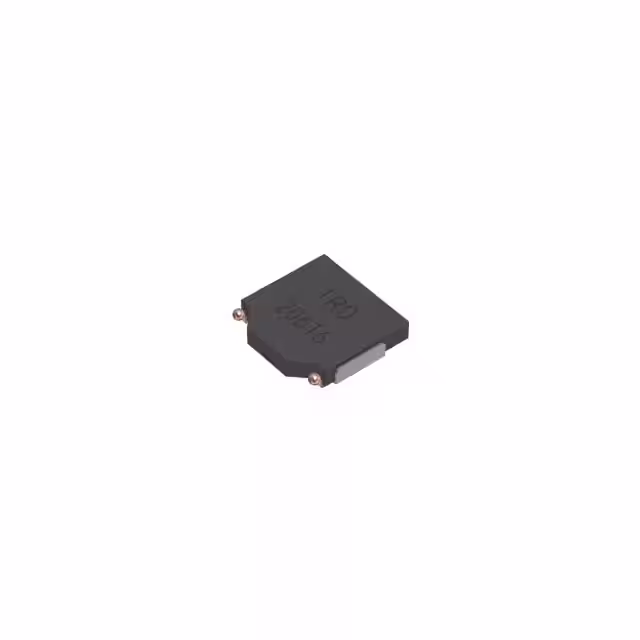

SPM5010T-6R8M-LRFIXED IND 6.8UH 1.3A 388.7 MOHM |
3,889 | 0.66 |
RFQ |
Nonstandard | Tape & Reel (TR) | SPM-LR | Active | Drum Core, Wirewound | Metal | 6.8 µH | ±20% | 1.3 A | 2.2A | Shielded | 388.7mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | |
|
|
SPM5010T-R60M-LRFIXED IND 600NH 5A 33.5 MOHM SMD |
2,045 | 0.66 |
RFQ |
Nonstandard | Tape & Reel (TR) | SPM-LR | Active | Drum Core, Wirewound | Metal | 600 nH | ±20% | 5 A | 6.8A | Shielded | 33.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | |
|
|
SPM5010T-R47M-LRFIXED IND 470NH 5.3A 24.2MOHM SM |
2,558 | 0.66 |
RFQ |
Nonstandard | Tape & Reel (TR) | SPM-LR | Active | Drum Core, Wirewound | Metal | 470 nH | ±20% | 5.3 A | 8A | Shielded | 24.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | |
|

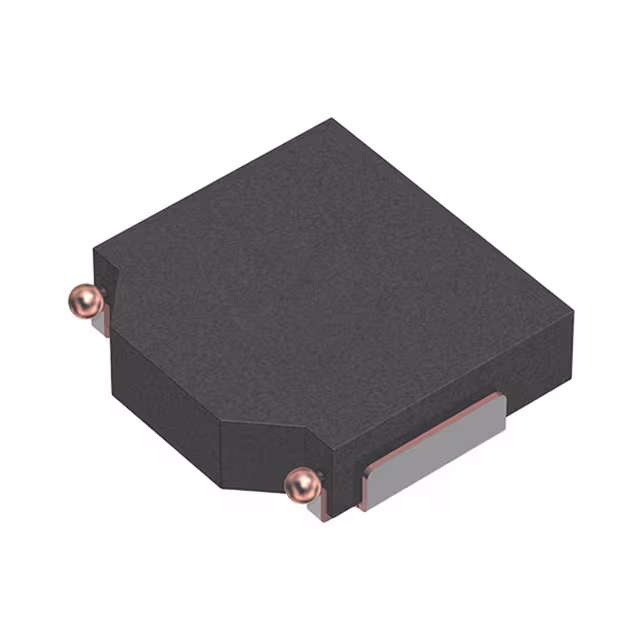

SPM5015T-R47M-LRFIXED IND 470NH 9A 12.1 MOHM SMD |
3,857 | 0.66 |
RFQ |
Nonstandard | Tape & Reel (TR) | SPM-LR | Active | Drum Core, Wirewound | Metal | 470 nH | ±20% | 9 A | 12A | Shielded | 12.1mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | |
|
LTF3020T-220M-DFIXED IND 22UH 550MA 570MOHM SMD |
3,468 | 0.68 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | LTF3020-D | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 550 mA | 400mA | Shielded | 570mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 1 MHz | - | Surface Mount | - |
|
|
LTF3020T-470M-DFIXED IND 47UH 390MA 1.09OHM SMD |
3,862 | 0.68 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | LTF3020-D | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 390 mA | 280mA | Shielded | 1.09Ohm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 1 MHz | - | Surface Mount | - |
|
|
LTF3020T-560M-DFIXED IND 56UH 370MA 1.21OHM SMD |
2,905 | 0.68 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | LTF3020-D | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±20% | 370 mA | 250mA | Shielded | 1.21Ohm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 1 MHz | - | Surface Mount | - |
|
|
LTF3020T-5R6N-DFIXED IND 5.6UH 1.07A 170MOHM SM |
2,941 | 0.68 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | LTF3020-D | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±30% | 1.07 A | 790mA | Shielded | 170mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 1 MHz | - | Surface Mount | - |
|
|
LTF3020T-6R8N-DFIXED IND 6.8UH 920MA 220MOHM SM |
3,988 | 0.68 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | LTF3020-D | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 920 mA | 690mA | Shielded | 220mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 1 MHz | - | Surface Mount | - |
|
CLF10040T-1R5N-HFIXED IND 1.5UH 10.6A 7.1MOHM SM |
3,953 | 0.70 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | CLF-H | Not For New Designs | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 10.6 A | 5.8A | Shielded | 7.1mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
CLF10040T-471M-HFIXED IND 470UH 560MA 1.21OHM SM |
2,266 | 0.70 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | CLF-H | Not For New Designs | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 560 mA | 440mA | Shielded | 1.21Ohm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
SLF12555T-6R0N3R6-PFFIXED IND 6UH 4.9A 19.7 MOHM SMD |
3,232 | 0.76 |
RFQ |
Nonstandard | Tape & Reel (TR) | SLF | Last Time Buy | Drum Core, Wirewound | Ferrite | 6 µH | ±30% | 4.9 A | 3.6A | Shielded | 19.7mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | |
|
SLF12555T-151MR88-PFFIXED IND 150UH 1.4A 228MOHM SMD |
2,377 | 0.76 |
RFQ |
Nonstandard | Tape & Reel (TR) | SLF | Last Time Buy | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 1.4 A | 880mA | Shielded | 228mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | |
|
|
SLF12555T-150M2R8-PFFIXED IND 15UH 3.9A 25.9MOHM SMD |
2,043 | 1.47 |
RFQ |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SLF | Last Time Buy | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 3.9 A | 2.8A | Shielded | 25.9mOhm | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | |
|
|
SLF12555T-221MR72-PFFIXED IND 220UH 1.2A 324MOHM SMD |
2,046 | 1.47 |
RFQ |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SLF | Last Time Buy | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 1.2 A | 720mA | Shielded | 324mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | |
|
VLF3012AT-1R5N1R2FIXED IND 1.5UH 1.2A 68 MOHM SMD |
2,074 | 0.76 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | VLF | Obsolete | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 1.2 A | 1.2A | Shielded | 68mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - |
