| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

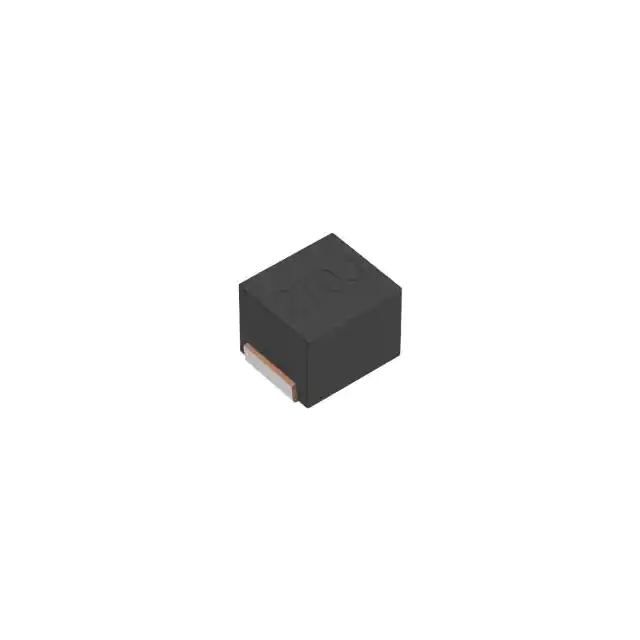

NLV25T-820J-PFDFIXED IND 82UH 66MA 19 OHM SMD |
2,972 | 0.12 |
RFQ |
Datasheet |
1008 (2520 Metric) | Tape & Reel (TR) | NLV-PFD | Not For New Designs | Drum Core, Wirewound | Ferrite | 82 µH | ±5% | 66 mA | - | Unshielded | 19Ohm Max | 20 @ 2.52MHz | 13MHz | AEC-Q200 | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 1008 (2520 Metric) |
|
|
NLV25T-8R2J-PFDFIXED IND 8.2UH 160MA 3.05OHM SM |
3,726 | 0.12 |
RFQ |
Datasheet |
1008 (2520 Metric) | Tape & Reel (TR) | NLV-PFD | Not For New Designs | Drum Core, Wirewound | Ferrite | 8.2 µH | ±5% | 160 mA | - | Unshielded | 3.05Ohm Max | 25 @ 7.96MHz | 36MHz | AEC-Q200 | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) |
|
|
NLV25T-R10J-PFDFIXED IND 100NH 280MA 800MOHM SM |
3,713 | 0.12 |
RFQ |
Datasheet |
1008 (2520 Metric) | Tape & Reel (TR) | NLV-PFD | Not For New Designs | Drum Core, Wirewound | Ferrite | 100 nH | ±5% | 280 mA | - | Unshielded | 800mOhm Max | 20 @ 100MHz | 800MHz | AEC-Q200 | -40°C ~ 105°C | 100 MHz | - | Surface Mount | 1008 (2520 Metric) |
|
|
NLV25T-R12J-PFDFIXED IND 120NH 550MA 300MOHM SM |
3,388 | 0.12 |
RFQ |
Datasheet |
1008 (2520 Metric) | Tape & Reel (TR) | NLV-PFD | Not For New Designs | Drum Core, Wirewound | Ferrite | 120 nH | ±5% | 550 mA | - | Unshielded | 300mOhm Max | 30 @ 25.2MHz | 700MHz | AEC-Q200 | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 1008 (2520 Metric) |
|
|
NLV25T-R15J-PFDFIXED IND 150NH 500MA 350MOHM SM |
3,801 | 0.12 |
RFQ |
Datasheet |
1008 (2520 Metric) | Tape & Reel (TR) | NLV-PFD | Not For New Designs | Drum Core, Wirewound | Ferrite | 150 nH | ±5% | 500 mA | - | Unshielded | 350mOhm Max | 30 @ 25.2MHz | 550MHz | AEC-Q200 | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 1008 (2520 Metric) |
|
|
NLV25T-R18J-PFDFIXED IND 180NH 460MA 400MOHM SM |
2,840 | 0.12 |
RFQ |
Datasheet |
1008 (2520 Metric) | Tape & Reel (TR) | NLV-PFD | Not For New Designs | Drum Core, Wirewound | Ferrite | 180 nH | ±5% | 460 mA | - | Unshielded | 400mOhm Max | 30 @ 25.2MHz | 500MHz | AEC-Q200 | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 1008 (2520 Metric) |
|
|
NLV25T-R22J-PFDFIXED IND 220NH 430MA 500MOHM SM |
2,799 | 0.12 |
RFQ |
Datasheet |
1008 (2520 Metric) | Tape & Reel (TR) | NLV-PFD | Not For New Designs | Drum Core, Wirewound | Ferrite | 220 nH | ±5% | 430 mA | - | Unshielded | 500mOhm Max | 30 @ 25.2MHz | 450MHz | AEC-Q200 | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 1008 (2520 Metric) |
|
|
NLV25T-R27J-PFDFIXED IND 270NH 420MA 550MOHM SM |
3,475 | 0.12 |
RFQ |
Datasheet |
1008 (2520 Metric) | Tape & Reel (TR) | NLV-PFD | Not For New Designs | Drum Core, Wirewound | Ferrite | 270 nH | ±5% | 420 mA | - | Unshielded | 550mOhm Max | 30 @ 25.2MHz | 425MHz | AEC-Q200 | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 1008 (2520 Metric) |
|
|
NLV25T-R33J-PFDFIXED IND 330NH 400MA 600MOHM SM |
2,977 | 0.12 |
RFQ |
Datasheet |
1008 (2520 Metric) | Tape & Reel (TR) | NLV-PFD | Not For New Designs | Drum Core, Wirewound | Ferrite | 330 nH | ±5% | 400 mA | - | Unshielded | 600mOhm Max | 30 @ 25.2MHz | 400MHz | AEC-Q200 | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 1008 (2520 Metric) |
|
|
NLV25T-R39J-PFDFIXED IND 390NH 375MA 650MOHM SM |
2,460 | 0.12 |
RFQ |
Datasheet |
1008 (2520 Metric) | Tape & Reel (TR) | NLV-PFD | Not For New Designs | Drum Core, Wirewound | Ferrite | 390 nH | ±5% | 375 mA | - | Unshielded | 650mOhm Max | 30 @ 25.2MHz | 375MHz | AEC-Q200 | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 1008 (2520 Metric) |
|
|
NLV25T-R47J-PFDFIXED IND 470NH 350MA 680MOHM SM |
3,369 | 0.12 |
RFQ |
Datasheet |
1008 (2520 Metric) | Tape & Reel (TR) | NLV-PFD | Not For New Designs | Drum Core, Wirewound | Ferrite | 470 nH | ±5% | 350 mA | - | Unshielded | 680mOhm Max | 30 @ 25.2MHz | 350MHz | AEC-Q200 | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 1008 (2520 Metric) |
|
|
NLV25T-R56J-PFDFIXED IND 560NH 325MA 750MOHM SM |
3,466 | 0.12 |
RFQ |
Datasheet |
1008 (2520 Metric) | Tape & Reel (TR) | NLV-PFD | Not For New Designs | Drum Core, Wirewound | Ferrite | 560 nH | ±5% | 325 mA | - | Unshielded | 750mOhm Max | 30 @ 25.2MHz | 325MHz | AEC-Q200 | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 1008 (2520 Metric) |
|
|
NLV25T-R68J-PFDFIXED IND 680NH 300MA 850MOHM SM |
3,223 | 0.12 |
RFQ |
Datasheet |
1008 (2520 Metric) | Tape & Reel (TR) | NLV-PFD | Not For New Designs | Drum Core, Wirewound | Ferrite | 680 nH | ±5% | 300 mA | - | Unshielded | 850mOhm Max | 30 @ 25.2MHz | 300MHz | AEC-Q200 | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 1008 (2520 Metric) |
|
|
NLV25T-R82J-PFDFIXED IND 820NH 260MA 1 OHM SMD |
3,715 | 0.12 |
RFQ |
Datasheet |
1008 (2520 Metric) | Tape & Reel (TR) | NLV-PFD | Not For New Designs | Drum Core, Wirewound | Ferrite | 820 nH | ±5% | 260 mA | - | Unshielded | 1Ohm Max | 30 @ 25.2MHz | 260MHz | AEC-Q200 | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 1008 (2520 Metric) |
|
NLV32T-010J-PFDFIXED IND 10NH 450MA 130MOHM SMD |
2,907 | 0.12 |
RFQ |
Datasheet |
1210 (3225 Metric) | Tape & Reel (TR) | NLV-PFD | Not For New Designs | Drum Core, Wirewound | Ferrite | 10 nH | ±5% | 450 mA | - | Unshielded | 130mOhm Max | 15 @ 100MHz | 2.5GHz | AEC-Q200 | -40°C ~ 105°C | 100 MHz | - | Surface Mount | 1210 (3225 Metric) |
|
|
NLV32T-012J-PFDFIXED IND 12NH 450MA 140MOHM SMD |
3,390 | 0.12 |
RFQ |
Datasheet |
1210 (3225 Metric) | Tape & Reel (TR) | NLV-PFD | Not For New Designs | Drum Core, Wirewound | Ferrite | 12 nH | ±5% | 450 mA | - | Unshielded | 140mOhm Max | 17 @ 100MHz | 2.3GHz | AEC-Q200 | -40°C ~ 105°C | 100 MHz | - | Surface Mount | 1210 (3225 Metric) |
|
|
NLV32T-015J-PFDFIXED IND 15NH 450MA 160MOHM SMD |
2,227 | 0.12 |
RFQ |
Datasheet |
1210 (3225 Metric) | Tape & Reel (TR) | NLV-PFD | Not For New Designs | Drum Core, Wirewound | Ferrite | 15 nH | ±5% | 450 mA | - | Unshielded | 160mOhm Max | 19 @ 100MHz | 2.1GHz | AEC-Q200 | -40°C ~ 105°C | 100 MHz | - | Surface Mount | 1210 (3225 Metric) |
|
|
NLV32T-018J-PFDFIXED IND 18NH 450MA 180MOHM SMD |
2,967 | 0.12 |
RFQ |
Datasheet |
1210 (3225 Metric) | Tape & Reel (TR) | NLV-PFD | Not For New Designs | Drum Core, Wirewound | Ferrite | 18 nH | ±5% | 450 mA | - | Unshielded | 180mOhm Max | 21 @ 100MHz | 1.9GHz | AEC-Q200 | -40°C ~ 105°C | 100 MHz | - | Surface Mount | 1210 (3225 Metric) |
|
|
NLV32T-022J-PFDFIXED IND 22NH 450MA 200MOHM SMD |
2,156 | 0.12 |
RFQ |
Datasheet |
1210 (3225 Metric) | Tape & Reel (TR) | NLV-PFD | Not For New Designs | Drum Core, Wirewound | Ferrite | 22 nH | ±5% | 450 mA | - | Unshielded | 200mOhm Max | 23 @ 100MHz | 1.7GHz | AEC-Q200 | -40°C ~ 105°C | 100 MHz | - | Surface Mount | 1210 (3225 Metric) |
|
|
NLV32T-027J-PFDFIXED IND 27NH 450MA 220MOHM SMD |
3,875 | 0.12 |
RFQ |
Datasheet |
1210 (3225 Metric) | Tape & Reel (TR) | NLV-PFD | Not For New Designs | Drum Core, Wirewound | Ferrite | 27 nH | ±5% | 450 mA | - | Unshielded | 220mOhm Max | 23 @ 100MHz | 1.5GHz | AEC-Q200 | -40°C ~ 105°C | 100 MHz | - | Surface Mount | 1210 (3225 Metric) |
