| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VLS6045AF-330MFIXED IND 33UH 1.8A 164MOHM SMD |
5,719 | 0.53 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | VLS | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.8 A | 1.6A | Shielded | 164mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - |
|
VLS4012ET-2R2MFIXED IND 2.2UH 1.7A 81 MOHM SMD |
14,999 | 0.56 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | VLS | Not For New Designs | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.7 A | 1.7A | Shielded | 81mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - |
|
|
VLS4012ET-100MFIXED IND 10UH 890MA 228MOHM SMD |
10,548 | 0.56 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | VLS | Not For New Designs | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 890 mA | 890mA | Shielded | 228mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - |
|
VLS252012HBU-220MFIXED IND 22UH 580MA 1.68OHM SMD |
4,875 | 0.57 |
RFQ |
1008 (2520 Metric) | Tape & Reel (TR),Cut Tape (CT) | VLS-HBU | Active | Drum Core, Wirewound | Metal | 22 µH | ±20% | 580 mA | 860mA | Shielded | 1.68Ohm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | |
|

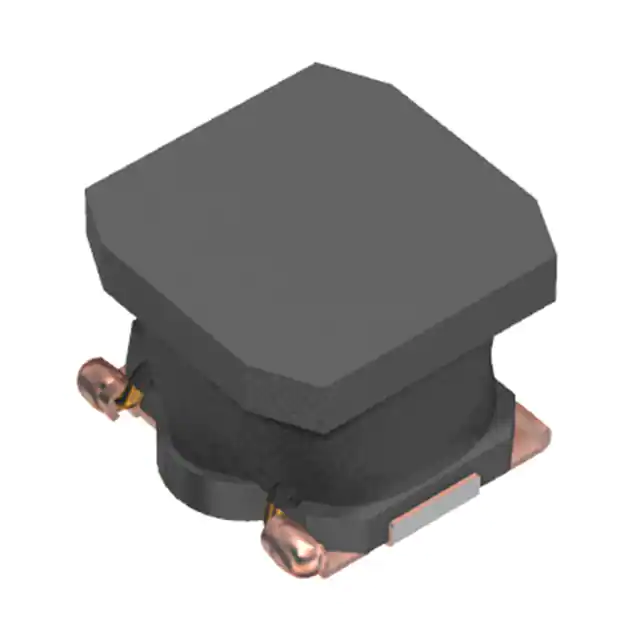

VLS6045EX-4R7M-HFIXED IND 4.7UH 4.2A 35.1MOHM SM |
16,397 | 0.58 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | VLS-EX-H | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 4.2 A | 5.8A | Shielded | 35.1mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
VLS6045EX-470M-HFIXED IND 47UH 1.3A 230MOHM SMD |
9,086 | 0.58 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | VLS-EX-H | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.3 A | 1.8A | Shielded | 230mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|

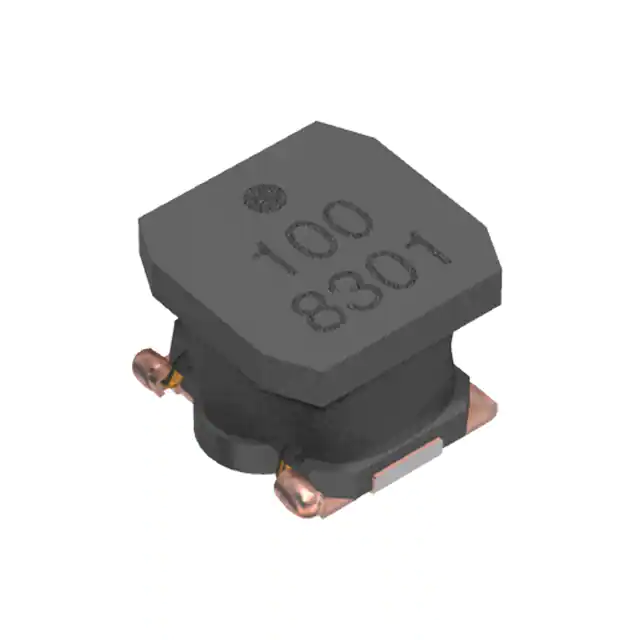

VLS6045EX-100M-HFIXED IND 10UH 3.4A 47 MOHM SMD |
7,945 | 0.58 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | VLS-EX-H | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 3.4 A | 3.9A | Shielded | 47mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
VLS6045EX-101M-HFIXED IND 100UH 900MA 470MOHM SM |
4,683 | 0.58 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | VLS-EX-H | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 900 mA | 1.1A | Shielded | 470mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
VLS6045EX-2R2N-HFIXED IND 2.2UH 5.1A 24.7MOHM SM |
4,342 | 0.58 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | VLS-EX-H | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 5.1 A | 7.5A | Shielded | 24.7mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
VLS6045EX-221M-HFIXED IND 220UH 500MA 1.495 OHM |
3,725 | 0.58 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | VLS-EX-H | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 500 mA | 800mA | Shielded | 1.495Ohm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
VLS6045EX-151M-HFIXED IND 150UH 700MA 988MOHM SM |
7,584 | 0.59 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | VLS-EX-H | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 700 mA | 900mA | Shielded | 988mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
TFM201210ALMA2R2MTAAINDUCTORS FOR POWER CIRCUITS, AU |
8,215 | 0.67 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | TFM-ALMA | Active | Thin Film | Metal | 2.2 µH | ±20% | 1.1 A | 1.2A | Shielded | 282mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 0805 |
|
|
TFM201210ALMAR56MTAAINDUCTORS FOR POWER CIRCUITS, AU |
4,195 | 0.67 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | TFM-ALMA | Active | Thin Film | Metal | 560 nH | ±20% | 2.8 A | 3A | Shielded | 49mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 0805 |
|
TMS252012ALM-2R2MTAAFIXED IND 2.2UH 2.6A 84 MOHM SMD |
16,569 | 0.63 |
RFQ |
Datasheet |
1008 (2520 Metric) | Tape & Reel (TR),Cut Tape (CT) | TMS-ALM | Active | Thin Film | Metal | 2.2 µH | ±20% | 2.6 A | 2.8A | Shielded | 84mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 |
|
|
TMS252012ALM-1R5MTAAFIXED IND 1.5UH 3.1A 60 MOHM SMD |
7,587 | 0.63 |
RFQ |
Datasheet |
1008 (2520 Metric) | Tape & Reel (TR),Cut Tape (CT) | TMS-ALM | Active | Thin Film | Metal | 1.5 µH | ±20% | 3.1 A | 3.3A | Shielded | 60mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 |
|
|
TMS252012ALM-3R3MTAAFIXED IND 3.3UH 2A 140 MOHM SMD |
4,455 | 0.63 |
RFQ |
Datasheet |
1008 (2520 Metric) | Tape & Reel (TR),Cut Tape (CT) | TMS-ALM | Active | Thin Film | Metal | 3.3 µH | ±20% | 2 A | 2.1A | Shielded | 140mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 |
|
TFM201610ALC-R47MTAAFIXED IND 470NH 5.2A 25 MOHM SMD |
8,386 | 0.68 |
RFQ |
0806 (2016 Metric) | Tape & Reel (TR),Cut Tape (CT) | TFM-ALC | Active | Thin Film | Metal | 470 nH | ±20% | 5.2 A | 5.1A | Shielded | 25mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | |
|

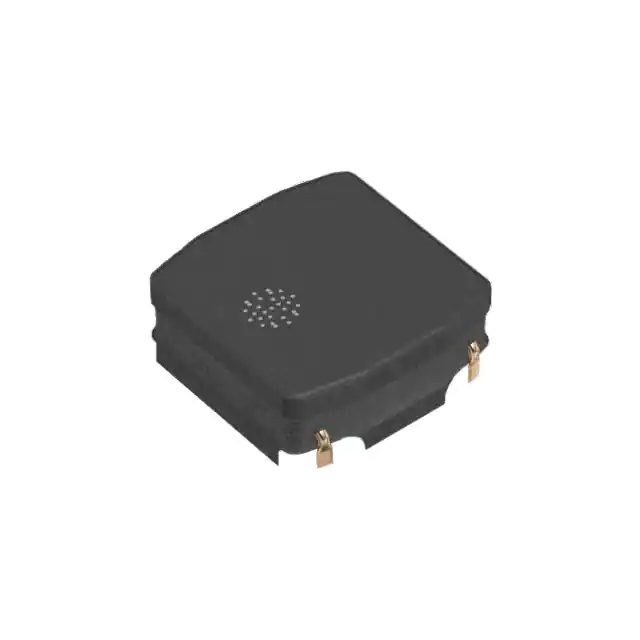

VLS3012HBX-4R7M-NINDUCTORS FOR POWER CIRCUITS, WO |
2,916 | 0.65 |
RFQ |
Datasheet |
1212 (3030 Metric) | Tape & Reel (TR),Cut Tape (CT) | VLS-HBX | Active | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | 2.01 A | 1.9A | Shielded | 201mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1212 |
|
VLS3012HBX-150MFIXED IND 15UH 1.23A 636MOHM SMD |
116,111 | 0.70 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | VLS-HBX | Active | Drum Core, Wirewound | Metal | 15 µH | ±20% | 1.23 A | 1.37A | Shielded | 636mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - |
|
|
VLS3012HBX-100MFIXED IND 10UH 1.48A 415MOHM SMD |
7,512 | 0.70 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | VLS-HBX | Active | Drum Core, Wirewound | Metal | 10 µH | ±20% | 1.48 A | 1.7A | Shielded | 415mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - |
