| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

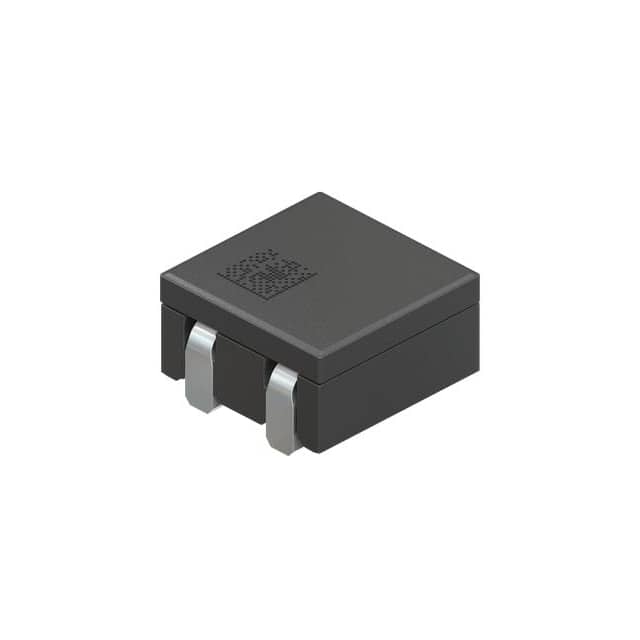

HPL505032F1070MRD3PFIXED IND 70NH 34A 777 MOHM SMD |
1,680 | 3.10 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | HPL | Active | - | Ferrite | 70 nH | ±20% | 34 A | - | Unshielded | 0.77mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - |
|

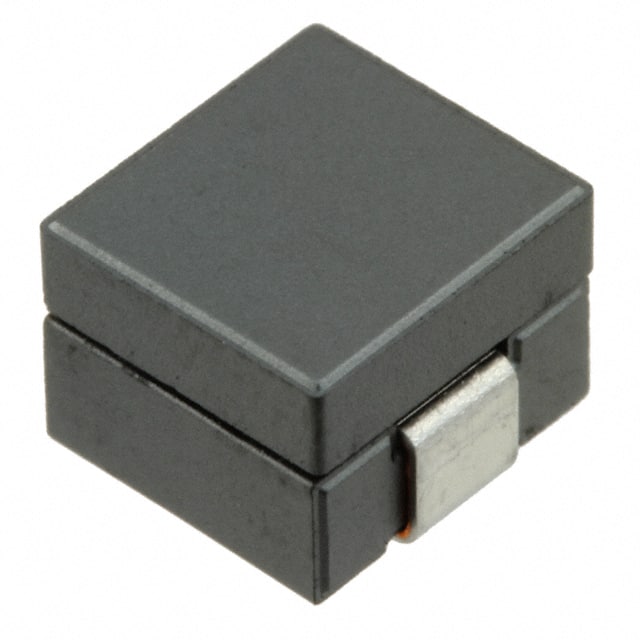

VLB7050HT-R11MFIXED IND 110NH 36A 0.27MOHM SMD |
490 | 3.31 |
RFQ |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | VLB | Active | Drum Core, Wirewound | Ferrite | 110 nH | ±20% | 36 A | 47A | Unshielded | 0.27mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | |
|
LGJ7045TS-221MR40-HFIXED IND 220UH 430MA 830MOHM SM |
939 | 3.37 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | LGJ | Not For New Designs | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 430 mA | 400mA | Shielded | 830mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
LGJ7045TS-471MR31-HFIXED IND 470UH 310MA 1.8OHM SMD |
830 | 3.37 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | LGJ | Not For New Designs | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 310 mA | 310mA | Shielded | 1.8Ohm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
LGJ7045TS-101MR60-HFIXED IND 100UH 610MA 390MOHM SM |
795 | 3.37 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | LGJ | Not For New Designs | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 610 mA | 600mA | Shielded | 390mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
LGJ7045TS-470MR90-HFIXED IND 47UH 930MA 180MOHM SMD |
681 | 3.37 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | LGJ | Not For New Designs | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 930 mA | 900mA | Shielded | 180mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
LGJ7045TS-100M1R8-HFIXED IND 10UH 1.81A 47 MOHM SMD |
590 | 3.37 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | LGJ | Not For New Designs | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.81 A | 1.8A | Shielded | 47mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
LGJ7045TS-220M1R3-HFIXED IND 22UH 1.25A 82 MOHM SMD |
468 | 3.37 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | LGJ | Not For New Designs | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.25 A | 1.3A | Shielded | 82mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
LGJ7045TS-330M1R1-HFIXED IND 33UH 1.11A 120MOHM SMD |
368 | 3.37 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | LGJ | Not For New Designs | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.11 A | 1.1A | Shielded | 120mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|

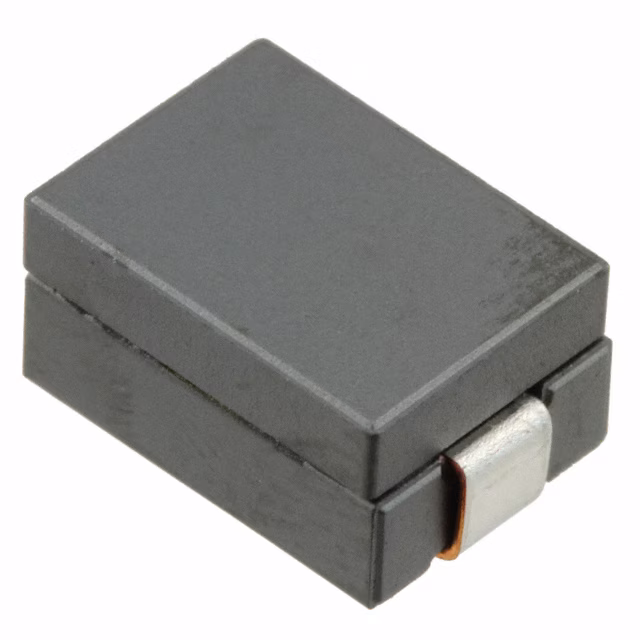

VLB10050HT-R30NFIXED IND 300NH 21A 0.35MOHM SMD |
150 | 3.78 |
RFQ |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | VLB | Active | Drum Core, Wirewound | Ferrite | 300 nH | ±30% | 21 A | 31A | Unshielded | 0.35mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | |
|
VLM10555T-R56M120-3FIXED IND 560NH 12A 2.5 MOHM SMD |
411 | 3.90 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | VLM | Active | Drum Core, Wirewound | Ferrite | 560 nH | ±20% | 12 A | 34A | Shielded | 2.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
VLM10555T-R70M120-3FIXED IND 700NH 12A 2.5 MOHM SMD |
383 | 3.90 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | VLM | Active | Drum Core, Wirewound | Ferrite | 700 nH | ±20% | 12 A | 26A | Shielded | 2.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
LGJ7045TC-470M-HFIXED IND 47UH 1.2A 150 MOHM SMD |
949 | 4.13 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | LGJ | Not For New Designs | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.2 A | 1.3A | Shielded | 150mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
LGJ7045TC-220M-HFIXED IND 22UH 1.8A 69 MOHM SMD |
948 | 4.13 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | LGJ | Not For New Designs | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.8 A | 1.9A | Shielded | 69mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
LGJ7045TC-680M-HFIXED IND 68UH 950MA 210MOHM SMD |
932 | 4.13 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | LGJ | Not For New Designs | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 950 mA | 1.1A | Shielded | 210mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
LGJ7045TC-151M-HFIXED IND 150UH 610MA 480MOHM SM |
926 | 4.13 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | LGJ | Not For New Designs | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 610 mA | 670mA | Shielded | 480mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
LGJ7045TC-6R8N-HFIXED IND 6.8UH 3A 27 MOHM SMD |
836 | 4.13 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | LGJ | Not For New Designs | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 3 A | 3.3A | Shielded | 27mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
VLM10555T-4R3M7R2-2FIXED IND 4.3UH 7.2A 9.55MOHM SM |
736 | 4.10 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | VLM | Active | Drum Core, Wirewound | Ferrite | 4.3 µH | ±20% | 7.2 A | 9A | Shielded | 9.55mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
VLM10555T-1R8M8R8-2FIXED IND 1.8UH 8.8A 6.44MOHM SM |
381 | 4.10 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | VLM | Active | Drum Core, Wirewound | Ferrite | 1.8 µH | ±20% | 8.8 A | 18A | Shielded | 6.44mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
VLM10555T-1R2M100-3FIXED IND 1.2UH 10A 3.2 MOHM SMD |
113 | 4.10 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | VLM | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±20% | 10 A | 18A | Shielded | 3.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
