| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MLG1005SR20JTD25FIXED IND 200NH 100MA 4.2OHM SMD |
4,787 | 0.62 |
RFQ |
0402 (1005 Metric) | Tape & Reel (TR),Cut Tape (CT) | MLG | Active | Multilayer | Ceramic, Non-Magnetic | 200 nH | ±5% | 100 mA | - | Unshielded | 4.2Ohm Max | 8 @ 100MHz | 420MHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | |
|
TMS252012ALM-1R0MTAAFIXED IND 1UH 3.7A 42 MOHM SMD |
2,742 | 0.63 |
RFQ |
Datasheet |
1008 (2520 Metric) | Tape & Reel (TR),Cut Tape (CT) | TMS-ALM | Active | Thin Film | Metal | 1 µH | ±20% | 3.7 A | 4.2A | Shielded | 42mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 |
|
VLS3010T-4R7MR80FIXED IND 4.7UH 800MA 204MOHM SM |
2,740 | 0.63 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | VLS | Obsolete | Wirewound | - | 4.7 µH | ±20% | 800 mA | 800mA | Shielded | 204mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - |
|
|
TMS252012ALM-4R7MTAAFIXED IND 4.7UH 1.6A 200MOHM SMD |
2,537 | 0.63 |
RFQ |
Datasheet |
1008 (2520 Metric) | Tape & Reel (TR),Cut Tape (CT) | TMS-ALM | Active | Thin Film | Metal | 4.7 µH | ±20% | 1.6 A | 1.9A | Shielded | 200mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 |
|
|
VLS3010T-6R8MR75FIXED IND 6.8UH 750MA 312MOHM SM |
1,867 | 0.63 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | VLS | Obsolete | Wirewound | - | 6.8 µH | ±20% | 750 mA | 750mA | Shielded | 312mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - |
|
|
VLS3010T-100MR65FIXED IND 10UH 650MA 468MOHM SMD |
1,436 | 0.63 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | VLS | Obsolete | Wirewound | - | 10 µH | ±20% | 650 mA | 650mA | Shielded | 468mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - |
|

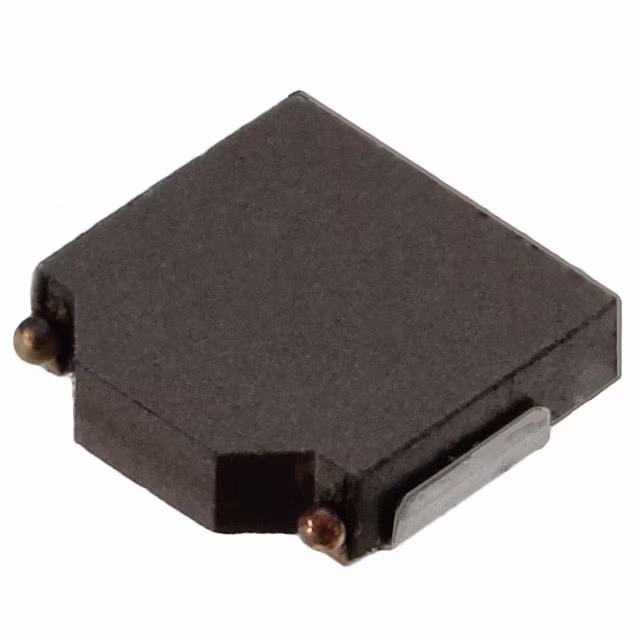

SPM4012T-2R2MFIXED IND 2.2UH 2.9A 95 MOHM SMD |
500 | 1.38 |
RFQ |
Datasheet |
Nonstandard | Cut Tape (CT) | SPM | Last Time Buy | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 2.9 A | 3.3A | Shielded | 95mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
SPM3020T-1R0MFIXED IND 1UH 3.8A 42.2 MOHM SMD |
2,211 | 1.38 |
RFQ |
Datasheet |
Nonstandard | Cut Tape (CT) | SPM | Last Time Buy | Drum Core, Wirewound | Metal | 1 µH | ±20% | 3.8 A | 4.7A | Shielded | 42.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
VLS3012HBX-2R2M-NINDUCTORS FOR POWER CIRCUITS, WO |
1,726 | 0.65 |
RFQ |
Datasheet |
1212 (3030 Metric) | Tape & Reel (TR),Cut Tape (CT) | VLS-HBX | Active | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 2.84 A | 3.1A | Shielded | 106mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1212 |
|
SPM3012T-2R2MFIXED IND 2.2UH 2.2A 115MOHM SMD |
459 | 1.41 |
RFQ |
Datasheet |
Nonstandard | Cut Tape (CT) | SPM | Last Time Buy | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 2.2 A | 2.5A | Shielded | 115mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
SPM3012T-4R7MFIXED IND 4.7UH 1.3A 270MOHM SMD |
1,302 | 1.41 |
RFQ |
Datasheet |
Nonstandard | Cut Tape (CT) | SPM | Last Time Buy | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | 1.3 A | 1.5A | Shielded | 270mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
SPM3012T-3R3MFIXED IND 3.3UH 1.5A 210MOHM SMD |
3,166 | 1.44 |
RFQ |
Datasheet |
Nonstandard | Cut Tape (CT) | SPM | Last Time Buy | Drum Core, Wirewound | Metal | 3.3 µH | ±20% | 1.5 A | 1.8A | Shielded | 210mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
VLS3010T-1R5N1R6FIXED IND 1.5UH 1.9A 85 MOHM SMD |
1,229 | 0.66 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | VLS | Obsolete | Wirewound | - | 1.5 µH | ±30% | 1.9 A | 1.4A | Shielded | 85mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - |
|
TFM201210ALMA1R0MTAAINDUCTORS FOR POWER CIRCUITS, AU |
1,860 | 0.67 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | TFM-ALMA | Active | Thin Film | Metal | 1 µH | ±20% | 2.2 A | 2.7A | Shielded | 81mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 MHz | Soft Termination | Surface Mount | 0805 |
.jpg)
|
VLS252012HBX-6R8M-1FIXED IND 6.8UH 1.15A 372MOHM SM |
1,933 | 0.70 |
RFQ |
1008 (2520 Metric) | Tape & Reel (TR),Cut Tape (CT) | VLS-HBX-1 | Active | Drum Core, Wirewound | Metal | 6.8 µH | ±20% | 1.15 A | 940mA | Shielded | 372mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | |
|
VLS3012HBX-R33NFIXED IND 330NH 6.78A 30MOHM SMD |
1,895 | 0.70 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | VLS-HBX | Active | Drum Core, Wirewound | Metal | 330 nH | ±30% | 6.78 A | 9.11A | Shielded | 30mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - |
|
VLCF4020T-1R8N1R9FIXED IND 1.8UH 1.97A 51MOHM SMD |
2,648 | 0.71 |
RFQ |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | VLCF | Active | Drum Core, Wirewound | Ferrite | 1.8 µH | ±30% | 1.97 A | 1.97A | Shielded | 51mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | |
|
|
VLCF4020T-270MR48FIXED IND 27UH 480MA 496MOHM SMD |
1,692 | 0.71 |
RFQ |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | VLCF | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 480 mA | 480mA | Shielded | 496mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | |
|

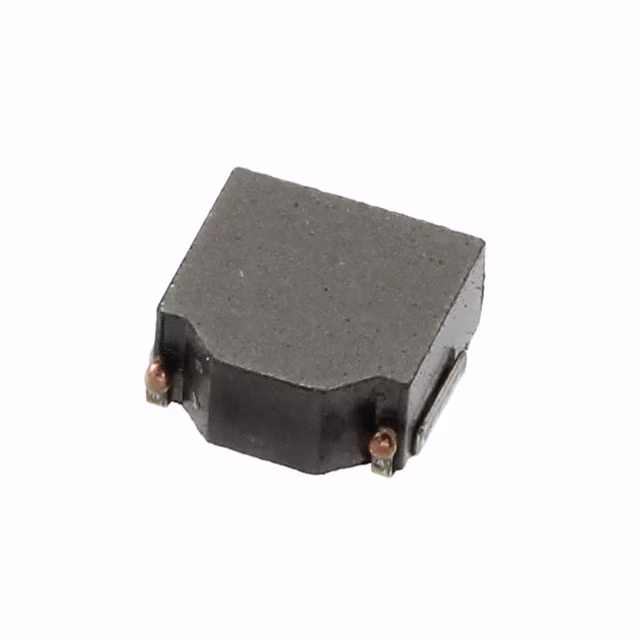

SPM4020T-3R3MFIXED IND 3.3UH 3.6A 79.3MOHM SM |
352 | 1.43 |
RFQ |
Datasheet |
Nonstandard | Cut Tape (CT) | SPM | Last Time Buy | Drum Core, Wirewound | Metal | 3.3 µH | ±20% | 3.6 A | 3.5A | Shielded | 79.3mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
VLS4012HBX-150M-NINDUCTORS FOR POWER CIRCUITS, WO |
2,877 | 0.74 |
RFQ |
Datasheet |
1616 (4040 Metric) | Tape & Reel (TR),Cut Tape (CT) | VLS-HBX | Active | Drum Core, Wirewound | Metal | 15 µH | ±20% | 1.37 A | 1.6A | Shielded | 503mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1616 |
