| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MHQ Series.jpg)
|
MHQ0603P7N5HT000FIXED IND 7.5NH 300MA 500MOHM SM |
4,251 | 0.44 |
RFQ |
Datasheet |
0201 (0603 Metric) | Tape & Reel (TR),Cut Tape (CT) | MHQ-P | Active | Multilayer | Ceramic, Non-Magnetic | 7.5 nH | ±3% | 300 mA | - | Unshielded | 500mOhm Max | 16 @ 500MHz | 3.8GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) |
|
|
MHQ0603P2N0CT000FIXED IND 2NH 700MA 120 MOHM SMD |
3,383 | 0.44 |
RFQ |
Datasheet |
0201 (0603 Metric) | Tape & Reel (TR),Cut Tape (CT) | MHQ-P | Active | Multilayer | Ceramic, Non-Magnetic | 2 nH | ±0.2nH | 700 mA | - | Unshielded | 120mOhm Max | 16 @ 500MHz | 10GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) |
E.JPG)
|
VLS2012ET-R68NFIXED IND 680NH 1.7A 66 MOHM SMD |
3,030 | 0.44 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | VLS | Not For New Designs | Wirewound | - | 680 nH | ±30% | 1.7 A | 1.7A | Shielded | 66mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - |
|
VLS252010CX-R68M-1FIXED IND 680NH 2.62A 50MOHM SMD |
2,150 | 0.44 |
RFQ |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | VLS-CX-1 | Active | Drum Core, Wirewound | Ferrite | 680 nH | ±20% | 2.62 A | 2.52A | Shielded | 50mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 2520 | |
|
VLS4015CX-151M-HINDUCTORS FOR POWER CIRCUITS, AU |
1,972 | 0.44 |
RFQ |
Datasheet |
1616 (4040 Metric) | Tape & Reel (TR),Cut Tape (CT) | VLS-CX-H | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 330 mA | 390mA | Shielded | 4.21Ohm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 |
|
VLS4012CX-1R0M-1FIXED IND 1UH 3.44A 46 MOHM SMD |
1,970 | 0.44 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | VLS-CX-1 | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 3.44 A | 2.88A | Shielded | 46mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - |
|
|
VLS252012CX-220M-1FIXED IND 22UH 560MA 955MOHM SMD |
1,608 | 0.44 |
RFQ |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | VLS-CX-1 | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 560 mA | 540mA | Shielded | 955mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 2520 | |
|
|
VLS4015CX-2R2M-HINDUCTORS FOR POWER CIRCUITS, AU |
1,595 | 0.44 |
RFQ |
Datasheet |
1616 (4040 Metric) | Tape & Reel (TR),Cut Tape (CT) | VLS-CX-H | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 2.71 A | 2.59A | Shielded | 84mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 |
|
VLS4012CX-680M-1FIXED IND 68UH 540MA 1.625OHM SM |
1,586 | 0.44 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | VLS-CX-1 | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 540 mA | 320mA | Shielded | 1.625Ohm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - |
|
|
MHQ0603P5N6HT000FIXED IND 5.6NH 350MA 400MOHM SM |
11,902 | 0.46 |
RFQ |
Datasheet |
0201 (0603 Metric) | Tape & Reel (TR),Cut Tape (CT) | MHQ-P | Active | Multilayer | Ceramic, Non-Magnetic | 5.6 nH | ±3% | 350 mA | - | Unshielded | 400mOhm Max | 16 @ 500MHz | 5GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) |
|
|
MHQ0603P6N2HT000FIXED IND 6.2NH 300MA 700MOHM SM |
11,598 | 0.46 |
RFQ |
Datasheet |
0201 (0603 Metric) | Tape & Reel (TR),Cut Tape (CT) | MHQ-P | Active | Multilayer | Ceramic, Non-Magnetic | 6.2 nH | ±3% | 300 mA | - | Unshielded | 700mOhm Max | 16 @ 500MHz | 4GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) |
|
|
MHQ0603P2N1BT000FIXED IND 2.1NH 700MA 150MOHM SM |
11,480 | 0.46 |
RFQ |
Datasheet |
0201 (0603 Metric) | Tape & Reel (TR),Cut Tape (CT) | MHQ-P | Active | Multilayer | Ceramic, Non-Magnetic | 2.1 nH | ±0.1nH | 700 mA | - | Unshielded | 150mOhm Max | 16 @ 500MHz | 10GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) |
|
|
MHQ0603P3N6BT000FIXED IND 3.6NH 500MA 250MOHM SM |
11,332 | 0.46 |
RFQ |
Datasheet |
0201 (0603 Metric) | Tape & Reel (TR),Cut Tape (CT) | MHQ-P | Active | Multilayer | Ceramic, Non-Magnetic | 3.6 nH | ±0.1nH | 500 mA | - | Unshielded | 250mOhm Max | 16 @ 500MHz | 6.5GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) |
|
|
VLS4015CX-220M-HINDUCTORS FOR POWER CIRCUITS, AU |
1,908 | 0.44 |
RFQ |
Datasheet |
1616 (4040 Metric) | Tape & Reel (TR),Cut Tape (CT) | VLS-CX-H | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 870 mA | 870mA | Shielded | 540mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 |
|
|
VLS4015CX-6R8M-HINDUCTORS FOR POWER CIRCUITS, AU |
1,932 | 0.44 |
RFQ |
Datasheet |
1616 (4040 Metric) | Tape & Reel (TR),Cut Tape (CT) | VLS-CX-H | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.68 A | 1.66A | Shielded | 204mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 |
|
|
VLS4015CX-1R5M-HINDUCTORS FOR POWER CIRCUITS, AU |
1,930 | 0.44 |
RFQ |
Datasheet |
1616 (4040 Metric) | Tape & Reel (TR),Cut Tape (CT) | VLS-CX-H | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 2.96 A | 3.32A | Shielded | 60mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 |
|
|
VLS4015CX-470M-HINDUCTORS FOR POWER CIRCUITS, AU |
1,915 | 0.44 |
RFQ |
Datasheet |
1616 (4040 Metric) | Tape & Reel (TR),Cut Tape (CT) | VLS-CX-H | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 630 mA | 570mA | Shielded | 1.2Ohm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 |
|
|
VLS4015CX-330M-HINDUCTORS FOR POWER CIRCUITS, AU |
1,864 | 0.44 |
RFQ |
Datasheet |
1616 (4040 Metric) | Tape & Reel (TR),Cut Tape (CT) | VLS-CX-H | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 760 mA | 690mA | Shielded | 804mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 |
|
|
VLS4015CX-150M-HINDUCTORS FOR POWER CIRCUITS, AU |
1,840 | 0.44 |
RFQ |
Datasheet |
1616 (4040 Metric) | Tape & Reel (TR),Cut Tape (CT) | VLS-CX-H | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1.06 A | 1.21A | Shielded | 372mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 |
|
|

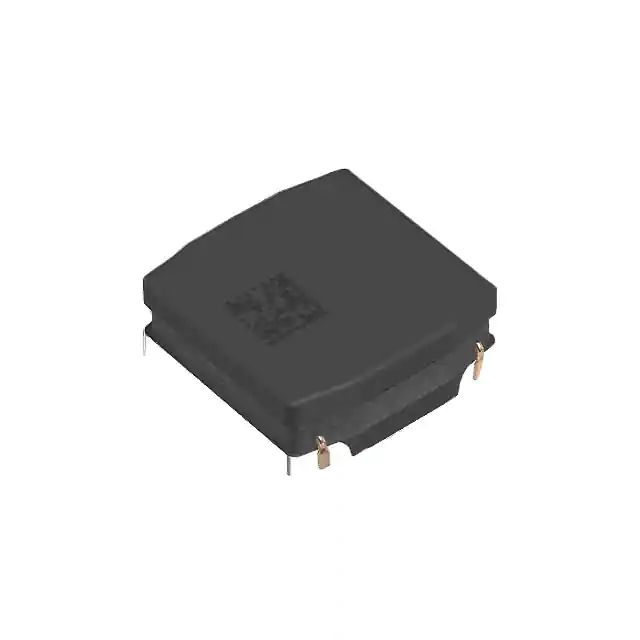

VLS4015CX-680M-HINDUCTORS FOR POWER CIRCUITS, AU |
1,780 | 0.44 |
RFQ |
Datasheet |
1616 (4040 Metric) | Tape & Reel (TR),Cut Tape (CT) | VLS-CX-H | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 570 mA | 540mA | Shielded | 1.72Ohm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 |
