| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MLG0603Q2N5SFIXED IND 2.5NH 450MA 300MOHM SM |
12,190 | 0.35 |
RFQ |
Datasheet |
0201 (0603 Metric) | Tape & Reel (TR),Cut Tape (CT) | MLG-Q | Obsolete | Multilayer | Non-Magnetic | 2.5 nH | ±0.3nH | 450 mA | - | Unshielded | 300mOhm Max | 5 @ 100MHz | 7GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 (0603 Metric) |
|
MLD2012SR47TTD25FIXED IND 470NH 1.2A 120MOHM SMD |
2,557 | 0.35 |
RFQ |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | MLD | Active | Multilayer | Ferrite | 470 nH | ±20% | 1.2 A | - | Shielded | 120mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0805 (2012 Metric) | |
.jpg)
|
VLS201612HBX-6R8M-1FIXED IND 6.8UH 910MA 468MOHM SM |
2,199 | 0.35 |
RFQ |
0806 (2016 Metric) | Tape & Reel (TR),Cut Tape (CT) | VLS-HBX-1 | Active | Drum Core, Wirewound | Metal | 6.8 µH | ±20% | 910 mA | 870mA | Shielded | 468mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | |
|

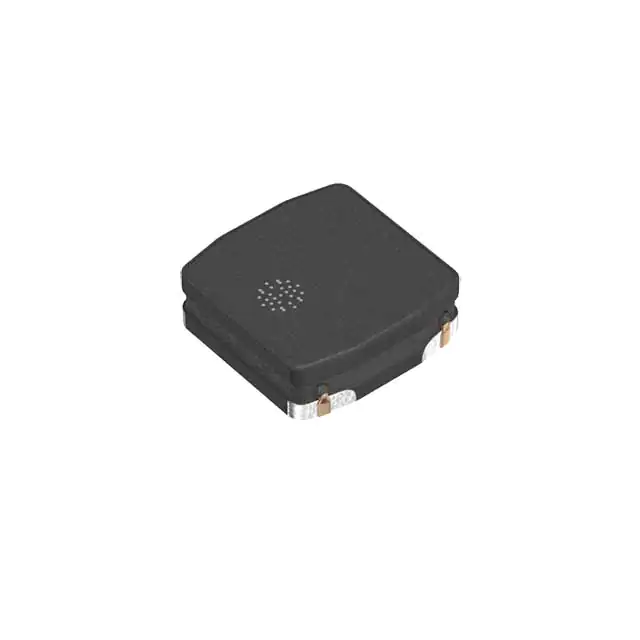

VLS3010CX-4R7M-1FIXED IND 4.7UH SMD |
2,067 | 0.35 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | VLS-CX-1 | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | - | - | Shielded | - | - | - | - | -40°C ~ 105°C | - | - | Surface Mount | - |
|
VLS3010CX-101M-1FIXED IND 100UH 300MA 2.988 OHM |
1,877 | 0.35 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | VLS-CX-1 | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 300 mA | 150mA | Shielded | 2.988Ohm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - |
|
|
VLS201610HBX-R47M-1FIXED IND 470NH 2.81A 41MOHM SMD |
1,817 | 0.35 |
RFQ |
0806 (2016 Metric) | Tape & Reel (TR),Cut Tape (CT) | VLS-HBX-1 | Active | Drum Core, Wirewound | Metal | 470 nH | ±20% | 2.81 A | 3.5A | Shielded | 41mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | |
|
|
VLS201612HBX-R33M-1FIXED IND 330NH 4.34A 35MOHM SMD |
1,811 | 0.35 |
RFQ |
0806 (2016 Metric) | Tape & Reel (TR),Cut Tape (CT) | VLS-HBX-1 | Active | Drum Core, Wirewound | Metal | 330 nH | ±20% | 4.34 A | 3.87A | Shielded | 35mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | |
|
|
VLS201612HBX-100M-1FIXED IND 10UH 760MA 756MOHM SMD |
1,531 | 0.35 |
RFQ |
0806 (2016 Metric) | Tape & Reel (TR),Cut Tape (CT) | VLS-HBX-1 | Active | Drum Core, Wirewound | Metal | 10 µH | ±20% | 760 mA | 670mA | Shielded | 756mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | |
 MHQ Series.jpg)
|
MHQ1005P12NJTD25FIXED IND 12NH 450MA 240MOHM SMD |
8,352 | 0.36 |
RFQ |
0402 (1005 Metric) | Tape & Reel (TR),Cut Tape (CT) | MHQ-P | Active | Multilayer | Ceramic, Non-Magnetic | 12 nH | ±5% | 450 mA | - | Unshielded | 240mOhm Max | 23 @ 250MHz | 2.8GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | |
|
MLP1608V1R0DT0S1FIXED IND 1UH 700MA 390 MOHM SMD |
3,910 | 0.36 |
RFQ |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | MLP | Active | Multilayer | Ferrite | 1 µH | ±20% | 700 mA | - | Shielded | 390mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0603 (1608 Metric) | |
|
|
MHQ1005P6N8JTD25FIXED IND 6.8NH 700MA 140MOHM SM |
2,635 | 0.36 |
RFQ |
0402 (1005 Metric) | Tape & Reel (TR),Cut Tape (CT) | MHQ-P | Active | Multilayer | Ceramic, Non-Magnetic | 6.8 nH | ±5% | 700 mA | - | Unshielded | 140mOhm Max | 23 @ 250MHz | 4GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | |
|
VLS3012CX-220M-1FIXED IND 22UH 780MA 668MOHM SMD |
2,543 | 0.36 |
RFQ |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | VLS-CX-1 | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 780 mA | 560mA | Shielded | 668mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | |
|
|
VLS252012HBX-1R5M-1FIXED IND 1.5UH 2.75A 82MOHM SMD |
2,475 | 0.36 |
RFQ |
1008 (2520 Metric) | Tape & Reel (TR),Cut Tape (CT) | VLS-HBX-1 | Active | Drum Core, Wirewound | Metal | 1.5 µH | ±20% | 2.75 A | 2.5A | Shielded | 82mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | |
|
|
VLS252010HBX-6R8M-1FIXED IND 6.8UH 1.1A 406MOHM SMD |
1,780 | 0.36 |
RFQ |
1008 (2520 Metric) | Tape & Reel (TR),Cut Tape (CT) | VLS-HBX-1 | Active | Drum Core, Wirewound | Metal | 6.8 µH | ±20% | 1.1 A | 750mA | Shielded | 406mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | |
E.JPG)
|
VLS2010ET-1R5NFIXED IND 1.5UH 1.2A 156MOHM SMD |
1,775 | 0.36 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | VLS | Not For New Designs | Wirewound | - | 1.5 µH | ±30% | 1.2 A | 1.2A | Shielded | 156mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - |
|
|
VLS2010ET-1R0NFIXED IND 1UH 1.45A 108 MOHM SMD |
1,693 | 0.36 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | VLS | Not For New Designs | Wirewound | - | 1 µH | ±30% | 1.45 A | 1.45A | Shielded | 108mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - |
|
VLS3012CX-3R3M-1FIXED IND 3.3UH SMD |
1,589 | 0.36 |
RFQ |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | VLS-CX-1 | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | - | - | Shielded | - | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | |
|
|
VLS252012HBX-R68M-1FIXED IND 680NH 3.7A 46 MOHM SMD |
1,388 | 0.36 |
RFQ |
1008 (2520 Metric) | Tape & Reel (TR),Cut Tape (CT) | VLS-HBX-1 | Active | Drum Core, Wirewound | Metal | 680 nH | ±20% | 3.7 A | 3.23A | Shielded | 46mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | |
|
|
VLS2012ET-R47NFIXED IND 470NH 2A 59 MOHM SMD |
1,322 | 0.36 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | VLS | Not For New Designs | Wirewound | - | 470 nH | ±30% | 2 A | 2.05A | Shielded | 59mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - |
|
|
VLS2010ET-4R7MFIXED IND 4.7UH 700MA 408MOHM SM |
1,111 | 0.36 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | VLS | Not For New Designs | Wirewound | - | 4.7 µH | ±20% | 700 mA | 700mA | Shielded | 408mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - |
