Film Capacitors(65535)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

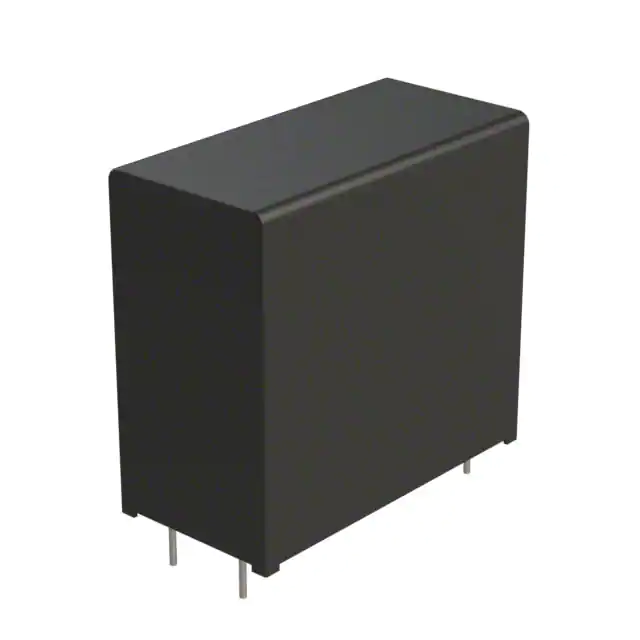

MKP1848H68050KY5CAP FILM 80UF 10% 500VDC RADIAL |
2,362 | 17.79 |
RFQ |
Datasheet |
Radial - 4 Leads | Tray | MKP1848H DC-Link | Active | 80 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 3.2 mOhms | -40°C ~ 85°C | Through Hole | 2.264 L x 1.378 W (57.50mm x 35.00mm) | 2.008 (51.00mm) | PC Pins | 2.067 (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
MHBS455450KRSDFILM CAP RADIAL |
3,801 | 17.80 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | MHBS | Active | 45 µF | ±10% | 315V | 800V | Polypropylene (PP), Metallized | 3.4 mOhms | -40°C ~ 85°C | Through Hole | 2.264 L x 1.378 W (57.50mm x 35.00mm) | 1.969 (50.00mm) | PC Pins | 2.067 (52.50mm) | DC Link, DC Filtering; High Frequency, Switching | - |
|
MKP1847H55048KY5CAP FILM 5UF 10% 1KVDC RADIAL |
3,918 | 17.82 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | MKP1847H | Active | 5 µF | ±10% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | 6.5 mOhms | -40°C ~ 105°C | Through Hole | 2.264 L x 1.181 W (57.50mm x 30.00mm) | 1.811 (46.00mm) | PC Pins | 2.067 (52.50mm) | EMI, RFI Suppression | - |
|
MKP386M530070JT4CAP FILM 3UF 5% 700VDC SCREW |
2,189 | 17.83 |
RFQ |
Datasheet |
Rectangular Box | Bulk | MKP386M | Active | 3 µF | ±5% | 420V | 700V | Polypropylene (PP), Metallized | 5.5 mOhms | -55°C ~ 105°C | Chassis Mount | 1.732 L x 1.181 W (44.00mm x 30.00mm) | 1.811 (46.00mm) | Screw Terminals | 1.496 (38.00mm) | Snubber | - |
|
MKP386M547070JT1CAP FILM 4.7UF 5% 700VDC SCREW |
3,189 | 17.83 |
RFQ |
Datasheet |
Rectangular Box | Bulk | MKP386M | Active | 4.7 µF | ±5% | 420V | 700V | Polypropylene (PP), Metallized | 6 mOhms | -55°C ~ 105°C | Chassis Mount | 1.732 L x 1.181 W (44.00mm x 30.00mm) | 1.811 (46.00mm) | Screw Terminals | 0.402 (10.20mm) | Snubber | - |
|
|
MKP386M547070JT4CAP FILM 4.7UF 5% 700VDC SCREW |
3,381 | 17.83 |
RFQ |
Datasheet |
Rectangular Box | Bulk | MKP386M | Active | 4.7 µF | ±5% | 420V | 700V | Polypropylene (PP), Metallized | 6 mOhms | -55°C ~ 105°C | Chassis Mount | 1.732 L x 1.181 W (44.00mm x 30.00mm) | 1.811 (46.00mm) | Screw Terminals | 1.496 (38.00mm) | Snubber | - |
|
|
MKP386M418250JT1CAP FILM 0.18UF 5% 2.5KVDC SCREW |
3,337 | 17.83 |
RFQ |
Datasheet |
Rectangular Box | Bulk | MKP386M | Active | 0.18 µF | ±5% | 800V | 2500V (2.5kV) | Polypropylene (PP), Metallized | 11 mOhms | -55°C ~ 105°C | Chassis Mount | 1.732 L x 0.866 W (44.00mm x 22.00mm) | 1.496 (38.00mm) | Screw Terminals | - | Snubber | - |
|
|
MKP386M515085JT6CAP FILM 1.5UF 5% 850VDC SCREW |
2,542 | 17.83 |
RFQ |
Datasheet |
Rectangular Box | Bulk | MKP386M | Active | 1.5 µF | ±5% | 450V | 850V | Polypropylene (PP), Metallized | 9 mOhms | -55°C ~ 105°C | Chassis Mount | 1.732 L x 0.866 W (44.00mm x 22.00mm) | 1.496 (38.00mm) | Screw Terminals | 0.433 (11.00mm) | Snubber | - |
|
B32778G8556J000CAP FILM 55UF 5% 800VDC RADIAL |
2,700 | 17.85 |
RFQ |
Datasheet |
Radial | Bulk | B3277* - MKP DC-Link | Active | 55 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 3.5 mOhms | -40°C ~ 105°C | Through Hole | 2.264 L x 1.378 W (57.50mm x 35.00mm) | 1.969 (50.00mm) | PC Pins | 2.067 (52.50mm) | DC Link, DC Filtering | - |
|
PSB1704630KRSTFILM CAP BOXED RADIAL |
3,873 | 17.86 |
RFQ |
Datasheet |
Radial - 6 Leads | Bulk | PSB | Active | 6.3 µF | ±10% | 420V | 700V | Polypropylene (PP), Metallized | 1.8 mOhms | -40°C ~ 85°C | Through Hole | 2.264 L x 1.378 W (57.50mm x 35.00mm) | 1.969 (50.00mm) | PC Pins | 2.067 (52.50mm) | High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
PMB2204100KBPFILM CAP BOXED LUGS |
3,267 | 17.86 |
RFQ |
Datasheet |
Rectangular Box | Bulk | PMB | Active | 1 µF | ±10% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 2.8 mOhms | -40°C ~ 85°C | Chassis Mount | 2.264 L x 1.378 W (57.50mm x 35.00mm) | 1.969 (50.00mm) | Screw Terminals | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
|
PMB2204100KBNFILM CAP BOXED LUGS |
2,713 | 17.86 |
RFQ |
Datasheet |
Rectangular Box | Bulk | PMB | Active | 1 µF | ±10% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 2.8 mOhms | -40°C ~ 85°C | Chassis Mount | 2.264 L x 1.378 W (57.50mm x 35.00mm) | 1.969 (50.00mm) | Screw Terminals | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
MKP1848640454Y2CAP FILM 40UF 5% 450VDC RADIAL |
3,763 | 17.88 |
RFQ |
Datasheet |
Radial | Bulk | MKP1848 DC-Link | Active | 40 µF | ±5% | - | 450V | Polypropylene (PP), Metallized | 6.5 mOhms | -40°C ~ 105°C | Through Hole | 2.264 L x 0.984 W (57.50mm x 25.00mm) | 1.772 (45.00mm) | PC Pins | 2.067 (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|

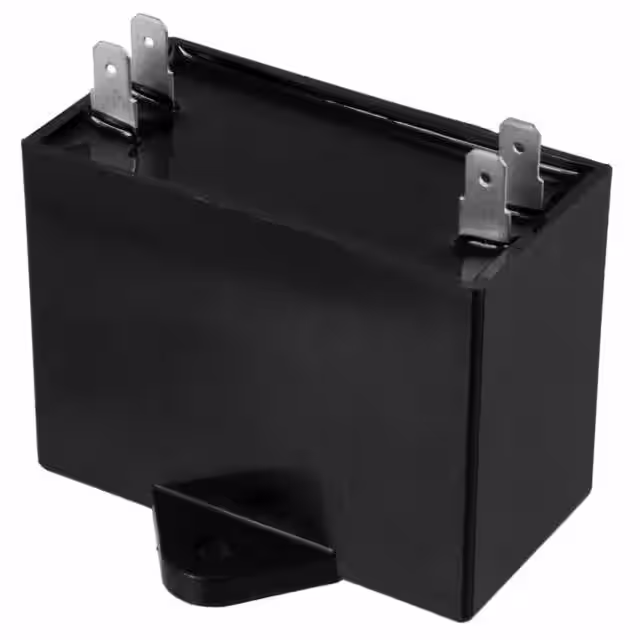

EEC2E406HQA416CAP FILM 40UF 250VAC QC TERM |
2,679 | 17.89 |
RFQ |
Datasheet |
Rectangular Box | Bulk | EEC | Active | 40 µF | -5%, +10% | 250V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis Mount | 2.283 L x 1.181 W (58.00mm x 30.00mm) | 1.772 (45.00mm) | Quick Connect, Disconnect | - | Motor Run | - |
|
|
MKP386M422250JT6CAP FILM 0.22UF 5% 2.5KVDC SCREW |
2,104 | 17.90 |
RFQ |
Datasheet |
Rectangular Box | Bulk | MKP386M | Active | 0.22 µF | ±5% | 800V | 2500V (2.5kV) | Polypropylene (PP), Metallized | 8.5 mOhms | -55°C ~ 105°C | Chassis Mount | 1.732 L x 0.866 W (44.00mm x 22.00mm) | 1.496 (38.00mm) | Screw Terminals | 0.433 (11.00mm) | Snubber | - |
|
|
MKP386M422250JT8CAP FILM 0.22UF 5% 2.5KVDC SCREW |
2,486 | 17.90 |
RFQ |
Datasheet |
Rectangular Box | Bulk | MKP386M | Active | 0.22 µF | ±5% | 800V | 2500V (2.5kV) | Polypropylene (PP), Metallized | 8.5 mOhms | -55°C ~ 105°C | Chassis Mount | 1.732 L x 0.866 W (44.00mm x 22.00mm) | 1.496 (38.00mm) | Screw Terminals | 0.433 (11.00mm) | Snubber | - |
|
|
MKP386M482160JT6CAP FILM 0.82UF 5% 1.6KVDC SCREW |
2,115 | 17.90 |
RFQ |
Datasheet |
Rectangular Box | Bulk | MKP386M | Active | 0.82 µF | ±5% | 600V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 10 mOhms | -55°C ~ 105°C | Chassis Mount | 1.732 L x 0.866 W (44.00mm x 22.00mm) | 1.496 (38.00mm) | Screw Terminals | 0.433 (11.00mm) | Snubber | - |
|
|
MKP386M482160JT8CAP FILM 0.82UF 5% 1.6KVDC SCREW |
3,116 | 17.90 |
RFQ |
Datasheet |
Rectangular Box | Bulk | MKP386M | Active | 0.82 µF | ±5% | 600V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 10 mOhms | -55°C ~ 105°C | Chassis Mount | 1.732 L x 0.866 W (44.00mm x 22.00mm) | 1.496 (38.00mm) | Screw Terminals | 0.433 (11.00mm) | Snubber | - |
|
|
PSB2104400KRSDFILM CAP BOXED RADIAL |
3,238 | 17.90 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | PSB | Active | 4 µF | ±10% | 575V | 1000V (1kV) | Polypropylene (PP), Metallized | 2 mOhms | -40°C ~ 85°C | Through Hole | 2.264 L x 1.496 W (57.50mm x 38.00mm) | 2.264 (57.50mm) | PC Pins | 2.067 (52.50mm) | High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
BLH806K451C064DC LINK, THB, 85/85, AEC-Q200 |
2,842 | 17.93 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | BLH | Active | 80 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | 4 mOhms | -40°C ~ 105°C | Through Hole | 2.264 L x 1.181 W (57.50mm x 30.00mm) | 1.772 (45.00mm) | PC Pins | 2.067 (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
