Film Capacitors(65535)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B32524Q156KCAP FILM 15UF 10% 63VDC RADIAL |
2,936 | 3.37 |
RFQ |
Datasheet |
Radial | Bulk | B3252* - MKT General Purpose | Not For New Designs | 15 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | - | - | PC Pins | 1.083 (27.50mm) | Automotive; EMI, RFI Suppression | - |
|
BFC241973004CAP FILM 0.3UF 2% 400VDC RADIAL |
3,488 | 3.37 |
RFQ |
Datasheet |
Radial | Bulk | MKP419 | Active | 0.3 µF | ±2% | 125V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.689 L x 0.394 W (17.50mm x 10.00mm) | 0.650 (16.50mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
|
|
BFC241913004CAP FILM 0.3UF 2% 400VDC RADIAL |
2,635 | 3.37 |
RFQ |
Datasheet |
Radial | Tape & Reel (TR) | MKP419 | Active | 0.3 µF | ±2% | 125V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.689 L x 0.394 W (17.50mm x 10.00mm) | 0.650 (16.50mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
|

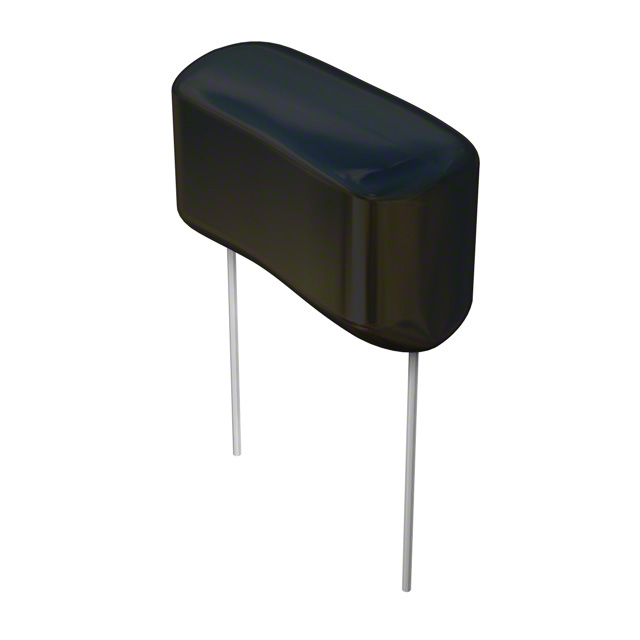

DMT4P22K-FCAP FILM 0.22UF 10% 400VDC RAD |
2,710 | 3.38 |
RFQ |
Datasheet |
Radial | Bulk | DMT | Active | 0.22 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 1.319 L x 0.417 W (33.50mm x 10.60mm) | 0.905 (22.98mm) | PC Pins | 1.169 (29.70mm) | General Purpose | - |
|
MKP383439100JKI2B0CAP FILM 0.39UF 5% 1KVDC RADIAL |
3,645 | 3.38 |
RFQ |
Datasheet |
Radial | Bulk | MKP383 | Active | 0.39 µF | ±5% | 350V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240 L x 0.709 W (31.50mm x 18.00mm) | 1.102 (28.00mm) | PC Pins | 1.083 (27.50mm) | High Pulse, DV/DT | - |
|
|
MKP383439100JKM2T0CAP FILM 0.39UF 5% 1KVDC RADIAL |
2,094 | 3.38 |
RFQ |
Datasheet |
Radial | Tray | MKP383 | Active | 0.39 µF | ±5% | 350V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240 L x 0.709 W (31.50mm x 18.00mm) | 1.102 (28.00mm) | PC Pins | 1.083 (27.50mm) | High Pulse, DV/DT | - |
|
|
MKP383439100JKP2T0CAP FILM 0.39UF 5% 1KVDC RADIAL |
3,535 | 3.38 |
RFQ |
Datasheet |
Radial | Tray | MKP383 | Active | 0.39 µF | ±5% | 350V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240 L x 0.709 W (31.50mm x 18.00mm) | 1.102 (28.00mm) | PC Pins | 1.083 (27.50mm) | High Pulse, DV/DT | - |
 Series Straight 23x16.jpg)
|
ECW-F2565HACAP FILM 5.6UF 3% 250VDC RADIAL |
3,394 | 3.38 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(A) | Active | 5.6 µF | ±3% | - | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.937 L x 0.638 W (23.80mm x 16.20mm) | 0.921 (23.40mm) | PC Pins | 0.787 (20.00mm) | High Frequency, Switching | - |

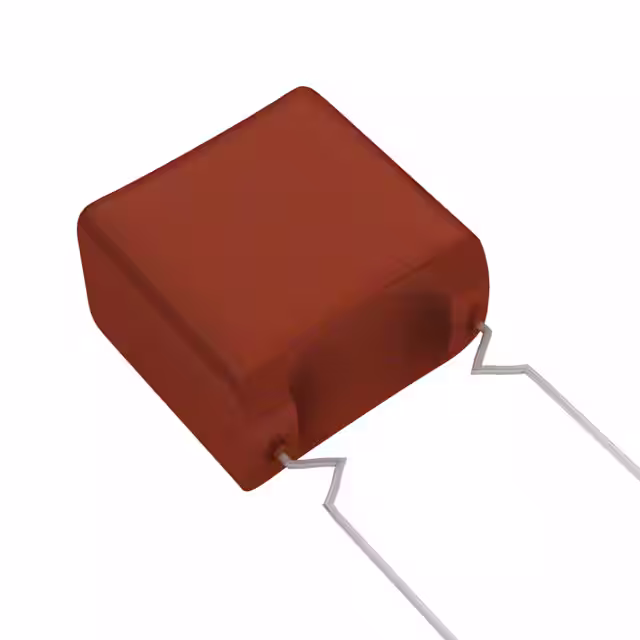

 Series Style D 23x16.jpg)
|
ECW-F2565HAQCAP FILM 5.6UF 3% 250VDC RADIAL |
2,364 | 3.38 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(A) | Active | 5.6 µF | ±3% | - | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.937 L x 0.638 W (23.80mm x 16.20mm) | 1.197 (30.40mm) | PC Pins | 0.787 (20.00mm) | High Frequency, Switching | - |

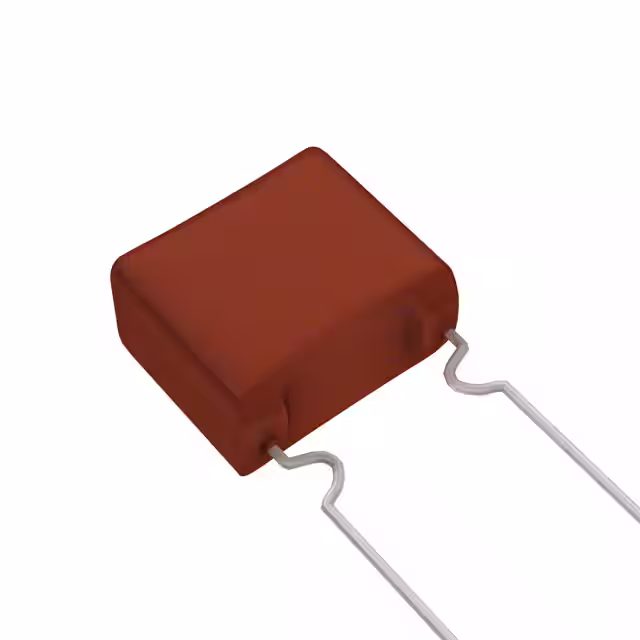

 Series Style B 23x14.jpg)
|
ECW-F2565HABCAP FILM 5.6UF 3% 250VDC RADIAL |
3,636 | 3.38 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(A) | Active | 5.6 µF | ±3% | - | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.937 L x 0.638 W (23.80mm x 16.20mm) | 1.118 (28.40mm) | PC Pins | 0.492 (12.50mm) | High Frequency, Switching | - |
|
|
BFC247935684CAP FILM 0.68UF 5% 160VDC RADIAL |
3,091 | 3.38 |
RFQ |
Datasheet |
Radial | Tape & Reel (TR) | MKP479 | Active | 0.68 µF | ±5% | 100V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.728 L x 0.354 W (18.50mm x 9.00mm) | 0.630 (16.00mm) | PC Pins | 0.591 (15.00mm) | High Pulse, DV/DT | - |
|
|
BFC237590513CAP FILM 0.02UF 5% 2KVDC RADIAL |
2,545 | 3.38 |
RFQ |
Datasheet |
Radial | Bulk | KP/MKP 375 | Active | 0.02 µF | ±5% | 600V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.181 L x 0.492 W (30.00mm x 12.50mm) | 1.122 (28.50mm) | PC Pins | 1.083 (27.50mm) | High Pulse, DV/DT | - |
|
|
BFC238321274CAP FILM 0.27UF 5% 630VDC RADIAL |
3,453 | 3.38 |
RFQ |
Datasheet |
Radial | Bulk | MMKP383 | Active | 0.27 µF | ±5% | 220V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024 L x 0.394 W (26.00mm x 10.00mm) | 0.768 (19.50mm) | PC Pins | 0.886 (22.50mm) | High Pulse, DV/DT | - |
|
|
BFC238324274CAP FILM 0.27UF 5% 630VDC RADIAL |
3,630 | 3.38 |
RFQ |
Datasheet |
Radial | Bulk | MMKP383 | Active | 0.27 µF | ±5% | 220V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024 L x 0.394 W (26.00mm x 10.00mm) | 0.768 (19.50mm) | PC Pins | 0.886 (22.50mm) | High Pulse, DV/DT | - |
|
|
BFC238334753CAP FILM 0.075UF 5% 1KVDC RADIAL |
3,791 | 3.38 |
RFQ |
Datasheet |
Radial | Bulk | MMKP383 | Active | 0.075 µF | ±5% | 350V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024 L x 0.335 W (26.00mm x 8.50mm) | 0.709 (18.00mm) | PC Pins | 0.886 (22.50mm) | High Pulse, DV/DT | - |
|
|
BFC238331753CAP FILM 0.075UF 5% 1KVDC RADIAL |
2,066 | 3.38 |
RFQ |
Datasheet |
Radial | Bulk | MMKP383 | Active | 0.075 µF | ±5% | 350V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024 L x 0.335 W (26.00mm x 8.50mm) | 0.709 (18.00mm) | PC Pins | 0.886 (22.50mm) | High Pulse, DV/DT | - |
|
|
QAK2E475JTPCAP FILM 4.7UF 5% 250VDC AXIAL |
2,958 | 3.38 |
RFQ |
Datasheet |
Axial | Bulk | QAK | Active | 4.7 µF | ±5% | - | 250V | Polyester, Metallized | - | -40°C ~ 85°C | Through Hole | 0.846 W, 0.472 T x 1.378 L (21.50mm, 12.00mm x 35.00mm) | - | PC Pins | - | General Purpose | - |
|
|
BFC237345185CAP FILM 1.8UF 10% 250VDC RADIAL |
2,590 | 3.39 |
RFQ |
Datasheet |
Radial | Tape & Reel (TR) | MKT373 | Active | 1.8 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.024 L x 0.394 W (26.00mm x 10.00mm) | 0.728 (18.50mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - |
|
MKP1839482084HQCAP FILM 0.82UF 5% 850VDC AXIAL |
2,077 | 3.39 |
RFQ |
Datasheet |
Axial | Bulk | MKP1839 HQ | Active | 0.82 µF | ±5% | 400V | 850V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.709 Dia x 1.240 L (18.00mm x 31.50mm) | - | PC Pins | - | High Pulse, DV/DT | - |
|
|
BFC238370113CAP FILM 0.011UF 5% 2.5KVDC RAD |
2,616 | 3.39 |
RFQ |
Datasheet |
Radial | Bulk | MMKP383 | Active | 0.011 µF | ±5% | 900V | 2500V (2.5kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024 L x 0.335 W (26.00mm x 8.50mm) | 0.709 (18.00mm) | PC Pins | 0.886 (22.50mm) | High Pulse, DV/DT | - |
