Categories
Film Capacitors(65535)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B32676E1205K000CAP FILM 2UF 10% 750VDC RADIAL |
3,581 | 2.21 |
RFQ |
Datasheet |
Radial | Bulk | B3267* - MKP DC-Link High Power | Active | 2 µF | ±10% | - | 750V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.654 L x 0.551 W (42.00mm x 14.00mm) | 0.984 (25.00mm) | PC Pins | 1.476 (37.50mm) | DC Link, DC Filtering | - |
|
ECW-FG70305JACAP FILM 3.0UF 700VDC RADIAL |
3,269 | 2.21 |
RFQ |
Datasheet |
Radial | Bulk | ECWFG | Active | 3 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240 L x 0.531 W (31.50mm x 13.50mm) | 1.142 (29.00mm) | PC Pins | 1.083 (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 |
|
BFC238300304CAP FILM 0.3UF 5% 250VDC RADIAL |
3,603 | 2.21 |
RFQ |
Datasheet |
Radial | Bulk | MMKP383 | Active | 0.3 µF | ±5% | 125V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.689 L x 0.335 W (17.50mm x 8.50mm) | 0.591 (15.00mm) | PC Pins | 0.591 (15.00mm) | High Pulse, DV/DT | - |
|
BFC238301304CAP FILM 0.3UF 5% 250VDC RADIAL |
2,205 | 2.21 |
RFQ |
Datasheet |
Radial | Bulk | MMKP383 | Active | 0.3 µF | ±5% | 125V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.689 L x 0.335 W (17.50mm x 8.50mm) | 0.591 (15.00mm) | PC Pins | 0.591 (15.00mm) | High Pulse, DV/DT | - |
|

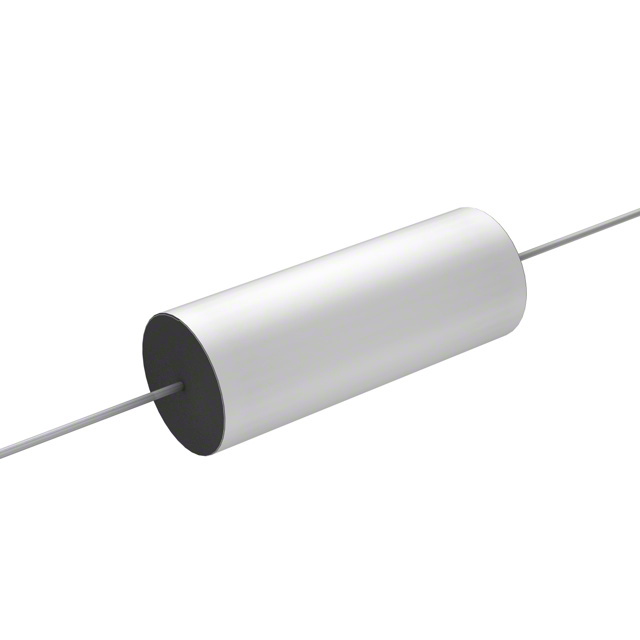

WMF05P47K-FCAP FILM 0.47UF 10% 50VDC AXIAL |
2,216 | 2.21 |
RFQ |
Datasheet |
Axial | Bulk | WMF | Active | 0.47 µF | ±10% | 35V | 50V | Polyester | - | -55°C ~ 125°C | Through Hole | 0.406 Dia x 1.063 L (10.30mm x 27.00mm) | - | PC Pins | - | General Purpose | - |
|
|
BFC237862473CAP FILM 0.047UF 5% 630VDC RAD |
2,467 | 2.21 |
RFQ |
Datasheet |
Radial | Bulk | MKP/MKP378 | Active | 0.047 µF | ±5% | 300V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.689 L x 0.236 W (17.50mm x 6.00mm) | 0.472 (12.00mm) | PC Pins | 0.591 (15.00mm) | High Pulse, DV/DT | - |
|
|
730P334X9100CAP FILM 0.33UF 10% 100VDC AXIAL |
3,685 | 2.21 |
RFQ |
Datasheet |
Axial | Bulk | 730P | Active | 0.33 µF | ±10% | - | 100V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.323 Dia x 0.748 L (8.20mm x 19.00mm) | - | PC Pins | - | High Frequency, Switching | - |
|
|
F339MX246831MII2B0CAP FILM 0.68UF 20% 630VDC RAD |
3,025 | 2.21 |
RFQ |
Datasheet |
Radial | Bulk | F339M | Active | 0.68 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.024 L x 0.335 W (26.00mm x 8.50mm) | 0.709 (18.00mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression | X2 |
|
|
MKP1840410634CAP FILM 0.1UF 5% RADIAL |
2,072 | 2.21 |
RFQ |
Datasheet |
Radial | Bulk | MKP1840 | Active | 0.1 µF | ±5% | - | - | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.689 L x 0.236 W (17.50mm x 6.00mm) | 0.472 (12.00mm) | PC Pins | 0.591 (15.00mm) | DC Link, DC Filtering; High Pulse, DV/DT | - |
|
PHC1604220KJFILM CAP CYLINDRICAL AXIAL |
3,283 | 2.21 |
RFQ |
Datasheet |
Axial | Bulk | PHC | Active | 2.2 µF | ±10% | 330V | 600V | Polypropylene (PP), Metallized | 3.8 mOhms | -40°C ~ 85°C | Through Hole | 0.866 Dia x 1.260 L (22.00mm x 32.00mm) | - | PC Pins | - | High Frequency, Switching | - |
|
MABA014180KHSFILM CAP BOXED RADIAL |
2,200 | 2.21 |
RFQ |
Datasheet |
Radial | Bulk | MAB | Active | 1.8 µF | ±10% | 400V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 100°C | Through Hole | 1.260 L x 0.709 W (32.00mm x 18.00mm) | 1.299 (33.00mm) | PC Pins | 1.083 (27.50mm) | Motor Run | - |
|
|
MABA014180KHLFILM CAP BOXED RADIAL |
3,151 | 2.21 |
RFQ |
Datasheet |
Radial | Bulk | MAB | Active | 1.8 µF | ±10% | 400V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 100°C | Through Hole | 1.260 L x 0.709 W (32.00mm x 18.00mm) | 1.299 (33.00mm) | PC Pins | 1.083 (27.50mm) | Motor Run | - |
|
|
PHC1334330KJFILM CAP CYLINDRICAL AXIAL |
3,155 | 2.21 |
RFQ |
Datasheet |
Axial | Bulk | PHC | Active | 3.3 µF | ±10% | 220V | 330V | Polypropylene (PP), Metallized | 4.3 mOhms | -40°C ~ 85°C | Through Hole | 0.669 Dia x 1.260 L (17.00mm x 32.00mm) | - | PC Pins | - | High Frequency, Switching | - |
|
|
CB182I0334KBCCAP FILM |
2,324 | 2.21 |
RFQ |
- | Tape & Reel (TR) | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
B32523Q106KCAP FILM 10UF 10% 63VDC RADIAL |
2,153 | 2.21 |
RFQ |
Datasheet |
Radial | Bulk | B3252* - MKT General Purpose | Not For New Designs | 10 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | - | - | PC Pins | 0.886 (22.50mm) | Automotive; EMI, RFI Suppression | - |
|
|
BFC237521273CAP FILM 0.027UF 3.5% 1KVDC RAD |
3,794 | 2.21 |
RFQ |
Datasheet |
Radial | Bulk | KP/MKP 375 | Active | 0.027 µF | ±3.5% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024 L x 0.295 W (26.00mm x 7.50mm) | 0.807 (20.50mm) | PC Pins | 0.394 (10.00mm) | High Pulse, DV/DT | - |
|
|
BFC237525273CAP FILM 0.027UF 3.5% 1KVDC RAD |
2,509 | 2.21 |
RFQ |
Datasheet |
Radial | Bulk | KP/MKP 375 | Active | 0.027 µF | ±3.5% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024 L x 0.295 W (26.00mm x 7.50mm) | 0.807 (20.50mm) | PC Pins | 0.394 (10.00mm) | High Pulse, DV/DT | - |
|
|
MKP385418125JKI2B0CAP FILM 0.18UF 5% 1.25KVDC RAD |
3,162 | 2.21 |
RFQ |
Datasheet |
Radial | Bulk | MKP385 | Active | 0.18 µF | ±5% | 450V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220 L x 0.433 W (31.00mm x 11.00mm) | 0.827 (21.00mm) | PC Pins | 1.083 (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - |
|
F340Y241830JKI2B0CAP FILM 0.18UF 5% 1KVDC RAD |
2,284 | 2.21 |
RFQ |
Datasheet |
Radial | Bulk | F340Y2 | Active | 0.18 µF | ±5% | 305V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220 L x 0.433 W (31.00mm x 11.00mm) | 0.831 (21.10mm) | PC Pins | 1.083 (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y2 |
|
|
MKP385418125JKM2T0CAP FILM 0.18UF 5% 1.25KVDC RAD |
3,935 | 2.21 |
RFQ |
Datasheet |
Radial | Tray | MKP385 | Active | 0.18 µF | ±5% | 450V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220 L x 0.433 W (31.00mm x 11.00mm) | 0.827 (21.00mm) | PC Pins | 1.083 (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - |
