Film Capacitors(65535)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MKP383275250JIM2T0CAP FILM 7500PF 5% 2.5KVDC RAD |
2,865 | 1.35 |
RFQ |
Datasheet |
Radial | Tray | MKP383 | Active | 7500 pF | ±5% | 900V | 2500V (2.5kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024 L x 0.276 W (26.00mm x 7.00mm) | 0.650 (16.50mm) | PC Pins | 0.886 (22.50mm) | High Pulse, DV/DT | - |
|
|
MKP383275250JIP2T0CAP FILM 7500PF 5% 2.5KVDC RAD |
2,516 | 1.35 |
RFQ |
Datasheet |
Radial | Tray | MKP383 | Active | 7500 pF | ±5% | 900V | 2500V (2.5kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024 L x 0.276 W (26.00mm x 7.00mm) | 0.650 (16.50mm) | PC Pins | 0.886 (22.50mm) | High Pulse, DV/DT | - |
|
|
MKP383427040JIM2T0CAP FILM 0.27UF 5% 400VDC RADIAL |
3,988 | 1.35 |
RFQ |
Datasheet |
Radial | Tray | MKP383 | Active | 0.27 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024 L x 0.335 W (26.00mm x 8.50mm) | 0.709 (18.00mm) | PC Pins | 0.886 (22.50mm) | High Pulse, DV/DT | - |
|
|
MKP383427040JIP2T0CAP FILM 0.27UF 5% 400VDC RADIAL |
2,391 | 1.35 |
RFQ |
Datasheet |
Radial | Tray | MKP383 | Active | 0.27 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024 L x 0.335 W (26.00mm x 8.50mm) | 0.709 (18.00mm) | PC Pins | 0.886 (22.50mm) | High Pulse, DV/DT | - |
|
B32913B5334K000CAP FILM 0.33UF 10% 1KVDC RADIAL |
3,990 | 1.35 |
RFQ |
Datasheet |
Radial | Bulk | B3291*A/B3 - X1 Standard | Active | 0.33 µF | ±10% | 530V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043 L x 0.472 W (26.50mm x 12.00mm) | 0.866 (22.00mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression | X1 |
|
|
B32913B5334M000CAP FILM 0.33UF 20% 530VAC RAD |
2,776 | 1.35 |
RFQ |
Datasheet |
Radial | Bulk | B3291*A/B3 - X1 Standard | Active | 0.33 µF | ±20% | 530V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043 L x 0.472 W (26.50mm x 12.00mm) | 0.866 (22.00mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression | X1 |
|
F339X141548MKI2B0CAP FILM 0.15UF 20% 1KVDC RADIAL |
3,912 | 1.35 |
RFQ |
Datasheet |
Radial | Bulk | F339X1 | Active | 0.15 µF | ±20% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240 L x 0.354 W (31.50mm x 9.00mm) | 0.748 (19.00mm) | PC Pins | 1.083 (27.50mm) | EMI, RFI Suppression | X1 |
|
|
F339X141548MKM2T0CAP FILM 0.15UF 20% 1KVDC RADIAL |
3,231 | 1.35 |
RFQ |
Datasheet |
Radial | Tray | F339X1 | Active | 0.15 µF | ±20% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240 L x 0.354 W (31.50mm x 9.00mm) | 0.748 (19.00mm) | PC Pins | 1.083 (27.50mm) | EMI, RFI Suppression | X1 |
|
150224K630LECAP FILM 0.22UF 10% 630VDC AXIAL |
2,418 | 1.35 |
RFQ |
Datasheet |
Axial | Bulk | 150 | Active | 0.22 µF | ±10% | 220V | 630V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.453 Dia x 1.102 L (11.50mm x 28.00mm) | - | PC Pins | - | General Purpose | - |
|

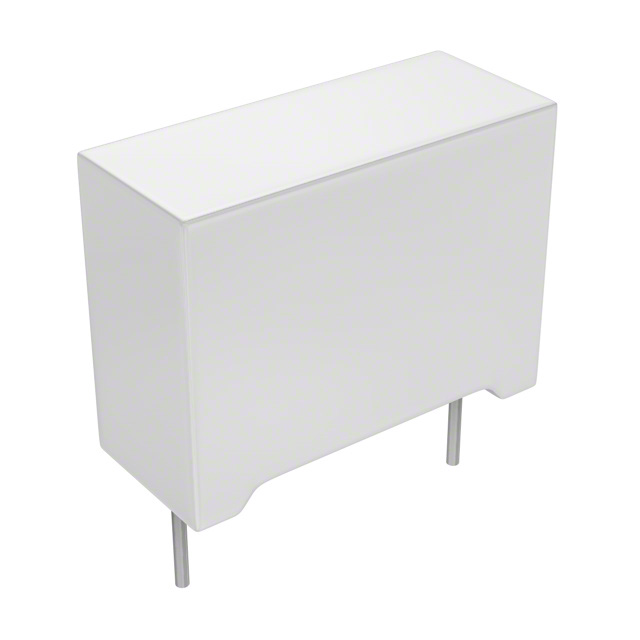

171474J160H-FCAP FILM 0.47UF 5% 160VDC RADIAL |
2,398 | 1.35 |
RFQ |
Datasheet |
Radial | Bulk | 171 | Active | 0.47 µF | ±5% | 90V | 160V | Polypropylene (PP), Metallized | 37 mOhms | -55°C ~ 105°C | Through Hole | 0.709 L x 0.295 W (18.00mm x 7.50mm) | 0.532 (13.50mm) | PC Pins | 0.591 (15.00mm) | High Pulse, DV/DT | - |
|
BFC241911004CAP FILM 0.1UF 2% 400VDC RADIAL |
2,737 | 1.35 |
RFQ |
Datasheet |
Radial | Tape & Reel (TR) | MKP419 | Active | 0.1 µF | ±2% | 125V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.689 L x 0.236 W (17.50mm x 6.00mm) | 0.472 (12.00mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
|
|
BFC242015102CAP FILM 5100PF 2% 630VDC RADIAL |
2,489 | 1.35 |
RFQ |
Datasheet |
Radial | Tape & Box (TB) | MKP420 | Active | 5100 pF | ±2% | 160V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.283 L x 0.236 W (7.20mm x 6.00mm) | 0.433 (11.00mm) | PC Pins | 0.197 (5.00mm) | High Frequency, Switching | - |
|
|
BFC242015602CAP FILM 5600PF 2% 630VDC RADIAL |
2,237 | 1.35 |
RFQ |
Datasheet |
Radial | Tape & Box (TB) | MKP420 | Active | 5600 pF | ±2% | 160V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.283 L x 0.236 W (7.20mm x 6.00mm) | 0.433 (11.00mm) | PC Pins | 0.197 (5.00mm) | High Frequency, Switching | - |
|
|
BFC237347474CAP FILM 0.47UF 10% 250VDC RAD |
3,716 | 1.35 |
RFQ |
Datasheet |
Radial | Tape & Reel (TR) | MKT373 | Active | 0.47 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.689 L x 0.236 W (17.50mm x 6.00mm) | 0.728 (18.50mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - |
|
|
BFC237355184CAP FILM 0.18UF 10% 400VDC RAD |
3,870 | 1.35 |
RFQ |
Datasheet |
Radial | Tape & Reel (TR) | MKT373 | Active | 0.18 µF | ±10% | 220V | 400V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.689 L x 0.276 W (17.50mm x 7.00mm) | 0.728 (18.50mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - |
|
|
BFC237357224CAP FILM 0.22UF 10% 400VDC RAD |
2,202 | 1.35 |
RFQ |
Datasheet |
Radial | Tape & Reel (TR) | MKT373 | Active | 0.22 µF | ±10% | 220V | 400V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.689 L x 0.236 W (17.50mm x 6.00mm) | 0.728 (18.50mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - |
|
|
BFC238550562CAP FILM 5600PF 5% 1.6KVDC RAD |
3,400 | 1.35 |
RFQ |
Datasheet |
Radial | Bulk | MKP385 | Active | 5600 pF | ±5% | 550V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.492 L x 0.236 W (12.50mm x 6.00mm) | 0.472 (12.00mm) | PC Pins | 0.394 (10.00mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - |
|
BFC233913334CAP FILM 0.33UF 10% 630VDC RAD |
2,396 | 1.35 |
RFQ |
Datasheet |
Radial | Bulk | MKP339 | Active | 0.33 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.024 L x 0.236 W (26.00mm x 6.00mm) | 0.610 (15.50mm) | PC Pins | 0.591 (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 |
|
|
BFC233915334CAP FILM 0.33UF 10% 630VDC RAD |
3,778 | 1.35 |
RFQ |
Datasheet |
Radial | Bulk | MKP339 | Active | 0.33 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.024 L x 0.236 W (26.00mm x 6.00mm) | 0.610 (15.50mm) | PC Pins | 0.591 (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 |
|
|
BFC236911564CAP FILM 0.56UF 10% 63VDC RADIAL |
3,701 | 1.35 |
RFQ |
Datasheet |
Radial | Bulk | MKT369 | Active | 0.56 µF | ±10% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.492 L x 0.185 W (12.50mm x 4.70mm) | 0.386 (9.80mm) | PC Pins | 0.394 (10.00mm) | General Purpose | - |
