Film Capacitors(65535)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECW-U2334KCVCAP FILM 0.33UF 10% 250VDC 3925 |
11,242 | 3.87 |
RFQ |
Datasheet |
3925 (9863 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(C) | Active | 0.33 µF | ±10% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.386 L x 0.248 W (9.80mm x 6.30mm) | 0.197 (5.00mm) | Solder Pads | - | General Purpose | - |
|

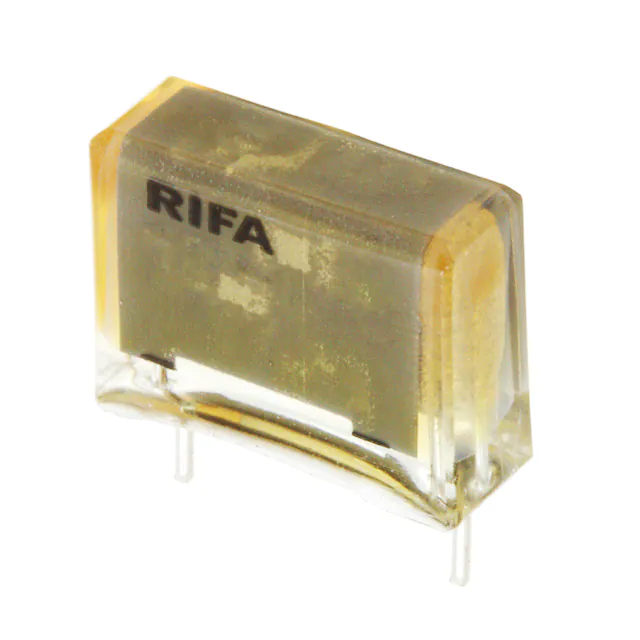

PME271Y447MR04CAP FILM 4700PF 20% 1KVDC RADIAL |
3,228 | 1.70 |
RFQ |
Datasheet |
Radial | Bulk | PME271Y | Active | 4700 pF | ±20% | 250V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 100°C | Through Hole | 0.531 L x 0.197 W (13.50mm x 5.00mm) | 0.413 (10.50mm) | PC Pins | 0.402 (10.20mm) | EMI, RFI Suppression | Y2 |
|
MKP1G034705G00MSSDCAP FILM 0.47UF 20% 400VDC RAD |
2,655 | 1.70 |
RFQ |
Datasheet |
Radial | Bulk | - | Active | 0.47 µF | ±20% | 250V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.043 L x 0.413 W (26.50mm x 10.50mm) | 0.748 (19.00mm) | PC Pins | 0.886 (22.50mm) | High Pulse, DV/DT | - |
|
PME271M422MR30CAP FILM 2200PF 20% 275VAC RAD |
6,034 | 1.71 |
RFQ |
Datasheet |
Radial | Bulk | PME271M | Active | 2200 pF | ±20% | 275V | - | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 0.531 L x 0.154 W (13.50mm x 3.90mm) | 0.295 (7.50mm) | PC Pins | 0.402 (10.20mm) | EMI, RFI Suppression | X2 |
|
BFC233920683CAP FILM 0.068UF 20% 630VDC RAD |
9,842 | 1.73 |
RFQ |
Datasheet |
Radial | Bulk | MKP339 | Active | 0.068 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.394 L x 0.236 W (10.00mm x 6.00mm) | 0.453 (11.50mm) | PC Pins | 0.295 (7.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 |
|
R60EI4220AA30KCAP FILM 2.2UF 10% 100VDC RAD |
1,221 | 1.73 |
RFQ |
Datasheet |
Radial | Bulk | R60 | Active | 2.2 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709 L x 0.335 W (18.00mm x 8.50mm) | 0.575 (14.60mm) | PC Pins | 0.591 (15.00mm) | Automotive | AEC-Q200 |
|
MKP1U024706B00MSSDCAP FILM 0.047UF 20% 2KVDC RAD |
1,105 | 1.74 |
RFQ |
Datasheet |
Radial | Bulk | - | Active | 0.047 µF | ±20% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240 L x 0.433 W (31.50mm x 11.00mm) | 0.827 (21.00mm) | PC Pins | 1.083 (27.50mm) | High Pulse, DV/DT | - |
|
B32562J1225K000CAP FILM 2.2UF 10% 100VDC 2DIP |
22,267 | 1.75 |
RFQ |
Datasheet |
2-DIP | Bulk | B3256* - MKT SilverCap™ | Not For New Designs | 2.2 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | - | 0.315 (8.00mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - |
|

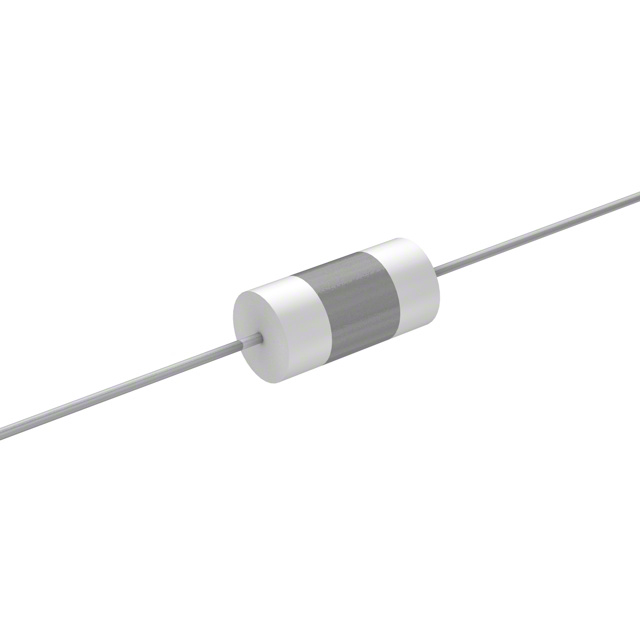

150332J630BBCAP FILM 3300PF 5% 630VDC AXIAL |
3,097 | 1.75 |
RFQ |
Datasheet |
Axial | Bulk | 150 | Active | 3300 pF | ±5% | 220V | 630V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.236 Dia x 0.650 L (6.00mm x 16.50mm) | - | PC Pins | - | General Purpose | - |
|
BFC238330153CAP FILM 0.015UF 5% 1KVDC RADIAL |
1,303 | 1.76 |
RFQ |
Datasheet |
Radial | Bulk | MMKP383 | Active | 0.015 µF | ±5% | 350V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.689 L x 0.197 W (17.50mm x 5.00mm) | 0.433 (11.00mm) | PC Pins | 0.591 (15.00mm) | High Pulse, DV/DT | - |
|
168104J100H-FCAP FILM 0.1UF 5% 100VDC RADIAL |
9,881 | 1.77 |
RFQ |
Datasheet |
Radial | Bulk | 168 | Active | 0.1 µF | ±5% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.283 L x 0.098 W (7.20mm x 2.50mm) | 0.256 (6.50mm) | PC Pins | 0.197 (5.00mm) | General Purpose | - |
|
MKX2AW41005I00KSSDCAP FILM 1UF 10% 305VAC RADIAL |
3,362 | 1.77 |
RFQ |
Datasheet |
Radial | Bulk | - | Active | 1 µF | ±10% | 305V | - | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043 L x 0.433 W (26.50mm x 11.00mm) | 0.827 (21.00mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression | X2 |
|
150123K400BBCAP FILM 0.012UF 400VDC AXIAL |
2,995 | 1.77 |
RFQ |
Datasheet |
Axial | Bulk | 150 | Active | 0.012 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.236 Dia x 0.650 L (6.00mm x 16.50mm) | - | PC Pins | - | General Purpose | - |
|

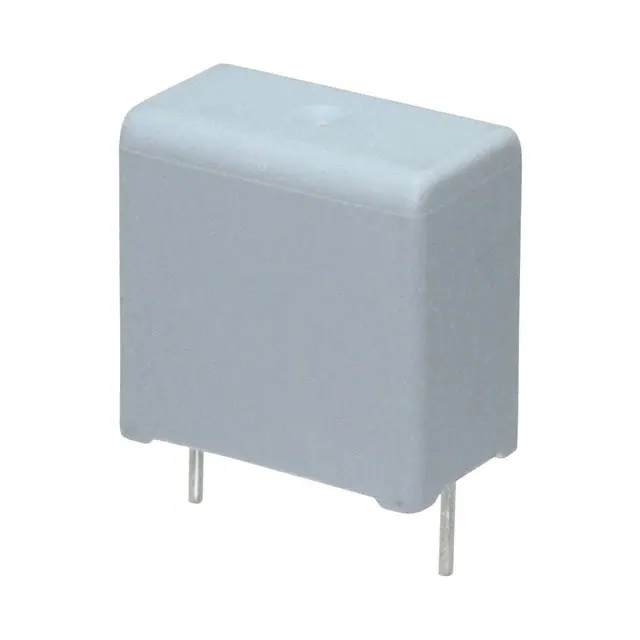

F339X246830MIM2T0CAP FILM 0.68UF 20% 630VDC RAD |
1,376 | 1.77 |
RFQ |
Datasheet |
Radial | Tray | F339X2 | Active | 0.68 µF | ±20% | 305V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024 L x 0.472 W (26.00mm x 12.00mm) | 0.866 (22.00mm) | PC Pins | 0.886 (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 |
|
|

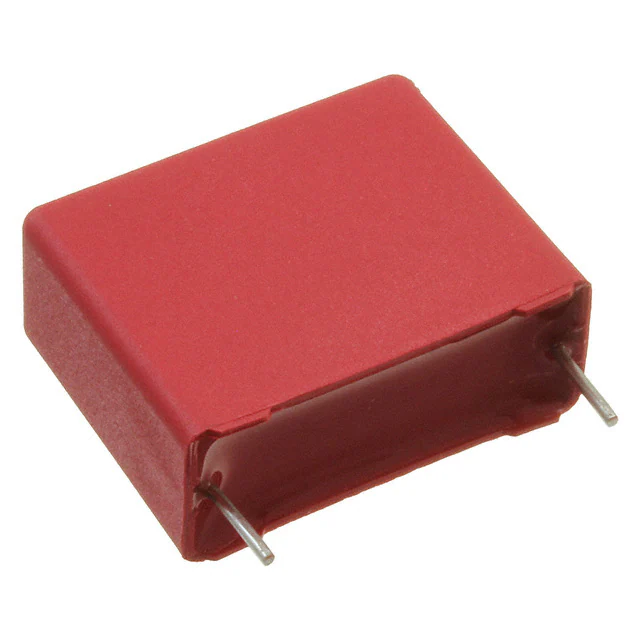

MKS4O132205G00MSSDCAP FILM 0.22UF 20% 1KVDC RAD |
3,460 | 1.79 |
RFQ |
Datasheet |
Radial | Bulk | - | Active | 0.22 µF | ±20% | 400V | 1000V (1kV) | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.043 L x 0.413 W (26.50mm x 10.50mm) | 0.748 (19.00mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - |
|
R76UN22204040JCAP FILM 0.022UF 5% 2KVDC RADIAL |
1,437 | 1.79 |
RFQ |
Datasheet |
Radial | Bulk | R76 | Active | 0.022 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.043 L x 0.276 W (26.50mm x 7.00mm) | 0.634 (16.10mm) | PC Pins | 0.886 (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 |
|
|
MKS4O132205G00KSSDCAP FILM 0.22UF 10% 1KVDC RAD |
1,267 | 1.79 |
RFQ |
Datasheet |
Radial | Bulk | - | Active | 0.22 µF | ±10% | 400V | 1000V (1kV) | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.043 L x 0.413 W (26.50mm x 10.50mm) | 0.748 (19.00mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - |
|

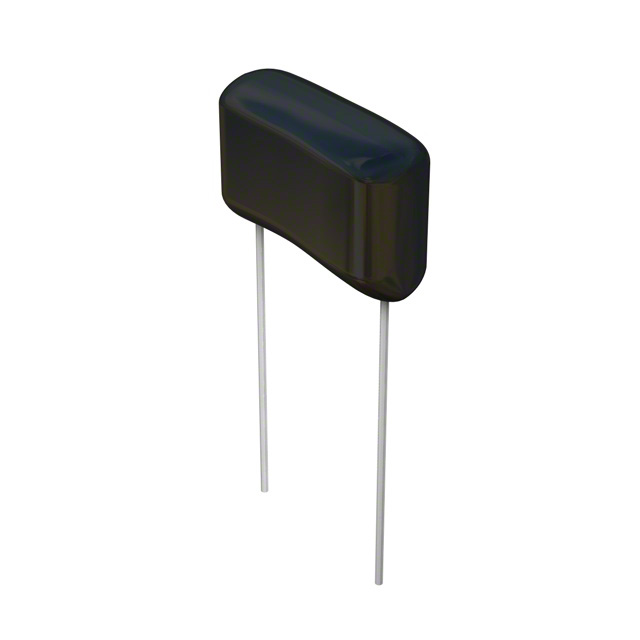

DME2P68K-FCAP FILM 0.68UF 10% 250VDC RAD |
1,190 | 1.79 |
RFQ |
Datasheet |
Radial | Bulk | DME | Active | 0.68 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.728 L x 0.256 W (18.50mm x 6.50mm) | 0.591 (15.00mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - |
|
684MKP275KCAP FILM 0.68UF 10% 310VAC RAD |
8,081 | 1.80 |
RFQ |
Datasheet |
Radial | Bulk | MKP | Active | 0.68 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.220 L x 0.256 W (31.00mm x 6.50mm) | 0.622 (15.80mm) | PC Pins | 1.083 (27.50mm) | EMI, RFI Suppression | X2 |
|
|
DME2P56K-FCAP FILM 0.56UF 10% 250VDC RAD |
2,959 | 1.80 |
RFQ |
Datasheet |
Radial | Bulk | DME | Active | 0.56 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.728 L x 0.236 W (18.50mm x 6.00mm) | 0.512 (13.00mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - |
