| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | CoreType | Material | Diameter | InductanceFactor(Al) | Tolerance | Gap | EffectivePermeability(µe) | InitialPermeability(µi) | CoreFactor(ΣI/A)mm-1 | EffectiveLength(le)mm | EffectiveArea(Ae)mm² | MinimumCoreCrossSection(Amin)mm² | EffectiveMagneticVolume(Ve)mm³ | Finish | Height | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B64290A0658X065FERRITE CORE TOROID 2.3UH T65 |
2,135 | 0.25 |
RFQ |
Datasheet |
Box | T14/9/5 | Active | Toroid | R 14 x 9 x 5 | T65 | 0.551 (14.00mm) | 2.3 µH | ±30% | Ungapped | - | 5200 | 2.84 | 34.98 | 12.3 | - | 430 | Uncoated | 0.197 (5.00mm) |
|
B62152A0008X001FERRITE CORE 2 HOLE 60NH K1 |
2,426 | 0.25 |
RFQ |
Datasheet |
Box | MHB2-2.5/3.6/2.1 | Active | Multi-Hole (2) | - | K1 | - | 60 nH | ±30% | Ungapped | - | 80 | 1.78 | 3.7 | 2.1 | - | 7.8 | Uncoated | 0.098 (2.50mm) |
|
|
B64290A0044X035FERRITE CORE TOROID 3.06UH T35 |
3,349 | 0.26 |
RFQ |
Datasheet |
Box | T12.5/7.5/5 | Active | Toroid | R 12.5 x 7.5 x 5 | T35 | 0.492 (12.50mm) | 3.06 µH | ±25% | Ungapped | - | 6000 | 2.46 | 30.09 | 12.23 | - | 368 | Uncoated | 0.197 (5.00mm) |
|
B64290L0742X037FERRITE CORE TOROID 3.92UH T37 |
2,065 | 0.26 |
RFQ |
Datasheet |
Box | TX12.7/7.9/7.5 | Active | Toroid | - | T37 | 0.535 (13.60mm) | 3.92 µH | ±25% | Ungapped | - | 6500 | 2.08 | 31.17 | 14.96 | - | 466 | Epoxy | 0.281 (7.15mm) |
|

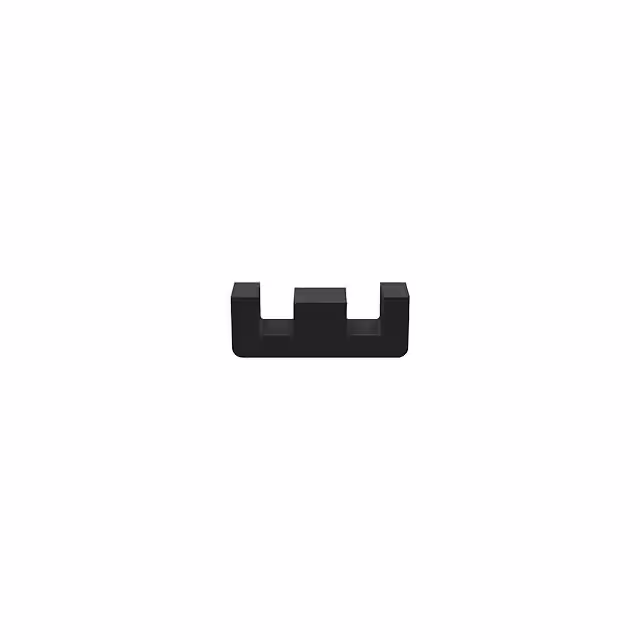

B66393G0000X127FERRITE CORE E N27 1PC |
3,444 | 0.26 |
RFQ |
Datasheet |
Box | E16/6/5 | Active | E | E 16 x 6 x 5 | N27 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.228 (5.80mm) |
|
B64290L0643X035FERRITE CORE |
2,805 | 0.26 |
RFQ |
Datasheet |
Box | TX12.5/7.5/4.1 | Active | Toroid | - | T35 | - | - | - | Gapped | - | 6000 | - | - | - | - | - | Epoxy | - |
|
|
B64290P0676X830FERRITE CORE |
2,941 | 0.26 |
RFQ |
Datasheet |
Box | TC6.3/3.8/5 | Active | Toroid | - | N30 | - | - | - | Gapped | - | 4300 | - | - | - | - | - | Parylene | - |
|
B64290L0658X065FERRITE CORE TOROID 2.3UH T65 |
2,242 | 0.26 |
RFQ |
Datasheet |
Box | TX14/9/5 | Active | Toroid | - | T65 | 0.594 (15.10mm) | 2.3 µH | ±30% | Ungapped | - | 5200 | 2.84 | 34.98 | 12.3 | - | 430 | Epoxy | 0.236 (6.00mm) |
|
B64290P0037X065FERRITE CORE TOROID 1.16UH T65 |
3,024 | 0.26 |
RFQ |
Datasheet |
Box | TC6.3/3.8/2.5 | Active | Toroid | - | T65 | 0.249 (6.32mm) | 1.16 µH | ±30% | Ungapped | - | 4600 | 4.97 | 15.21 | 3.06 | - | 46.5 | Parylene | 0.099 (2.52mm) |
|
|
B66219U0500M141FERRITE CORE |
3,186 | 0.26 |
RFQ |
Box | E14/8/4 | Active | - | - | - | - | - | - | Gapped | - | - | - | - | - | - | - | - | - | |
|
|
B66305U0160X187FERRITE CORE |
2,856 | 0.27 |
RFQ |
Box | E13/7/4 | Active | E | E 13 x 7 x 4 | N87 | - | - | - | Gapped | - | 2200 | 2.39 | 29.6 | 12.4 | 12.2 | 367 | Uncoated | 0.256 (6.50mm) | |
|
B66379G0000X127FERRITE CORE E N27 1PC |
2,725 | 0.27 |
RFQ |
Datasheet |
Box | E19/8/5 | Active | E | E 19 x 8 x 5 | N27 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.315 (8.00mm) |
|

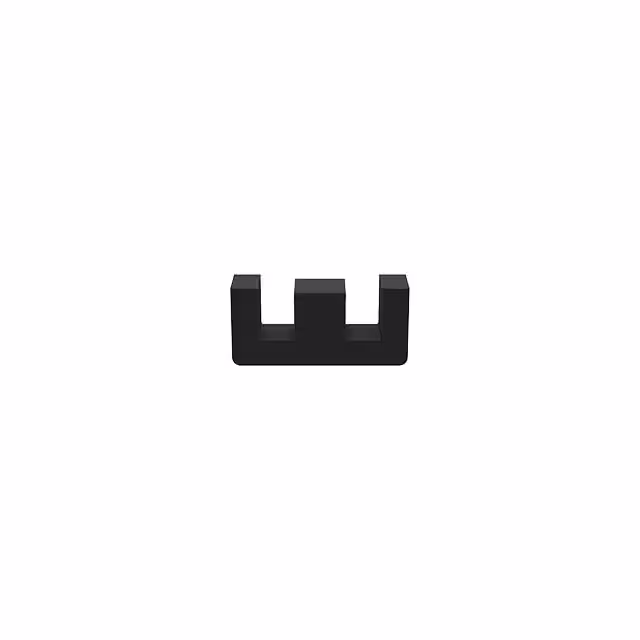

B66314G0000X127FERRITE CORE E N27 1PC |
3,104 | 0.27 |
RFQ |
Datasheet |
Box | E21/9/5 | Active | E | E 21 x 9 x 5 | N27 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.343 (8.70mm) |
|
|
B62110A2027X022FERRITE CORES |
3,892 | 0.27 |
RFQ |
Box | TUB2.82/1.15/4.4 | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
B64290L0062X038FERRITE CORE TOROID 4.41UH T38 |
2,412 | 0.27 |
RFQ |
Datasheet |
Box | TX9.5/4.8/3.2 | Active | Toroid | - | T38 | 0.413 (10.50mm) | 4.41 µH | ±30% | Ungapped | - | 10000 | 2.85 | 20.72 | 7.28 | - | 151 | Epoxy | 0.161 (4.10mm) |
|
B64290L0044X037FERRITE CORE TOROID 3.32UH T37 |
2,987 | 0.28 |
RFQ |
Datasheet |
Box | TX12.5/7.5/5 | Active | Toroid | - | T37 | 0.535 (13.60mm) | 3.32 µH | ±25% | Ungapped | - | 6500 | 2.46 | 30.09 | 12.23 | - | 368 | Epoxy | 0.234 (5.95mm) |
|
B64290L0644X035FERRITE CORE TOROID 2.83UH T35 |
2,885 | 0.28 |
RFQ |
Datasheet |
Box | TX13.3/8.3/5 | Active | Toroid | - | T35 | 0.567 (14.40mm) | 2.83 µH | ±25% | Ungapped | - | 6000 | 2.67 | 32.7 | 12.27 | - | 401 | Epoxy | 0.234 (5.95mm) |
|
|
B64290L0644X037FERRITE CORE TOROID 3.06UH T37 |
3,465 | 0.28 |
RFQ |
Datasheet |
Box | TX13.3/8.3/5 | Active | Toroid | - | T37 | 0.567 (14.40mm) | 3.06 µH | ±25% | Ungapped | - | 6500 | 2.67 | 32.7 | 12.27 | - | 401 | Epoxy | 0.234 (5.95mm) |
|
|
B62110A3069X022FERRITE CORES |
2,669 | 0.28 |
RFQ |
Box | TUB3.85/1.5/5 | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|

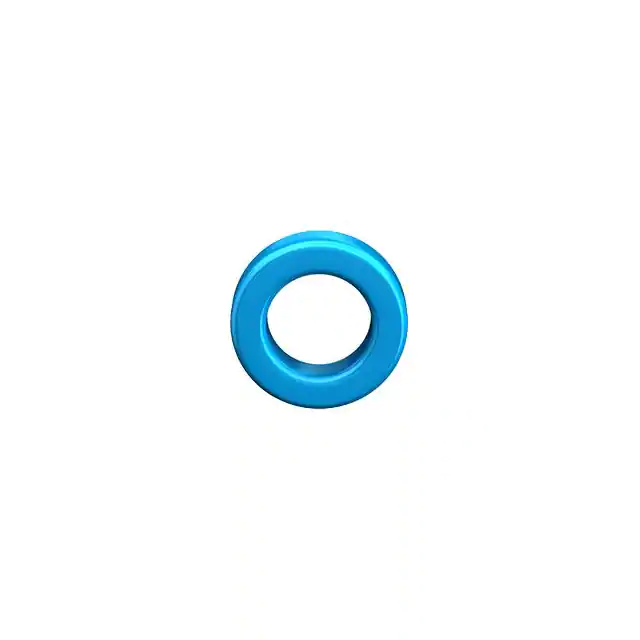

B64290L0062X035FERRITE CORE TOROID 2.65UH T35 |
2,134 | 0.29 |
RFQ |
Datasheet |
Box | TX9.5/4.8/3.2 | Active | Toroid | - | T35 | 0.413 (10.50mm) | 2.65 µH | ±25% | Ungapped | - | 6000 | 2.85 | 20.72 | 7.28 | - | 151 | Epoxy | 0.161 (4.10mm) |
