| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | CoreType | Material | Diameter | InductanceFactor(Al) | Tolerance | Gap | EffectivePermeability(µe) | InitialPermeability(µi) | CoreFactor(ΣI/A)mm-1 | EffectiveLength(le)mm | EffectiveArea(Ae)mm² | MinimumCoreCrossSection(Amin)mm² | EffectiveMagneticVolume(Ve)mm³ | Finish | Height | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

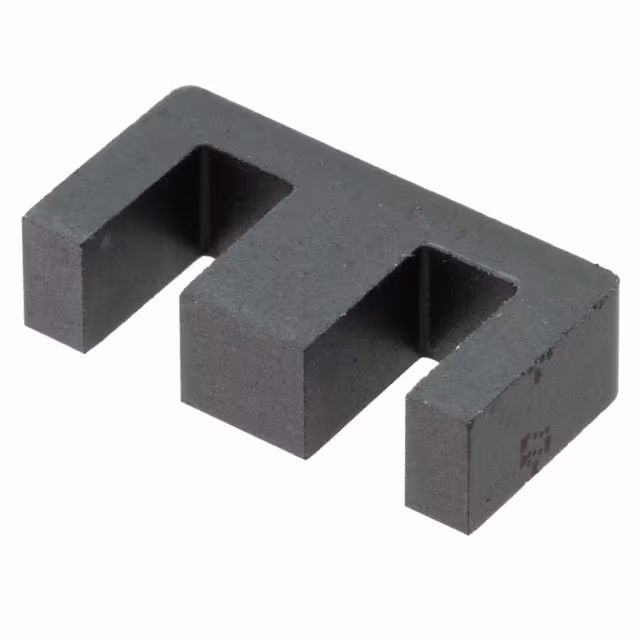

B66307G0000X127FERRITE CORE E N27 1PC |
2,616 | 0.58 |
RFQ |
Datasheet |
Box | E16/8/5 | Active | E | E 16 x 8 x 5 | N27 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.323 (8.20mm) |
|

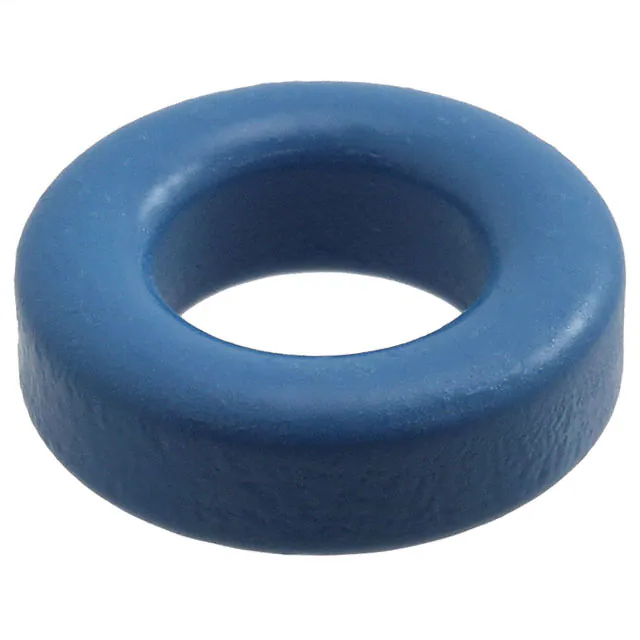

B64290L0743X087FERRITE CORE TOROID 1.19UH N87 |
3,554 | 0.71 |
RFQ |
Datasheet |
Box | TX16/9/5 | Active | Toroid | - | N87 | 0.661 (16.80mm) | 1.19 µH | ±25% | Ungapped | - | 2200 | 2.33 | 36.75 | 15.78 | - | 580 | Epoxy | 0.215 (5.45mm) |
|
B66311G0170X187FERRITE CORE E N87 1PC |
3,077 | 0.90 |
RFQ |
Datasheet |
Box | E20/10/6 | Active | E | E 20 x 10 x 6 | N87 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.394 (10.00mm) |
|
B65525J0000R049FERRITE CORE ER 800NH N49 2PCS |
100 | 2.07 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | ER11/5 | Active | ER | ER 11 x 5 | N49 | - | 800 nH | -20%, +30% | Ungapped | 715 | - | 1.1 | 14.1 | 12.4 | - | 174 | Uncoated | 0.098 (2.50mm) |
|
B66317G0100X127FERRITE CORE E N27 1PC |
2,022 | 0.92 |
RFQ |
Datasheet |
Box | E25/13/7 | Active | E | E 25 x 13 x 7 | N27 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.504 (12.80mm) |
|

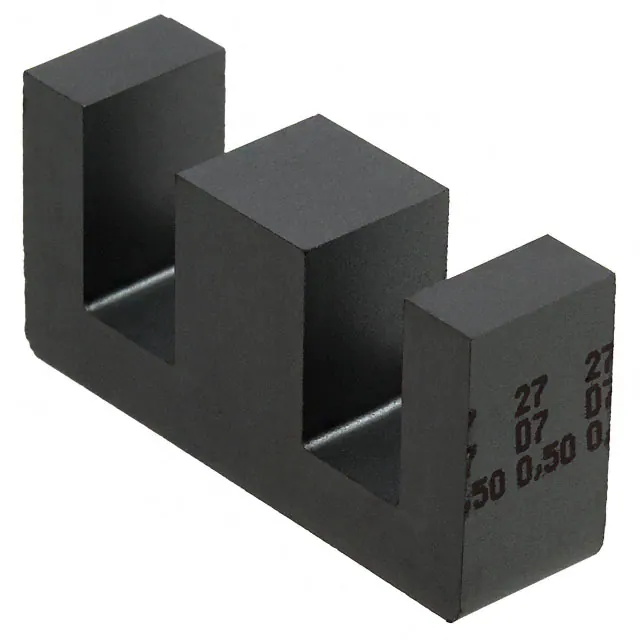

B66317G0500X127FERRITE CORE E N27 1PC |
2,891 | 0.92 |
RFQ |
Datasheet |
Box | E25/13/7 | Active | E | E 25 x 13 x 7 | N27 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.504 (12.80mm) |
|
B65807J0160A048FERRITE CORE RM 160NH N48 2PCS |
2,203 | 2.95 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | RM6 | Active | RM | RM 6 | N48 | - | 160 nH | ±3% | Gapped | 109 | - | 0.78 | 28.6 | 36.6 | 31 | 1050 | Uncoated | 0.246 (6.25mm) |
|
B66421U0250K187FERRITE CORE EFD N87 1PC |
2,025 | 1.52 |
RFQ |
Datasheet |
Box | EFD25/13/9 | Active | EFD | EFD 25 x 13 x 9 | N87 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.492 (12.50mm) |
|

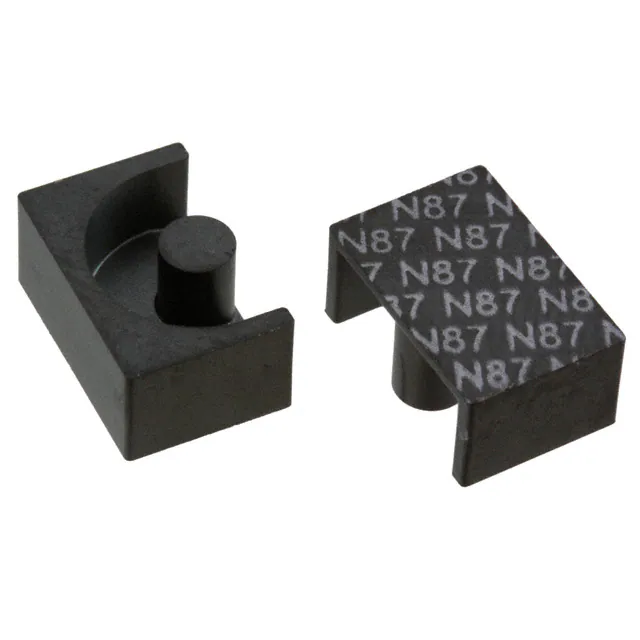

B65841A0000R087FERRITE CORE EP 1.1UH N87 2PCS |
3,420 | 1.52 |
RFQ |
Datasheet |
Box | EP10 | Active | EP | EP 10 | N87 | - | 1.1 µH | -20%, +30% | Ungapped | 1480 | 2200 | 1.7 | 19.2 | 11.3 | 8.5 | 217 | Uncoated | 0.205 (5.20mm) |
|
B66229G0500X187FERRITE CORE E N87 1PC |
3,955 | 1.74 |
RFQ |
Datasheet |
Box | E32/16/9 | Active | E | E 32 x 16 x 9 | N87 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.646 (16.40mm) |
|

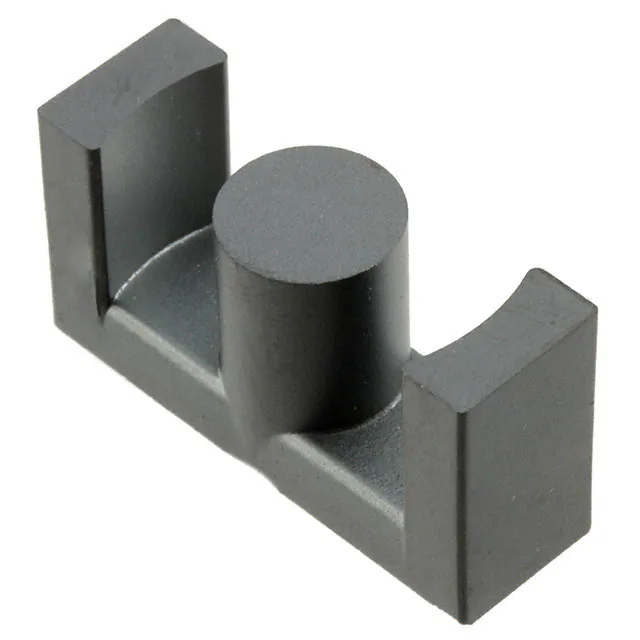

B66358G0500X187FERRITE CORE ETD N87 1PC |
3,344 | 1.79 |
RFQ |
Datasheet |
Box | ETD29/16/10 | Active | ETD | ETD 29 x 16 x 10 | N87 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.630 (16.00mm) |
|
B66285K0000X197FERRITE CORE I N97 |
3,989 | 2.14 |
RFQ |
Datasheet |
Tray | I22/2.5/16 | Active | I | I 22 x 2.5 x 16 | N97 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.098 (2.50mm) |
|
B66484G0000X197FERRITE CORE ER N97 1PC |
2,915 | 2.55 |
RFQ |
Datasheet |
Box | ER25/6/15 | Active | ER | ER 25 x 6 x 15 | N97 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.216 (5.50mm) |
|
B65531D0000R033FERRITE CORE P 780NH M33 2PCS |
2,275 | 2.76 |
RFQ |
Datasheet |
Tray | P11/7 | Active | P (Pot Core) | P 11 x 7 | M33 | 0.445 (11.30mm) | 780 nH | -20%, +30% | Ungapped | 620 | 750 | 1 | 15.9 | 15.9 | - | 253 | Uncoated | 0.130 (3.30mm) |
|
B66482G0000X149FERRITE CORE ER N49 1PC |
3,805 | 2.81 |
RFQ |
Datasheet |
Box | ER23/5/13 | Active | ER | ER 23 x 5 x 13 | N49 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.201 (5.10mm) |
|
|
B66482G0000X192FERRITE CORE ER N92 1PC |
2,256 | 2.82 |
RFQ |
Datasheet |
Box | ER23/5/13 | Active | ER | ER 23 x 5 x 13 | N92 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.201 (5.10mm) |
|

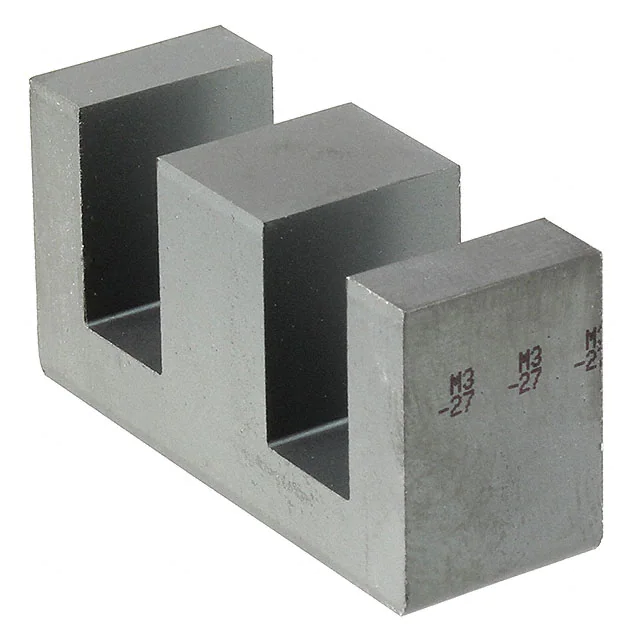

B66325G0000X127FERRITE CORE E N27 1PC |
2,059 | 2.99 |
RFQ |
Datasheet |
Box | E42/21/15 | Active | E | E 42 x 21 x 15 | N27 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.835 (21.20mm) |
|

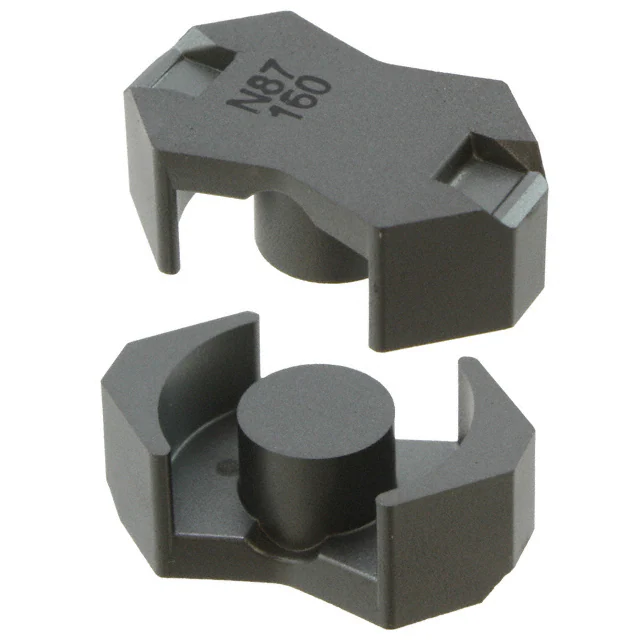

B65807J0160A087FERRITE CORE RM 160NH N87 2PCS |
2,392 | 3.09 |
RFQ |
Datasheet |
Box | RM6 | Active | RM | RM 6 | N87 | - | 160 nH | ±3% | Gapped | 99 | - | 0.78 | 28.6 | 36.6 | 31 | 1050 | Uncoated | 0.246 (6.25mm) |
|
B65811J0160A087FERRITE CORE RM N87 2PCS |
3,909 | 3.28 |
RFQ |
Datasheet |
Box | RM8 | Active | RM | RM 8 | N87 | - | - | - | Gapped | - | - | 0.59 | 38 | 64 | 55 | 2430 | Uncoated | 0.324 (8.25mm) |
|

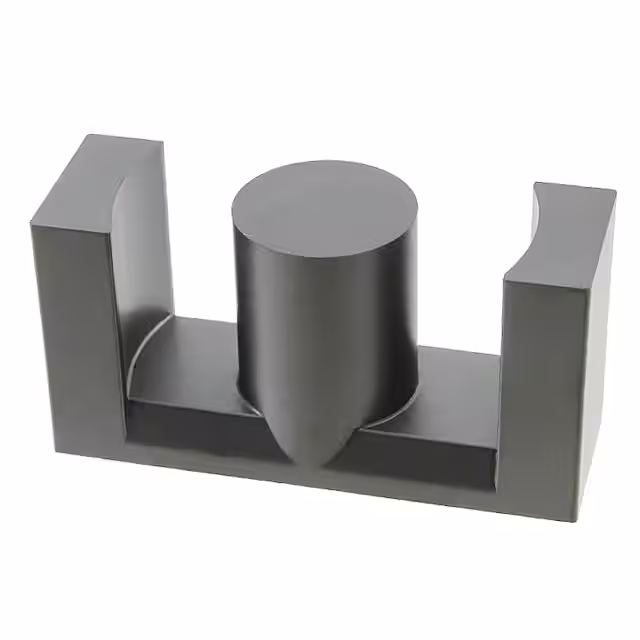

B66365G0000X127FERRITE CORE ETD N27 1PC |
3,444 | 3.35 |
RFQ |
Datasheet |
Box | ETD44/22/15 | Active | ETD | ETD 44 x 22 x 15 | N27 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.886 (22.50mm) |
