| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | CoreType | Material | Diameter | InductanceFactor(Al) | Tolerance | Gap | EffectivePermeability(µe) | InitialPermeability(µi) | CoreFactor(ΣI/A)mm-1 | EffectiveLength(le)mm | EffectiveArea(Ae)mm² | MinimumCoreCrossSection(Amin)mm² | EffectiveMagneticVolume(Ve)mm³ | Finish | Height | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

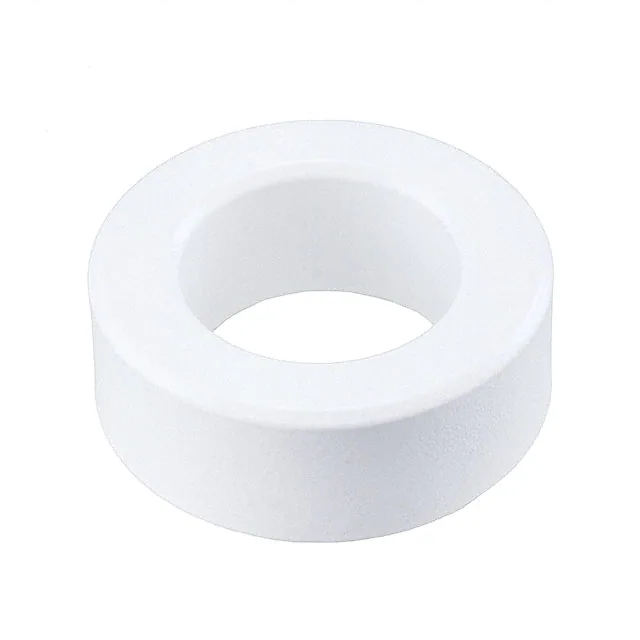

TX55/32/18-3C94FERRITE CORES ROUND |
191 | 14.15 |
RFQ |
Datasheet |
Bulk | - | Active | Toroid | TX 55 x 32 x 18 | 3C94 | 2.264 (57.50mm) | - | ±25% | Ungapped | 2300 | - | 0.651 | 132 | 202 | - | 26580 | Epoxy | 0.756 (19.20mm) |
|
|
TX55/32/18-3E6FERRITE CORES ROUND |
184 | 14.33 |
RFQ |
Datasheet |
Bulk | - | Active | Toroid | TX 55 x 32 x 18 | - | 2.264 (57.50mm) | - | ±30% | Ungapped | 9500 | - | 0.651 | 132 | 202 | - | 26580 | Epoxy | 0.756 (19.20mm) |
|
|
TX55/32/18-3E27FERRITE CORES ROUND |
250 | 14.40 |
RFQ |
Datasheet |
Bulk | - | Active | Toroid | TX 55 x 32 x 18 | 3E27 | 2.264 (57.50mm) | - | - | - | - | - | - | - | - | - | - | Epoxy | 0.756 (19.20mm) |
|
I93/28/16-3C94FERRITE CORE |
3,090 | 16.88 |
RFQ |
Datasheet |
Bulk | - | Active | I | I 93 x 28 x 16 | 3C94 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 1.083 (27.50mm) |
|
PQ50/50-3F36FERRITE CORE 2PC SET |
196 | 17.72 |
RFQ |
Datasheet |
Bulk | - | Active | PQ | PQ 50 x 50 | 3F36 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 1.969 (50.00mm) |
|
PM62/49-3C94FERRITE CORE 2PC SET |
143 | 20.85 |
RFQ |
Datasheet |
Bulk | - | Active | PM | PM 62 x 49 | 3C94 | 2.441 (62.00mm) | - | - | - | - | - | - | - | - | - | - | Uncoated | 1.929 (49.00mm) |
|
TX63/38/25-3C94FERRITE CORES ROUND |
170 | 22.59 |
RFQ |
Datasheet |
Bulk | - | Active | Toroid | - | 3C94 | 2.480 (63.00mm) | - | ±25% | Ungapped | 2300 | - | 0.497 | 152 | 306 | - | 46500 | Epoxy | 0.984 (25.00mm) |
|
|
TX63/38/25-3C90FERRITE CORES ROUND |
134 | 22.59 |
RFQ |
Datasheet |
Bulk | - | Active | Toroid | - | 3C90 | 2.480 (63.00mm) | - | - | - | - | - | - | - | - | - | - | Epoxy | 0.984 (25.00mm) |
|
TX80/40/15-3C94FERRITE CORES ROUND |
324 | 24.62 |
RFQ |
Datasheet |
Bulk | - | Active | Toroid | TX 80 x 40 x 15 | 3C94 | 3.268 (83.00mm) | - | ±25% | Ungapped | 2300 | - | 0.604 | 174 | 288 | - | 50200 | Epoxy | 0.626 (15.90mm) |
|
|
TX80/40/15-3C90FERRITE CORES ROUND |
258 | 24.62 |
RFQ |
Datasheet |
Bulk | - | Active | Toroid | TX 80 x 40 x 15 | 3C90 | 3.268 (83.00mm) | - | - | - | - | - | - | - | - | - | - | Epoxy | 0.626 (15.90mm) |
|
|
TX63/38/25-3E27FERRITE CORES ROUND |
322 | 24.82 |
RFQ |
Datasheet |
Bulk | - | Active | Toroid | - | 3E27 | 2.480 (63.00mm) | - | - | - | - | - | - | - | - | - | - | Epoxy | 0.984 (25.00mm) |
|
|
I93/28/30-3C94FERRITE CORE |
138 | 30.40 |
RFQ |
Datasheet |
Bulk | - | Active | I | I 93 x 28 x 30 | 3C94 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 1.083 (27.50mm) |
|
U100/57/25-3C90CORES |
608 | 33.01 |
RFQ |
Datasheet |
Bulk | - | Active | U | U 100 x 57 x 25 | - | - | - | - | - | - | - | - | - | - | - | - | Uncoated | - |
|
TX58/41/18-4C65FERRITE CORES ROUND |
567 | 33.19 |
RFQ |
Datasheet |
Bulk | - | Active | Toroid | TX 58 x 41 x 18 | 4C65 | 2.354 (59.80mm) | - | - | - | - | - | - | - | - | - | - | Epoxy | 0.729 (18.60mm) |
|
U93/76/30-3C90CORES |
652 | 50.93 |
RFQ |
Datasheet |
Bulk | - | Active | U | U 93 x 76 x 30 | - | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 2.992 (76.00mm) |
|
|
TX80/40/15-4C65FERRITE CORES ROUND |
306 | 66.46 |
RFQ |
Datasheet |
Bulk | - | Active | Toroid | TX 80 x 40 x 15 | 4C65 | 3.268 (83.00mm) | - | - | - | - | - | - | - | - | - | - | Epoxy | 0.626 (15.90mm) |
|
TX14/9/5-3E10-MFERRITE CORES ROUND |
2,945 | 0.57 |
RFQ |
Datasheet |
Bulk | - | Active | Toroid | TX 14 x 9 x 5 | - | 0.561 (14.25mm) | - | ±30% | Ungapped | - | - | 2.84 | 35 | 12.3 | - | 430 | Epoxy | 0.207 (5.25mm) |
|
TX10/6/4-3C90FERRITE CORES ROUND |
3,262 | 0.72 |
RFQ |
Bulk | - | Active | Toroid | - | 3C90 | - | - | - | - | - | - | - | - | - | - | - | Epoxy | 0.167 (4.25mm) | |
|
TX16/9.1/4.7-3E6FERRITE CORES ROUND |
2,162 | 0.90 |
RFQ |
Datasheet |
Bulk | - | Active | Toroid | TX 16 x 9.1 x 4.7 | - | 0.635 (16.13mm) | - | - | - | - | - | - | - | - | - | - | Epoxy | 0.195 (4.95mm) |
|
TX13/7.1/4.8-3E12FERRITE CORES ROUND |
3,878 | 1.00 |
RFQ |
Datasheet |
Bulk | - | Active | Toroid | TX 13 x 7.1 x 4.8 | - | 0.510 (12.95mm) | - | - | Ungapped | - | - | 2.4 | 29.5 | 12.3 | - | 361 | Epoxy | 0.198 (5.03mm) |
