| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | EncoderType | OutputType | PulsesperRevolution | Voltage-Supply | ActuatorType | Detent | BuiltinSwitch | MountingType | Orientation | TerminationStyle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HEDS-9100#C00ROTARY ENCODER OPTICAL 100PPR |
118 | 32.04 |
RFQ |
Datasheet |
Bulk | HEDS | Active | Optical | Quadrature (Incremental) | 100 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins |
|
AEAT-9955-10018B SINGLE MAG ENC MULTIPLE AXIS |
275 | 20.95 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | AEAT-9955 | Active | Absolute | PWM | Programmable | - | - | No | No | Surface Mount | - | Surface Mount (SMD,SMT) | |
|
AEDR-9820-100ENCODER 225LPI, REEL 1KPC |
982 | 29.06 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | AEDR | Active | Optical | Digital | Programmable | 3.3V, 5V | Codewheel Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | |
|
|
AEDR-9820-102ENCODER 225LPI, REEL 100PC |
153 | 29.06 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | AEDR | Active | Optical | Digital | Programmable | 3.3V, 5V | Codewheel Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | |
|
HEDS-5640#A06ROTARY ENCODER OPTICAL 500PPR |
3,384 | 55.92 |
RFQ |
Datasheet |
Bulk | HEDS | Active | Optical | Quadrature with Index (Incremental) | 500 | 5V | 1/4 Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins |
|

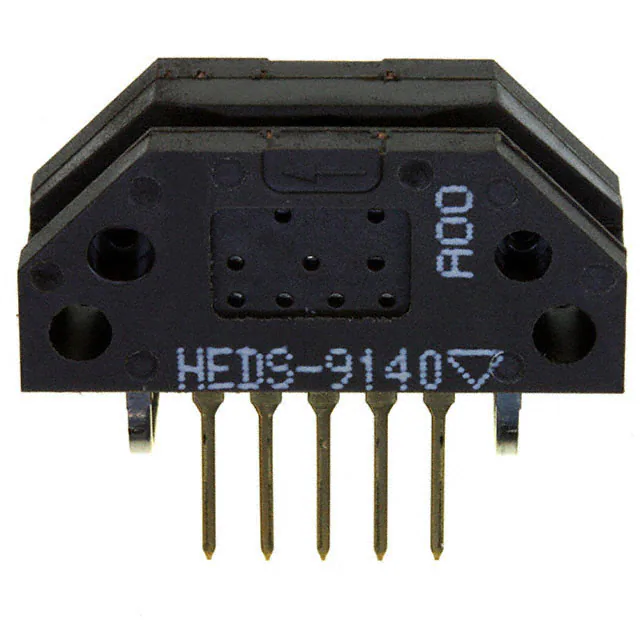

HEDS-9140#A00ROTARY ENCODER OPTICAL 500PPR |
3,241 | 41.48 |
RFQ |
Datasheet |
Bulk | HEDS | Active | Optical | Quadrature with Index (Incremental) | 500 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins |
|

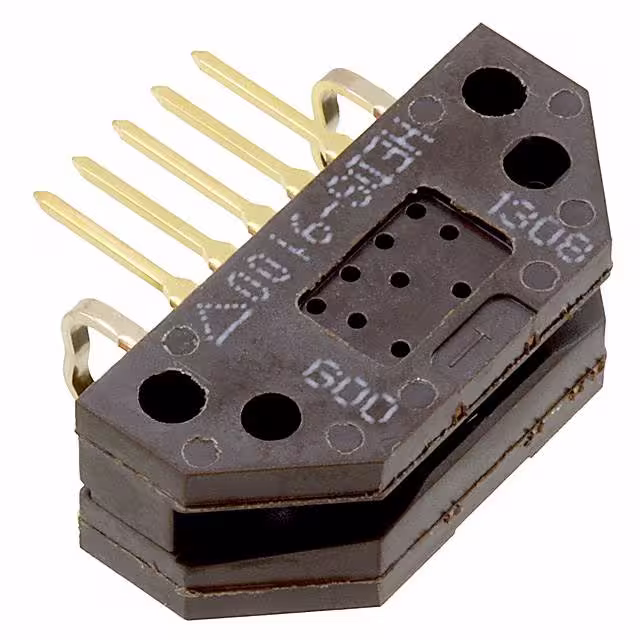

HEDS-9100#G00ROTARY ENCODER OPTICAL 360PPR |
3,623 | 32.04 |
RFQ |
Datasheet |
Bulk | HEDS | Active | Optical | Quadrature (Incremental) | 360 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins |
|
HEDS-5540#A02ROTARY ENCODER OPTICAL 500PPR |
3,541 | 55.92 |
RFQ |
Datasheet |
Bulk | HEDS | Active | Optical | Quadrature with Index (Incremental) | 500 | 5V | 3mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins |
|
HEDS-5540#I06ROTARY ENCODER OPTICAL 512PPR |
3,554 | 55.92 |
RFQ |
Datasheet |
Bulk | HEDS | Active | Optical | Quadrature with Index (Incremental) | 512 | 5V | 1/4 Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins |
|
HEDS-5540#A12ROTARY ENCODER OPTICAL 500PPR |
2,486 | 55.92 |
RFQ |
Datasheet |
Bulk | HEDS | Active | Optical | Quadrature with Index (Incremental) | 500 | 5V | 6mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins |
|
HEDS-5605#A06ROTARY ENCODER OPTICAL 500PPR |
2,419 | 55.92 |
RFQ |
Datasheet |
Bulk | HEDS | Active | Optical | Quadrature (Incremental) | 500 | 5V | 1/4 Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins |
|
AR25-A20TALUM CW 1024,THRU ID 20MM |
2,751 | 98.61 |
RFQ |
Tray | - | Active | - | - | 1024 | - | - | No | No | - | - | - | |
|
|
AR25-A30TALUM CW 1024,THRU ID 30MM |
2,466 | 98.61 |
RFQ |
Tray | - | Active | - | - | 1024 | - | - | No | No | - | - | - | |
|
|
AR25-A15TALUM CW 1024,THRU ID 15MM |
2,076 | 98.61 |
RFQ |
Tray | - | Active | - | - | 1024 | - | - | No | No | - | - | - | |
|
|
AR25-AB1B-A20TASIC + CW 20MMTHRU H,BISS C |
2,981 | 107.49 |
RFQ |
Tray | - | Active | Optical | BiSS-C | - | - | - | No | No | Surface Mount | - | Surface Mount (SMD,SMT) | |
|
HEDM-5600#J06ROTARY ENCODER OPTICAL 1024PPR |
2,613 | 56.97 |
RFQ |
Datasheet |
Bulk | HEDM | Active | Optical | Quadrature (Incremental) | 1024 | 5V | 1/4 Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins |
|
HEDM-5500#B06ROTARY ENCODER OPTICAL 1000PPR |
2,459 | 56.97 |
RFQ |
Datasheet |
Bulk | HEDM | Active | Optical | Quadrature (Incremental) | 1000 | 5V | 1/4 Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins |
|
AEDM-5810-T06ROTARY ENCODER OPTICAL 2000PPR |
3,064 | 59.58 |
RFQ |
Datasheet |
Bulk | - | Active | Optical | Quadrature with Index (Incremental) | 2000 | 4.5V ~ 5.5V | Hole for Shaft | No | No | Chassis Mount, Motors | Right Angle | Terminal Pins |
|
HEDS-5540#I14ROTARY ENCODER OPTICAL 512PPR |
2,881 | 54.84 |
RFQ |
Datasheet |
Bulk | HEDS | Active | Optical | Quadrature with Index (Incremental) | 512 | 5V | 5mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins |
|
HEDS-5500#I06ROTARY ENCODER OPTICAL 512PPR |
2,049 | 55.92 |
RFQ |
Datasheet |
Bulk | HEDS | Active | Optical | Quadrature (Incremental) | 512 | 5V | 1/4 Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins |
