EMI/RFI Filters (LC, RC Networks)(2269)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | FilterOrder | Technology | NumberofChannels | Center/CutoffFrequency | AttenuationValue | Resistance-Channel(Ohms) | Current | Values | ESDProtection | OperatingTemperature | Applications | Voltage-Rated | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

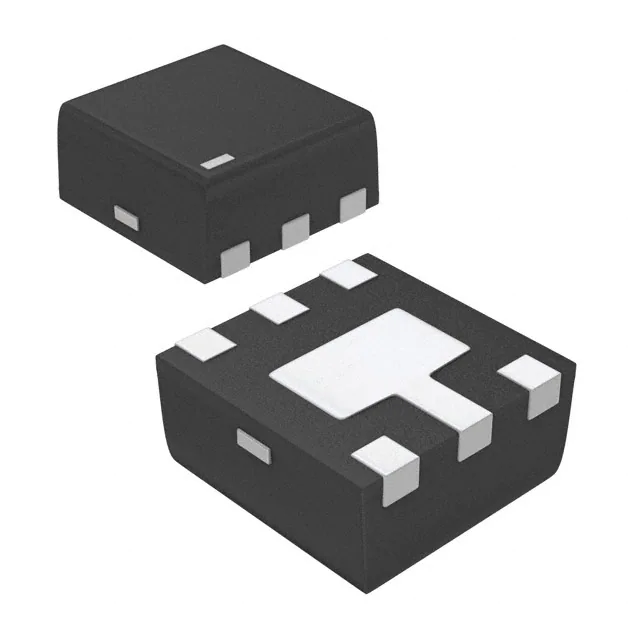

VEMI255A-HS3-GS08FILTER RC(PI) 50 OHM/37PF SMD |
3,495 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | Low Pass | 2nd | RC (Pi) | 2 | 100MHz (Cutoff) | - | 50 | 4 A | R = 50Ohms, C = 37pF | Yes | -40°C ~ 125°C | Data Lines for Mobile Devices | - | Surface Mount | 6-WDFN Exposed Pad |
|
VEMI355A-HA3-GS08FILTER RC(PI) 50 OHM/37PF SMD |
3,207 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | Low Pass | 2nd | RC (Pi) | 3 | 100MHz (Cutoff) | - | 50 | 4 A | R = 50Ohms, C = 37pF | Yes | -40°C ~ 125°C | Data Lines for Mobile Devices | - | Surface Mount | 6-WFDFN Exposed Pad |
|
EZA-CT61AAAJFILTER RC 1 KOHM/22PF SMD |
3,549 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | EZACT | Obsolete | Low Pass | 1st | RC | 4 | - | - | 1k | - | R = 1kOhms, C = 22pF | No | -25°C ~ 85°C | Data Lines for Mobile Devices | 12V | Surface Mount | 0805 (2012 Metric) |
|
NUF6107MNTBGFILTER RC(PI) 100 OHM/30PF SMD |
3,691 | 0.15 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | - | Obsolete | Low Pass | 2nd | RC (Pi) | 4 | - | -35dB @ 800MHz ~ 2.2GHz | 100 | - | R = 100Ohms, C = 30pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | Surface Mount | 12-VFDFN Exposed Pad |
|
NUF8152MUT2GFILTER RC(PI) 125MHZ ESD SMD |
3,849 | 0.27 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | - | Obsolete | Low Pass | 3rd | RC (Pi) | 8 | 125MHz (Cutoff) | -25dB @ 800MHz ~ 3GHz | 28 | - | R = 28Ohms, C = 17pF, L = 1nH | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | Surface Mount | 16-UFDFN Exposed Pad |
|
NUF4000MUT2GFILTER RC(PI) 100 OHM/15PF SMD |
2,171 | 0.22 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Obsolete | Low Pass | 2nd | RC (Pi) | 4 | 105MHz (Cutoff) | -30dB @ 800MHz ~ 5GHz | 100 | - | R = 100Ohms, C = 15pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | Surface Mount | 8-UFDFN Exposed Pad |
|
|
NUF4010MUT2GFILTER RC(PI) 100 OHM/7PF SMD |
3,308 | 0.20 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Obsolete | Low Pass | 2nd | RC (Pi) | 4 | 250MHz (Cutoff) | -20dB @ 800MHz ~ 5GHz | 100 | - | R = 100Ohms, C = 7pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | Surface Mount | 8-UFDFN Exposed Pad |
|
NUF6005MUT2GFILTER RC(PI) 100 OHM/10PF SMD |
2,029 | 0.14 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Obsolete | Low Pass | 2nd | RC (Pi) | 6 | 185MHz (Cutoff) | -25dB @ 800MHz ~ 3GHz | 100 | - | R = 100Ohms, C = 10pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | Surface Mount | 12-UFDFN Exposed Pad |
|
|
NUF8000MUT2GFILTER RC(PI) 100 OHM/15PF SMD |
2,218 | 0.30 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Obsolete | Low Pass | 2nd | RC (Pi) | 8 | 95MHz (Cutoff) | -30dB @ 800MHz ~ 5GHz | 100 | - | R = 100Ohms, C = 15pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | Surface Mount | 16-UFDFN Exposed Pad |
|
|
NUF8010MUT2GFILTER RC(PI) 100 OHM/7PF SMD |
3,005 | 0.28 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Obsolete | Low Pass | 2nd | RC (Pi) | 8 | 215MHz (Cutoff) | -20dB @ 800MHz ~ 5GHz | 100 | - | R = 100Ohms, C = 7pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | Surface Mount | 16-UFDFN Exposed Pad |
|

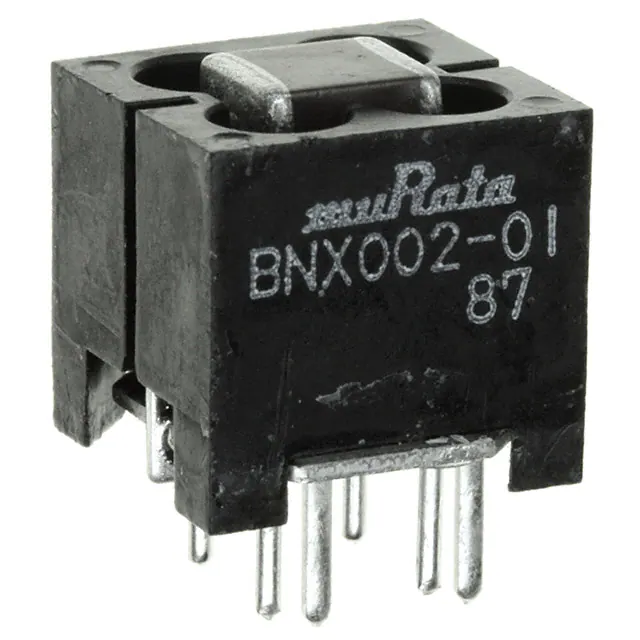

BNX002-01FILTER LC TH |
2,123 | 0.00 |
RFQ |
Datasheet |
Bulk | EMIFIL®, BNX | Obsolete | Low Pass | 5th | LC | 2 | - | 40dB @ 1MHz ~ 1GHz | - | 10 A | - | No | -30°C ~ 85°C | Data Lines for Mobile Devices | 50V | Through Hole | Block, 4 Lead |
|
EMIF02-USB05F2FILTER RC(PI) ESD SMD |
3,967 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | IPAD™ | Obsolete | Low Pass | 2nd | RC (Pi) | 2 | - | - | 33, 1.5k | - | R = 33Ohms, 1.5kOhms, C = 30pF | Yes | -40°C ~ 85°C | USB | - | Surface Mount | 8-WFBGA, FCBGA |
|
EMIF06-1502M12FILTER RC(PI) 170 OHM/14PF SMD |
3,469 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | IPAD™ | Obsolete | Low Pass | 2nd | RC (Pi) | 6 | - | - | 170 | - | R = 170Ohms, C = 14pF (Total) | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | Surface Mount | 12-UFDFN Exposed Pad |
|
EMIF01-1003M3FILTER RC(PI) 100 OHM/30PF SMD |
3,441 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | IPAD™ | Obsolete | Low Pass | 2nd | RC (Pi) | 1 | 900MHz (Cutoff) | -25dB @ 900MHz | 100 | - | R = 100Ohms, C = 30pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | Surface Mount | SC-101, SOT-883 |
 Exposed Pad.jpg)
|

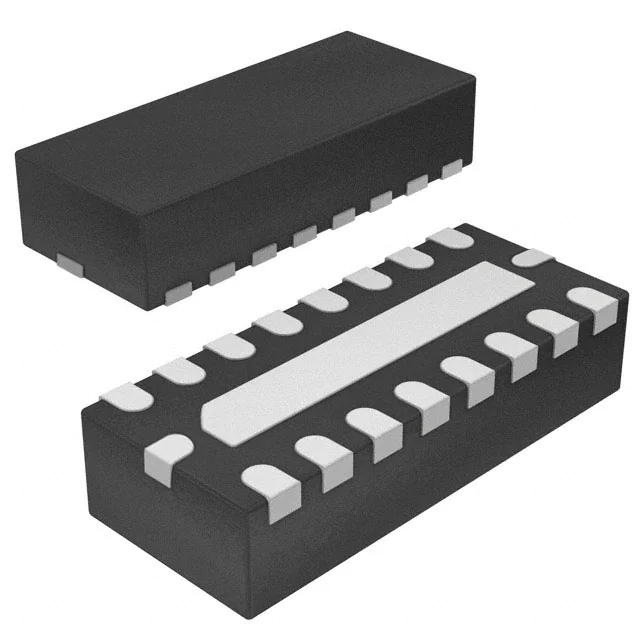

NUF8600MNTXGFILTER RC(PI) 50 OHM/17PF SMD |
2,800 | 0.15 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Obsolete | Low Pass | 2nd | RC (Pi) | 8 | 115MHz (Cutoff) | -25dB @ 800MHz ~ 2.2GHz | 50 | - | R = 50Ohms, C = 17pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | Surface Mount | 16-VFDFN Exposed Pad |
|
NUF8610MNTXGFILTER RC(PI) 50 OHM/8.5PF SMD |
3,676 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Obsolete | Low Pass | 2nd | RC (Pi) | 8 | 260MHz (Cutoff) | -15dB @ 800MHz ~ 2.2GHz | 50 | - | R = 50Ohms, C = 8.5pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | Surface Mount | 16-VFDFN Exposed Pad |
|

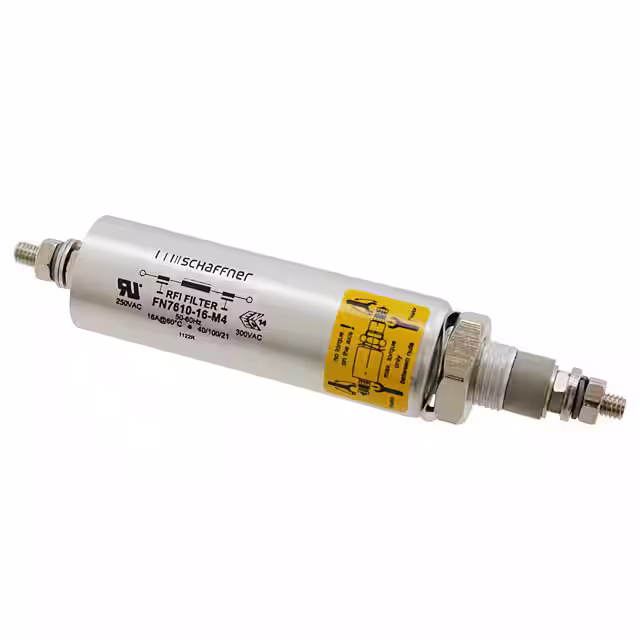

FN7610-16-M4FILTER LC(PI) BOLT MOUNT |
3,979 | 0.00 |
RFQ |
Tray | FN 761X | Obsolete | Low Pass | 3rd | LC (Pi) | 1 | - | - | - | 16 A | - | No | -40°C ~ 100°C | Data Lines for Mobile Devices | 1000V (1kV) | Bolt Mount | Axial - Threaded Terminals | |
|

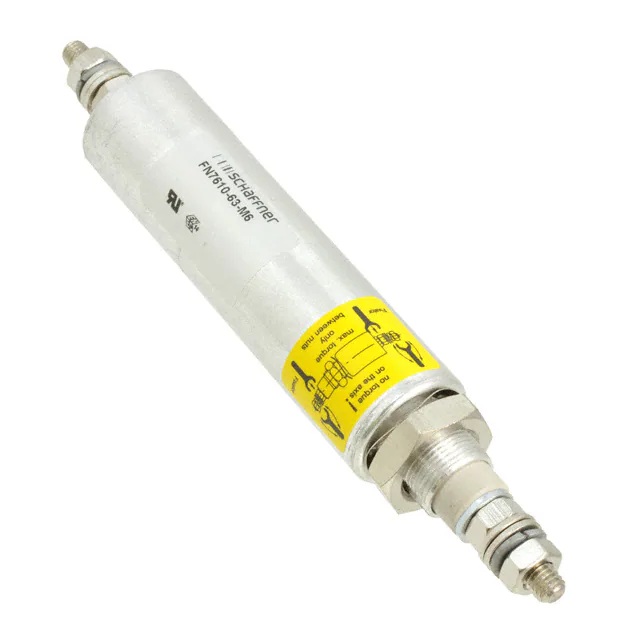

FN7610-63-M6FILTER LC(PI) HOLDER |
2,866 | 0.00 |
RFQ |
Tray | FN 761X | Obsolete | Low Pass | 3rd | LC (Pi) | 1 | - | - | - | 63 A | - | No | -40°C ~ 100°C | Data Lines for Mobile Devices | 1000V (1kV) | Bolt Mount | Axial - Threaded Terminals | |
|

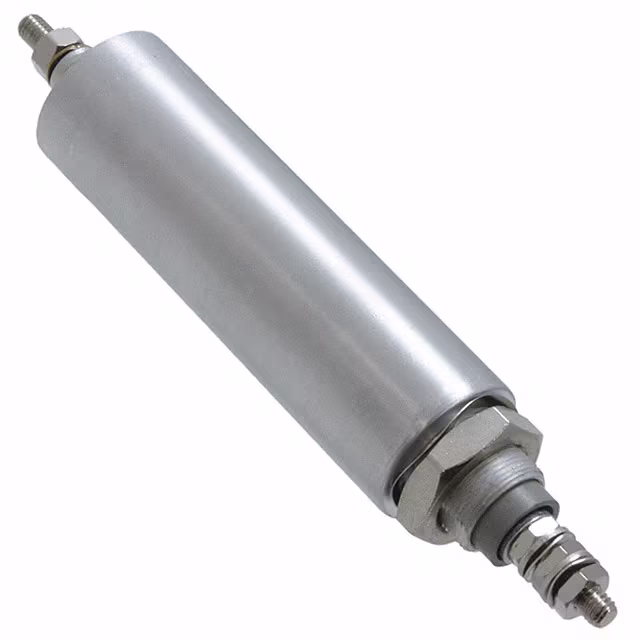

FN7611-63-M6SFILTER LC(PI) 186NH/0.015UH BOLT |
2,394 | 0.00 |
RFQ |
Datasheet |
Tray | FN 761X | Obsolete | Low Pass | 3rd | LC (Pi) | 1 | - | - | 0.00047 | 63 A | L = 186nH, C = 0.015µF | No | -40°C ~ 100°C | Data Lines for Mobile Devices | 1000V (1kV) | Bolt Mount | Axial - Threaded Terminals |
|

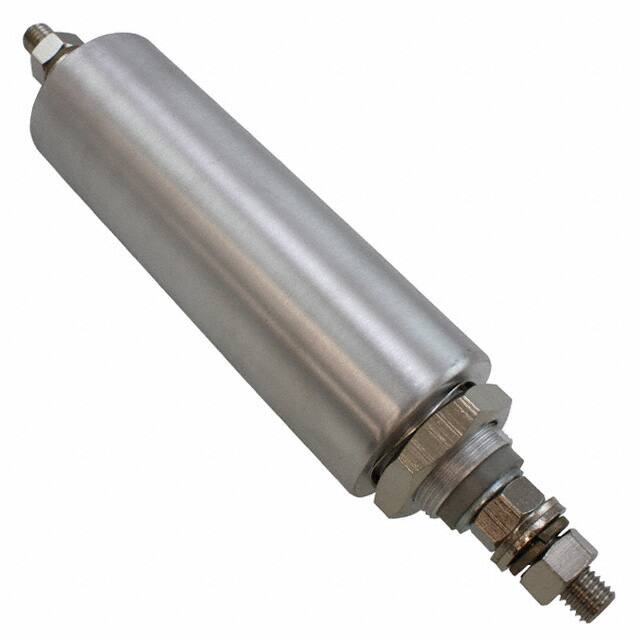

FN7612-250-M12FILTER LC(PI) BOLT MOUNT |
3,374 | 0.00 |
RFQ |
Datasheet |
Tray | FN 761X | Obsolete | Low Pass | 3rd | LC (Pi) | 1 | - | - | - | 250 A | - | No | -40°C ~ 100°C | Data Lines for Mobile Devices | 1000V (1kV) | Bolt Mount | Axial - Threaded Terminals |
