EMI/RFI Filters (LC, RC Networks)(2269)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | FilterOrder | Technology | NumberofChannels | Center/CutoffFrequency | AttenuationValue | Resistance-Channel(Ohms) | Current | Values | ESDProtection | OperatingTemperature | Applications | Voltage-Rated | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
,-4-PC-Pad.jpg)
|

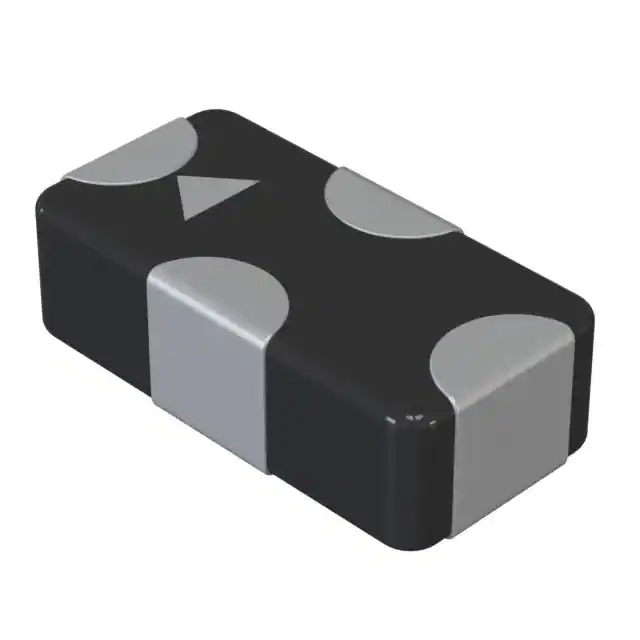

NFL15ST157X0J3DFILTER LC(T) 115NH/22PF SMD |
3,140 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | EMIFIL®, NFL15 | Obsolete | Low Pass | 3rd | LC (T-Type) | 1 | 150MHz (Cutoff) | 6dB @ 0MHz ~ 150MHz | - | 50 mA | L = 115nH, C = 22pF | No | -40°C ~ 85°C | General Purpose | 6.3V | Surface Mount | 0402 (1005 Metric), 4 PC Pad |
|

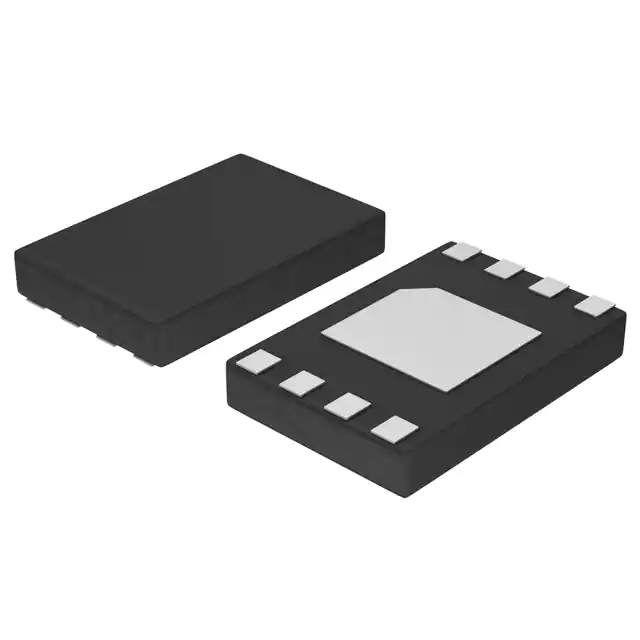

EMI5204MUTAGFILTER RC(PI) 100 OHM/7PF SMD |
3,966 | 0.14 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | EMI520xMU | Obsolete | Low Pass | 2nd | RC (Pi) | 4 | 250MHz (Cutoff) | 20dB @ 800MHz ~ 5GHz | 100 | - | R = 100Ohms, C = 7pF | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | Surface Mount | 8-UFDFN Exposed Pad |
|

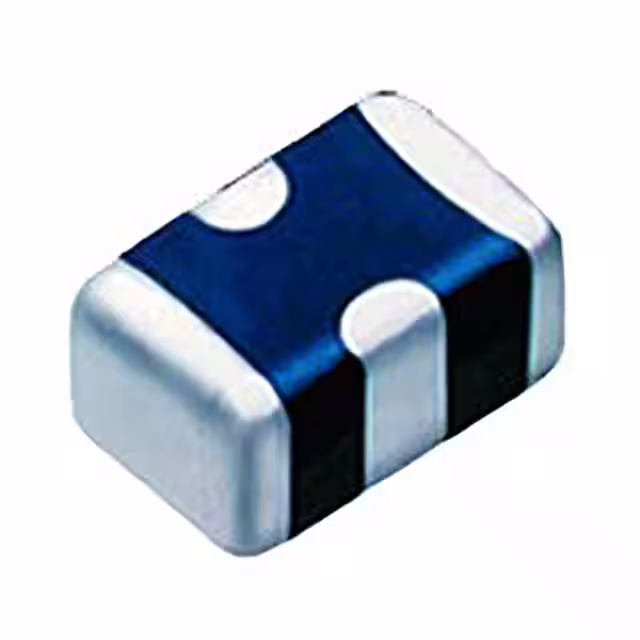

FK2125T186AL-TFILTER LC(T) 18MHZ SMD |
2,352 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FK | Obsolete | Low Pass | 3rd | LC (T-Type) | 1 | 18MHz (Cutoff) | 20dB @ 500MHz | 2 | 100 mA | - | No | -25°C ~ 85°C | Data Lines for Mobile Devices | 10V | Surface Mount | 0805 (2012 Metric), 3 PC Pad |
|
DSS1NB32A102Q93AFILTER LC 1000PF 2A 10% TH |
2,341 | 0.00 |
RFQ |
Datasheet |
Tape & Box (TB) | EMIFIL®, DSS1 | Active | Low Pass | 3rd | LC (T-Type) | 1 | - | - | - | 6 A | - | No | -40°C ~ 85°C | General Purpose | 100V | Through Hole | Radial - 3 Leads |
|
|
DSS1NB32A103Q93AFILTER LC 0.01UF 2A 10% TH |
2,649 | 0.00 |
RFQ |
Datasheet |
Tape & Box (TB) | EMIFIL®, DSS1 | Active | Low Pass | 3rd | LC (T-Type) | 1 | - | - | - | 6 A | - | No | -40°C ~ 85°C | General Purpose | 100V | Through Hole | Radial - 3 Leads |
|
|
DSS1NB32A103Q55BFILTER LC 0.01UF 2A 10% TH |
2,220 | 0.00 |
RFQ |
Datasheet |
Bag | EMIFIL®, DSS1 | Active | Low Pass | 3rd | LC (T-Type) | 1 | - | - | - | 6 A | - | No | -40°C ~ 85°C | General Purpose | 100V | Through Hole | Radial - 3 Leads |
|

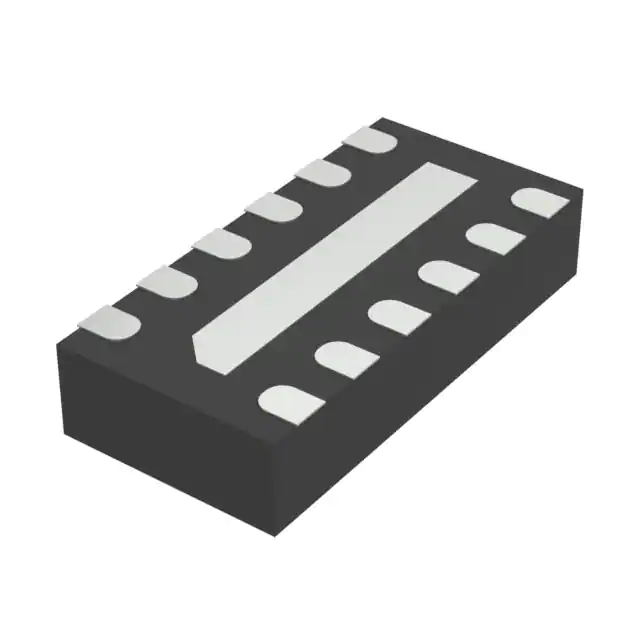

PEMI6QFN/BYP,132FILTER RC(PI) ESD SMD |
3,933 | 0.15 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | PEMIxQFN | Obsolete | Low Pass | 2nd | RC (Pi) | 6 | - | - | - | - | - | Yes | -40°C ~ 85°C | LAN, PCS, WAN | - | Surface Mount | 12-XFDFN |
|
|
PEMI6QFN/HP,132FILTER RC(PI) 45 OHM/18.5PF SMD |
3,764 | 0.15 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | PEMIxQFN | Obsolete | Low Pass | 2nd | RC (Pi) | 6 | - | 17dB @ 800MHz ~ 3GHz | 45 | - | R = 45Ohms, C = 18.5pF (Total) | Yes | -40°C ~ 85°C | LAN, PCS, WAN | - | Surface Mount | 12-XFDFN |
|
|
PEMI6QFN/RW,132FILTER RC(PI) 100 OHM ESD SMD |
3,153 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | PEMIxQFN | Obsolete | Low Pass | 2nd | RC (Pi) | 6 | - | - | 100 | - | R = 100Ohms | Yes | -40°C ~ 85°C | LAN, PCS, WAN | - | Surface Mount | 12-XFDFN |
|
PEMI8QFN/BYP,132FILTER RC(PI) ESD SMD |
3,020 | 0.18 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | PEMIxQFN | Obsolete | Low Pass | 2nd | RC (Pi) | 8 | - | - | - | - | - | Yes | -40°C ~ 85°C | LAN, PCS, WAN | - | Surface Mount | 16-XFDFN Exposed Pad |
|
|
PEMI8QFN/HP,132FILTER RC(PI) 45 OHM/18.5PF SMD |
3,809 | 0.18 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | PEMIxQFN | Obsolete | Low Pass | 2nd | RC (Pi) | 8 | - | 17dB @ 800MHz ~ 3GHz | 45 | - | R = 45Ohms, C = 18.5pF (Total) | Yes | -40°C ~ 85°C | LAN, PCS, WAN | - | Surface Mount | 16-XFDFN Exposed Pad |
|

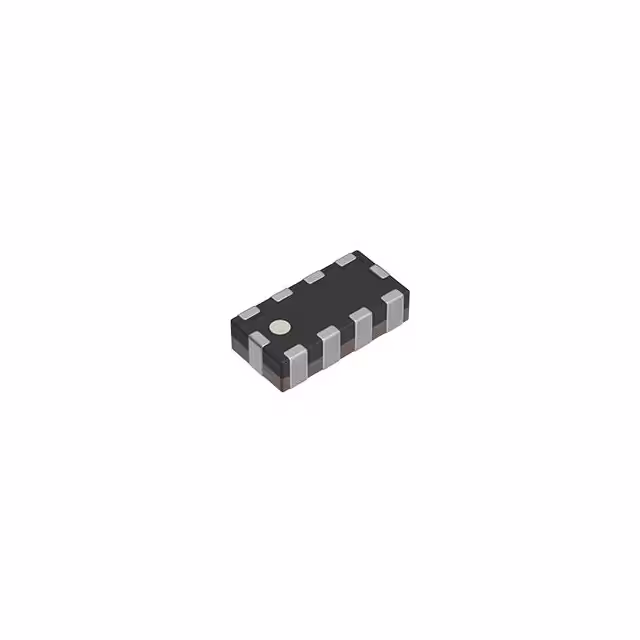

MEA2010LD120T002FILTER LC 12PF SMD |
3,107 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | MEA | Active | Low Pass | 3rd | LC | 4 | - | - | - | 100 mA | C = 12pF | No | -40°C ~ 85°C | Data Lines for Mobile Devices | 6.3V | Surface Mount | 0804 (2010 Metric), Array, 10 PC Pad |
|
|
MEA2010LD170T002FILTER LC 17PF SMD |
2,077 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | MEA | Active | Low Pass | 3rd | LC | 4 | 330MHz (Cutoff) | - | - | 100 mA | C = 17pF | No | -40°C ~ 85°C | Data Lines for Mobile Devices | 6.3V | Surface Mount | 0804 (2010 Metric), Array, 10 PC Pad |
|
|
MEA2010LD220T002FILTER LC 22PF SMD |
3,061 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | MEA | Active | Low Pass | 3rd | LC | 4 | - | - | - | 100 mA | C = 22pF | No | -40°C ~ 85°C | Data Lines for Mobile Devices | 6.3V | Surface Mount | 0804 (2010 Metric), Array, 10 PC Pad |
|
|
EMI7403FCTBGFILTER RLC 40 OHM ESD SMD |
3,075 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | Low Pass | 3rd | RLC | 6 | 300MHz (Cutoff) | 20dB @ 700MHz | 40 | - | R = 40Ohms | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | Surface Mount | 15-XFBGA, WLCSP |
|
|
EMIF07-LCD03F3IC EMI FILTER ESD PROT CSP |
2,190 | 0.00 |
RFQ |
Datasheet |
Tube | IPAD™ | Obsolete | Low Pass | 3rd | LC (Pi) | 7 | - | -40dB @ 900MHz ~ 2GHz | - | - | R = 125Ohms, C = 30pF (Total) | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | Surface Mount | 18-WFBGA, FCBGA |
|

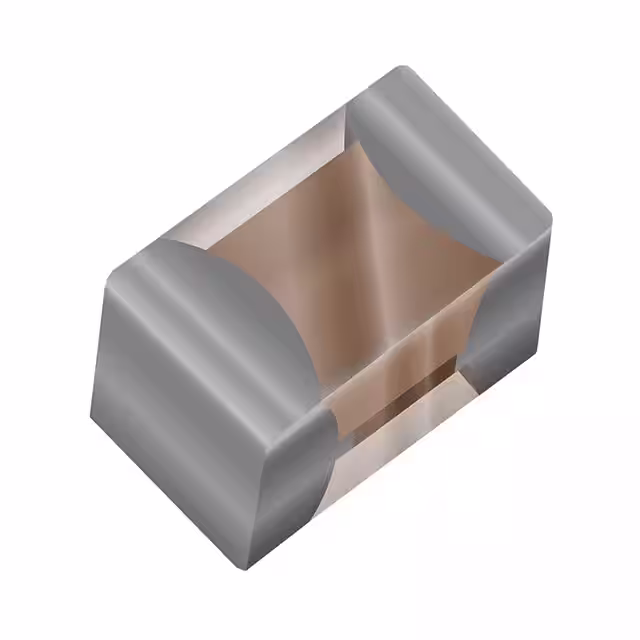

GEQ25R0F0R5ATTR0402, 25 OHM, .5 PF |
3,727 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 0402 (1005 Metric) |
|
|
EMI9106MUTAGEMI FILTER MICROSD INTERFACES |
2,064 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | Low Pass | 3rd | RLC | 6 | 300MHz (Cutoff) | - | 40 | - | R = 40Ohms, C = 12pF, L = 20nH | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | Surface Mount | 16-UFDFN Exposed Pad |
|
DSS1NB32A222Q55BEMI SUPPRESSION FILTERS |
3,140 | 0.00 |
RFQ |
Datasheet |
Bulk | EMIFIL®, DSS1 | Active | Low Pass | 3rd | LC (T-Type) | 1 | - | - | - | 6 A | - | No | -40°C ~ 85°C | General Purpose | 100V | Through Hole | Radial - 3 Leads |
|
|
DSS1NB32A222Q93AEMI SUPPRESSION FILTERS |
3,508 | 0.00 |
RFQ |
Datasheet |
Tape & Box (TB) | EMIFIL®, DSS1 | Active | Low Pass | 3rd | LC (T-Type) | 1 | - | - | - | 6 A | - | No | -40°C ~ 85°C | General Purpose | 100V | Through Hole | Radial - 3 Leads |
