| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | MountingType | FuseType | CurrentRating(Amps) | VoltageRating-AC | VoltageRating-DC | ResponseTime | Applications | Features | Class | ApprovalAgency | OperatingTemperature | BreakingCapacity@RatedVoltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PSR033DL1000XFUSE SQUARE 1KA 700VAC/600VDC |
2,042 | 506.25 |
RFQ |
Datasheet |
- | Box | POWR-SPEED® PSR | Active | Bolt Mount | Square | 1kA | 700 V | 600 V | Fast Blow | Semiconductors | Indicating | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC |
|

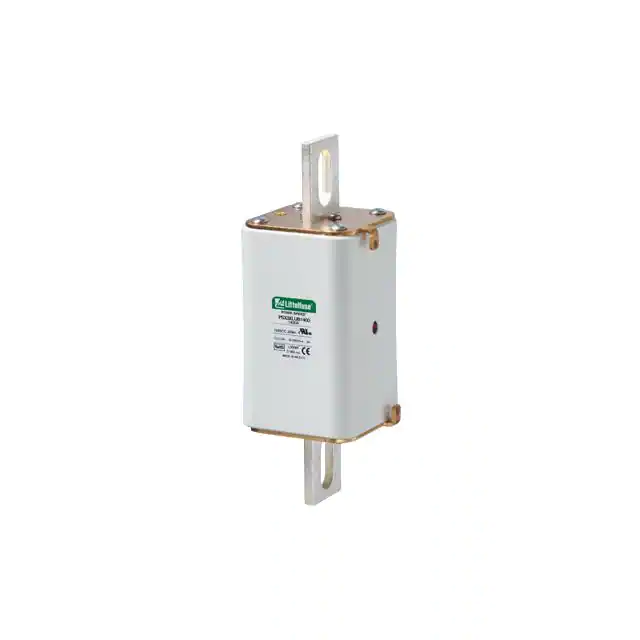

PSX3XLUB0900XFUSE SEMI 1500VDC 3XL SIZE 900A |
2,926 | 1817.36 |
RFQ |
Datasheet |
Rectangular, Blade | Box | POWR-SPEED® PSX | Active | Bolt Mount | Square | 900A | - | 1.5 kV | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 200kA |
|

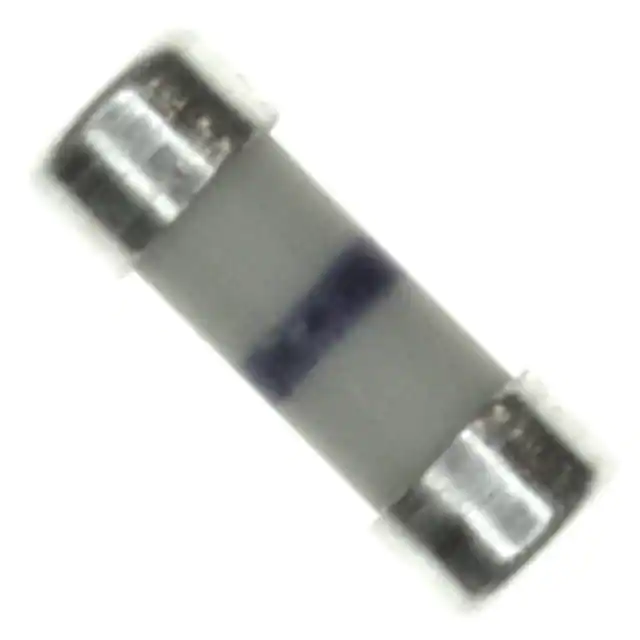

0242.100URFUSE CARTRIDGE 100MA 250VAC/VDC |
2,199 | 6.12 |
RFQ |
Datasheet |
Cartridge, Non-Standard | Tape & Reel (TR),Cut Tape (CT) | 242 | Active | Surface Mount | Cartridge | 100mA | 250 V | 250 V | Fast Blow | Hazardous Locations | Intrinsically Safe | - | cURus | -40°C ~ 125°C | 4kA |
|

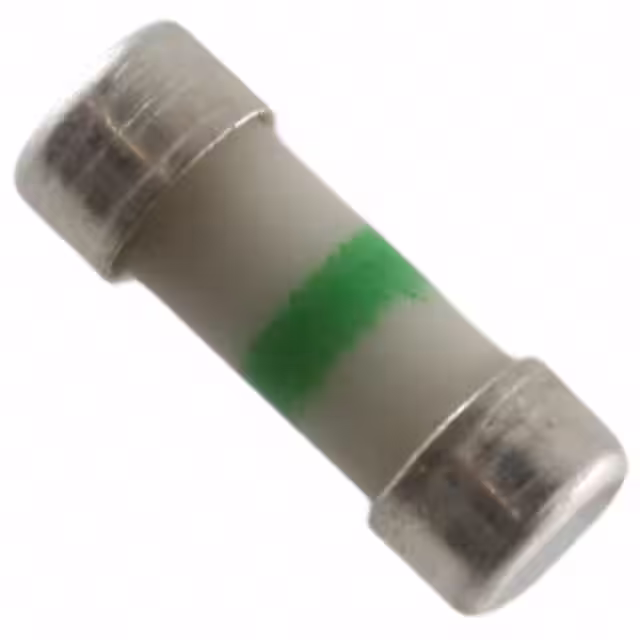

0242.080URFUSE CARTRIDGE 80MA 250VAC/VDC |
3,970 | 6.12 |
RFQ |
Datasheet |
Cartridge, Non-Standard | Tape & Reel (TR),Cut Tape (CT) | 242 | Active | Surface Mount | Cartridge | 80mA | 250 V | 250 V | Fast Blow | Hazardous Locations | Intrinsically Safe | - | cURus | -40°C ~ 125°C | 4kA |
|
0KLK025.TFUSE CARTRIDGE 25A 600VAC/500VDC |
3,776 | 22.39 |
RFQ |
Datasheet |
5AG, 10mm x 38mm (Midget) | Bulk | POWR-GARD® KLK | Active | Holder | Cartridge | 25A | 600 V | 500 V | Fast Blow | Electrical, Industrial | - | - | CE, CSA, QPL, UL | - | 100kA AC, 50kA DC |
|

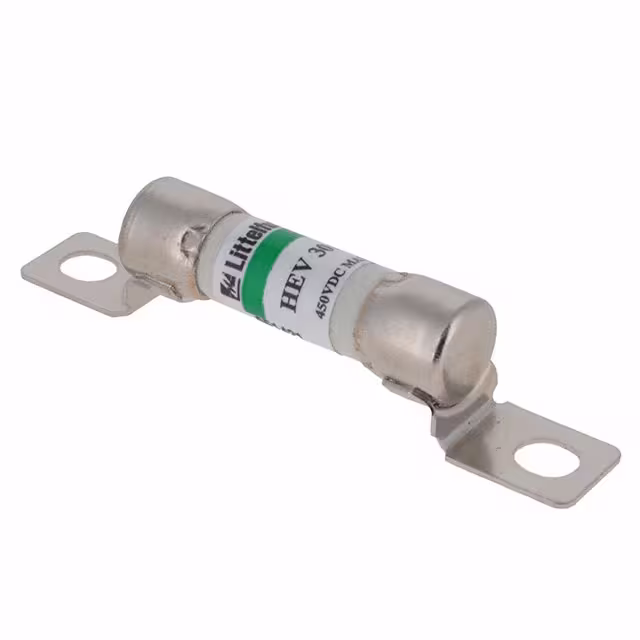

0HEV030.ZXISOFUSE CARTRIDGE 30A 450VDC BOLT |
2,362 | 22.41 |
RFQ |
Datasheet |
Cylindrical, Blade Terminal (Bolt) | Bulk | LC HEV | Active | Bolt Mount | Cartridge | 30A | - | 450 V | - | Lift Trucks | - | - | - | -40°C ~ 125°C | 10kA |
|

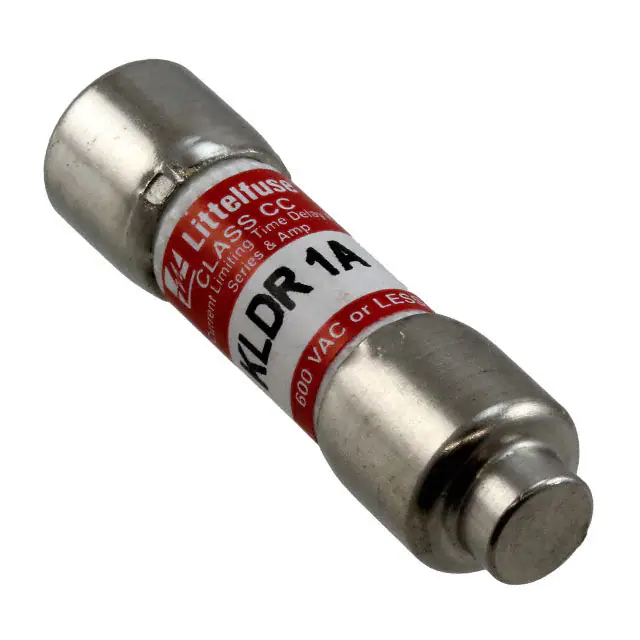

KLDR001.TXPFUSE CARTRIDGE 1A 600VAC/300VDC |
2,044 | 23.61 |
RFQ |
Datasheet |
5AG, 10mm x 38mm (Midget) | Bulk | POWR-GARD® KLDR | Active | Holder | Cartridge | 1A | 600 V | 300 V | Slow Blow | Transformer Protection | - | CC | CE, CSA, UL | - | 200kA AC, 20kA DC |
|

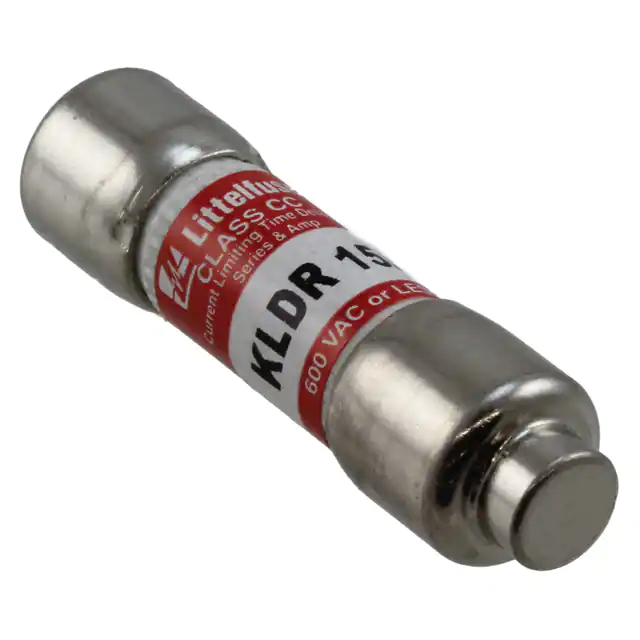

KLDR015.TXPFUSE CARTRIDGE 15A 600VAC/300VDC |
3,137 | 24.03 |
RFQ |
Datasheet |
5AG, 10mm x 38mm (Midget) | Bulk | POWR-GARD® KLDR | Active | Holder | Cartridge | 15A | 600 V | 300 V | Slow Blow | Transformer Protection | - | CC | CE, CSA, UL | - | 200kA AC, 20kA DC |
|

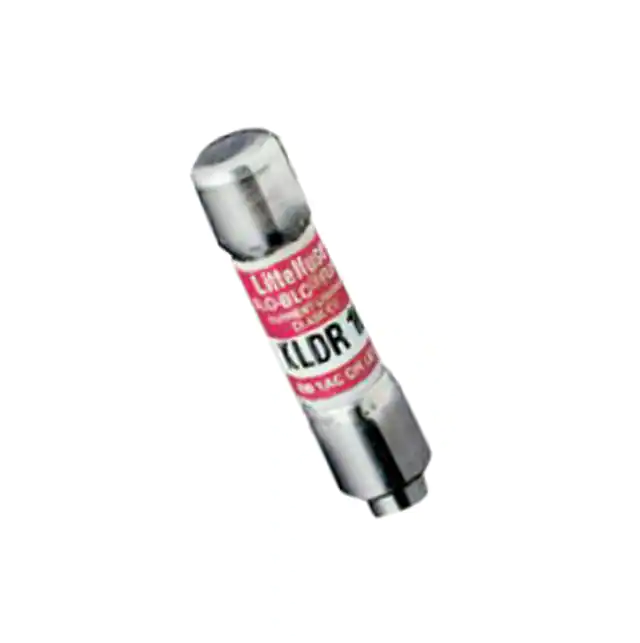

KLDR002.TXPFUSE CARTRIDGE 2A 600VAC/300VDC |
3,552 | 24.17 |
RFQ |
Datasheet |
5AG, 10mm x 38mm (Midget) | Bulk | POWR-GARD® KLDR | Active | Holder | Cartridge | 2A | 600 V | 300 V | Slow Blow | Transformer Protection | - | CC | CE, CSA, UL | - | 200kA AC, 20kA DC |
|
KLKR001.TFUSE CARTRIDGE 1A 600VAC/300VDC |
2,350 | 24.90 |
RFQ |
Datasheet |
5AG, 10mm x 38mm (Midget) | Bulk | POWR-GARD® KLKR | Active | Holder | Cartridge | 1A | 600 V | 300 V | Fast Blow | Electrical, Industrial | - | CC | CE, CSA, UL | - | 200kA AC, 20kA DC |
|

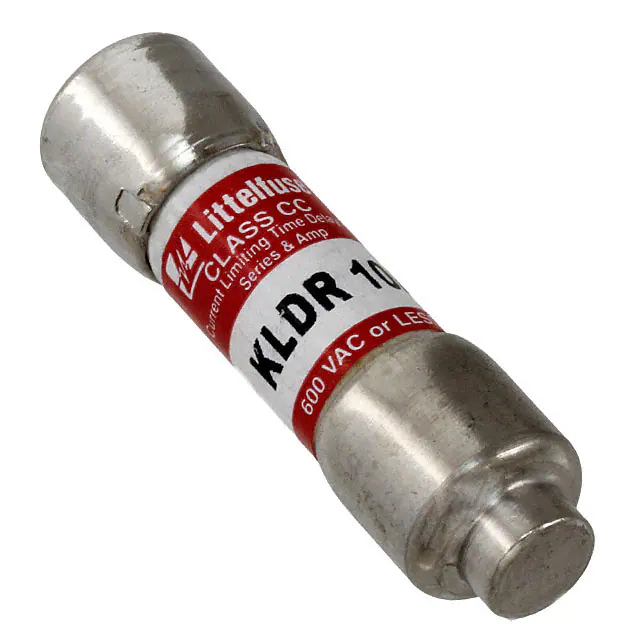

KLDR010.TXPFUSE CARTRIDGE 10A 600VAC/300VDC |
3,094 | 25.41 |
RFQ |
Datasheet |
5AG, 10mm x 38mm (Midget) | Bulk | POWR-GARD® KLDR | Active | Holder | Cartridge | 10A | 600 V | 300 V | Slow Blow | Transformer Protection | - | CC | CE, CSA, UL | - | 200kA AC, 20kA DC |
|

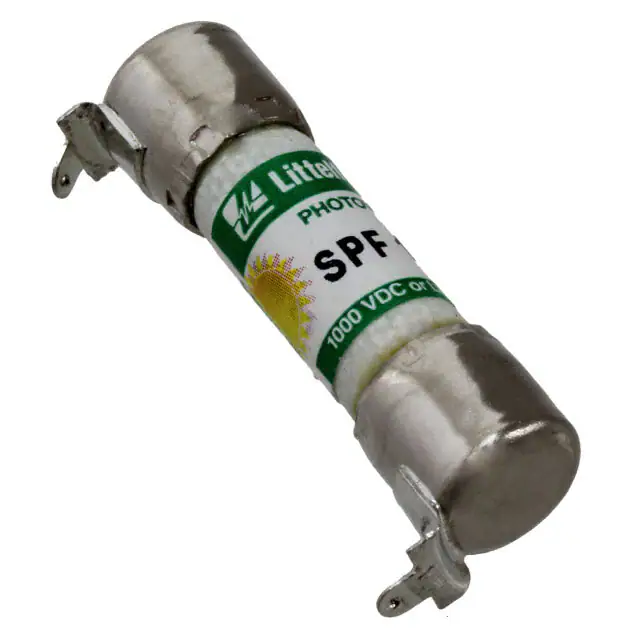

0SPF015.HXRFUSE CARTRIDGE 15A 1KVDC 5AG |
2,422 | 25.42 |
RFQ |
Datasheet |
5AG, 10mm x 38mm (Midget) | Bulk | POWR-GARD® SPF | Active | Through Hole | Cartridge | 15A | - | 1 kV | Fast Blow | Solar (Photovoltaic) | - | - | CE, CSA, UL | - | 20kA |
|
SPFJ160.XFUSE CARTRIDGE 160A 600VAC/1KVDC |
2,989 | 166.17 |
RFQ |
Datasheet |
Cylindrical, Blade Terminals | Bulk | POWR-GARD® SPFJ | Active | Holder | Cartridge | 160A | 600 V | 1 kV | Fast Blow | Solar (Photovoltaic) | - | J | CE, cULus, UL, VDE | - | 200kA AC, 20kA DC |
|
0259.062TFUSE BRD MNT 62MA 125VAC/VDC RAD |
2,486 | 7.36 |
RFQ |
Datasheet |
Radial, Can, Horizontal | Bulk | 259 | Active | Through Hole | Board Mount | 62mA | 125 V | 125 V | Fast Blow | Hazardous Locations | Intrinsically Safe | - | Baseefa, UR | -55°C ~ 90°C | 50A AC, 300A DC |
|

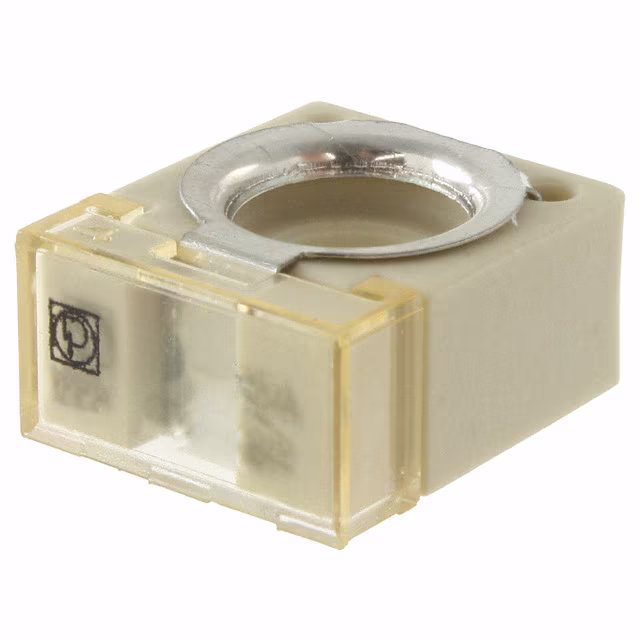

155.0892.5751FUSE SQUARE 75A 58VDC RECT |
2,503 | 9.88 |
RFQ |
Datasheet |
Rectangular | Bulk | CF8 | Active | Bolt Mount | Square | 75A | - | 58 V | - | Electrical, Industrial | Indicating | - | cURus | - | 2kA |
|
0305.160HFUSE BRD MNT 160MA 277VAC/VDC |
2,337 | 19.21 |
RFQ |
Datasheet |
Radial, Can, Horizontal | Bulk | PICO® 305 | Active | Through Hole | Board Mount | 160mA | 277 V | 277 V | - | Hazardous Locations | Intrinsically Safe | - | ATEX, cURus, IECEx | -40°C ~ 50°C | 1.5kA |
|

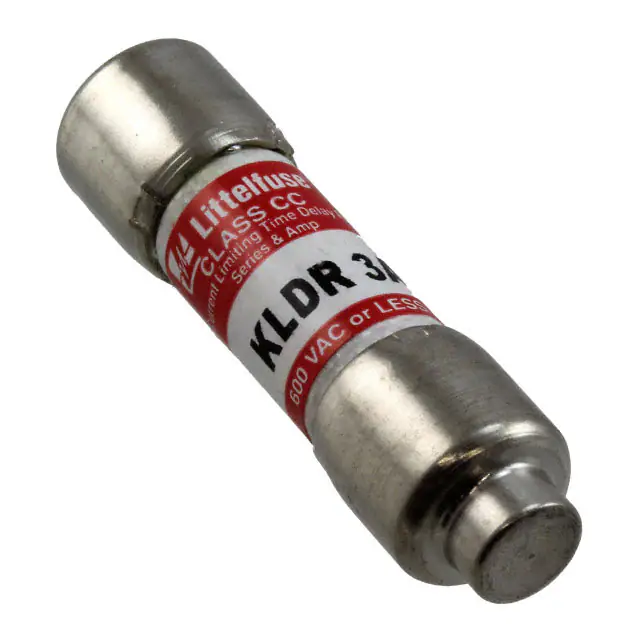

KLDR003.TXPFUSE CARTRIDGE 3A 600VAC/300VDC |
3,806 | 24.17 |
RFQ |
Datasheet |
5AG, 10mm x 38mm (Midget) | Bulk | POWR-GARD® KLDR | Active | Holder | Cartridge | 3A | 600 V | 300 V | Slow Blow | Transformer Protection | - | CC | CE, CSA, UL | - | 200kA AC, 20kA DC |
|
CCMR003.TXPFUSE CARTRIDGE 3A 600VAC/300VDC |
2,020 | 24.57 |
RFQ |
Datasheet |
5AG, 10mm x 38mm (Midget) | Bulk | POWR-GARD®, POWR-PRO® CCMR | Active | Holder | Cartridge | 3A | 600 V | 300 V | Slow Blow | Motor Protection | - | CC | CE, CSA, UL | - | 300kA AC, 20kA DC |
|
|
CCMR005.TXPFUSE CARTRIDGE 5A 600VAC/250VDC |
2,682 | 24.57 |
RFQ |
Datasheet |
5AG, 10mm x 38mm (Midget) | Bulk | POWR-GARD®, POWR-PRO® CCMR | Active | Holder | Cartridge | 5A | 600 V | 250 V | Slow Blow | Motor Protection | - | CC | CE, UL | - | 200kA AC, 20kA DC |
|
|
KLKR010.TFUSE CARTRIDGE 10A 600VAC/300VDC |
3,350 | 24.90 |
RFQ |
Datasheet |
5AG, 10mm x 38mm (Midget) | Bulk | POWR-GARD® KLKR | Active | Holder | Cartridge | 10A | 600 V | 300 V | Fast Blow | Electrical, Industrial | - | CC | CE, CSA, UL | - | 200kA AC, 20kA DC |
